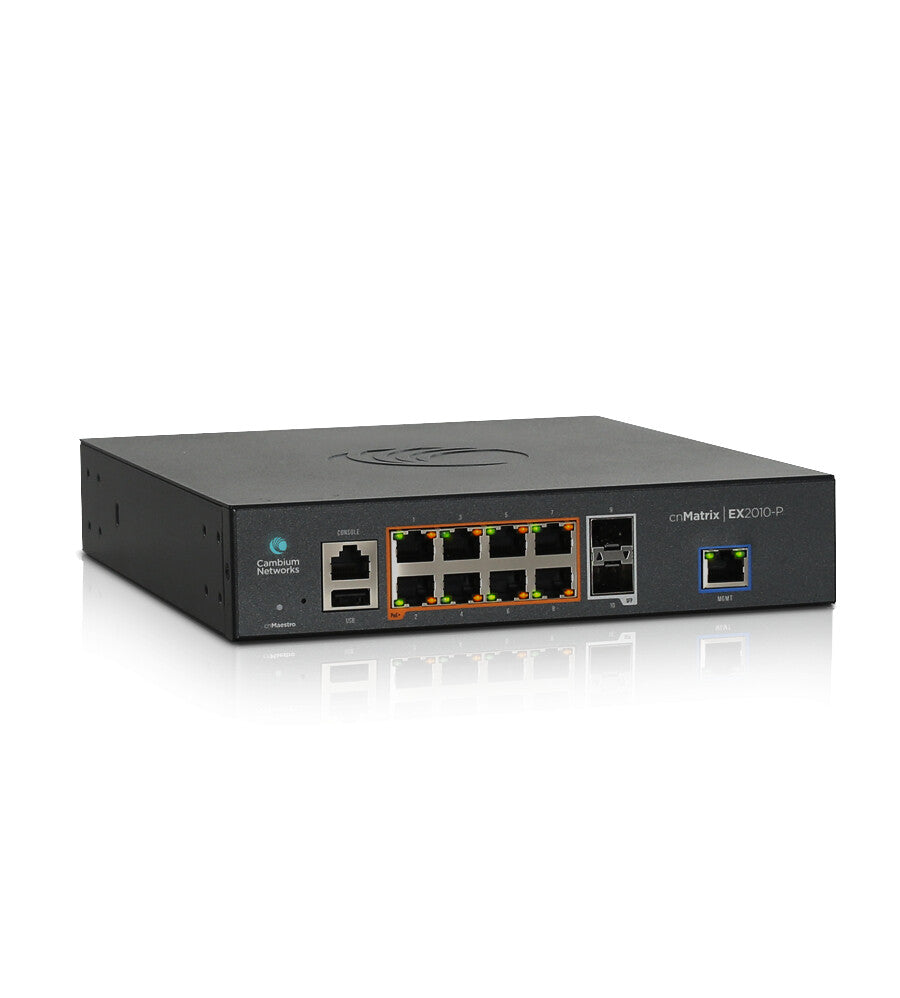

Cambium Networks cnMatrix EX2010-P Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Cambium Networks cnMatrix EX2010-P Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

£800.26 GBP
£800.26 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

MX-EX2010PXA-E

28 in stock

  • Managed L2/L3 Web-based management SNMP v1/v2/v3, Telnet
  • Quality of Service (QoS) support Configuring Location Settings (CLI)
  • Basic switching RJ-45 Ethernet ports quantity: 8 Console port: RS-232
  • 10BASE-T, 100BASE-TX, 1000BASE-T
  • MAC address table: 16000 entries Switching capacity: 20 Gbit/s
  • Access Control List (ACL)
  • 1U Rack mounting Stackable
  • Power supply included Power over Ethernet (PoE)
L2/L3, Managed, 8 x PoE Gigabit Ports, 2 x SFP, Fanless

cnMatrix Switch EX2010-P

Improve network performance while reducing the time and cost of provisioning and management

cnMatrix™ EX2010-P switches simplify network deployment and operation. When deployed with cnPilot™ WLAN access points and the cnMaestro™ management system, network operators have an affordable, feature rich, high quality unified wired/ wireless enterprise grade network with cnMatrix EX2010-P.

Management features
Switch type Managed
Switch layer L2/L3
Quality of Service (QoS) support Yes
Cloud-managed Yes
Web-based management Yes
Traffic classification Yes
Configuring Location Settings (CLI) Yes
Traffic shaping Yes
System event log Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 8
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity 8
SFP module slots quantity 2
Console port RS-232
USB 2.0 ports quantity 1
Network
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support No
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring Yes
Full duplex Yes
Rate limiting Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Spanning tree protocol Yes
Link aggregation Yes
Broadcast storm control Yes
Flow control support Yes
VLAN support Yes
Virtual LAN features Port-based VLAN, Tagged VLAN
Number of VLANs 4000
Data transmission
MAC address table 16000 entries
Switching capacity 20 Gbit/s
Throughput 120 Mpps
Number of queues 8
Static route Yes
Number of static routes 64
Jumbo frames support Yes
Jumbo frames 9000
Security
DHCP features DHCP client, DHCP relay, DHCP server, DHCP snooping
Access Control List (ACL) Yes
IGMP snooping Yes
Password protection Yes
BPDU filtering/protection Yes
Authentication Port-based authentication
Queue scheduling algorithms SP, WRR+SP, Weighted Round Robin (WRR)
Authentication type IEEE 802.1x, RADIUS
Security algorithms HTTPS, SSH, SSH-1.5, SSH-2, SSL/TLS
Multicast features
Multicast support Yes
Protocols
Management protocols SNMP v1/v2/v3, Telnet
Design
Rack mounting Yes
Stackable Yes
Form factor 1U
Product colour Black
Reset button Yes
LED indicators Yes
Performance
Built-in processor Yes
Processor frequency 800 MHz
Internal memory 512 MB
Flash memory 128 MB
Fanless Yes
Mean time between failures (MTBF) 338917 h
Power
Power supply included Yes
AC input voltage 100 - 240 V
Power consumption (max) 10.54 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) ports quantity 8
Power over Ethernet (PoE) voltage 54 V
Power over Ethernet (PoE) power per port 30 W
Total Power over Ethernet (PoE) budget 100 W
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 55 - 95%
Weight & dimensions
Width 210 mm
Depth 250 mm
Height 44 mm
Weight 1.99 kg
Logistics data
Harmonized System (HS) code 85176990
