Cambium Networks
Regular price
£420.19 GBP
Regular price
Sale price
£420.19 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:MX-EX1010PXA-E
Low stock: 1 left
- Managed L2/L3 Web-based management
- Quality of Service (QoS) support Configuring Location Settings (CLI)
- Basic switching RJ-45 Ethernet ports quantity: 8 Console port: RS-232
- MAC address table: 16000 entries Switching capacity: 20 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting Stackable
- Power supply included Power over Ethernet (PoE)
20 Gbps throughput, 8 PoE enabled ports, 8 10/100/1000 ports, 2 SFP Uplink ports

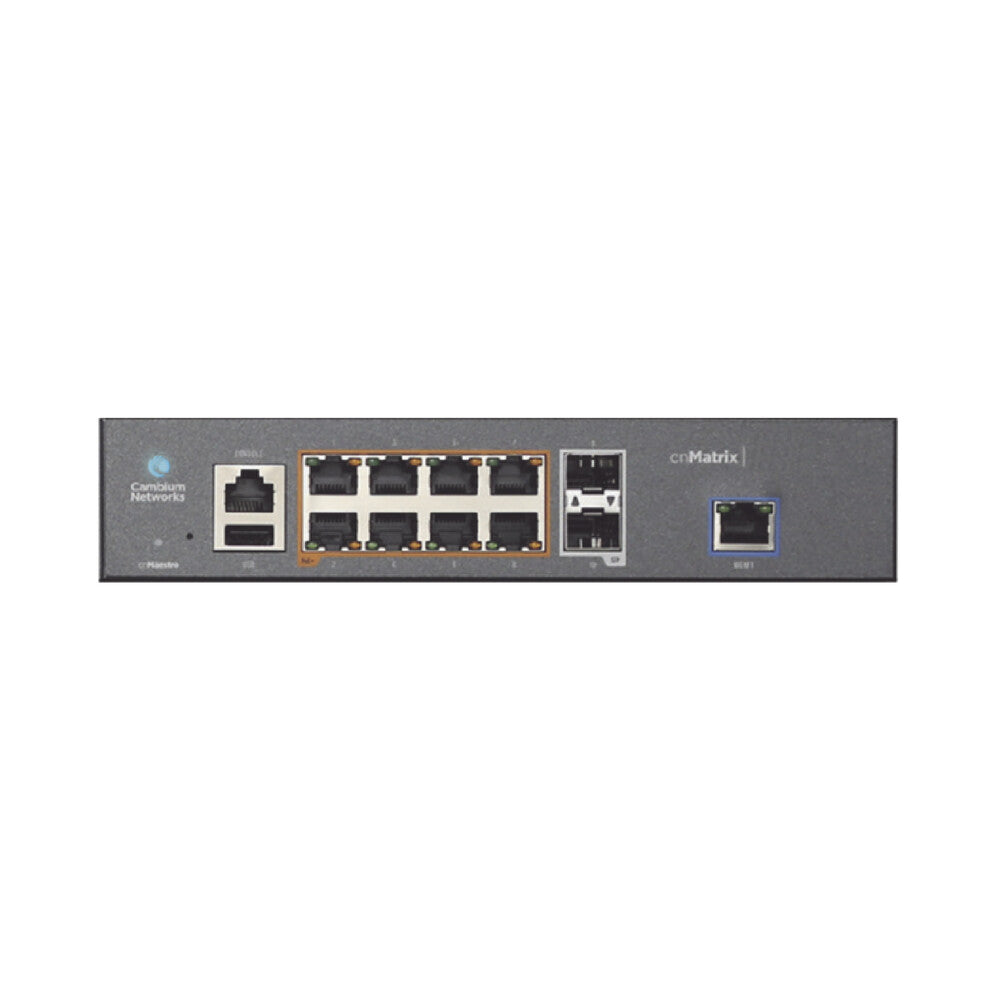

Cambium Networks’ next generation switching platform offers a cloud managed, high performance, feature rich enterprise grade ethernet switching solution.
| Management features |
|---|
| System event log |
Yes |
| Configuring Location Settings (CLI) |
Yes |
| Traffic classification |
Yes |
| Traffic shaping |
Yes |
| Cloud-managed |
Yes |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2/L3 |
| Switch type |
Managed |
| Ports & interfaces |
|---|
| USB 2.0 ports quantity |
1 |
| Console port |
RS-232 |
| SFP module slots quantity |
2 |
| Gigabit Ethernet (copper) ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Network |
|---|
| Number of VLANs |
4000 |
| Virtual LAN features |
Port-based VLAN, Tagged VLAN |
| VLAN support |
Yes |
| Rate limiting |
Yes |
| Flow control support |
Yes |
| Broadcast storm control |
Yes |
| Link aggregation |
Yes |
| Spanning tree protocol |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Full duplex |
Yes |
| Port mirroring |
Yes |
| 10G support |
No |
| Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x |
| Data transmission |
|---|
| Jumbo frames |
9000 |
| Jumbo frames support |
Yes |
| Number of static routes |
64 |
| Static route |
Yes |
| Number of queues |
8 |
| Throughput |
120 Mpps |
| Switching capacity |
20 Gbit/s |
| MAC address table |
16000 entries |
| Security |
|---|
| Password protection |
Yes |
| BPDU filtering/protection |
Yes |
| Authentication |
Port-based authentication |
| Security algorithms |
HTTPS, SSH, SSH-1.5, SSH-2, SSL/TLS |
| Authentication type |
IEEE 802.1x, RADIUS |
| Queue scheduling algorithms |
SP, WRR+SP, Weighted Round Robin (WRR) |
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| DHCP features |
DHCP client, DHCP relay, DHCP server, DHCP snooping |
| Multicast features |
|---|
| Multicast support |
Yes |
| Design |
|---|
| LED indicators |
Activity, Link, PoE |
| Reset button |
Yes |
| Product colour |
Black |
| Form factor |
1U |
| Stackable |
Yes |
| Rack mounting |
Yes |
| Performance |
|---|
| Mean time between failures (MTBF) |
338917 h |
| Fanless |
Yes |
| Flash memory |
128 MB |
| Internal memory |
512 MB |
| Processor frequency |
800 MHz |
| Built-in processor |
Yes |
| Power |
|---|
| Power consumption (max) |
10.54 W |
| AC input voltage |
100 - 240 V |
| Power supply included |
Yes |
| Power over Ethernet (PoE) |
|---|
| Total Power over Ethernet (PoE) budget |
75 W |
| Power over Ethernet (PoE) power per port |
30 W |
| Power over Ethernet (PoE) voltage |
54 V |
| Power over Ethernet (PoE) ports quantity |
8 |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
55 - 95% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 30 °C |
| Weight & dimensions |
|---|
| Weight |
1.99 kg |
| Height |
25 mm |
| Depth |
44 mm |
| Width |
210 mm |
