Cambium Networks
Regular price
£301.56 GBP
Regular price
Sale price
£301.56 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:MX-EX1010XXA-E
Low stock: 4 left
- Managed L2/L3 SNMP v1/v2/v3
- Quality of Service (QoS) support Configuring Location Settings (CLI)
- Basic switching RJ-45 Ethernet ports quantity: 8
- MAC address table: 16000 entries
- Access Control List (ACL)
- 1U Rack mounting
- AC

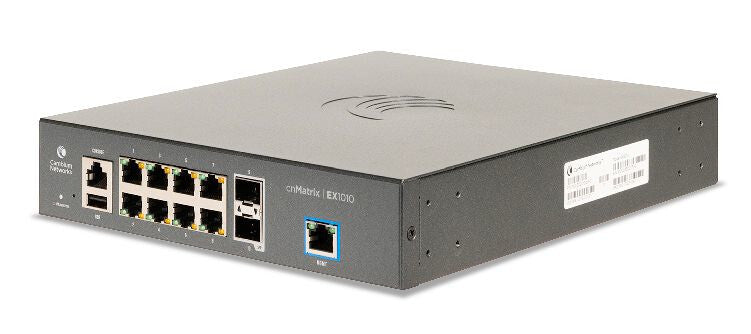

20 Gbps throughput, 8 10/100/1000 ports, 2 SFP Uplink ports, Enterprise-grade L2+ functionality
Cambium Networks’ next generation switching platform offers a cloud managed, high performance, feature rich enterprise grade ethernet switching solution.
| Management features |
|---|
| MIB support |
Y |
| Configuring Location Settings (CLI) |
Yes |
| ARP inspection |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2/L3 |
| Switch type |
Managed |
| Ports & interfaces |
|---|
| SFP module slots quantity |
2 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Network |
|---|
| Number of VLANs |
4000 |
| VLAN support |
Yes |
| Flow control support |
Yes |
| Auto MDI/MDI-X |
Yes |
| Broadcast storm control |
Yes |
| Link aggregation |
Yes |
| Spanning tree protocol |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Port mirroring |
Yes |
| 10G support |
No |
| Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x |
| Data transmission |
|---|
| Jumbo frames |
9000 |
| Jumbo frames support |
Yes |
| Static route |
Yes |
| Throughput |
20 Gbit/s |
| MAC address table |
16000 entries |
| Security |
|---|
| SSH/SSL support |
Yes |
| Security algorithms |
SSH, SSH-2 |
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| DHCP features |
DHCP snooping |
| Multicast features |
|---|
| Multicast support |
Yes |
| Protocols |
|---|
| Management protocols |
SNMP v1/v2/v3 |
| Design |
|---|
| LED indicators |
Yes |
| Product colour |
Grey |
| Form factor |
1U |
| Rack mounting |
Yes |
| Performance |
|---|
| Flash memory |
128 MB |
| Internal memory |
512 MB |
| Processor frequency |
800 MHz |
| Built-in processor |
Yes |
| Power |
|---|
| AC input voltage |
100 - 240 V |
| Power source |
AC |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
55 - 95% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Weight & dimensions |
|---|
| Weight |
1.6 kg |
| Height |
250 mm |
| Depth |
88 mm |
| Width |
210 mm |
