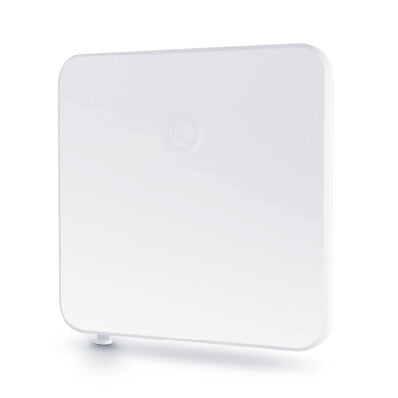

Cambium Networks C050900B903A bridge/repeater Network bridge 600 Mbit/s White

Cambium Networks C050900B903A bridge/repeater Network bridge 600 Mbit/s White

£725.35 GBP
£725.35 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

C050900B903A

Low stock: 3 left

  • Uses 5 GHz unlicensed frequency band
  • Up to 600 Mbps total throughput
  • Range up to 8 kilometers (5 miles)
5 GHz, 28 dBm, Gigabit Ethernet, 19 dBi, IP67, 278 x 278 x 45 mm, 1.45 kg

Each Bridge-in-a-Box comes with two wireless radio modules and power over Ethernet supplies that can be used to extend your network from wherever you have an Ethernet port to wherever you need one from 50 feet to 5 miles away (20 meters to 8 kilometers). The modules use the unlicensed 5 GHz frequency band and are extremely easy to deploy as they come pre-configured and pre-paired to connect.

For those places you couldn’t connect before, Bridge-in-a-Box will get you there today.

Data transmission
Maximum transfer distance 8000 m
Maximum data transfer rate 600 Mbit/s
Antenna
Antenna gain level (max) 19 dBi
Antenna design Internal
Wireless LAN features
Receiver sensitivity 20MHz Channel:MCS0 = -93 dBm to MCS15 = -72 dBm (per branch)40MHz Channel:MCS0 = -90 dBm to MCS15 = -69 dBm (per branch)
Modulation 256-QAM, BPSK
Channels quantity 5 channels
Signal strength 28 dBm
Frequency band 4910 – 5970
Wi-Fi band Single-band (5 GHz)
Wi-Fi Yes
Network
Cabling technology 10/100/1000Base-T(X)
Networking standards IEEE 802.1Q, IEEE 802.1p
Ethernet LAN data rates 100,1000 Mbit/s
Ethernet LAN interface type Gigabit Ethernet
Ethernet LAN Yes
Ports & interfaces
Power over Ethernet plus (PoE+) ports quantity 1
Ethernet LAN (RJ-45) ports 1
Connectivity technology Wired & Wireless
Security
Security algorithms 128-bit AES, HTTPS, WEP
Management features
Supported protocols IPv4/IPv6 (Dual Stack), UDP,TCP, ICMP, SNMPv2c, NTP, STP,IGMP, SSH
Management protocols IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks cnMaestro™
Features
International Protection (IP) code IP67
Surge protection Yes
Quality of Service (QoS) support Yes
Product colour White
Mounting type Pole
Product type Network bridge
Power
Power over Ethernet (PoE) Yes
Power consumption (max) 15 W
Power consumption (typical) 12 W
Operational conditions
Operating temperature (T-T) -30 - 60 °C
Weight & dimensions
Weight 1.45 kg
Height 278 mm
Depth 45 mm
Width 278 mm
Packaging content
Mounting bracket(s) included Yes
Packaging data
Package type Box
