Automatic 2-sided A4 scanning up to 15 pages per minute
Space saving ‘U-path’ paper feed system
Industry leading software to scan documents, receipts and ID cards
Power directly from a USB 3.0 port on PC
Built-in rechargeable battery and card reader
Connect to a wireless network or Brother mobile app
Portable, A4, 15 ppm, 1200 x 1200 dpi, micro USB 3.0 Type B, WLAN, microSD, 319 x 63 x 45.4 mm, 699 g
Brother DSmobile DS-940DW Wireless, 2-sided Portable Document Scanner Wireless scan and go with the DSmobile DS-940DW. Versatile and truly portable with built-in rechargeable battery. Staying on top of your paperwork when you are out of the office is simple.
The DSmobile DS-940DW is engineered to be truly flexible. Featuring a built-in battery, Wi-Fi and intuitive LCD panel, setup is effortless. Digitising your files whether in the office where space is limited or out on the road is simple.
Scan your documents straight to the cloud using Brother's mobile app and easily share your documents with colleagues wherever you are. Your information is kept safe, effortless to find and more convenient to edit.

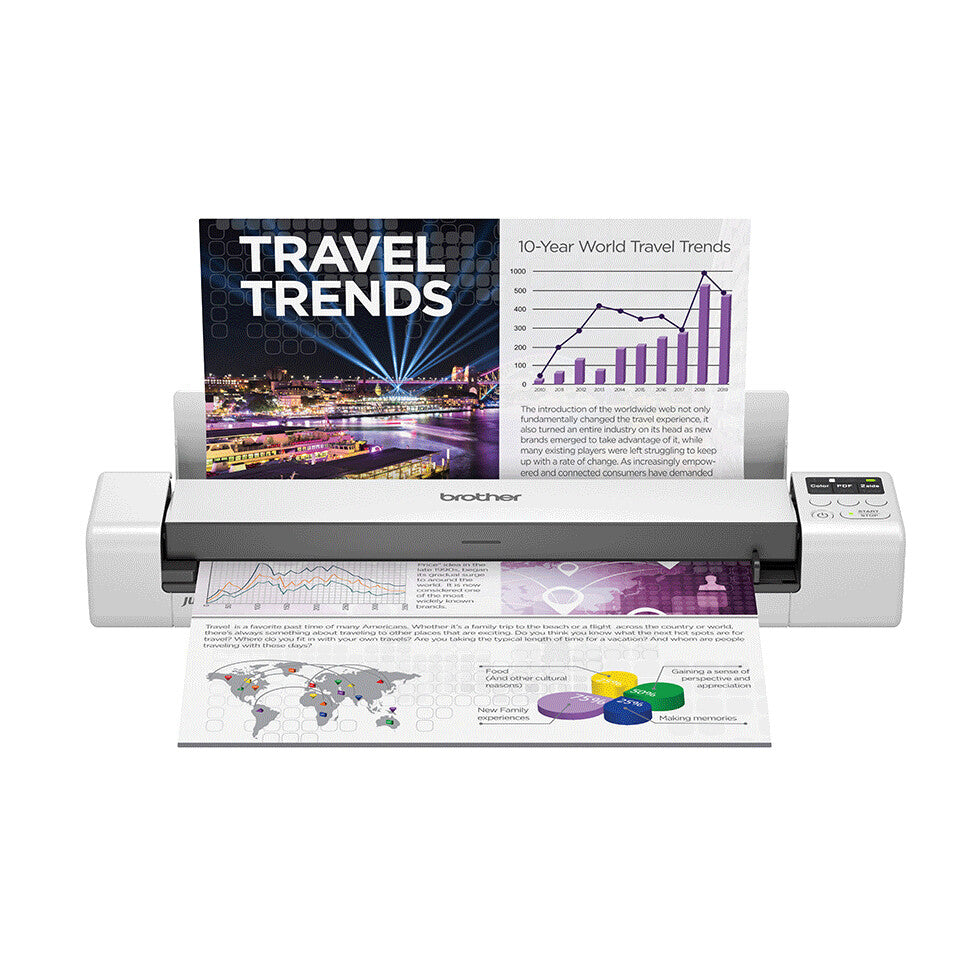

With a unique "U-path" roller system, you are not required to have extra space behind the scanner for the document to feed-through. As the document goes in, it glides over the top of the scanner and is returned to you.
Scanning
Black/white scanning colour modes
Grayscale, Monochrome
Duplex ADF scan speed (colour, A4)
30 ipm
ADF scan speed (colour, A4)
15 ppm
ADF scan speed (b/w, A4)
15 ppm
Output colour depth
24 bit
Input colour depth
48 bit
Duplex scanning
Yes
Colour scanning
Yes
Optical scanning resolution
600 x 600 DPI
Enhanced scan resolution
1200 x 1200 DPI
Maximum scan size
215.9 x 1828.8 mm
Design
Product colour
Black, White
Built-in display
No
Scanner type
Sheet-fed scanner
Performance
Compatible memory cards
MicroSD (TransFlash)
Internal memory
512 MB
Sound pressure level (max)
42 dB
Scanning noise level
53 dB
Scan drivers
ICA, SANE, TWAIN, WIA
Scan to
E-mail, File, Image, Memory card, OCR
Input capacity
Standard input capacity
1 sheets
Paper handling
Maximum scan length
182.9 cm
Maximum scan width
21.6 cm
Card thickness (max)
1.24 mm
Scanning media types supported
Business Card, Plain paper, Plastic Card
Maximum ISO A-series paper size
A4
Ports & interfaces
Standard interfaces
USB 3.2 Gen 1 (3.1 Gen 1), Wireless LAN
USB connector type
Micro-USB B
USB version
3.2 Gen 1 (3.1 Gen 1)
USB port
Yes
Power
Power consumption (off)
0.11 W
Power consumption (standby)
2.2 W
Power supply type
USB
Power consumption (typical)
3.6 W
Network
Wi-Fi Direct
Yes
Supported network protocols (IPv4)
DHCP, APIPA (Auto IP), WINS/NetBIOS, DNS Resolver, mDNS, SNMPv1/v2c, ICMP, Web Services(Scan), HTTP/HTTPS server, LLMNR responder,SNTP Client
