Brother

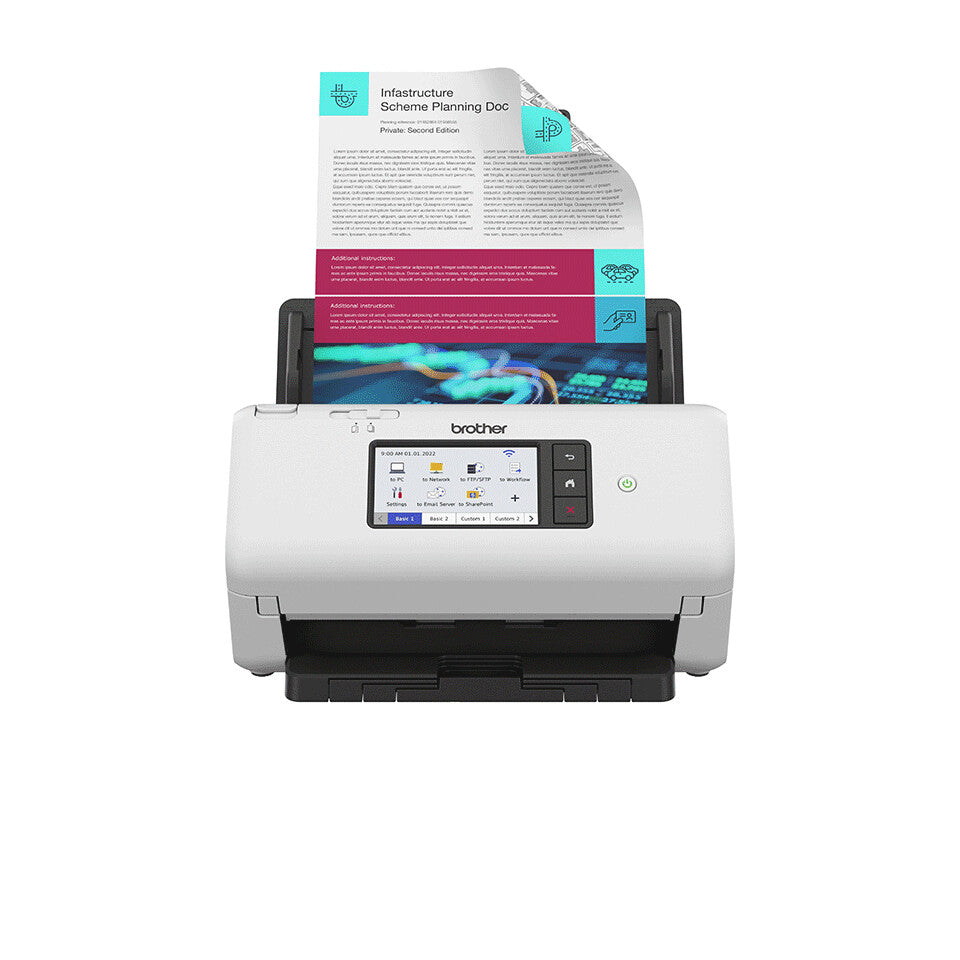

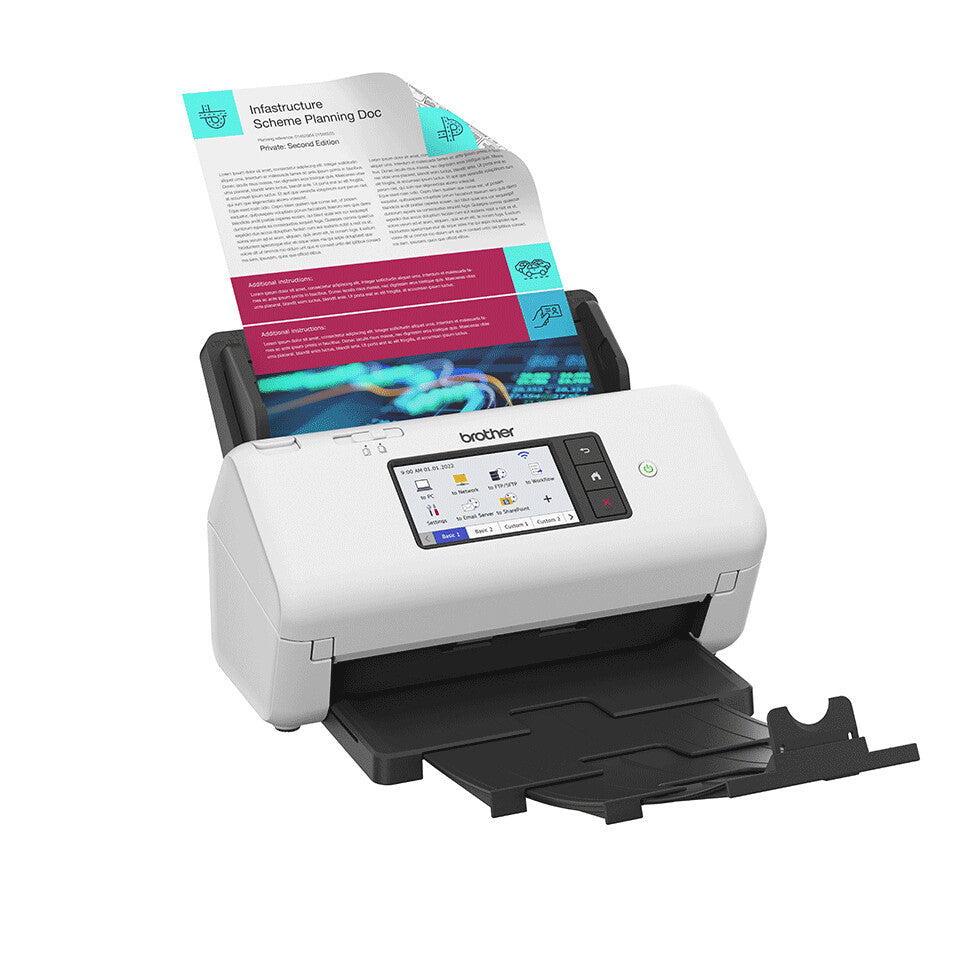

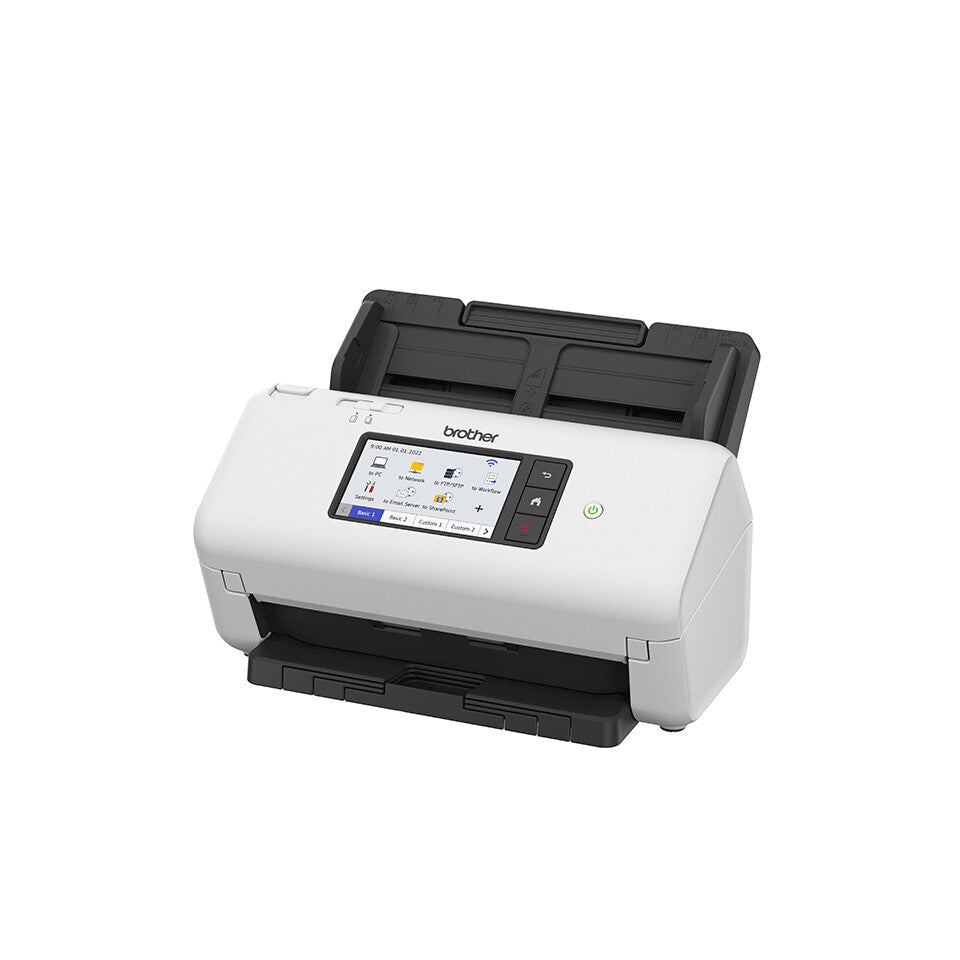

Brother ADS-4700W scanner ADF + Sheet-fed scanner 600 x 600 DPI A4 Black, White

Brother ADS-4700W scanner ADF + Sheet-fed scanner 600 x 600 DPI A4 Black, White

£643.66 GBP
£643.66 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

ADS4700WZU1

Low stock: 4 left

  • Scan up to 40 pages per minute
  • 2-sided scan up to 40 pages per minute
  • 80 sheet Automatic Document Feeder (ADF)
  • Wireless and wired connectivity
  • SuperSpeed USB3.
  • Scan directly to USB host
With high-speed wired and wireless connectivity and dedicated user touchscreen. Ideal for complex workflows and sharing documents with colleagues.

Designed to enable businesses to simplify complex workflow or operational processes. Securely capture your documents to easily share and collaborate with colleagues whether they're at home or in the office. Large intuitive 10.9cm touchscreen with 56 configurable shortcuts Personalised multi-user experience Secure workgroup sharing Advanced image processing and batch scanning Features Auto Start scan, ultrasonic multifeed sensor, Separation Switch, Scan Preview, CIS Cleaning Alarm Includes Brother ScanEssentials software Driver compatibility with TWAIN (WIN and macOS), WIA, ISIS, Linux SANE

Scanning
Maximum scan size 355.6 x 215.9 mm
Enhanced scan resolution 1200 x 1200 DPI
Optical scanning resolution 600 x 600 DPI
Colour scanning Yes
Duplex scanning Yes
Input colour depth 48 bit
Output colour depth 24 bit
Output greyscale depth 8 bit
Greyscale levels 256
ADF scan speed (b/w, A4) 40 ppm
ADF scan speed (colour, A4) 40 ppm
Duplex ADF scan speed (colour, A4) 80 ipm
Duplex ADF scan speed (b/w, A4) 80 ipm
Design
Scanner type ADF + Sheet-fed scanner
Built-in display Yes
Product colour Black, White
Display LCD
Display diagonal 10.9 cm (4.3")
Touchscreen Yes
Colour display Yes
Control type Buttons
Performance
Sensor type Dual CIS
Scan file formats JPEG, PDF, TIFF
Daily duty cycle (max) 6000 pages
Maximum duty cycle 120000 pages per month
Scan to PC
Ultrasonic sensor Yes
Scan drivers ISIS, TWAIN, WIA
Scanning noise level 59 dB
Internal memory 512 MB
Input capacity
Auto document feeder (ADF) input capacity 80 sheets
Paper handling
Maximum ISO A-series paper size A4
Scanning media types supported Business Card, Plain paper, Plastic Card, Recycled paper, Thick paper, Thin paper
Long-paper mode Yes
Legal Yes
Media thickness (min) 0.08 mm
Card thickness (max) 1.32 mm
Paper tray media weight 40 - 200 g/m²
Maximum scan width 21.6 cm
Maximum scan length 35.6 cm
Ports & interfaces
USB port Yes
USB version 2.0/3.2 Gen 1 (3.1 Gen 1)
Power
Power consumption (typical) 26 W
Power supply type AC
Power consumption (standby) 8.6 W
Power consumption (off) 0.1 W
Power consumption (PowerSave) 1.7 W
AC input frequency 50 - 60 Hz
Sleep mode Yes
Input voltage 100-240 V
Power consumption (sleep) 1.7 W
Output current 1.9 A
Output voltage 24 V
Auto power off Yes
Network
Wi-Fi Yes
Wi-Fi standards 802.11b, 802.11g
Ethernet LAN Yes
Security algorithms WEP, WPA-PSK, WPA2-PSK, WPA3
IPv6 support Yes
Supported network protocols DHCP, APIPA (Auto IP), WINS/NetBIOS, DNS Resolver, mDNS, SNMPv1/v2c/v3, ICMP, Web Services(Scan), HTTP/HTTPS server, LLMNR responder, SNTP Client, LDAP, RA, ICMPv6
Features
Country of origin China
Packaging data
Quantity per pack 1 pc(s)
Package width 391 mm
Package depth 243 mm
Package height 320 mm
Package weight 3.88 kg
System requirements
Server operating systems supported Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 x64, Windows 8.1, Windows 8.1 x64
Operational conditions
Operating temperature (T-T) 5 - 35 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 20 - 80%
Storage relative humidity (H-H) 10 - 90%
Certificates
Certification GS Mark, WHQL, WHQL, ISIS, Wi-Fi CERTIFIED - WPA3 Enterprise, WPA3 Personal, Wi-Fi Protected Setup, Wi-Fi Direct, KofaxTM 5,10 - VRS Elite 5.2.0, Kofax Express 3.3.0
Weight & dimensions
Width 243 mm
Depth 320 mm
Height 391 mm
Weight 3.23 kg
Other features
Spare part retention 5 year(s)
Technical details
Pallet type 800 x 1200 mm
Logistics data
Products per pallet 40 pc(s)
Master (outer) cases per pallet layer 8 pc(s)
Layers per pallet 5 pc(s)
Master (outer) cases per pallet 40 pc(s)
Pallet gross weight 170.4 kg
Pallet gross height 17.5 cm
Harmonized System (HS) code 84716070
