Driver compatibility with TWAIN (Win and macOS), WIA, ICA, Linux SANE

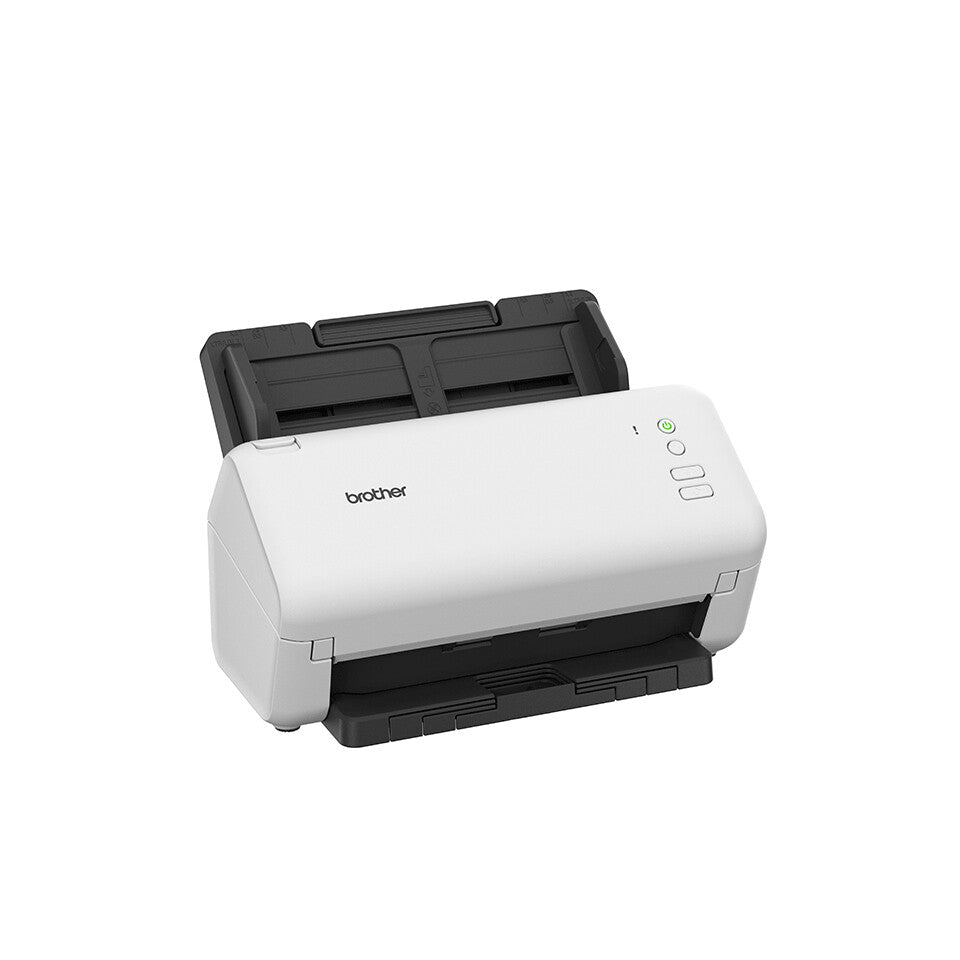

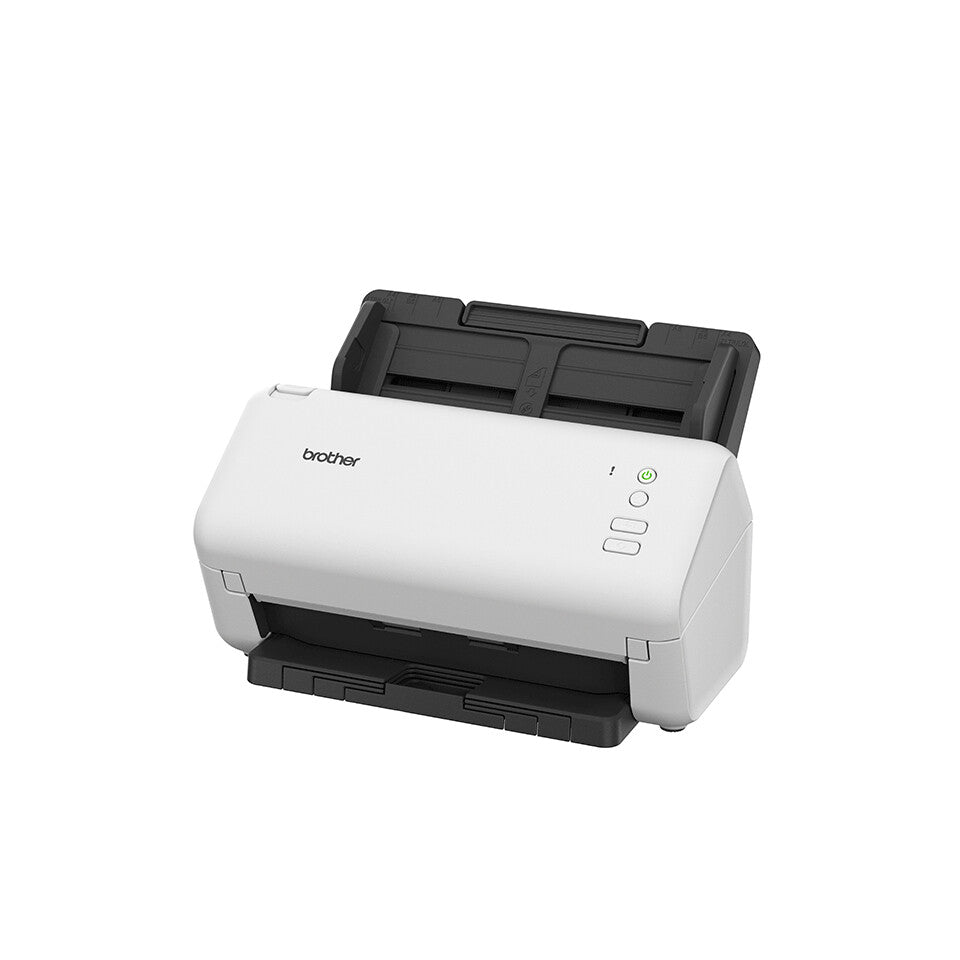

ADS-4100 Desktop document scanner, ADF, 35 ppm, 70 ipm, 600 x 600/1200 x 1200 dpi, 59 dB, USB
With simplicity built in. Robust, easy-to-use, every day scanner. Great for digitsing a range of media at home or in the office.
Simple and intuitive. This highly versatile scanner is ideal for businesses that need to digitise a wide range of media, from paper to plastic cards, whether at home or in the office.
Fast and reliable
With high-quality and robust roller mechanisms, the ADS-4100 has a large 60 sheet ADF capacity and can scan up to 35 pages per minute.
Simple and intuitive
Design simplicity means it's easy to set up and easy to use.
Advanced connectivity
With USB3.0 and USB host, you can securely scan documents without the need for a PC.
Advanced image capture and processing
Effortless and impressive image capture and processing - from easily referencing and locating scanned pages with the digital imprinter, to optimising image quality through the automatic vertical streaks and moiré reduction tools.
Brother ScanEssentials Lite
Our ScanEssentials Lite software enables you to scan documents easily, create simple workflows and save them securely to folders on your network, with minimum effort.
Industry recognised software
Increase post-scanning productivity with industry recognised software including Kofax and Newsoft, available as standard with device.
Scanning
Duplex ADF scan speed (b/w, A4)
70 ipm
Duplex ADF scan speed (colour, A4)
70 ipm
ADF scan speed (colour, A4)
35 ppm
ADF scan speed (b/w, A4)
35 ppm
Greyscale levels
256
Output greyscale depth
8 bit
Output colour depth
24 bit
Input colour depth
48 bit
Duplex scanning
Yes
Colour scanning
Yes
Optical scanning resolution
600 x 600 DPI
Enhanced scan resolution
1200 x 1200 DPI
Maximum scan size
215.9 x 355.6 mm
Design
Control type
Buttons
Product colour
Black, White
Built-in display
No
Scanner type
ADF scanner
Performance
Scanning noise level
59 dB
Scan drivers
ICA, SANE, TWAIN, WIA
Scan to
Image, PC, USB
Maximum duty cycle
105000 pages per month
Daily duty cycle (max)
5250 pages
Scan file formats
JPEG, PDF, TIFF
Light source
LED
Sensor type
CIS
Input capacity
Auto document feeder (ADF) input capacity
60 sheets
Paper handling
Maximum scan length
5 m
Maximum scan width
21.6 cm
Auto Document Feeder (ADF) media weight
40 - 200 g/m²
Paper tray media weight
40 - 200 g/m²
Card thickness (max)
1.1 mm
Media thickness (min)
0.08 mm
Long-paper mode
Yes
Scanning media types supported
Business Card, Plain paper, Plastic Card, Recycled paper, Thick paper, Thin paper
Maximum ISO A-series paper size
A4
Ports & interfaces
USB version
2.0/3.2 Gen 1 (3.1 Gen 1)
USB port
Yes
Power
Output voltage
24 V
Output current
1.9 A
Power consumption (sleep)
1.4 W
AC input frequency
50 - 60 Hz
Power consumption (off)
0.1 W
Power consumption (standby)
5.4 W
Power supply type
AC
Power consumption (typical)
23 W
Packaging data
Package weight
3.31 kg
Package height
320 mm
Package depth
243 mm
Package width
391 mm
Quantity per pack
1 pc(s)
System requirements
Windows operating systems supported
Yes
Mac operating systems supported
Yes
Linux operating systems supported
Yes
Server operating systems supported
Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
