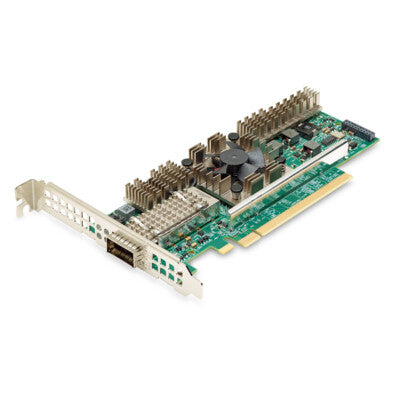

Based on Broadcom’s scalable 10/25/50/100/200G Ethernet controller architecture, the NetXtreme®-E Series P150P 1x50G PCIe NIC is designed to build highly scalable, feature-rich networking solutions in servers for enterprise and cloud-scale networking and storage applications, including high-performance computing, telco, machine learning, storage disaggregation and data analytics.
The P150P 1x50G PCIe NIC builds upon the success of the widely deployed NetXtreme E-Series architecture by combining a high-bandwidth Ethernet controller with a unique set of highly optimized hardware acceleration engines to enhance network performance and improve server efficiency.
Driven by the growing need for higher server bandwidth and storage capacity to support new and emerging applications, enterprises, telcos and cloud providers are modernizing their data centers by adopting latest networking technologies, such as server virtualization and NVMe-oF™. The resulting expansion in data volumes increases server-to-server traffic and CPU loads for networking tasks.
With its market-leading hardware acceleration technologies, the NetXtreme-E Series P150P 1x50G PCIe NIC addresses these performance and service demands of mega-scale data center networks with high throughput and advanced flow processing. Features such as TruFlow™ increase VM density up to 50 percent, freeing more CPU cycles for additional virtual machines. On-chip tunneling protocol processing for Geneve, VXLAN, and NVGRE provides up to a 5X throughput increase while lowering CPU utilization up to 90 percent compared to software-only solutions. NetXtreme-E Series solutions also support advanced networking technologies such as RoCE, SDN and NFV, to facilitate the management of data networks and to enable service provider solutions.
Ports & interfaces
Fiber ports quantity
1
Fiber optic connector
QSFP28
Interface
Fiber
Host interface
PCI Express
Connectivity technology
Wired
Network
Full duplex
Yes
Ethernet LAN data rates
50000,25000,40000 Mbit/s
Ethernet LAN
Yes
Maximum data transfer rate
50000 Mbit/s
Design
Certification
EN 62368-1:2014IEC 62368-1 (ed. 2) UL 1977UL 796UL 94EN 55032:2012/AC:2013 Class BEN 55024:2010EN 61000-3-2:2014 EN 61000-3-3:2013CFR47 Part 15 Subpart B Class BICES-003 Class BAS/NZS CISPR 22:2009 +A1:2010CNS 13438 (2006) Class BCNS 15663KN32 Class BKN35VCCI V-3 (2015-04)EN 55024:2010(EN 61000-4-2)FCC
