1 1

Broadcom

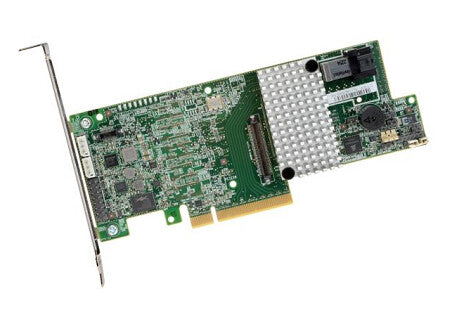

Broadcom MegaRAID SAS 9361-8i RAID controller PCI Express x8 12 Gbit/s

Broadcom MegaRAID SAS 9361-8i RAID controller PCI Express x8 12 Gbit/s

£413.40 GBP
£413.40 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

LSI00417

21 in stock

  • Supported storage drive interfaces: SAS, Serial ATA
  • Host interface: PCI Express x8
  • RAID levels: 0, 1, 5, 6, 10, 50, 60
  • 12 Gbit/s
  • SSD support
  • 1343187 h
MegaRAID SAS 9361-8i - 12Gb/s SATA+SAS

The explosive growth of data in cloud and enterprise datacenters is driving the need for a higher performance storage interface to speed the ability of critical applications to access data. LSI first-to-market 12Gb/s SAS solutions are designed to deliver the performance and data protection capabilities required for the most demanding next-generation server and storage platforms.

Ports & interfaces
Supported storage drive interfaces SAS, Serial ATA
Host interface PCI Express x8
Internal SATA ports quantity 8
Performance
RAID Level Migration Yes
RAID levels 0, 1, 5, 6, 10, 50, 60
Data transfer rate 12 Gbit/s
SSD support Yes
Internal memory 1024 MB
Internal memory type DDR3
Memory clock speed 1866 MHz
Logical block addressing (LBA) support 64 bit
LED indicators Yes
Online Capacity Expansion Yes
S.M.A.R.T. support Yes
Mean time between failures (MTBF) 1343187 h
Certification EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL f/ MIC; BSMI; C-tick
Power
Voltage 12 V
System requirements
Windows operating systems supported Yes
Linux operating systems supported Yes
Operational conditions
Operating temperature (T-T) 0 - 55 °C
Storage relative humidity (H-H) 5 - 90%
Weight & dimensions
Width 64 mm
Depth 167.6 mm
Logistics data
Harmonized System (HS) code 84733080
Other features
PCI Card form factor Full-height (low-profile)
PCI Express connector Yes
Quantity 1
Other operating systems supported Yes
