Bixolon

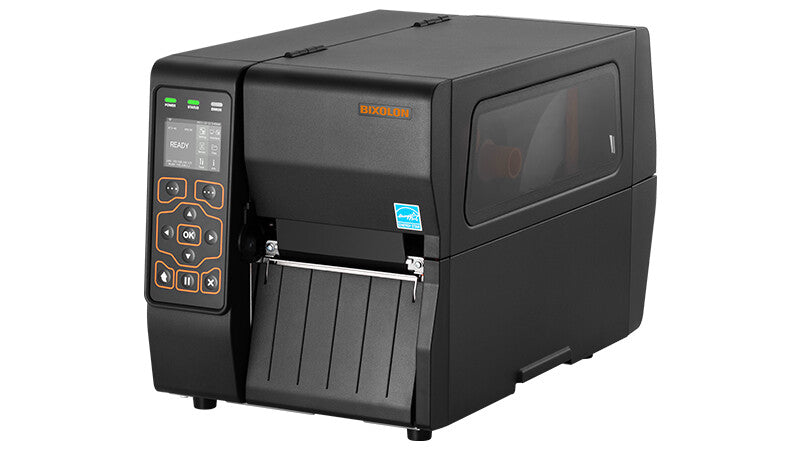

Bixolon XT3-40 label printer Thermal transfer 203 x 203 DPI 203 mm/sec Wired Wi-Fi

Bixolon XT3-40 label printer Thermal transfer 203 x 203 DPI 203 mm/sec Wired Wi-Fi

Regular price £591.35 GBP
Regular price Sale price £591.35 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:XT3-40/BEG

Low stock: 4 left

  • Thermal transfer
  • 203 x 203 DPI
  • Maximum printing width: 10.8 cm Print speed: 203 mm/sec
  • Built-in barcodes: 1D, 2D
  • Connectivity technology: Wired
  • USB port Wi-Fi
  • Display: LCD 6.1 cm (2.4") Colour display
  • 9.3 kg
XT3-40 4-inch Thermal Transfer Industrial Label Printer, 203 DPI, 2.4 inch Color LCD, 128 MB SDRAM, 128 MB Flash, Standard

Adding a new entry-level 4-inch (114 mm) printing solution to BIXOLON's industrial label printer lineup, XT3-40 is designed with a familiar feel to the XT5-40 Series. The XT3-40 supports fast data processing and print speeds of up to 8 ips (203 mm/sec) at 203 dpi. Featuring a compact and robust design, double-holding door, and side-loading supplier path, the XT3-40 allows easy printer installation within narrow environments.

User-Friendly Design

- Compact and robust design
- Rugged all-metal case and double folding door
- Side-loading supplies path for simplified media and ribbon installation
- 2.4 inch full colour LCD display
- Peeler and Auto Cutter, and factory-installed Rewinder with Peeler options
- Toolless maintenance of roller and print head
- Supporting up to 450 m ribbon length

Industrial-Standard Performance

- Fast data processing and print speeds of up to 8 ips (203 mm/sec)
- Optional 203 or 300 dpi high resolutions
- Fully compatible with market-leading programming languages
- Dual-band WLAN (5 GHz and 2.4 GHz) and Bluetooth V5.2 (MFi certified)

Secure and Efficient Management

- Twin funtion™ supported: Copy printer settings and data via USB
- Compatible with label design software;
- BIXOLON’s Label Artist and Seagull's BarTender
- XPM™ & XCM™ - Web-based printer management software and connection app.

Printing
Print technology Thermal transfer
Maximum resolution 203 x 203 DPI
Print speed 203 mm/sec
Maximum printing width 10.8 cm
Minimum print length 4 m
Paper handling
Ribbon width 11 cm
Ribbon length 450 m
Media thickness 0.06 - 0.25 mm
Maximum roll diameter 20.3 cm
Maximum label width 11.4 cm
Ports & interfaces
Connectivity technology Wired
Wi-Fi Yes
Bluetooth No
USB port Yes
RS-232 ports 1
Performance
Page description languages BPL, SLCS
Internal memory 128 MB
Flash memory 128 MB
Built-in barcodes 1D, 2D
Design
Product colour Black
Built-in display Yes
Display LCD
Display diagonal 6.1 cm (2.4")
Colour display Yes
Control type Buttons
Power
AC input voltage 100-240 V
AC input frequency 50-60 Hz
System requirements
Linux operating systems supported Yes
Mobile operating systems supported Android, iOS
Mac operating systems supported Yes
Windows operating systems supported Yes
Operational conditions
Operating relative humidity (H-H) 10 - 80%
Storage relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -20 - 60 °C
Operating temperature (T-T) 5 - 40 °C
Weight & dimensions
Width 240 mm
Depth 430.5 mm
Height 276.7 mm
Weight 9.3 kg
Packaging content
Cables included USB
