- Direct thermal
- 203 x 203 DPI
- Maximum printing width: 10.8 cm Print speed: 178 mm/sec
- Built-in barcodes: 1D, 2D, AZTECCODE, CODABAR (NW-7), Codablock, Code 11, Code 39, Code 49, Code 93, Code-128 Codabar Library, Data Matrix, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, Logmars, MSI, MaxiCode, MicroPDF417, PDF417, POSTNET, Plessey, QR Code, TLC39
- Connectivity technology: Wired
- USB port Ethernet LAN
- Display: LCD 200 x 100 pixels
- 1.89 kg
Direct thermal, 203 dpi, 178 mm/s, 64 MB RAM, 128 MB FlashROM, 8 dots/mm, display, EPL, ZPLII, USB, USB Host, RS232, Ethernet, black
Robust and highly featured
The XD5-40d is a 4-inch (118mm) mid-level Direct Thermal Desktop Barcode and Label Printer featuring a compact, clamshell design and comprehensive software features which is ideal for labelling applications within the Manufacturing, Transport and Logistics, Retail and Healthcare industries. Available as XD5-40d (203dpi) and XD5-43d (300dpi) resolution options, the XD5-40d’s standard model (XD5-40d) offers quick data processing and print speeds of up to 7 ips (178mm/sec), with enhanced memory space of up to 256MB SDRAM and 256MB Flash.

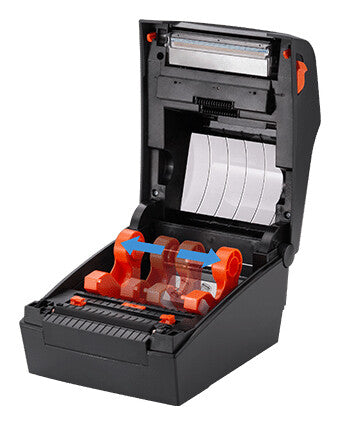

Accompanied with a field installable Peeler, Auto Cutter and an external paper supply, the label printer offers an optional visual LCD display, adjustable paper guide plus holder and space for a media roll diameter of up to 127mm. Complemented by its Smart Media Detection™ for the automatic media detection of Gap, Black Mark, Continuous or Notch media formats, all back with a 2-year warranty as standard.
Supporting multiple connectivity options, the XD5-40d comes with dual USB2.0 and USB Host as standard, plus optional, Dual-WLAN, Dual-Bluetooth, Serial or Ethernet. With the USB host port allowing the duplication of existing printer settings and data to another estate printers through its Twin Function™. The XD5-40d is compatible with market leading programming languages including SLCS™, BPL-Z™ and BPL-E™. The printer is accompanied with comprehensive firmware and software options, including BIXOLON’s XPM™ web-based printer profile management and Simple Network Management Protocol (MIB file). Alongside compatibility with label design software including BIXOLON’s Label Artist-II™ and BarTender®.
| Printing |
|---|
| Print technology |
Direct thermal |
| Maximum resolution |
203 x 203 DPI |
| Printable dot numbers |
8 dot |
| Print speed |
178 mm/sec |
| Maximum printing width |
10.8 cm |
| Maximum print length |
1 m |
| Paper handling |
|---|
| Autocutter |
Yes |
| Ribbon width |
11 cm |
| Ribbon length |
300 m |
| Media thickness |
0.06 - 0.2 mm |
| Maximum roll diameter |
12.7 cm |
| Maximum label width |
11.8 cm |
| Ports & interfaces |
|---|
| Connectivity technology |
Wired |
| Ethernet LAN |
Yes |
| Wi-Fi |
No |
| USB port |
Yes |
| RS-232 ports |
1 |
| Performance |
|---|
| Internal memory |
64 MB |
| Flash memory |
128 MB |
| Built-in barcodes |
1D, 2D, AZTECCODE, CODABAR (NW-7), Codablock, Code 11, Code 39, Code 49, Code 93, Code-128 Codabar Library, Data Matrix, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, Logmars, MSI, MaxiCode, MicroPDF417, PDF417, POSTNET, Plessey, QR Code, TLC39 |
| Design |
|---|
| Product colour |
Black |
| Built-in display |
Yes |
| Display |
LCD |
| Display resolution |
200 x 100 pixels |
| Colour display |
No |
| Control type |
Buttons |
| Power |
|---|
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| System requirements |
|---|
| Linux operating systems supported |
Yes |
| Mobile operating systems supported |
Android, iOS |
| Mac operating systems supported |
Yes |
| Windows operating systems supported |
Yes |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 80% |
| Storage relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Width |
194 mm |
| Depth |
248 mm |
| Height |
169 mm |
| Weight |
1.89 kg |
| Packaging content |
|---|
| Cables included |
USB |
| Logistics data |
|---|
| Harmonized System (HS) code |
84433210 |
| Technical details |
|---|
| Sustainability certificates |
ENERGY STAR |
| Other features |
|---|
| Character sets |
5 BPL-E, 16 BPL-Z, SLCS, Unicode |
