ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors

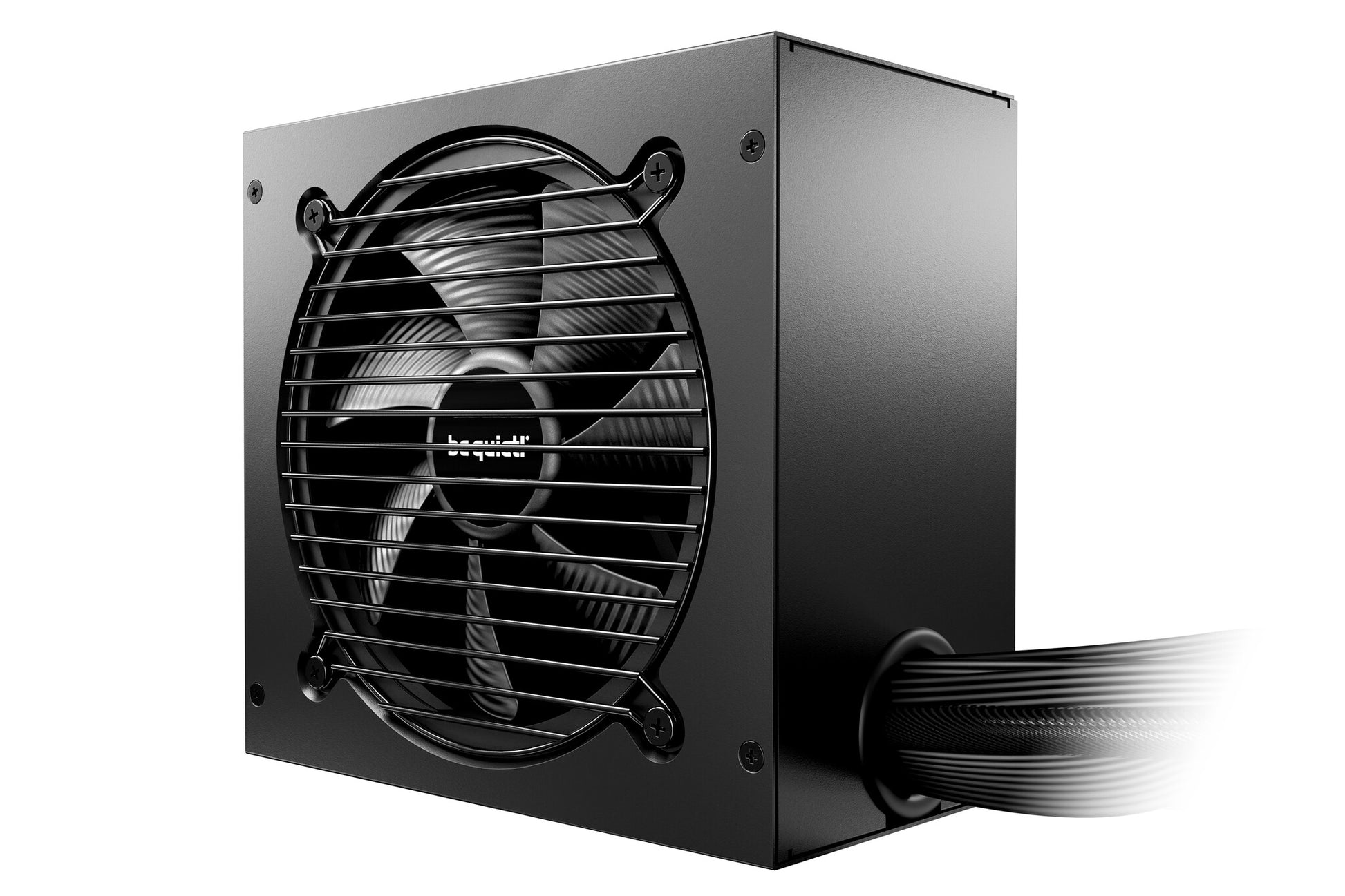

Exceptionally silent 120mm be quiet! fan
Advanced stability and voltage regulation thanks to LLC technology
One massive high-performance 12V-rail
One PCIe 5.1 12V-2x6 450W and 2 PCIe 6+2 connectors for overclocked high-end GPUs
80 PLUS Gold, 550W, ATX 3.1, PCIe 5.1, 160 x 86 x 150mm

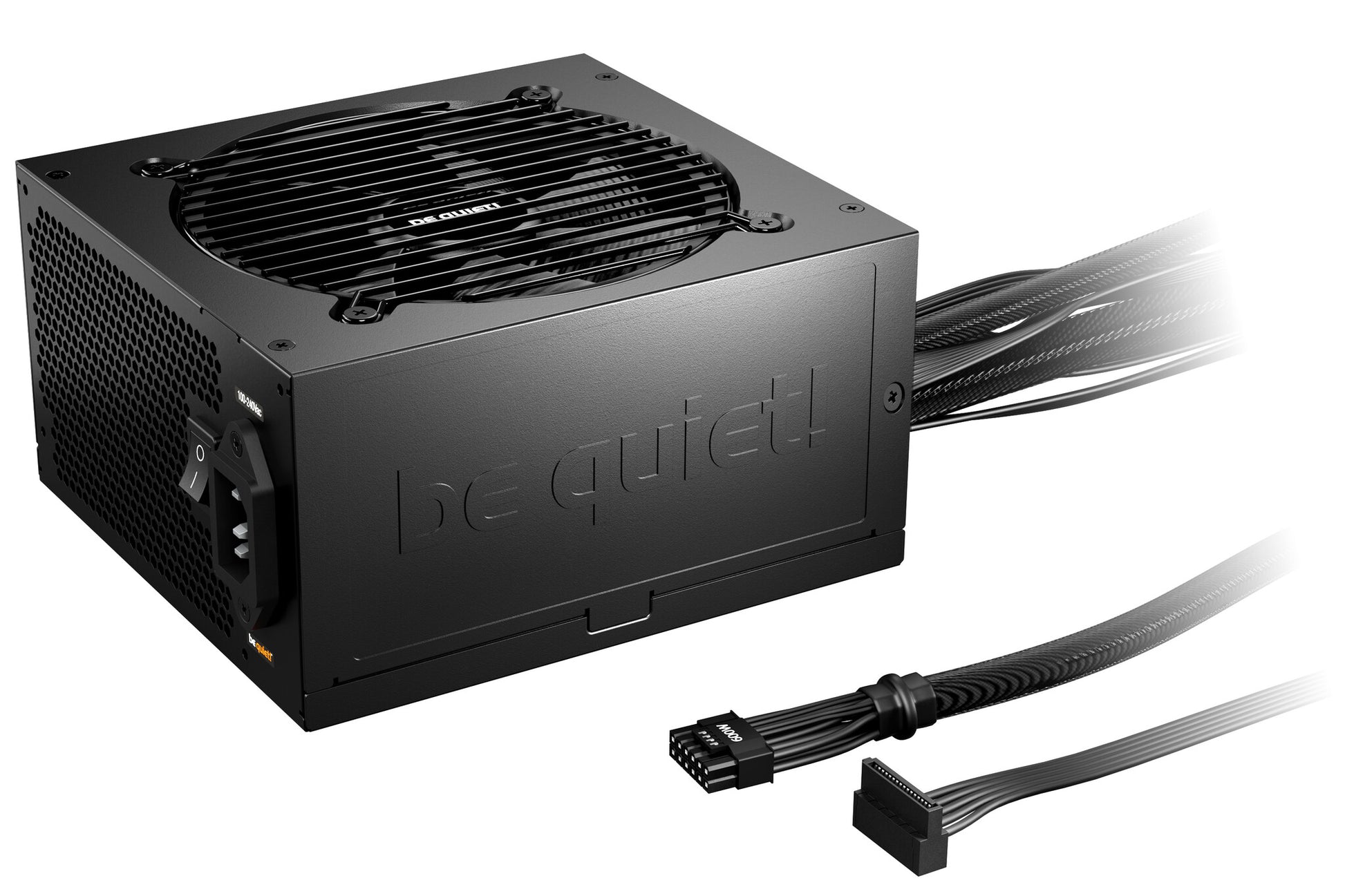

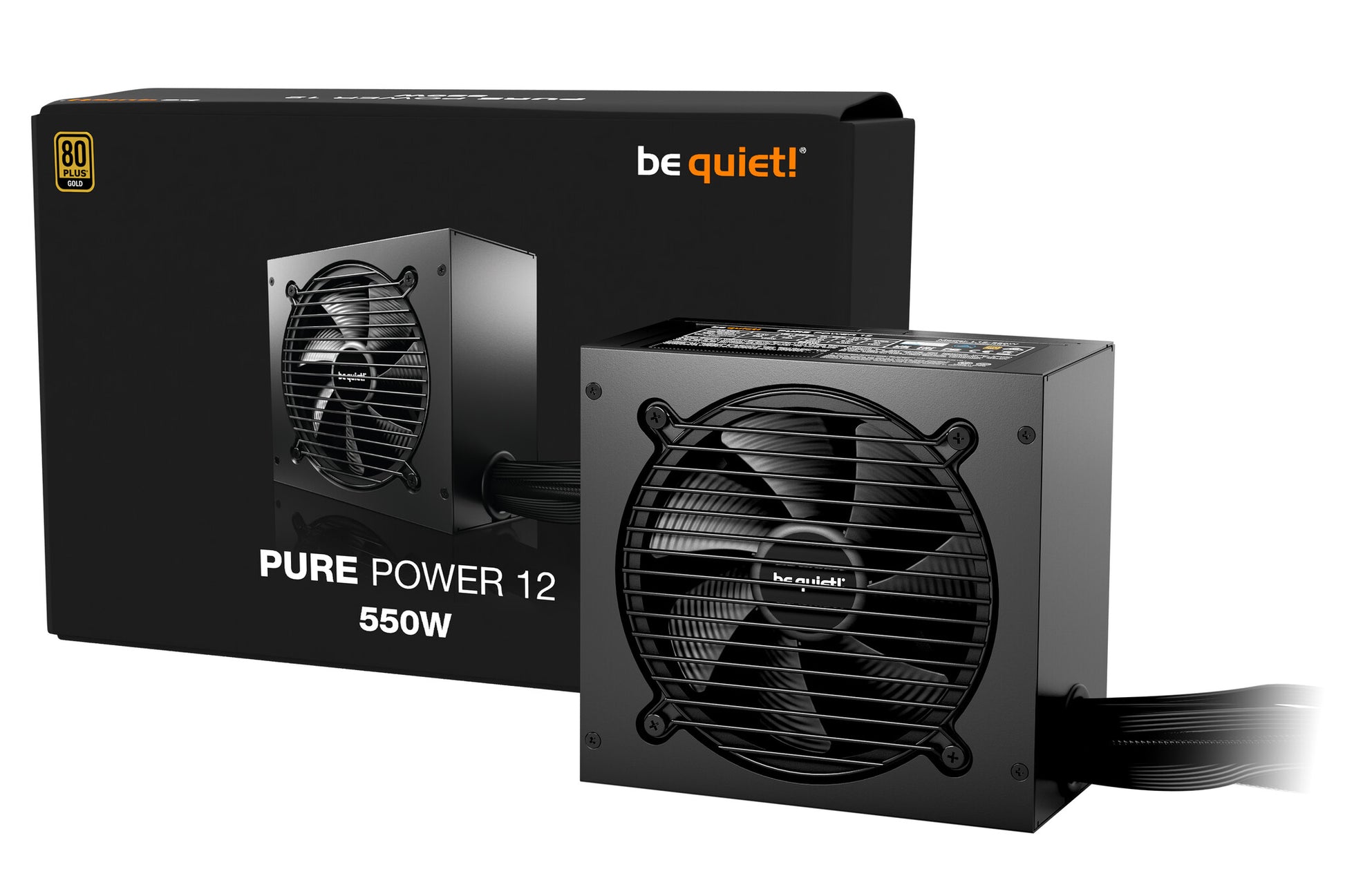

Exceptional quiet, superior features Pure Power 12 550W is ATX 3.1 compliant and PCIe 5.1 compatible and offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers remarkable convenience and outstanding compatibility.
Power
Total power
550 W
Peak power
600 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Maximum input current (@110V)
10 A
Maximum input current (@220V)
5 A
Power factor
0.98
Power Factor Correction (PFC) type
Active
Number of +12V rail(s)
1
Combined power (+3.3V)
120 W
Combined power (+12V)
550 W
Combined power (+5V)
120 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
15 W
Max output current (+3.3V)
20 A
Max output current (+12V1)
45.8 A
Max output current (+5V)
20 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
3 A
Hold time
16.64 ms
Efficiency
91.2%
Power protection features
Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage

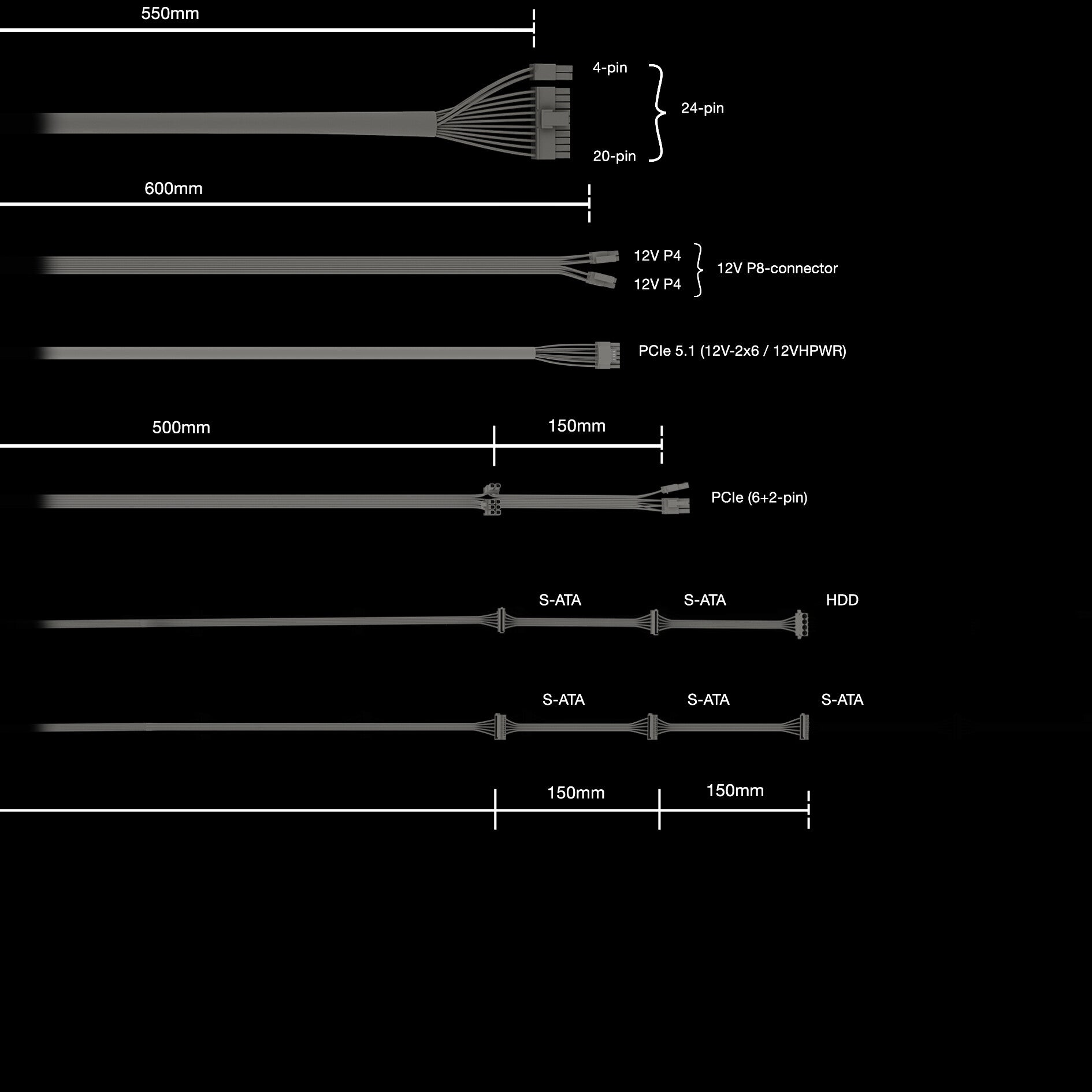

Ports & interfaces
Motherboard power connector
20+4 pin ATX
Motherboard power cable length
55 cm
Number of SATA power connectors
5
SATA power cable length
500,650,800 mm
Peripheral (Molex) power connectors (4-pin)
1
Peripheral (Molex) power cable length
800 mm
PCI Express power connectors (6+2 pin)
2
PCI Express power connectors (12-pin)
1
PCI Express power cable length
60 cm
CPU power connector (4+4 pin)
Yes
CPU power cable length
60 cm
PCI Express connector
Yes
Cabling type
Non-Modular
Performance
Purpose
PC
Power supply unit (PSU) form factor
ATX
80 PLUS certification
80 PLUS Gold
ATX version
3.1
EPS version
2.92

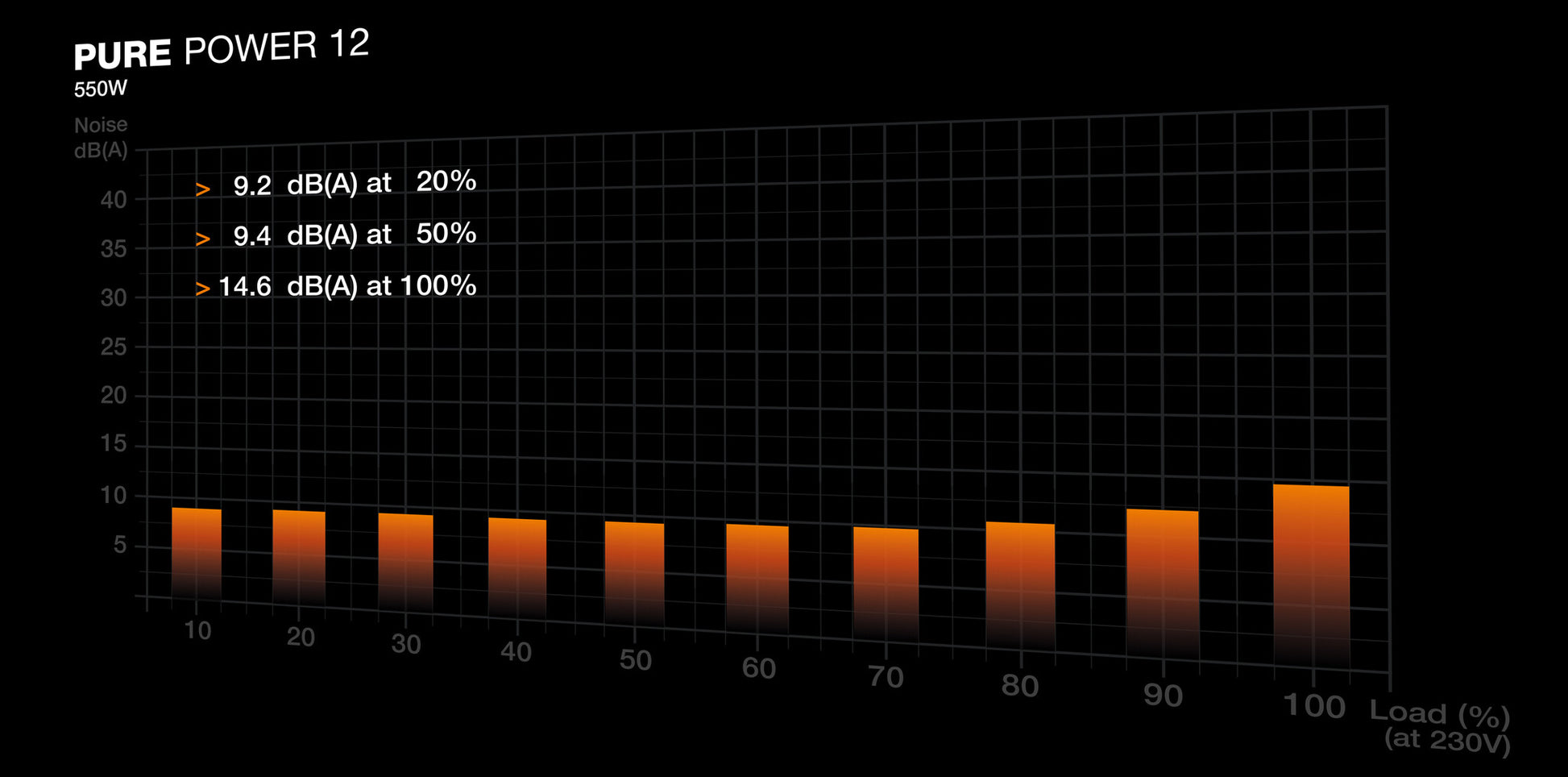

Noise level
14.6 dB
Bearing technology
Rifle
Mean time between failures (MTBF)
100000 h
Design
Product colour
Black
Cooling type
Active
Fan diameter
12 cm
Number of fans
1 fan(s)
Illumination
Yes
On/off switch
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
0 - 90%
Storage relative humidity (H-H)
0 - 95%

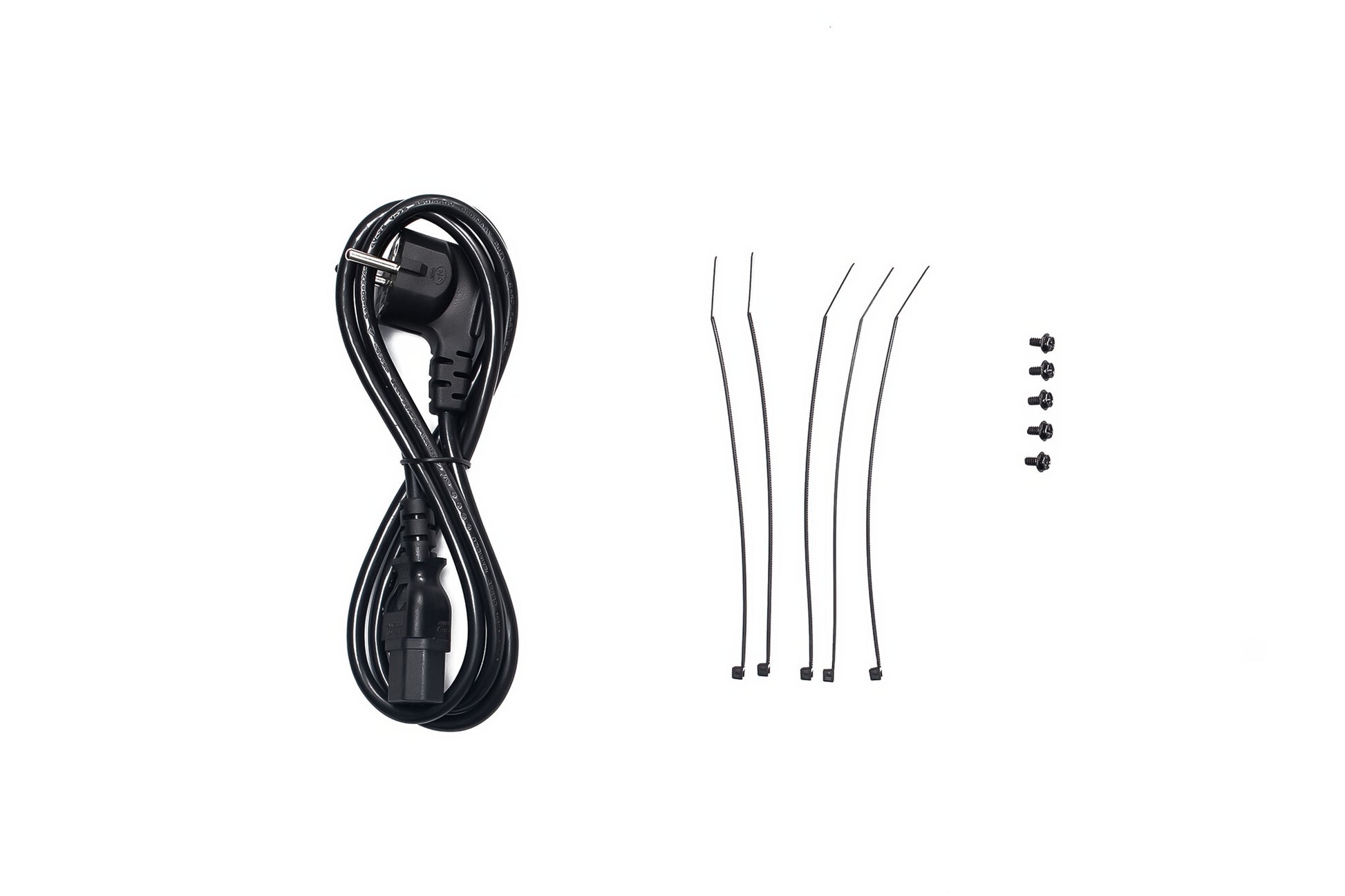

Packaging content
Cables included
AC
Cable tie(s) included
Yes
Weight & dimensions
Width
86 mm
Depth
160 mm
Height
150 mm
Weight
2.3 kg
Packaging data
Package width
133 mm
Package depth
320 mm
Package height
210 mm
Package weight
2.8 kg
Technical details
Warranty period
10 year(s)
Compliance certificates
CB, CE, Federal Communications Commission (FCC), RoHS, UKCA, WEEE, cTUVus
