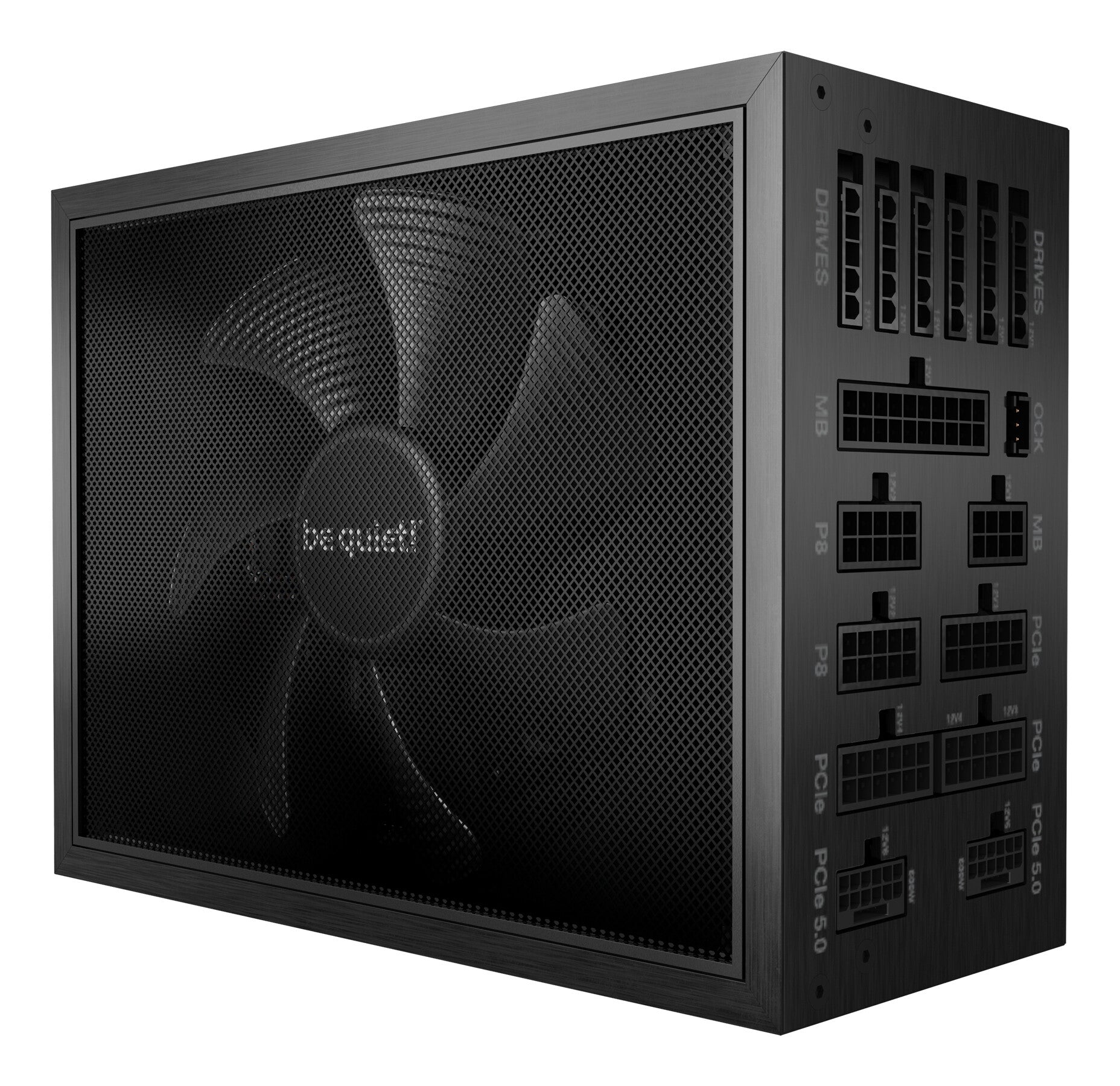

be quiet! Dark Power Pro 13 | 1300W power supply unit 20+4 pin ATX ATX Black

be quiet! Dark Power Pro 13 | 1300W power supply unit 20+4 pin ATX ATX Black

£348.91 GBP
£348.91 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

BN331

Low stock: 6 left

  • 80 PLUS Titanium efficiency (up to 94.4%)
  • ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connectors
  • Handles massive power excursions

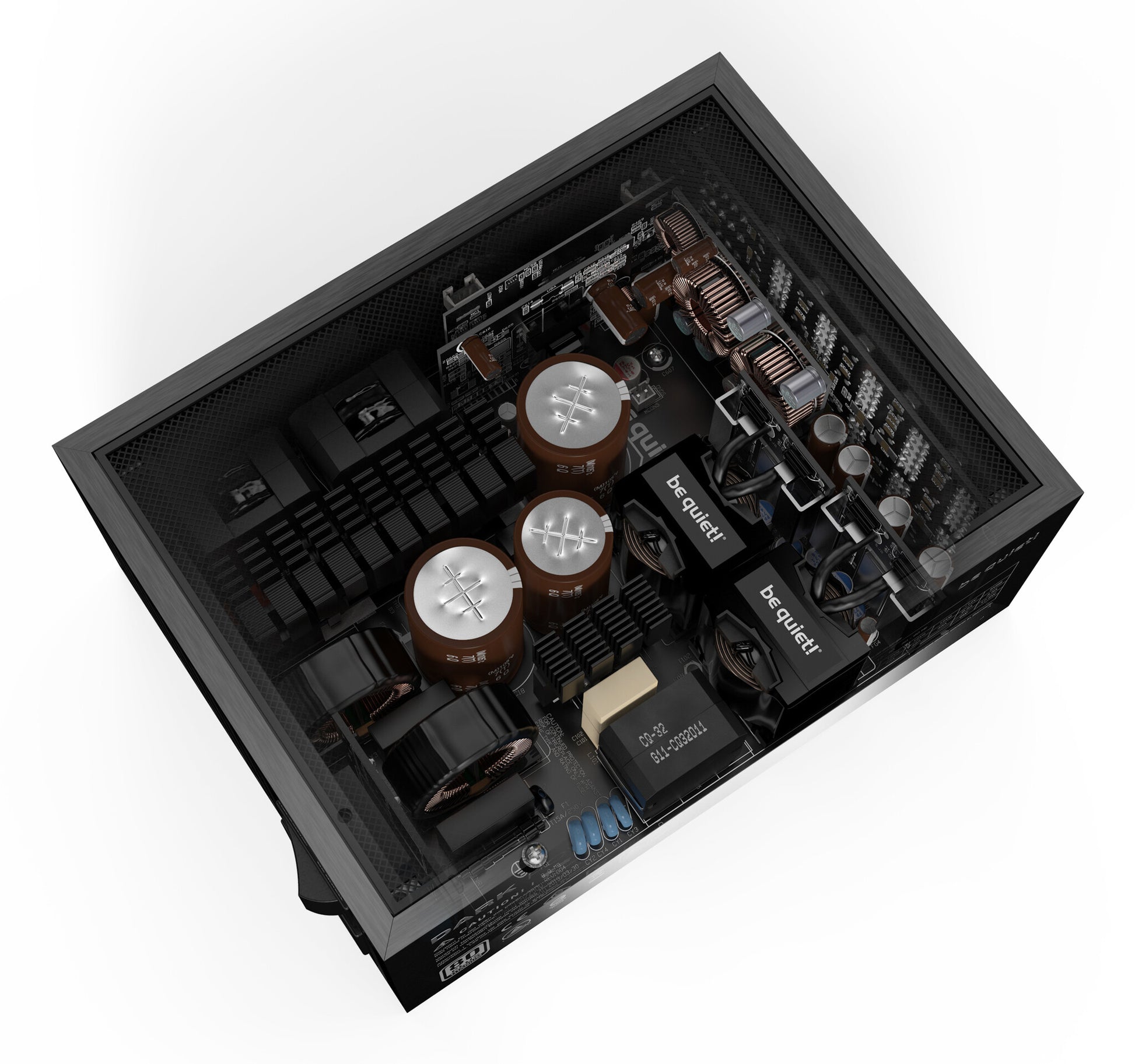

  • Fully digital control and Active Rectifier + full bridge LLC technology for unmatched signal stability

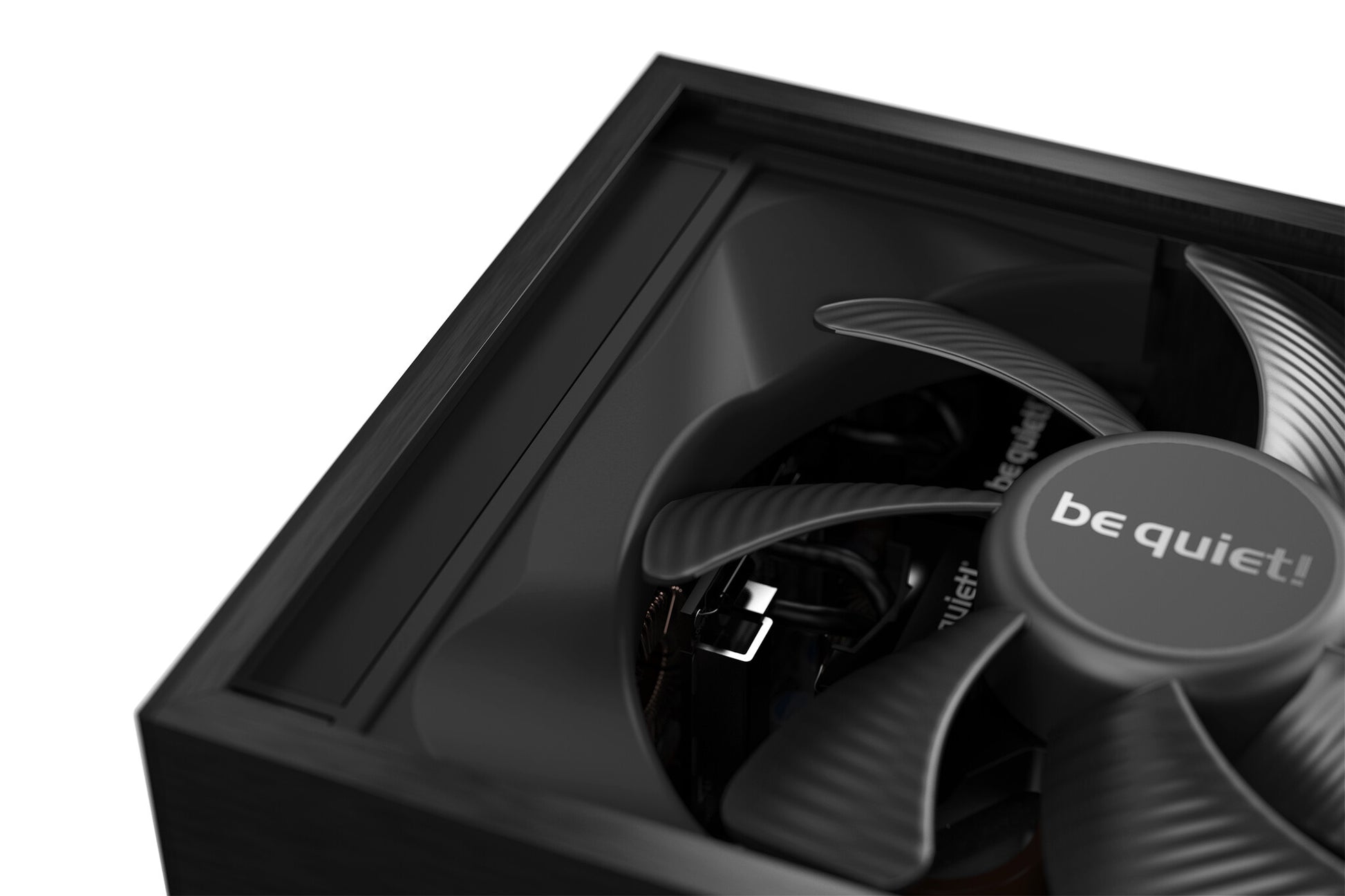

  • Improved and patented frameless Silent Wings fan for virtually inaudible operation at ordinary loads
  • Full mesh PSU front with funnel-shaped air inlet
  • Overclocking key switches between six 12V rails and one massive 12V rail
  • Japanese 105°C capacitors ensure highest stability and reliability
  • 2 PCIe 5.0 12VHPWR 600W and 6 PCIe 6+2 connectors for overclocked high-end GPUs

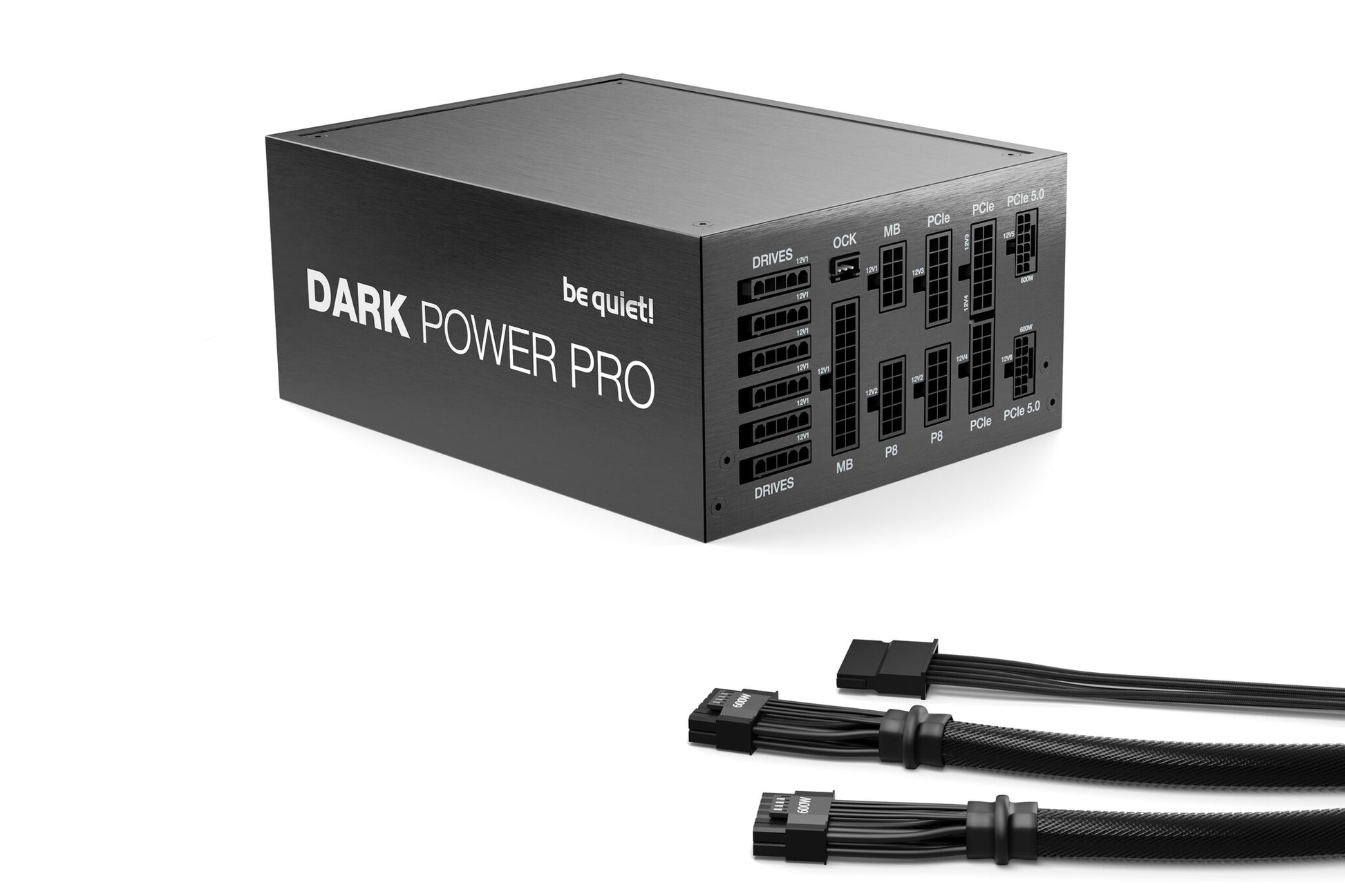

  • Aluminum case and modular individually sleeved cables for magnificent appearance
1300W, 80 PLUS Titanium, ATX 3.0, PCIe 5.0, 6+2 pin, 100-240 V, 50-60 Hz, Black

CUTTING EDGE TECHNOLOGIES AND PERFORMANCE
The be quiet! Dark Power Pro 13 1300W offers 80 PLUS® Titanium efficiency and world-class performance due to fully digital control and a frameless fan concept. With the latest PCIe 5.0 compatibility it is predetermined as the ATX 3.0 power supply for your next-gen graphics card.

Power
Total power 1300 W
Peak power 1400 W
AC input voltage 115 - 240 V
AC input frequency 50 - 60 Hz
Input current 15 - 9 A
Power factor 0.99
Combined power (+3.3V) 150 W
Combined power (+12V) 1300 W
Combined power (+5V) 150 W
Combined power (-12V) 6 W
Combined power (+5Vsb) 17.5 W
Max output current (+3.3V) 25 A
Max output current (+12V1) 35 A
Max output current (+12V2) 35 A
Max output current (+12V4) 40 A
Max output current (+12V3) 40 A
Max output current (+5V) 25 A
Max output current (-12V) 0.5 A
Max output current (+5Vsb) 3.5 A
Hold time 18 ms
Efficiency 94.5%
Power protection features Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

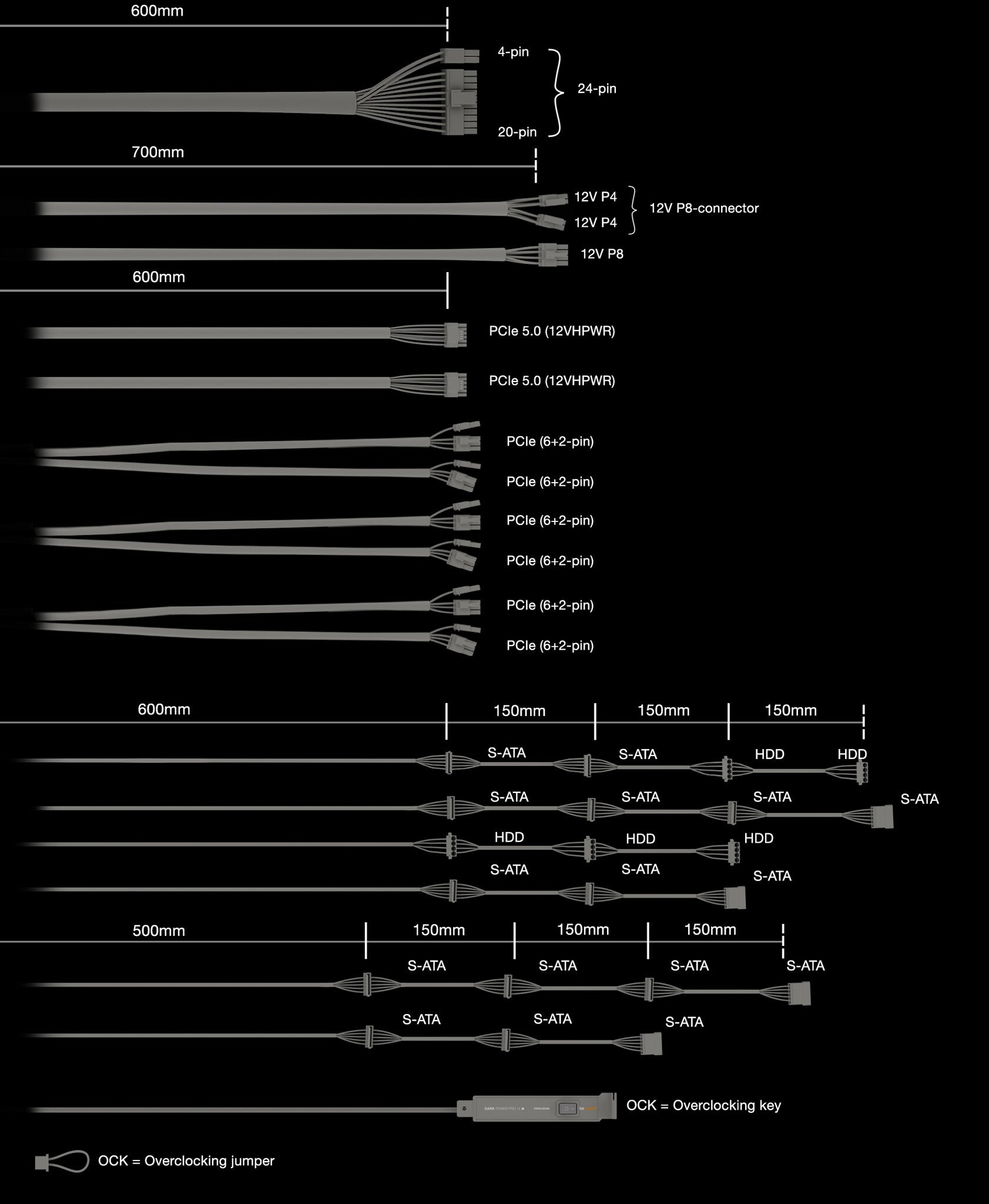

Ports & interfaces
Motherboard power connector 20+4 pin ATX
Motherboard power cable length 60 cm
Number of PATA power connectors 5
Number of SATA power connectors 16
SATA power cable length 500,600,750,800,900,950,1050 mm
Peripheral (Molex) power cable length 600,750,900,1050 mm
EPS power connector (8-pin) Yes
EPS power connector (4+4 pin) Yes
PCI Express power connectors (6+2 pin) 6
PCI Express power cable length 60 cm
CPU power cable length 70 cm
ATX power connector (20+4 pin) Yes
PCI Express connector Yes
Cabling type Fully-Modular
Performance
Purpose PC
Power supply unit (PSU) form factor ATX
80 PLUS certification 80 PLUS Titanium
ATX version 3.0
EPS version 2.92

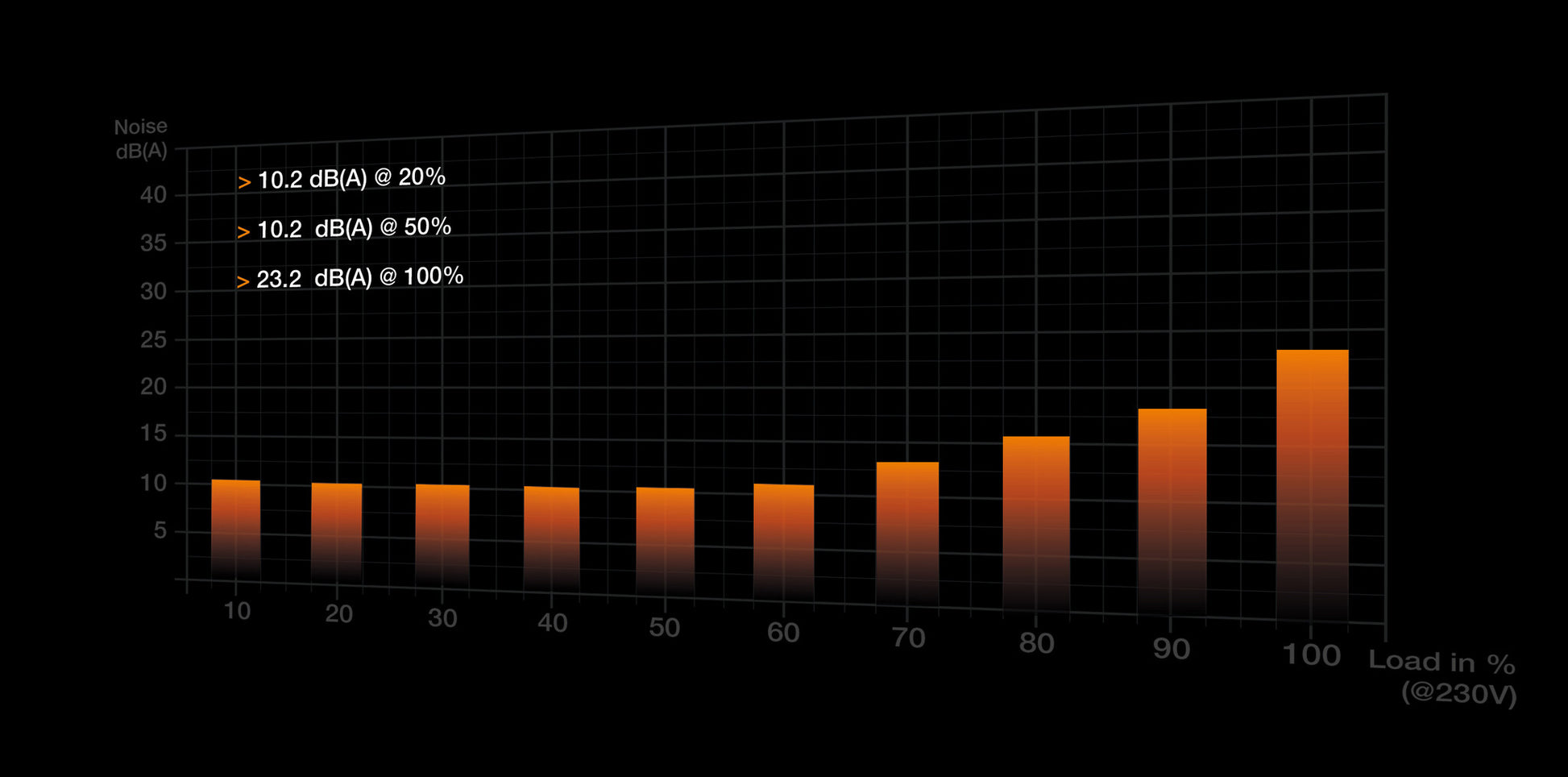

Noise level 23.2 dB
Bearing technology FDB
Mean time between failures (MTBF) 100000 h
Design
Product colour Black
Cooling type Active
Fan diameter 13.5 cm
Number of fans 1 fan(s)
Illumination No
Packaging content

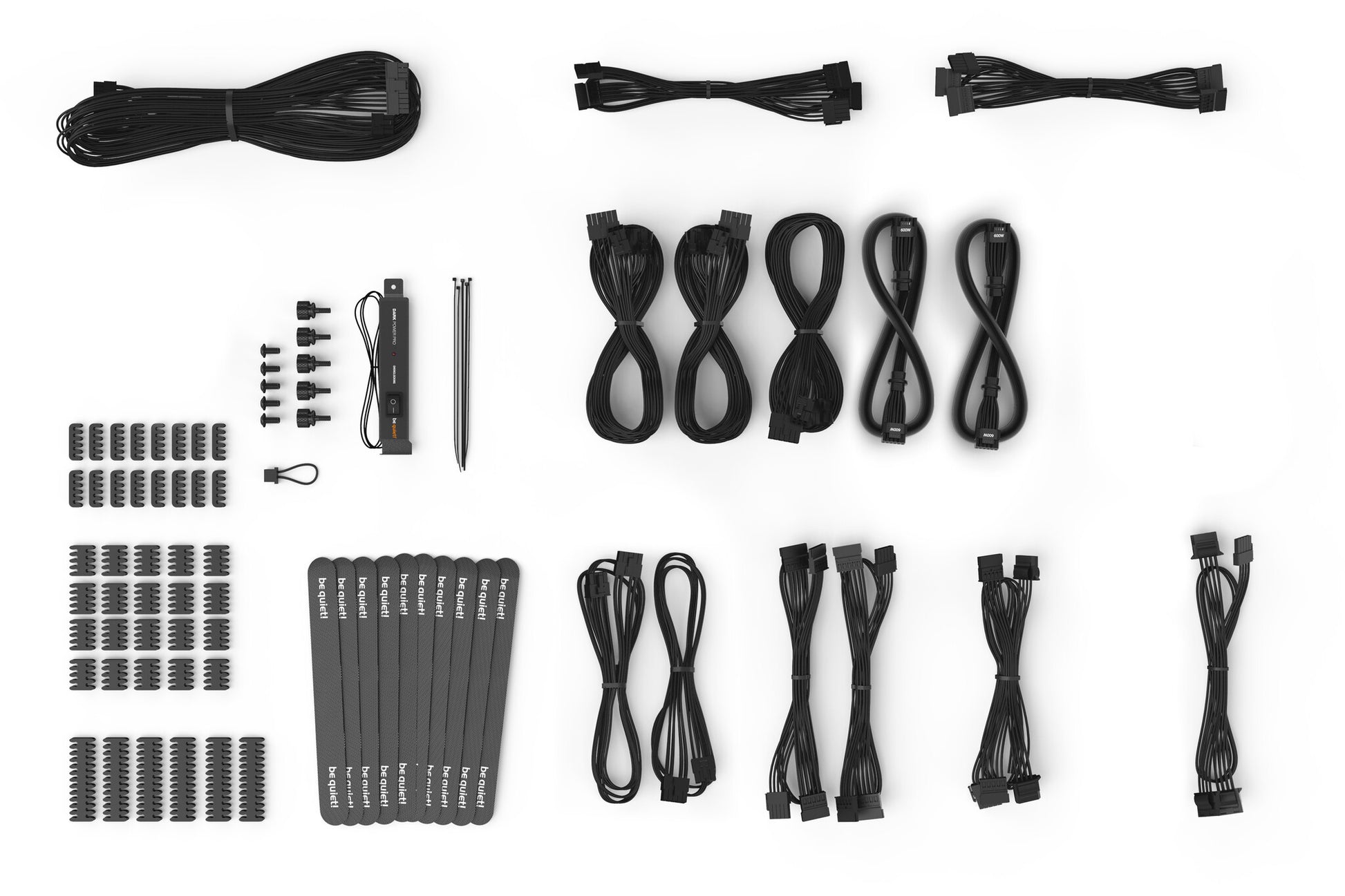

Cables included CPU, PCIe, Peripheral (Molex), SATA
Cable tie(s) included Yes
Weight & dimensions
Width 150 mm
Depth 200 mm
Height 86 mm
Weight 2.41 kg
Packaging data
Package width 253 mm
Package depth 417 mm
Package height 152 mm
Package weight 6.8 kg
Technical details
Warranty period 10 year(s)
Compliance certificates CCC, CE, Federal Communications Commission (FCC), UKCA
Sustainability compliance Yes
Logistics data
Shipping (inner) case net weight 14.4 kg
Products per shipping (inner) case 2 pc(s)
Shipping (inner) case height 28.3 cm
Shipping (inner) case width 32.5 cm
Shipping (inner) case length 44 cm
