Barco

Barco ClickShare Hub Pro video conferencing system Ethernet LAN Video conferencing service management system

Barco ClickShare Hub Pro video conferencing system Ethernet LAN Video conferencing service management system

£2,687.35 GBP
£2,687.35 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

R9861710EUB2

Low stock: 10 left

  • Wireless presentation: 4K content sharing with 2 next-gen ClickShare Buttons with USB-C DisplayPort™​
  • Dual display support
  • Secure by design, cloud-managed, and built on the Microsoft Device Ecosystem platform (MDEP)
  • Sustainable product with Barco Eco label A+
HDMI/eDP, USB-A/USB-C, 802.11 a/b/g/n/ac/ax/be, Bluetooth 5.3, LAN, PD3.1 EPR, 2 x ClickShare Button 5th Gen

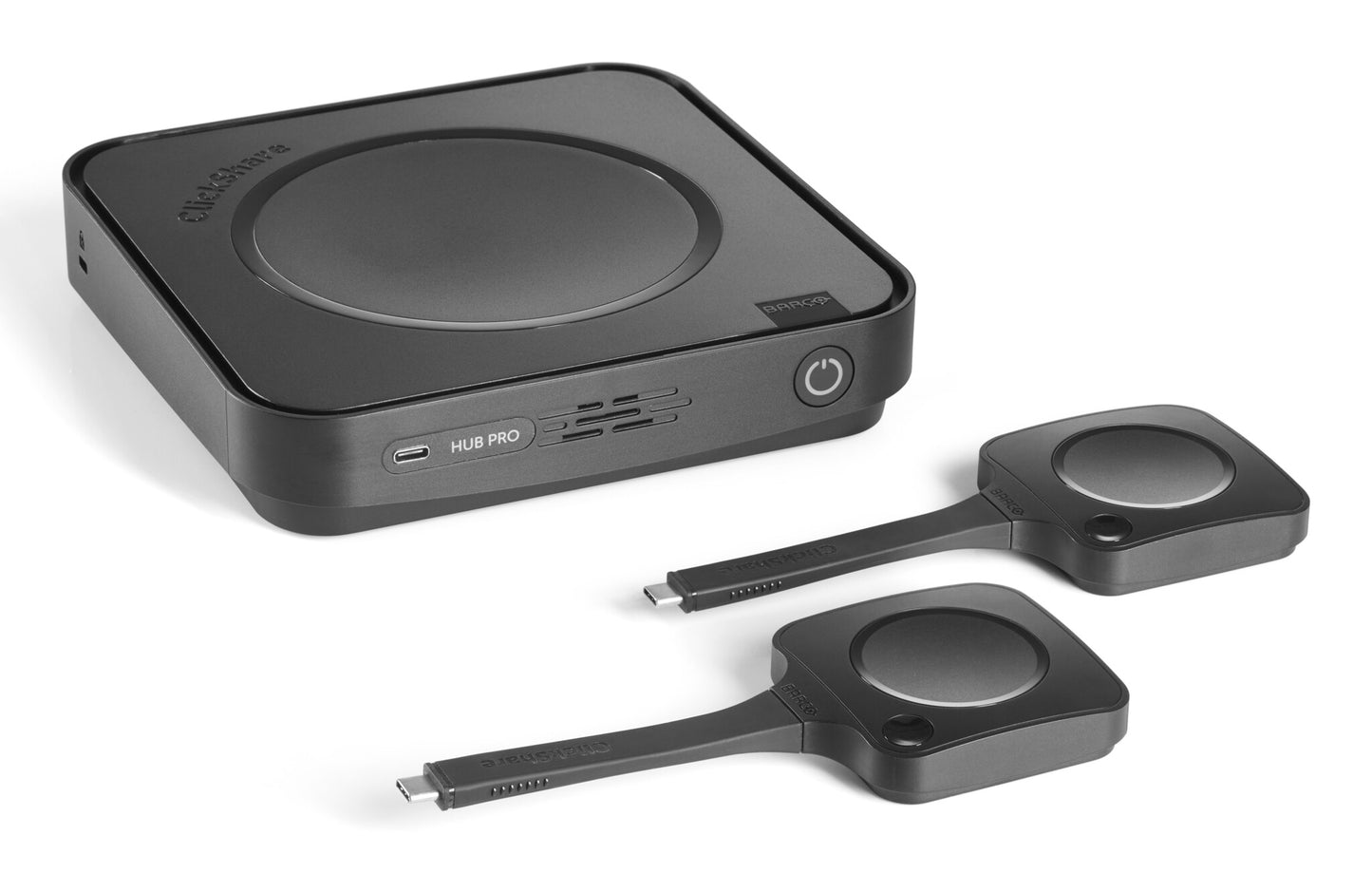

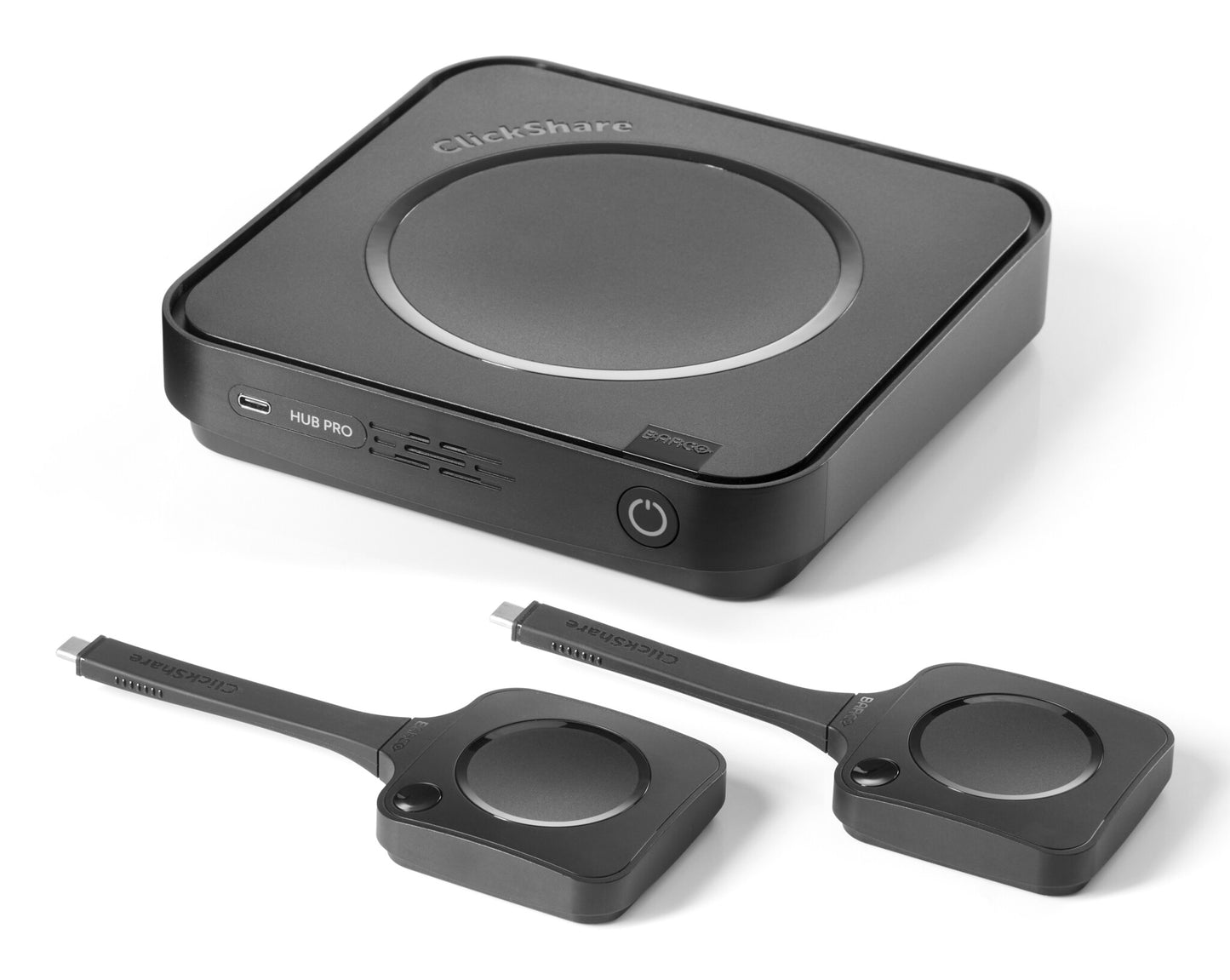

ClickShare Hub Pro is a premium modular, wireless video conferencing system for enhanced hybrid meetings. Featuring two next-gen ClickShare Buttons (with Wi-Fi 6E and USB-C DisplayPort™), it ensures meeting participants enjoy secure, 4K wireless content sharing. With dual display support, it guarantees highly visual and engaging meetings.

For IT managers and integrators, ClickShare Hub Pro offers a customizable solution for all room types, enterprise-grade security and compliance.

Next-gen ClickShare Button
The ClickShare Button 5th gen, featuring Wi-Fi 6E, offers faster speeds and more reliable connectivity for smooth, uninterrupted collaboration.

Featuring USB-C DisplayPort™, it enables guest-friendly, plug-and-play sharing — no software or drivers needed.

For added privacy and control, the ClickShare Button requires a deliberate press, preventing accidental sharing.
- Works seamlessly across all major OS in high-security environments
- Built-in security and user control

Performance
Product type Video conferencing service management system
Bluetooth Yes
Bluetooth version 5.3
Product colour Black
Noise level 25 dB
Technical details
Compliance certificates CE, Federal Communications Commission (FCC)
Video
HD type 5K Ultra HD
Maximum video resolution 5120 x 2160 pixels

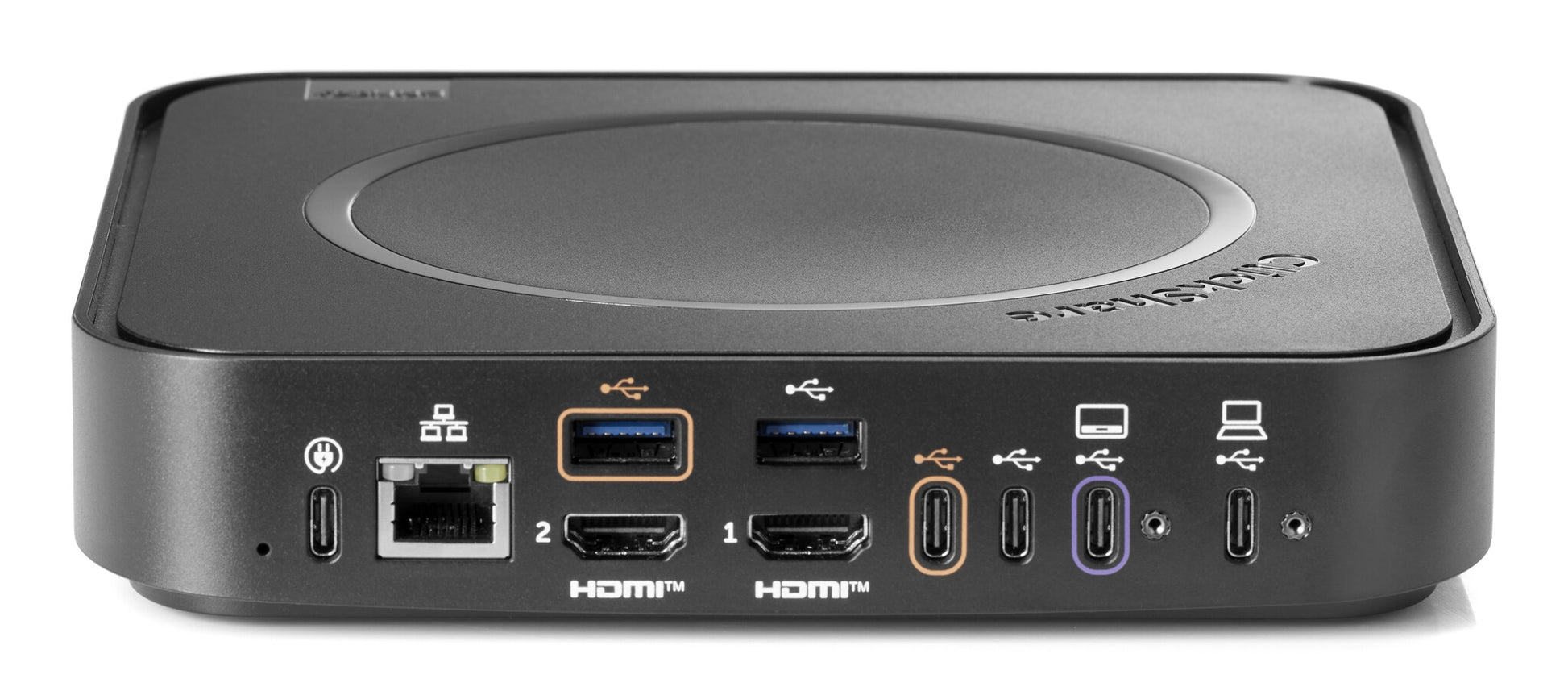

Ports & interfaces
HDMI version 2.0
HDMI output ports quantity 2
USB 2.0 Type-C ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 4
USB Type-C DisplayPort Alternate Mode Yes
Ethernet LAN (RJ-45) ports 1
DisplayPort version 1.4
Buttons
Presentation button included Yes
Network
Ethernet LAN Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Wi-Fi Yes
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Networking standards IEEE 802.15.1
Display
Built-in display No
Computer system
Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Mac operating systems supported Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia
Logistics data
Country of origin China
Features
Cable lock slot Yes
Cable lock slot type Kensington
Maximum operating distance 30 m
Operational conditions
Storage relative humidity (H-H) 0 - 90%
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 0 - 85%
Operating temperature (T-T) 0 - 40 °C
Power
Power source type USB
USB Power Delivery up to 180 W
USB Power Delivery Yes
Power consumption (typical) 160 W
Weight & dimensions
Width 180 mm
Depth 180 mm
Height 37 mm
Weight 720 g
Receiver dimensions (WxDxH) 63 x 161.3 x 16 mm
Packaging content
Control panel included No
Packaging content ClickShare Hub Pro Base Unit, 2 ClickShare Hub Button 5th Gen, Mounting disc, Safety manual, Quick setup guide
