Wireless presentation: 4K content sharing with 1 Button
Secure by design, cloud-managed, and built on the Microsoft Device Ecosystem platform (MDEP)
Next-gen ClickShare Button with Wi-Fi 6E support and USB-C DisplayPort™
Sustainable product with Barco Eco label A+
Works as part of a room system bundle certified for Microsoft Teams

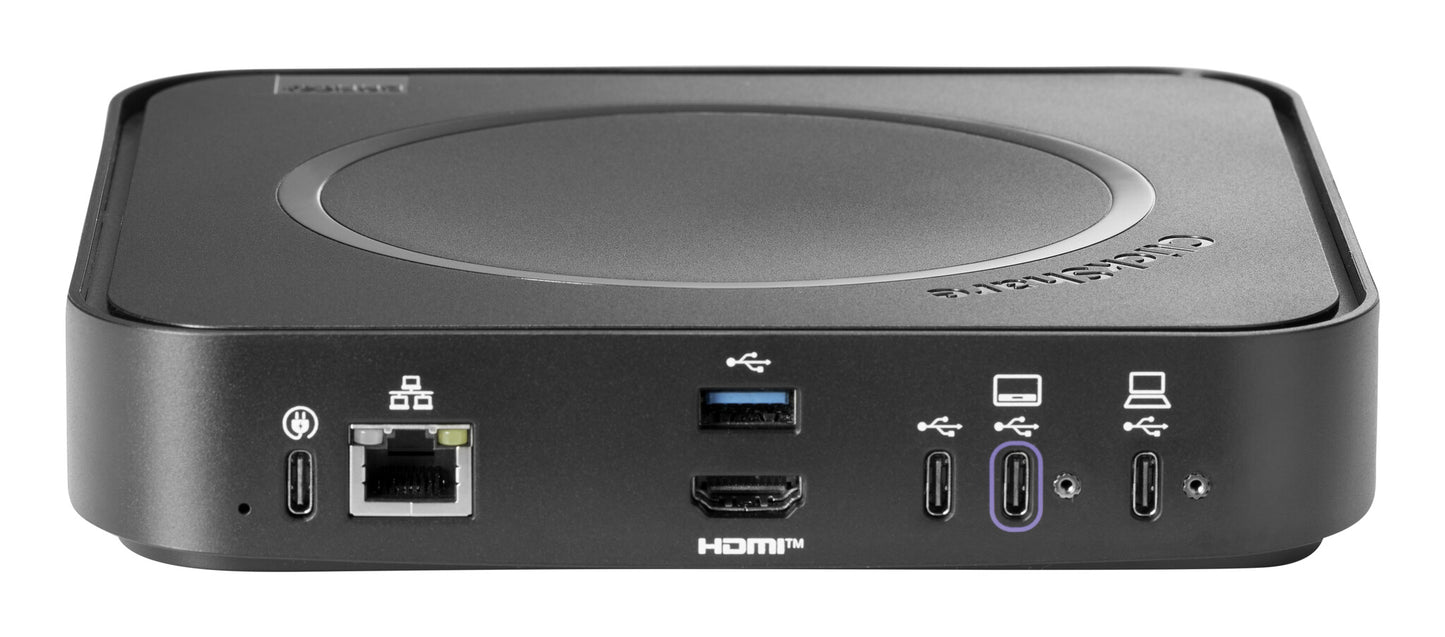

HDMI/eDP, 4K UHD, USB-A/USB-C, IEEE 802.11 a/b/g/n/ac/ax/be, Bluetooth 5.3, LAN, PD3.1 EPR, 1 x ClickShare Button 5th Gen

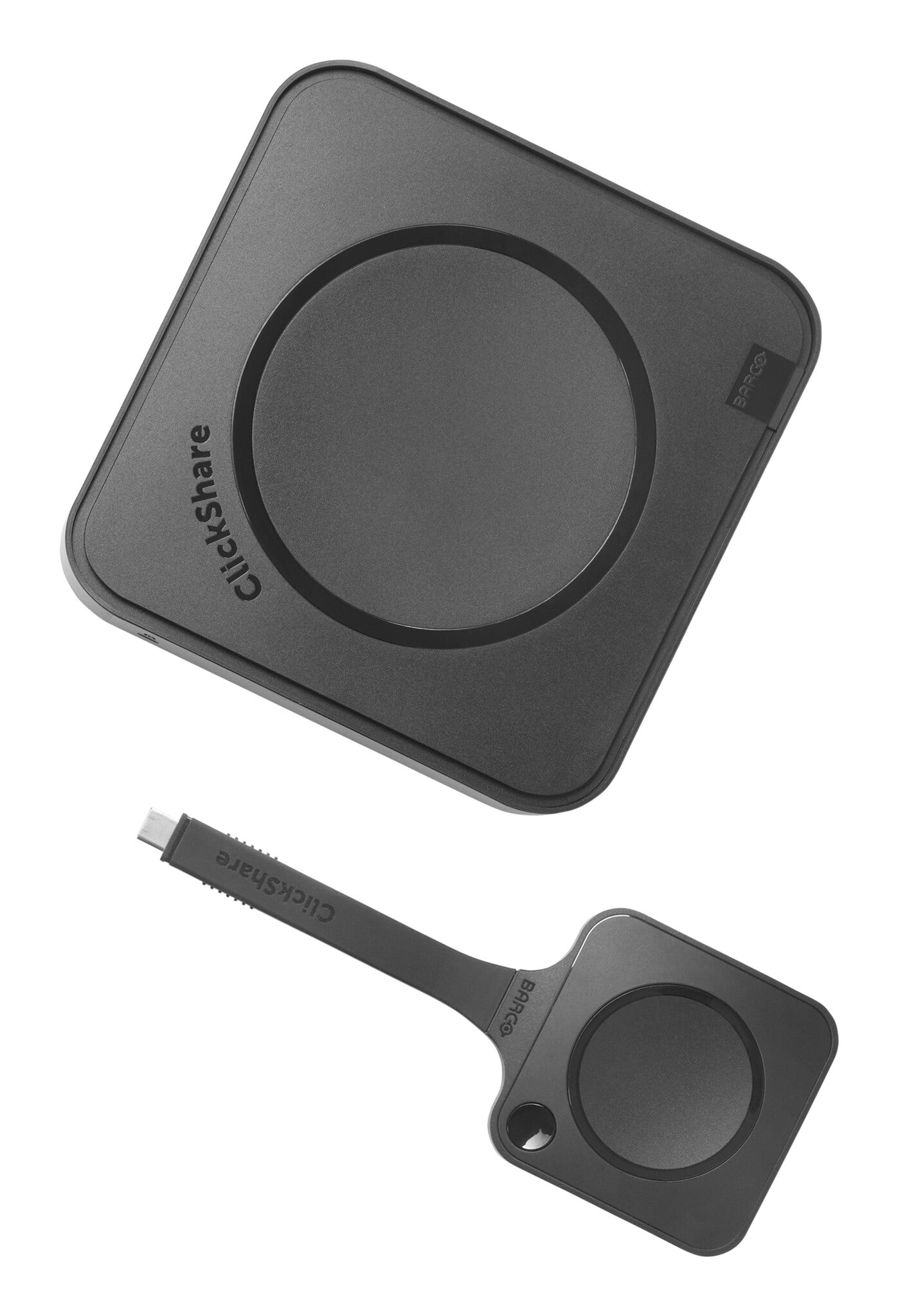

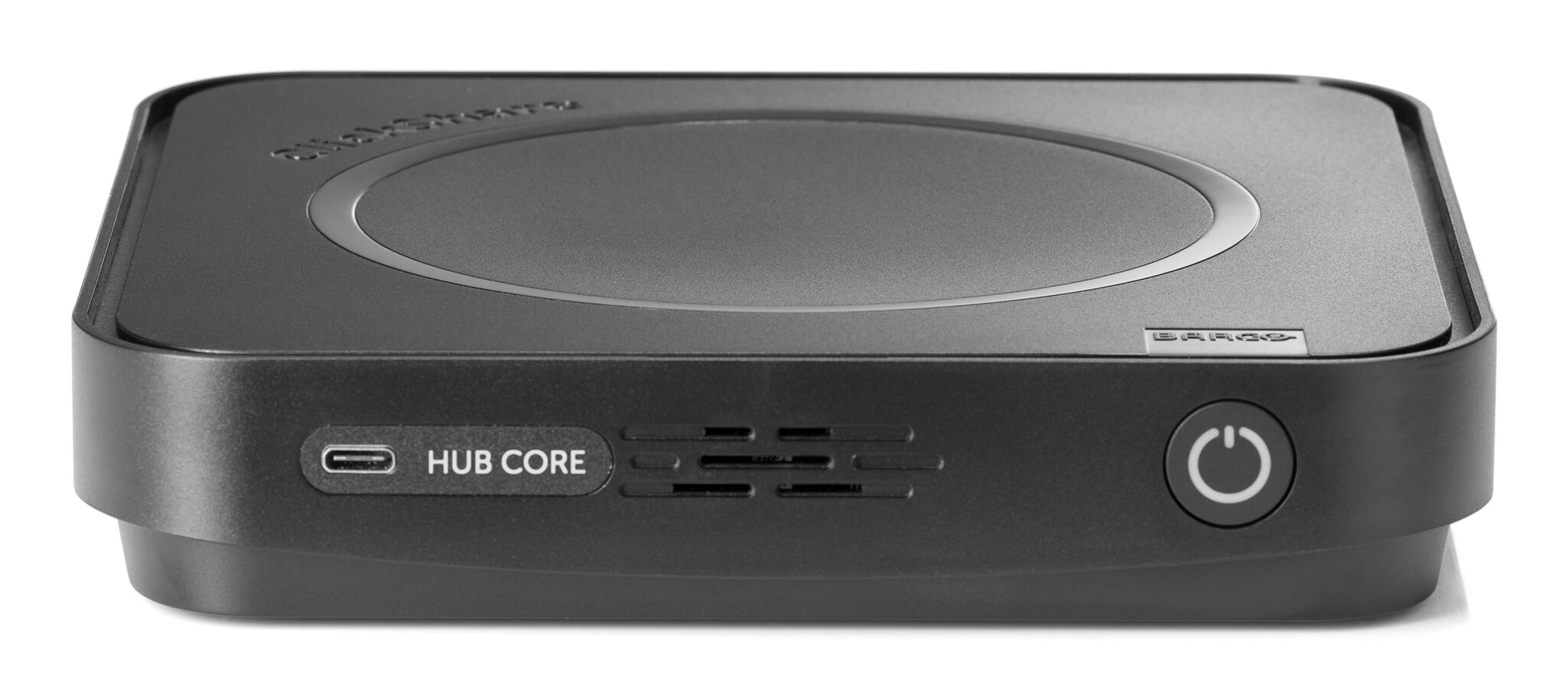

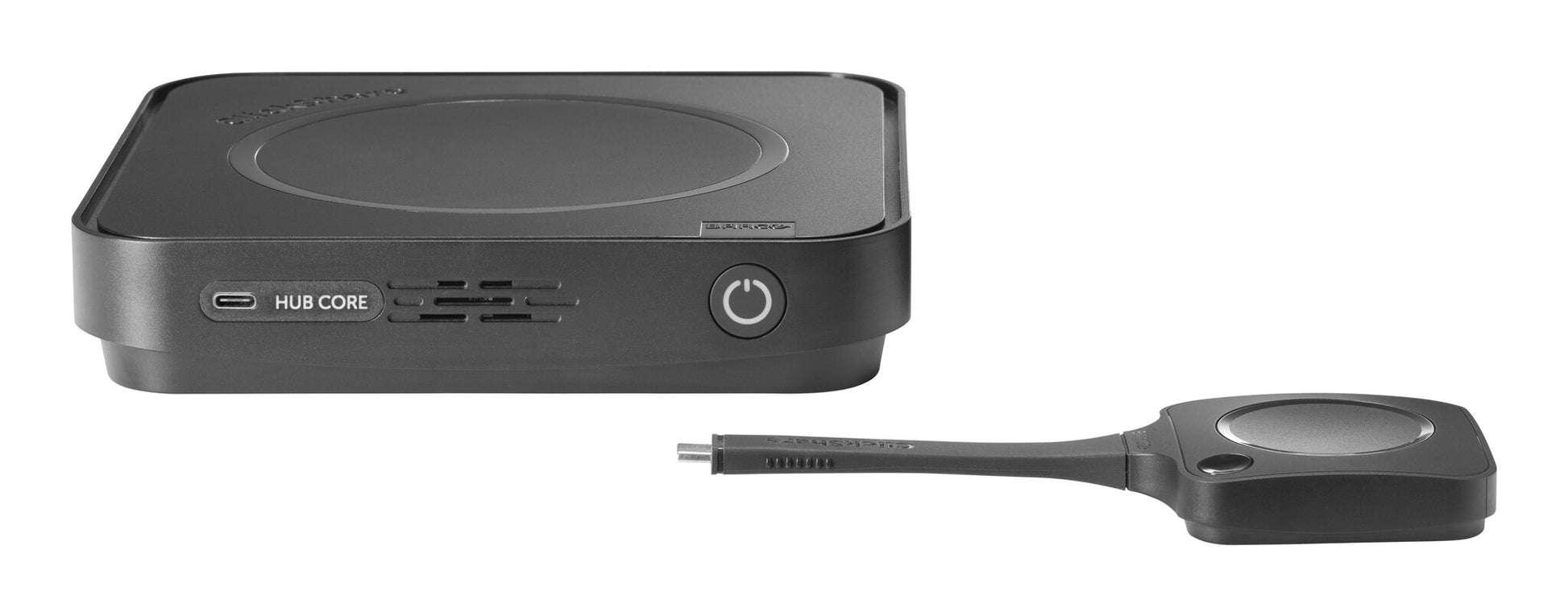

ClickShare Hub Core is a modular, wireless video conferencing system designed for effortless hybrid meetings. The Hub Core works with the ClickShare Control Panel* and enables participants to start their meeting with a simple tap. Sharing 4K content is just as easy thanks to the next-gen ClickShare Button. For IT managers and integrators, ClickShare Hub Core offers a customizable solution for all room types, and both ad hoc and scheduled meetings. Built on the Microsoft Device Ecosystem Platform (MDEP), it guarantees enterprise-grade security and compliance.
Meeting room bundles for seamless hybrid collaboration The ClickShare Hub Core and Sennheiser TeamConnect Bar S bundle is a certified Microsoft Teams Rooms solution designed for small meeting rooms. It combines secure 4K content sharing, high-quality audio and video, and cloud-managed performance – all in one easy-to-deploy package. Certified for Microsoft Teams, ensuring seamless integration and a consistent user experience Built on Microsoft Device Ecosystem Platform (MDEP) for secure, Android-based room system performance One-click 4K content sharing with a next-gen ClickShare Button featuring Wi-Fi 6E and USB-C DisplayPort™
Next-gen ClickShare Button The ClickShare Button 5th gen, featuring Wi-Fi 6E, offers faster speeds and more reliable connectivity for smooth, uninterrupted collaboration. Featuring USB-C DisplayPort™, it enables guest-friendly, plug-and-play sharing — no software or drivers needed. For added privacy and control, the ClickShare Button requires a deliberate press, preventing accidental sharing. Works seamlessly across all major OS in high-security environments Built-in security and user control
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Mac operating systems supported
Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia
Logistics data
Country of origin
China
Features
Cable lock slot
Yes
Cable lock slot type
Kensington
Maximum operating distance
30 m
Operational conditions
Storage relative humidity (H-H)
0 - 90%
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 85%
Operating temperature (T-T)
0 - 40 °C
Power
Power source type
USB
USB Power Delivery up to
180 W
USB Power Delivery
Yes
Power consumption (max)
140 W
Weight & dimensions
Width
180 mm
Depth
180 mm
Height
37 mm
Weight
720 g
Receiver dimensions (WxDxH)
63 x 161.3 x 16 mm
Packaging content
Camera included
No
Packaging content
ClickShare Hub Core Base Unit, 1 ClickShare Hub Button 5th Gen, Mounting disc, Safety manual, Quick setup guide
