  • Part of the System X range for use in a variety of applications
  • Ideal for menu boards and other multi-screen installations
  • Also ideal for specialist stretch screens using VESA 600 x 200 fixings (landscape orientation)
  • Universal design compatible with most screens
  • Suitable for landscape or portrait mounting
  • High-end aesthetic quality

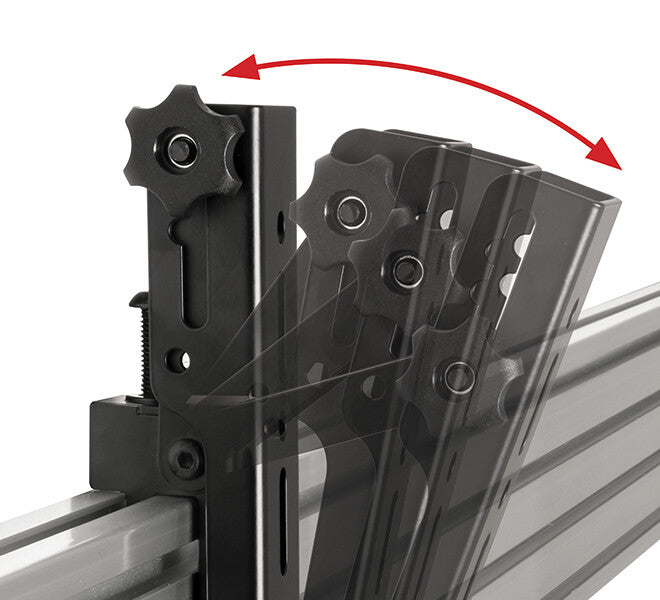

  • Tool-less thumbwheels for easy adjustment of the tilt angle
  • Lateral adjustment - position arms anywhere along the length of the rail

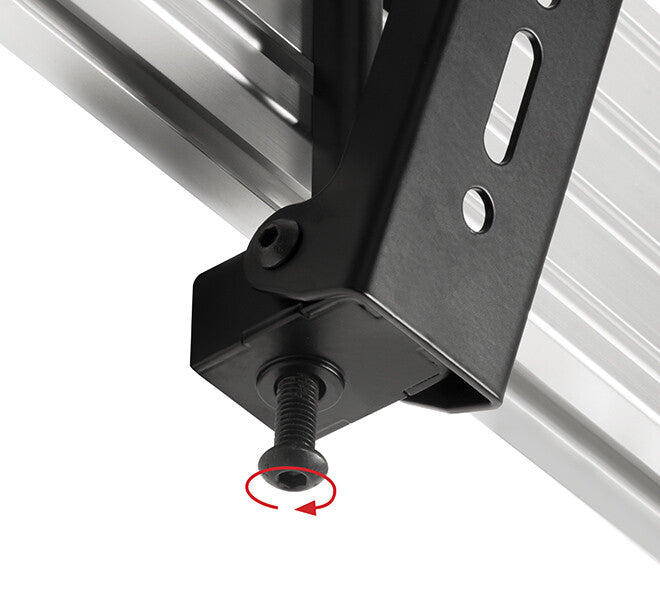

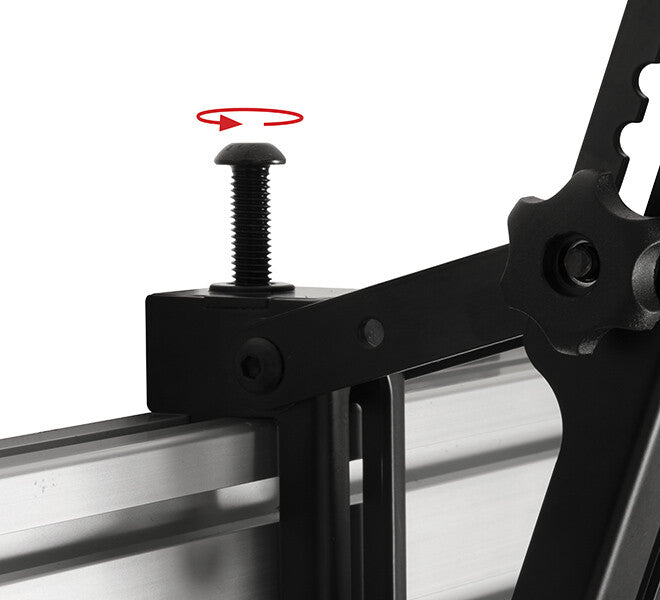

  • Includes levelling screws to adjust the screen height
  • Safety screws help prevent unauthorised removal of screens
  • Simple 'hook-on' installation
  • All mounting hardware included

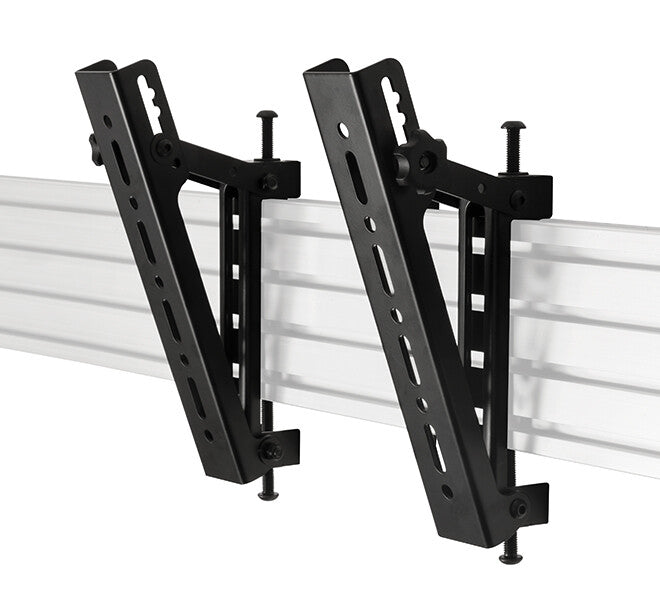

SYSTEM X - VESA 200 Flat Screen Interface Arms with Tilt for BT8390 (Pair)

Ideal for single row, multi-screen installations, these interface arms are designed to mount small to medium sized screens in a tilted position along System X horizontal mounting rails. The universal design is compatible with a variety of different screens and allows them to be mounted in either landscape or portrait orientations. Levelling screws on each interface arm provide post installation height adjustment and thumbwheels allow easy tool-less adjustment of the tilt angle up to 20°.

Features
Product type Flat panel mount arm
Product colour Black
Mounting type Rail
Maximum weight capacity 70 kg
Panel mounting interface 200 x 200,600 x 200 mm
Maximum screen size 119.4 cm (47")
Minimum screen size 81.3 cm (32")
Number of displays supported 1
Tilt angle range 0 - 20°
Packaging content
Screws included Yes
Quantity per pack 2 pc(s)
Logistics data
Harmonized System (HS) code 83024200
