B-Tech SYSTEM X - Rail Mounting Bracket for BT8390 - 19mm from Wall

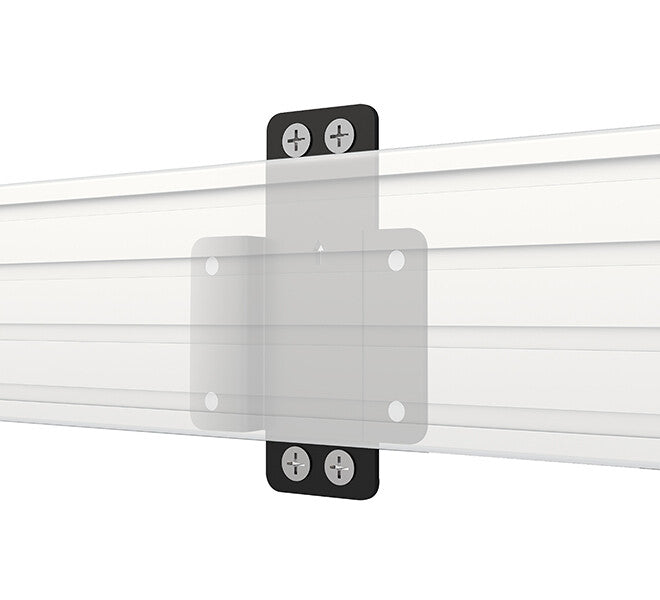

• Designed to allow BT8390 horizontal rails to be mounted to the wall

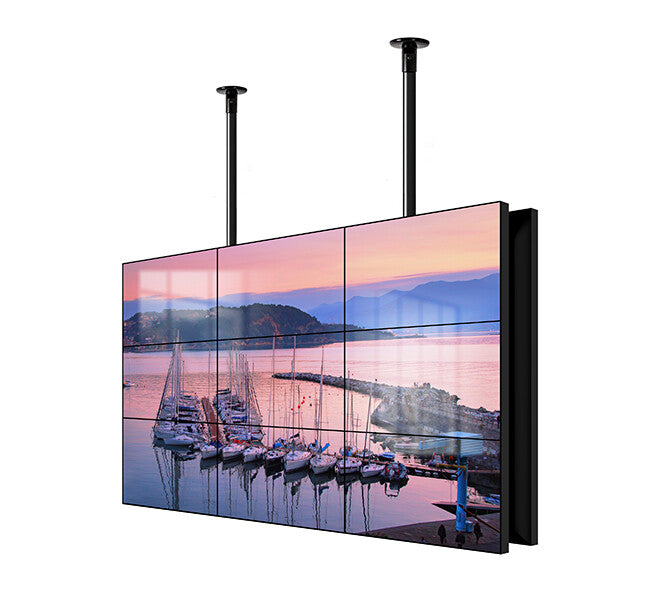

• Can also be used for pole mounted video wall installations
• Increased depth allows for an enhanced tilt range when using tilt arms

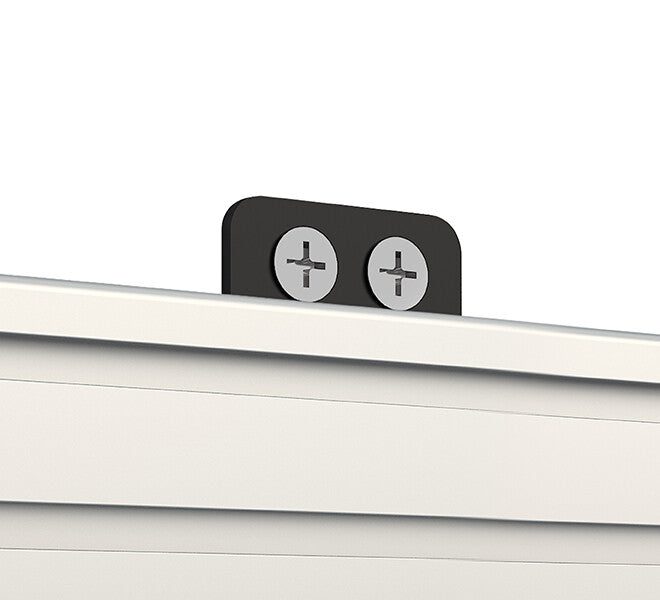

• Countersunk screws sit flush with the plate for a neat installation

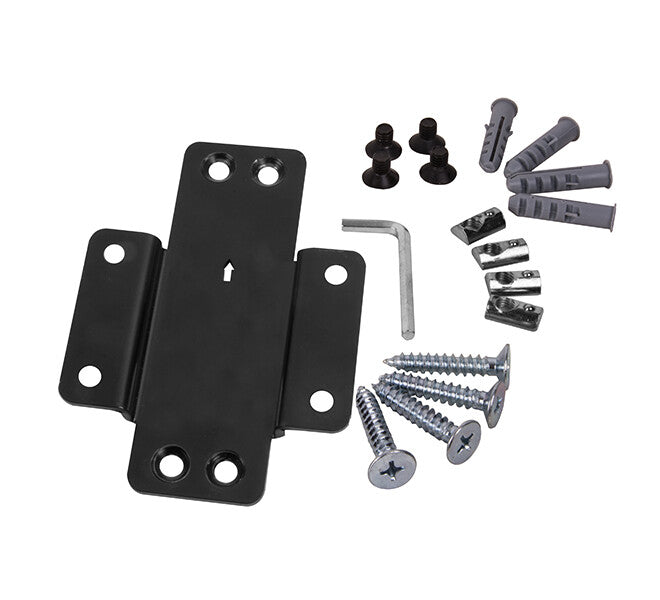

• All mounting hardware included

The BT8390-WFK2 is a bracket designed to fix BT8390 mounting rails onto walls or poles, for the installation of video walls and other multi-screen configurations. The sturdy 5mm thick plate is designed for installations using micro-adjustment, pop-out or XL interface arms from the System X range.

• leaflet
• Assembly Leaflet
• Technical Drawing
