Axis
Axis TU8006 Fast Ethernet, Gigabit Ethernet 56 V
Axis TU8006 Fast Ethernet, Gigabit Ethernet 56 V
Regular price
£165.36 GBP
Regular price
Sale price
£165.36 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:03223-001
43 in stock
- Supports 60 W IEEE 802.3bt
- 100–240 V AC
- High power efficiency
- Mains cable sold separately
60 W, 1x RJ-45 in, 1x RJ-45 out

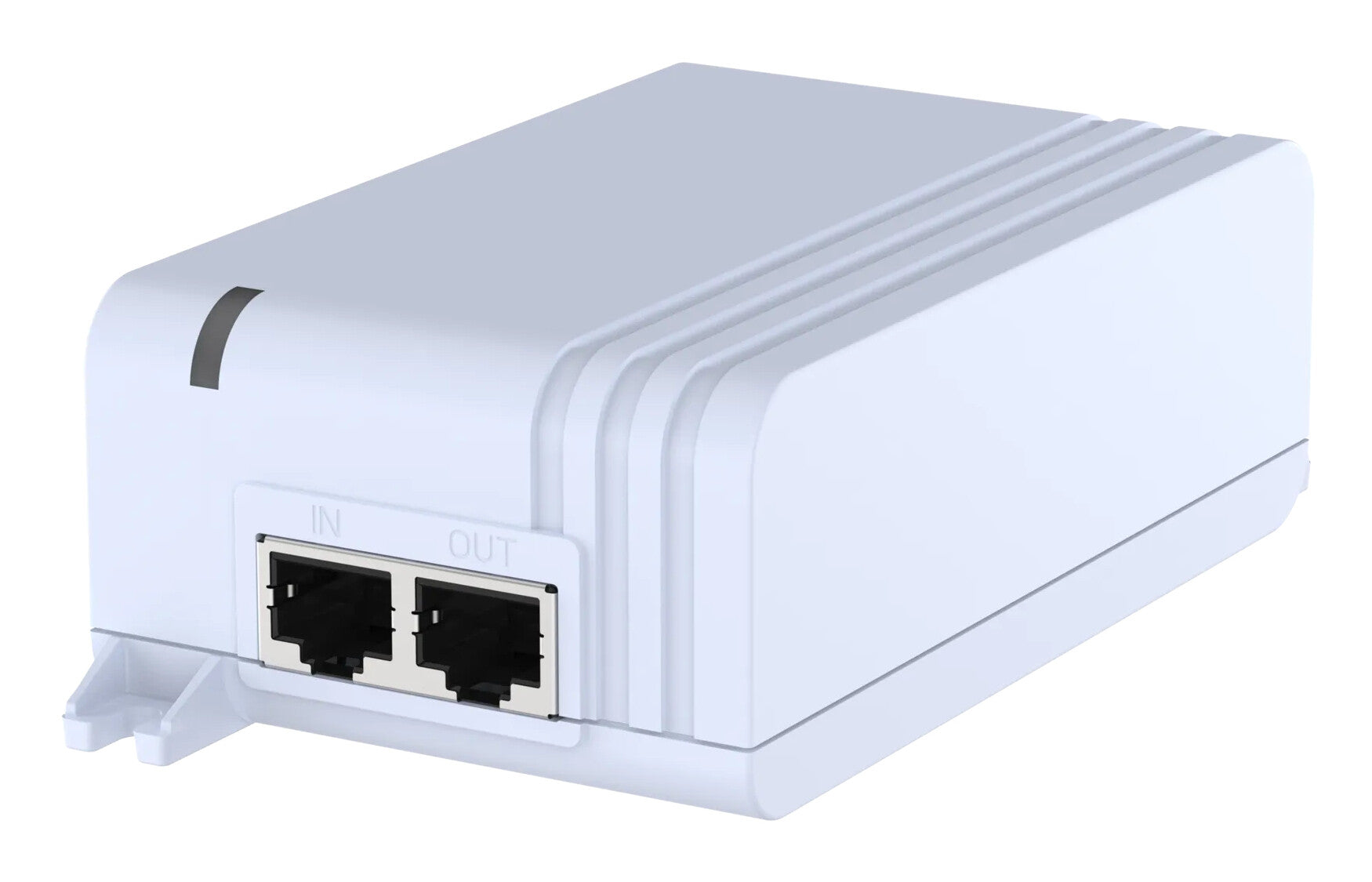

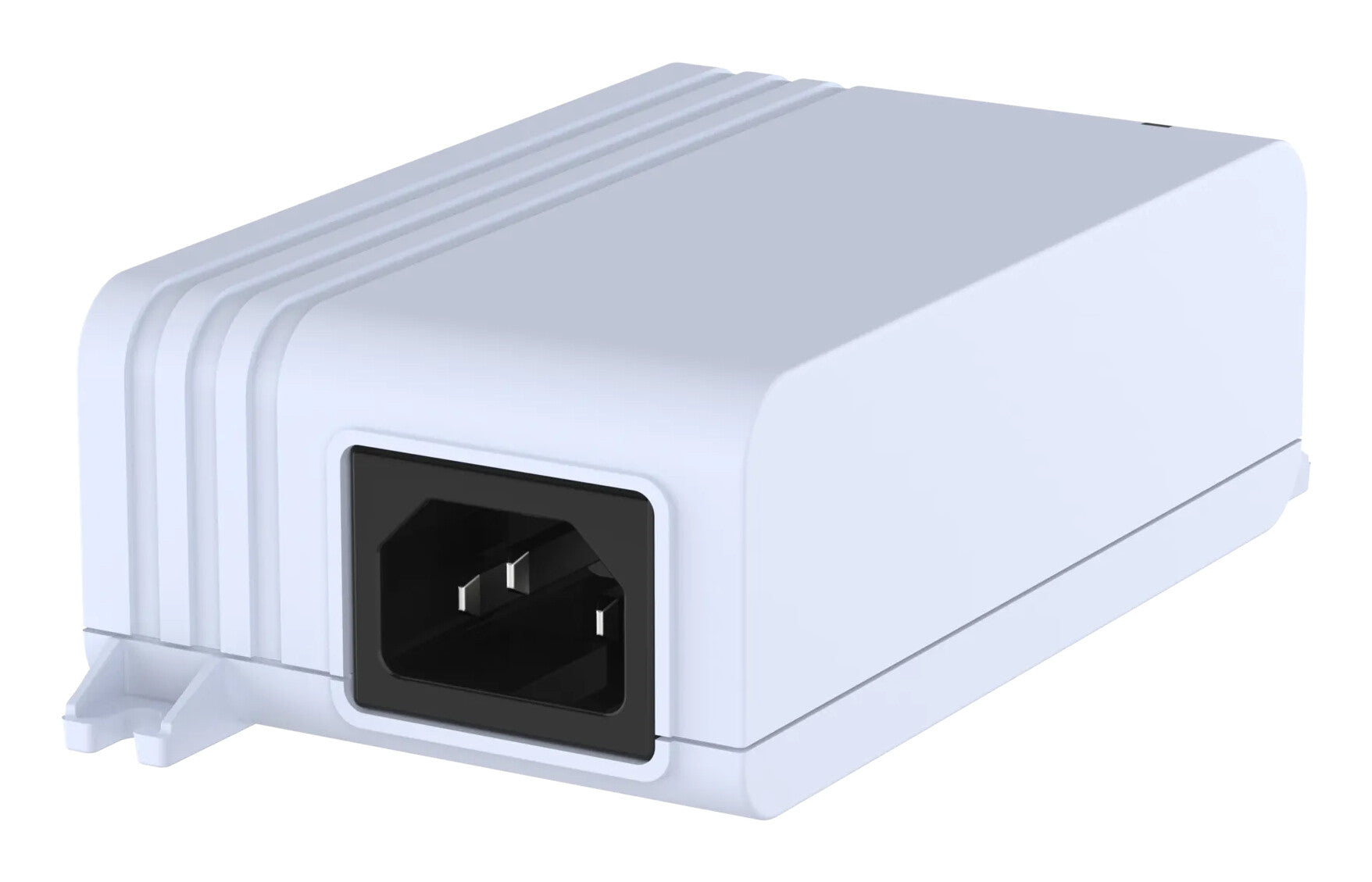

AXIS TU8006 is a single port 60 W midspan, compliant with IEEE 802.3bt and High PoE devices. Power over Ethernet (PoE) offers an easy, fast, and cost-effective solution for powering network products. In a single network cable, a PoE midspan injects power and data into the network device with built-in PoE support. No need to replace existing Ethernet switches and cabling infrastructure. AXIS TU6011 Mains Cable is sold separately. The midspan can be installed on a wall, shelf or DIN rail with AXIS T91A03 DIN Rail Clip A.
| Network | |
|---|---|
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000 |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+, PoE++ (4PPoE) |
| Networking standards | IEEE 802.3bt |
| Features | |
|---|---|
| Product colour | White |
| Wall mountable | Yes |
| LED indicators | Yes |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| DC-in jack | Yes |
| Power | |
|---|---|
| Power over Ethernet (PoE) voltage | 56 V |
| Output power | 60 W |
| Input voltage | 100 - 240 V |
| Input frequency | 50 - 60 Hz |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 14 - 113 °F |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
|---|---|
| Weight | 235 g |
| Packaging content | |
|---|---|
| Number of products included | 1 pc(s) |
| Manual | Yes |
