Axis

Axis TQ5001-E Mount

Axis TQ5001-E Mount

£218.77 GBP
£218.77 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

02411-001

34 in stock

  • Robust, IK10-rated
  • For indoor and outdoor use
  • Versatile connection with IDC connector
  • Built-in IP66-rated RJ45 connector
IP66/IK10, White

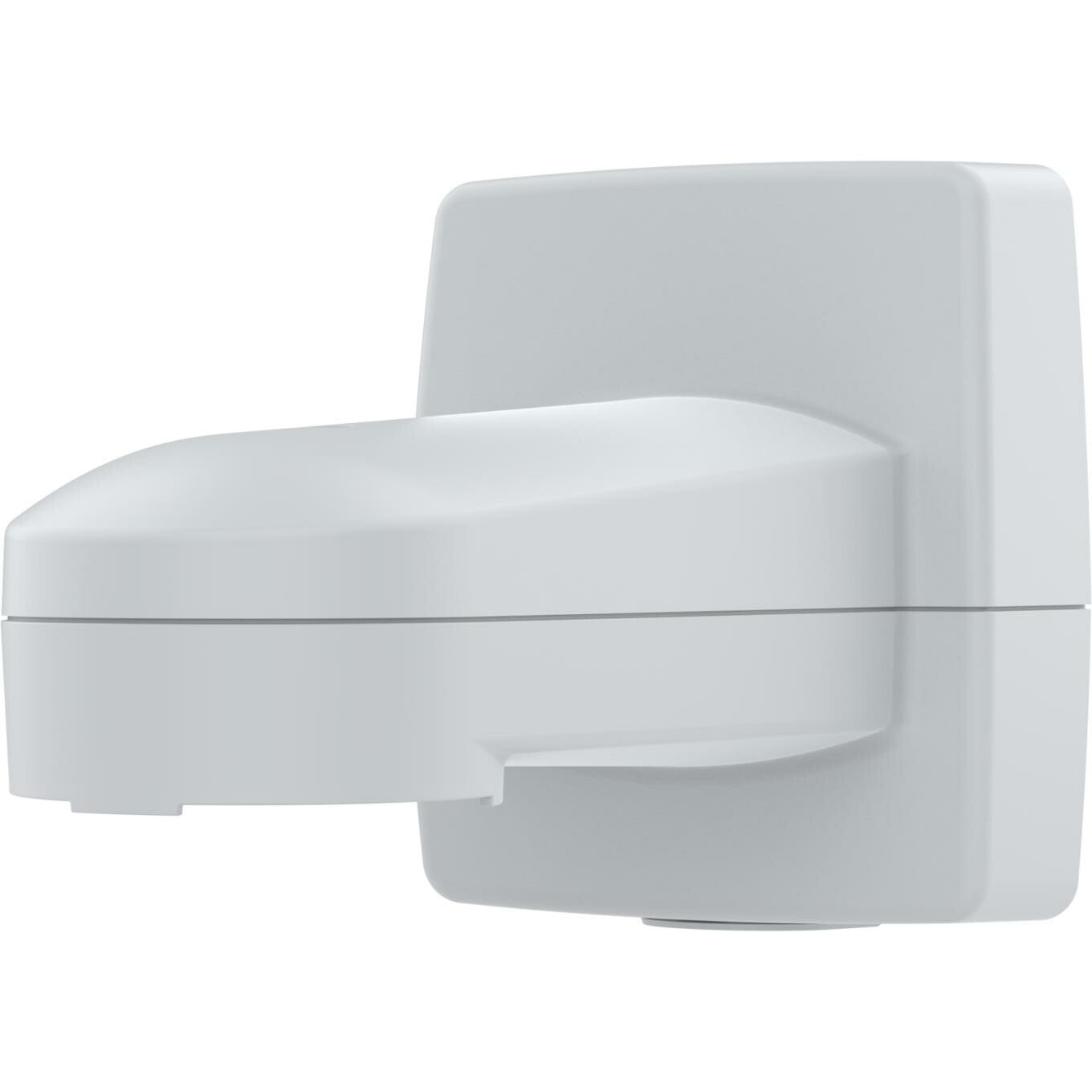

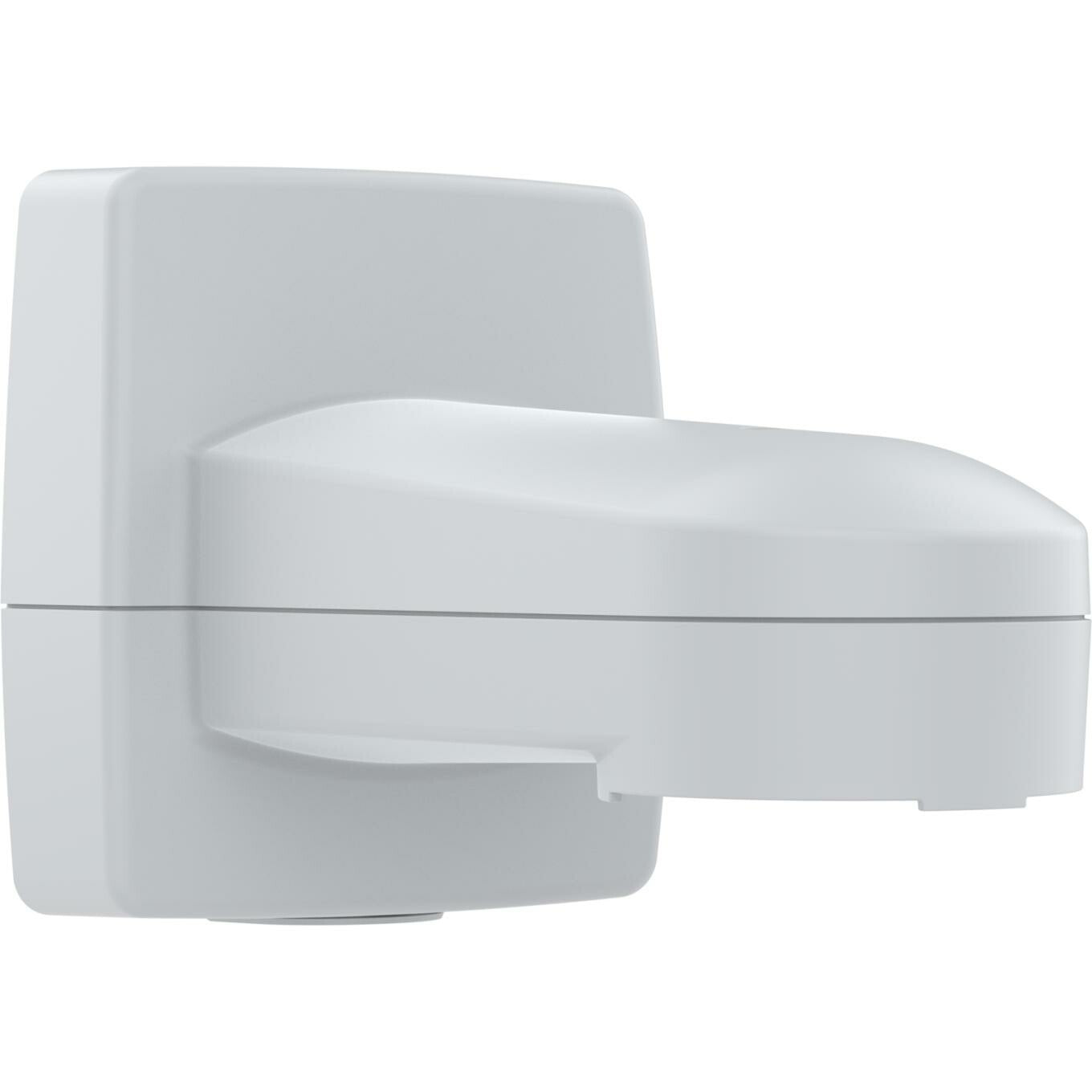

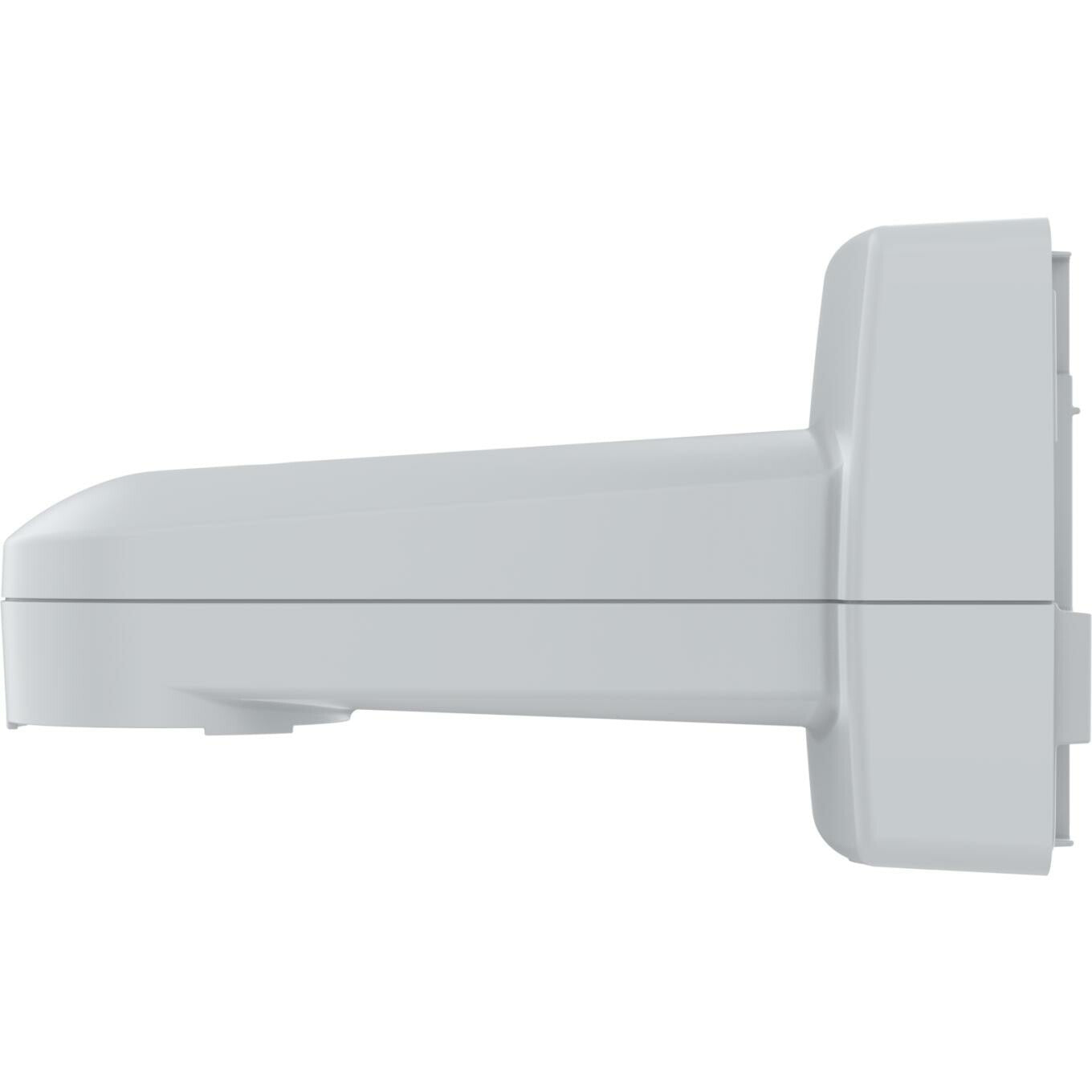

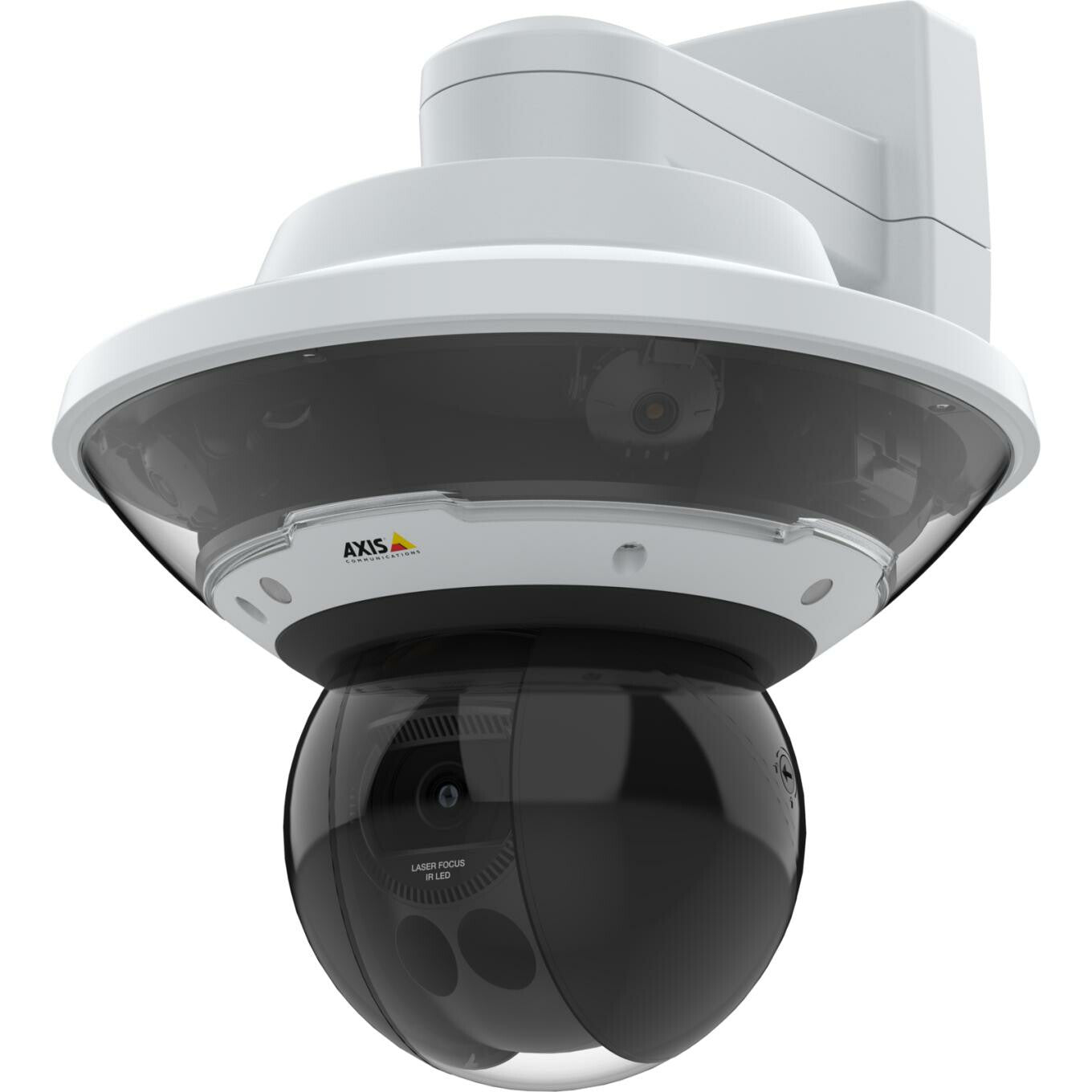

Designed for Axis PTZ cameras, AXIS TQ5001-E Wall-and-Pole Mount offers flexible installation and versatile connection with RJ45 or IDC connectors.

With this wall-and-pole mount, installers can choose between using an RJ45 or IDC (insulation-displacement contact) connector for the installation. It features a built-in cable with an ethernet IP66-rated RJ45 connector to facilitate installation and prevent water and dust from entering the camera. Made from impact-resistant, outdoor-ready material, AXIS TQ5001-E is suited for both indoor and outdoor environments. Flipping the mounting bracket makes it possible to turn AXIS TQ5001-E from a wall mount to a pole mount (AXIS Steel Straps TX30 are required). The mount is also suitable for corner mounting with an optional accessory.

Features
Type Mount
Placement supported Universal
Brand compatibility Axis
Compatibility M5000 PTZ, M5000-G PTZ, M5525-E PTZ, M5526-E PTZ, P5654-E Mk II PTZ, P5655-E PTZ, P5676-LE PTZ, Q6010-E, Q6074 PTZ, Q6074-E PTZ, Q6075 PTZ, Q6075-E PTZ, Q6078-E PTZ, Q6100-E, Q6135-LE PTZ, Q6315-LE PTZ, Q6318-LE PTZ
Product colour White
Housing material Aluminium
International Protection (IP) code IP66
IK code IK10
Protection features Dust resistant, Impact resistant, Water resistant
Certification CSA, UL/cUL, UKCA, CE, KC, VCCI, RCM, TAA
Weight & dimensions
Depth 291.8 mm
Width 152.6 mm
Weight 1.96 kg
Height 175.4 mm
Packaging data
Quantity per pack 1 pc(s)
Operational conditions
Operating temperature (T-T) -50 - 65 °C
Operating relative humidity (H-H) 10 - 100%
Storage temperature (T-T) -40 - 65 °C
Storage relative humidity (H-H) 10 - 100%
Technical details
Doesn't contain PVC
