Axis

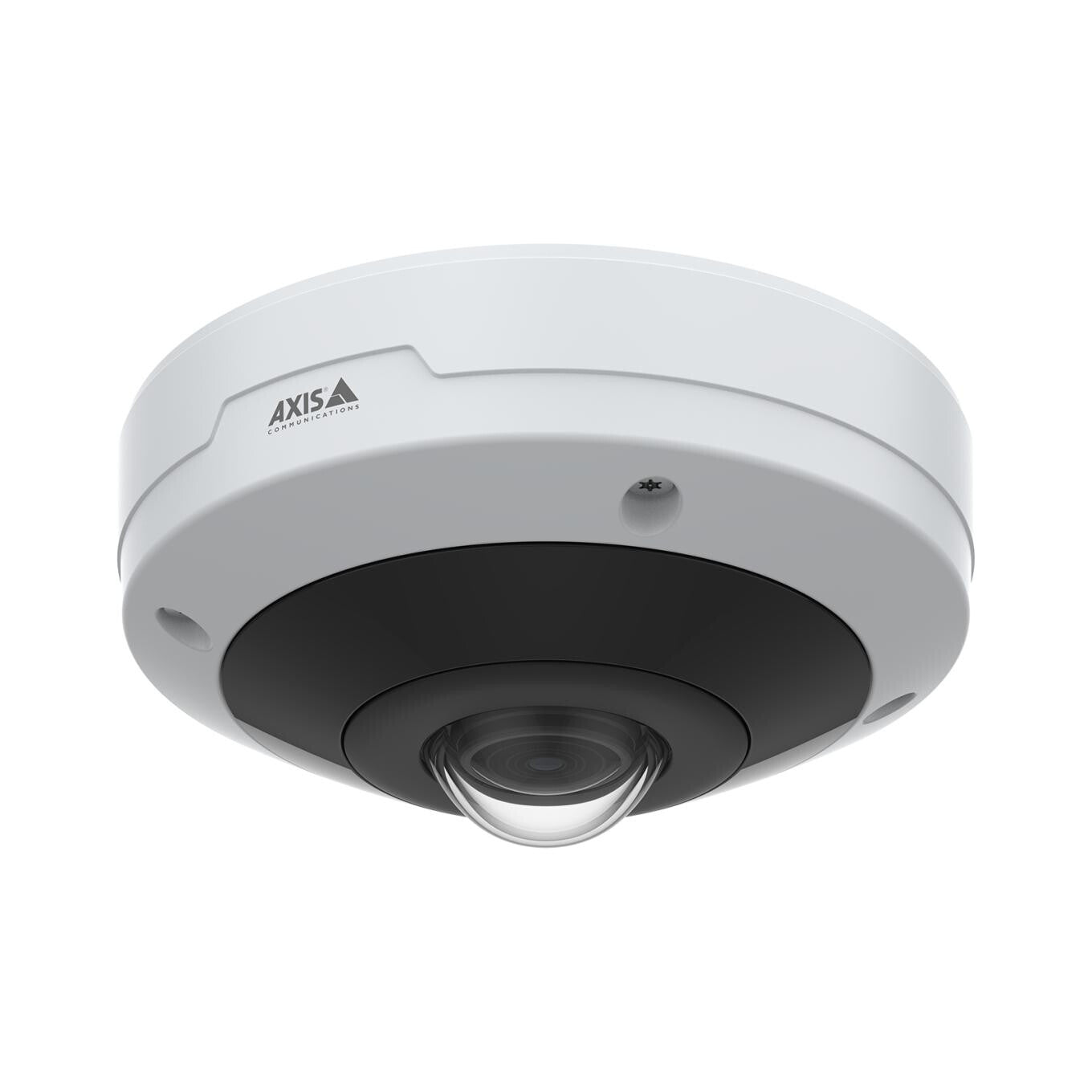

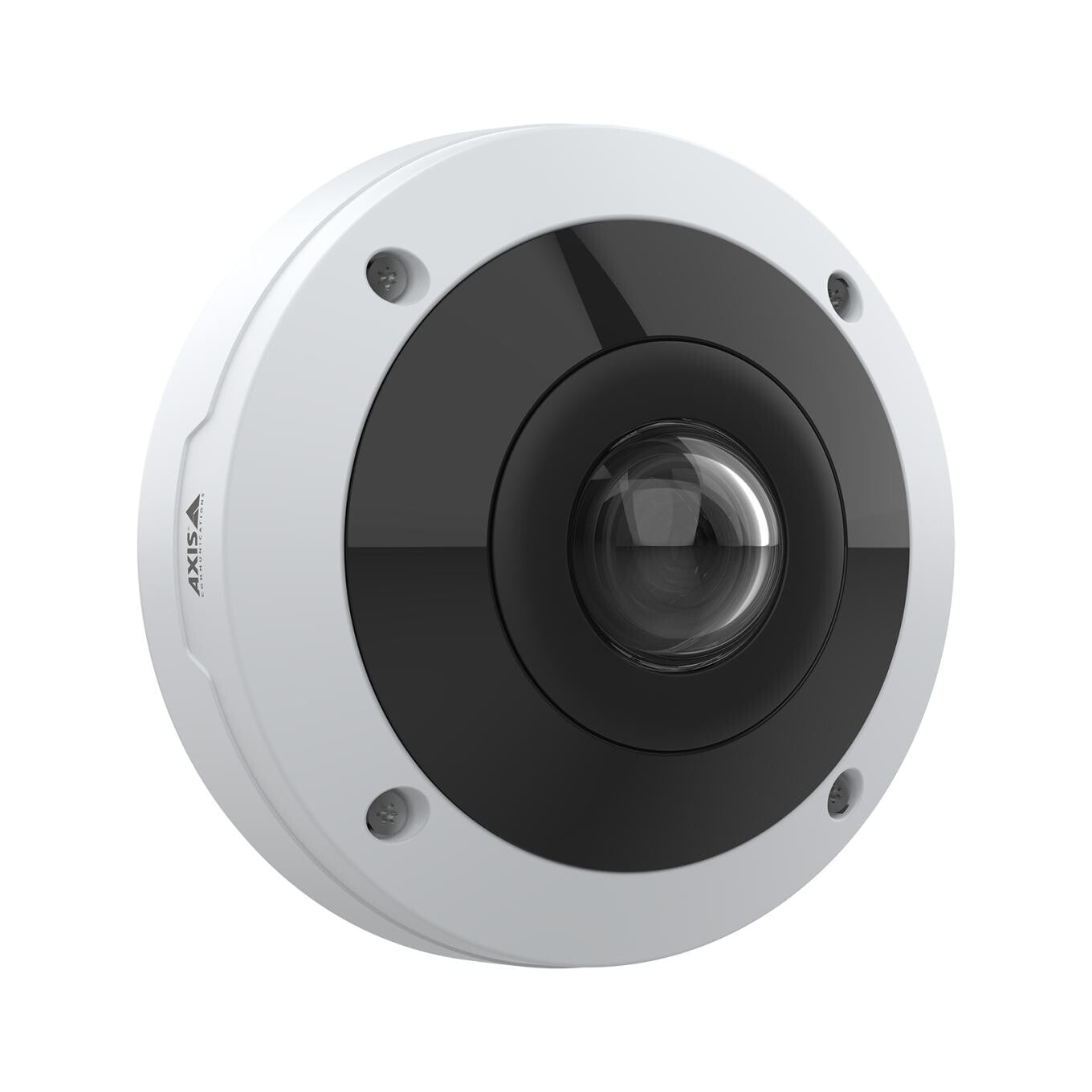

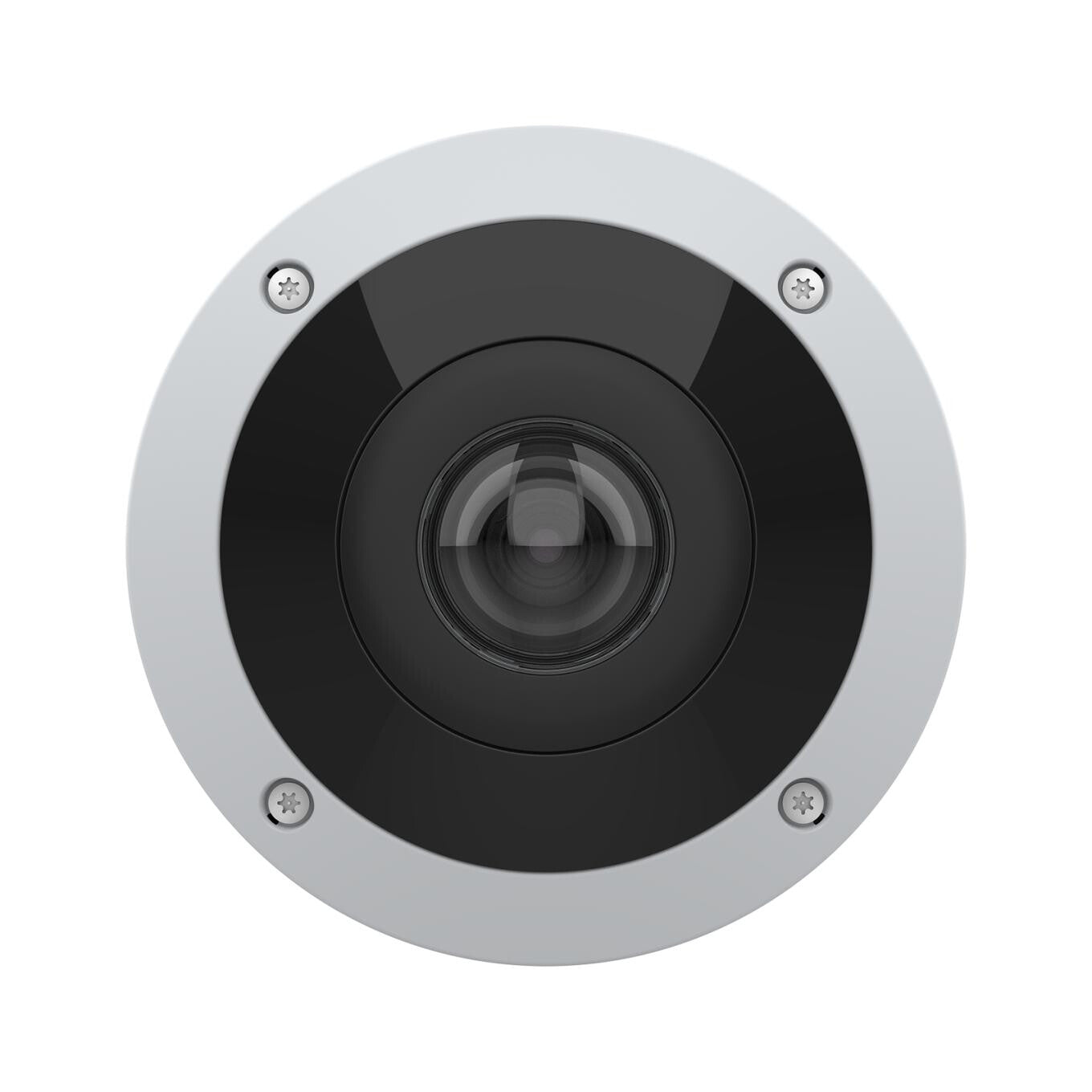

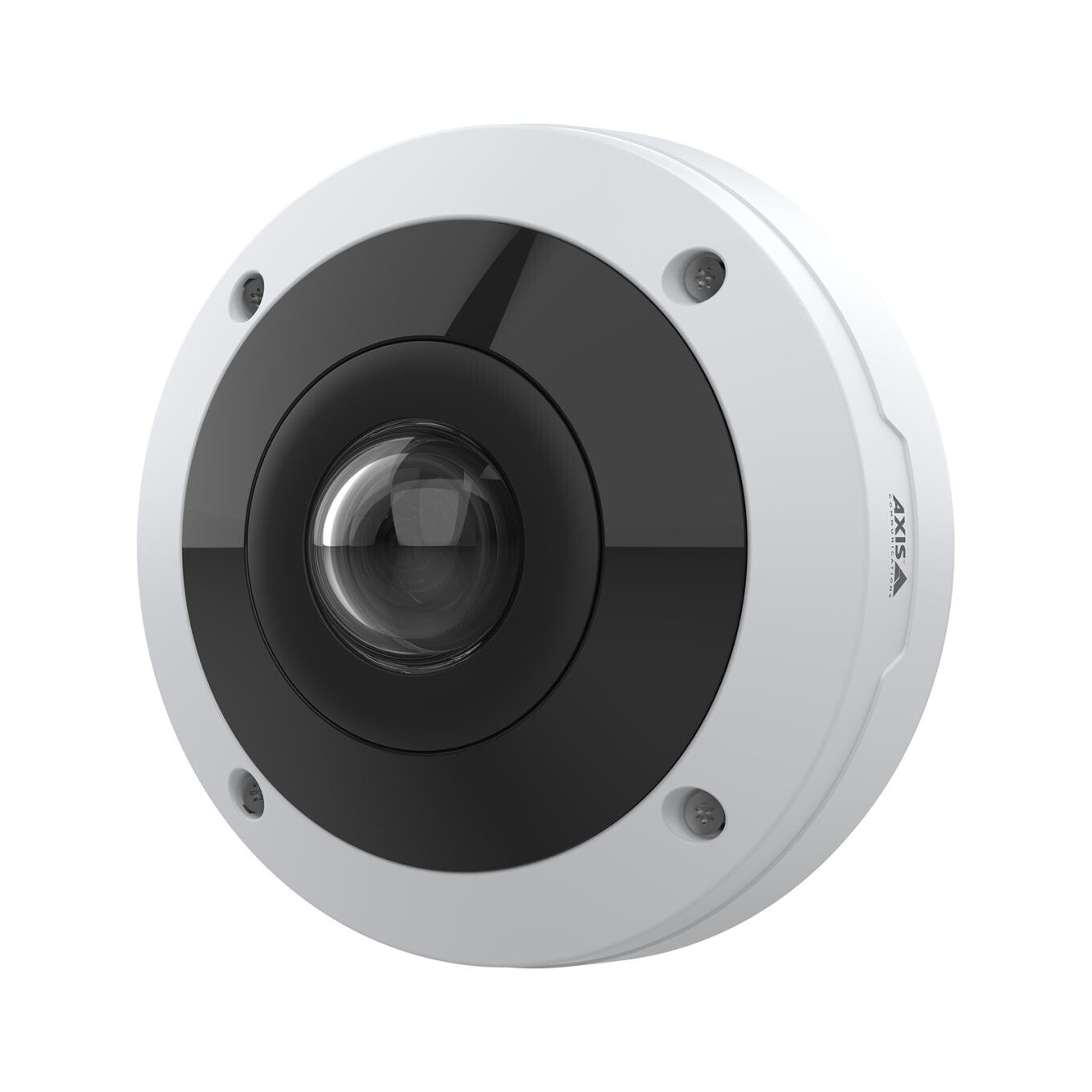

Axis M4317-PLVE Dome IP security camera Indoor 2160 x 2160 pixels Ceiling/wall

Name: Axis M4317-PLVE Dome IP security camera Indoor 2160 x 2160 pixels Ceiling/wall
Brand: Axis
SKU: 02510-001
Price: 1040.95 GBP
Availability: InStock

£1,040.95 GBP

Sale Sold out

Tax included. Shipping calculated at checkout.

Product variants

Quantity

SKU:02510-001

Low stock: 4 left

Indoor IP security camera
CMOS 25.4 / 1.8 mm (1 / 1.8") 6 MP 2160 x 2160 pixels
Wired Ethernet LAN
Night vision 20 m IR
Dome Ceiling/wall
IP66 IK10
Black, White
860 g

1/1.8" CMOS, 2160x2160px, 60 fps, 0.03lx, 182° FOV, 20m IR, 12.95W PoE

Sharp images

Featuring a stereographic lens and Sharpdome 360, this panoramic camera delivers greater sharpness at the edges of the image. With a 6 MP sensor, it offers excellent image quality and a complete 180° or 360° overview, around the clock regardless of the light conditions. Plus, Lightfinder ensures lifelike colors in low light. With day/night functionality and built-in IR illumination with individually controllable LEDs, it delivers clear, reflection-free footage and excellent image quality even in low light or complete darkness. Furthermore, AXIS M4317-PLVE supports digital PTZ views as well as dewarped views such as panorama, quad, corner, and corridor.

Deep learning on the edge

This high-performance camera includes a deep learning processing unit (DLPU) enabling improved processing and storage capabilities. Plus, you can collect and analyze even more data than before—on the edge. Additionally, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Thanks to AXIS Object Analytics, it’s possible to detect and classify humans, vehicles, and types of vehicles—all tailored to specific needs. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge.

Secure and easy

Built on ARTPEC-8, AXIS M4317-PLVE offers built-in cybersecurity features to help prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. This discreet, compact mini dome blends seamlessly into any environment. It’s delivered factory-focused for ease of installation. And, with digital roll functionality you can remotely adjust the rotation of the camera overview– no need to do it manually on each camera. Furthermore, Axis Zipstream with H.264/H.265 significantly reduces bandwidth and storage requirements.

Performance
Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wired
PTZ control	Yes
PTZ modes	Preset point, Digital PTZ
Wide Dynamic Range (WDR)	Yes
Infrared (IR) cut-off filter	Yes
Day/night mode	Yes
Languages support	English, Spanish, Swedish, Italian, Polish, Thai, Finnish, Japanese, Portuguese, Turkish, Simplified Chinese, French, Traditional Chinese, Korean, Russian, Vietnamese, Czech, German, Dutch
Number of languages	20
Certification	CSA, UL/cUL, BIS, UKCA, CE, KC 55035, EN 55032 Class A, EN 50121-4, EN 61000-6-1,EN 61000-6-2, EN 61547Australia/New Zealand: RCM AS/NZS CISPR 32 Class ACanada: ICES-3(A)/NMB-3(A)Japan: VCCI Class AKorea: KS C 9835, KS C 9832 Class AUSA: FCC Part 15 Subpart B Class ARailway: IEC 62236-4IEC/EN/UL 62368-1 ed. 3, CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN 62471 risk group exempt, UN ECE R118, IS 13252IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 62262 IK10, IEC/EN 60529 IP66, ISO 4892-2, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9), ISO 21207 (Method B)

Design
Form factor	Dome
Mounting type	Ceiling/wall
Product colour	Black, White
LED indicators	Yes
Housing material	Aluminium, Polycarbonate (PC)
International Protection (IP) code	IP66
IK code	IK10

Camera
Minimum illumination	0.03 lx
Lens viewing angle, horizontal	182°
Lens viewing angle, vertical	182°
Camera shutter speed	1/33500 - 0.2 s

Image sensor
Sensor type	CMOS
Number of sensors	1
Optical sensor size	25.4 / 1.8 mm (1 / 1.8")
Progressive scan	Yes

Lens system
Number of lenses	1
Fixed focus	Yes
Fixed focal length	2.2 mm

Night vision
Night vision	Yes
Night vision distance	20 m
LED type	IR
Infra-red wavelength	850 nm

Video
Maximum resolution	2160 x 2160 pixels
Total megapixels	6 MP
Supported graphics resolutions	256 x 144, 384 x 288, 1920 x 1440, 2560 x 1440, 2560 x 1920
Frame rate	60 fps
Video streaming	Yes
Noise reduction	Yes
Noise reduction technology	2D noise reduction, 3D noise reduction
Bit rate control	Variable Bit Rate (VBR)
Text caption overlay	Yes
Image quality adjustment	Brightness, Contrast, Sharpness, Saturation

Audio
Audio system	2-way

Network
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Networking standards	IEEE 802.3af, IEEE 802.3at
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SSH, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR
Streaming method	Multicast
Quality of Service (QoS) support	Yes

Storage
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory	8192 MB
Internal memory	2048 MB

Security
Password protection	Yes
Pixel counter	Yes
Human and vehicle targets classification	Yes
Digest authentication	Yes
HTTPS encryption	Yes
IP address filtering	Yes
Privacy protection	Yes
Alert notification type	E-mail
Active tampering alarm	Yes
Security algorithms	TLS, 256-bit AES-XTS, EAP-TLS
Video motion detection	Yes

Management features
Behavior analysis	Line crossing detection

Power
Power source type	PoE
Power consumption (typical)	5.7 W
Power consumption (max)	12.95 W

Operational conditions
Operating temperature (T-T)	-40 - 50 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100%
Storage relative humidity (H-H)	5 - 95%
