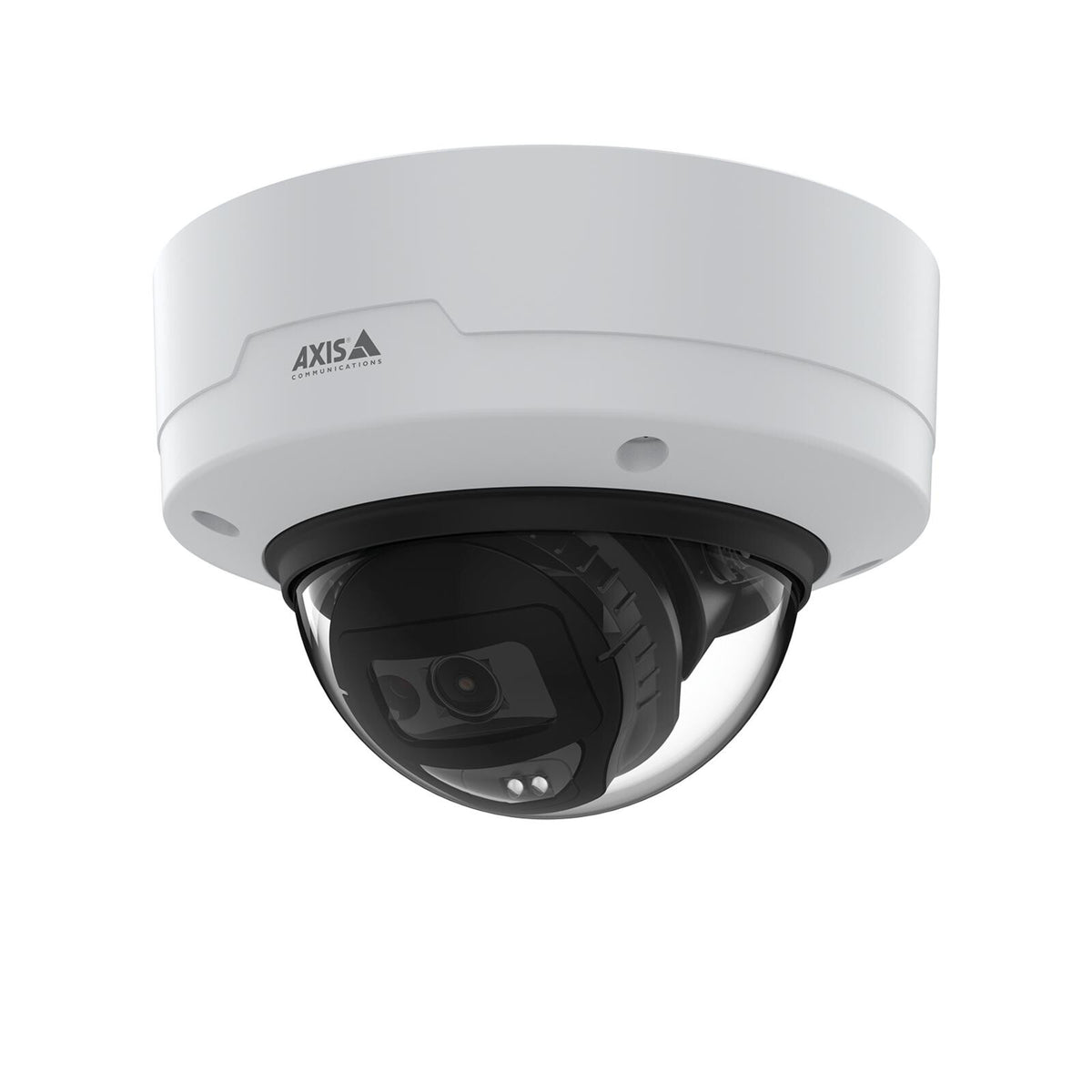

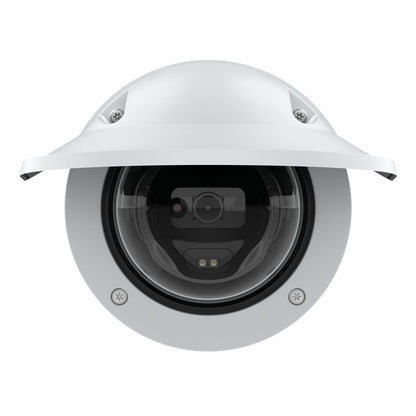

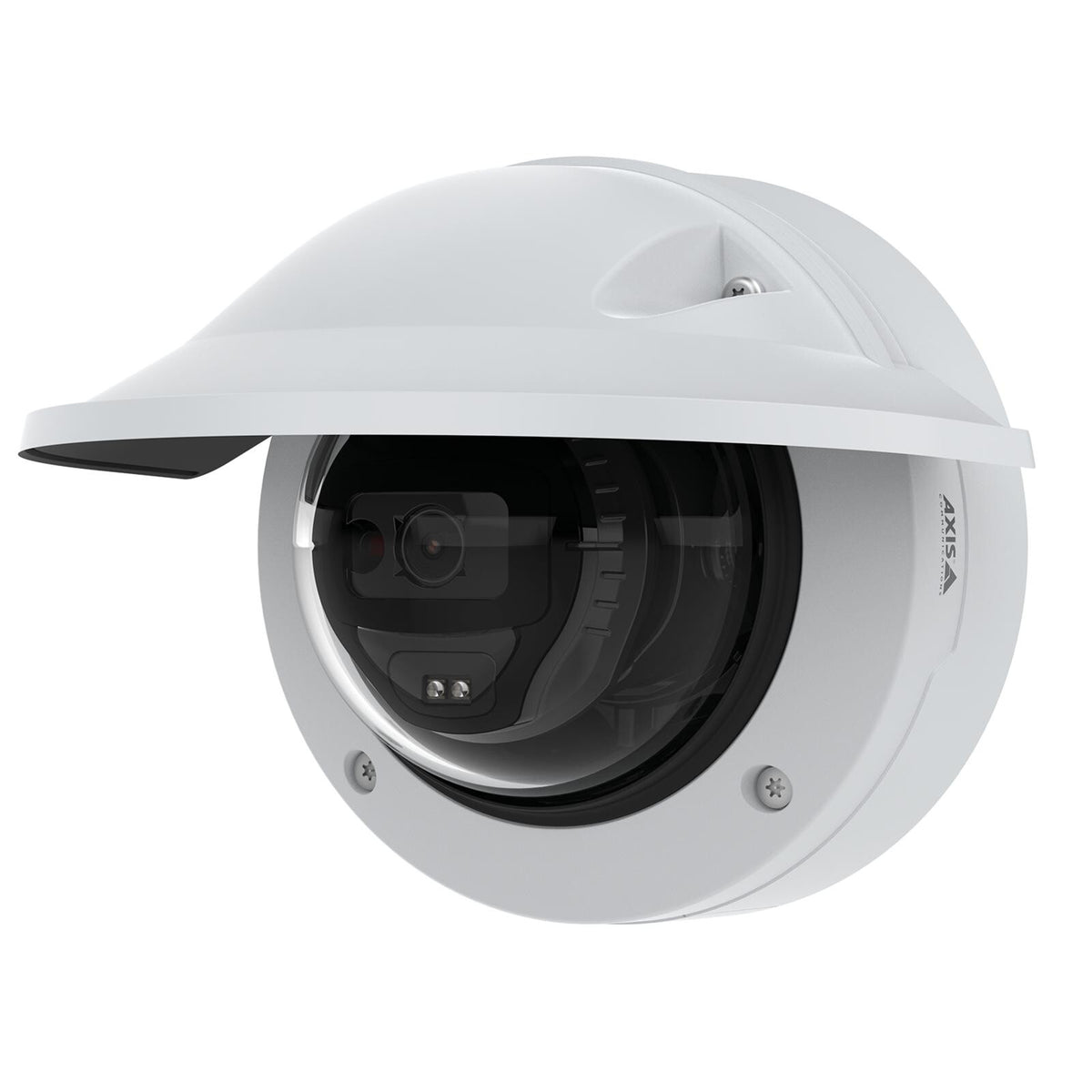

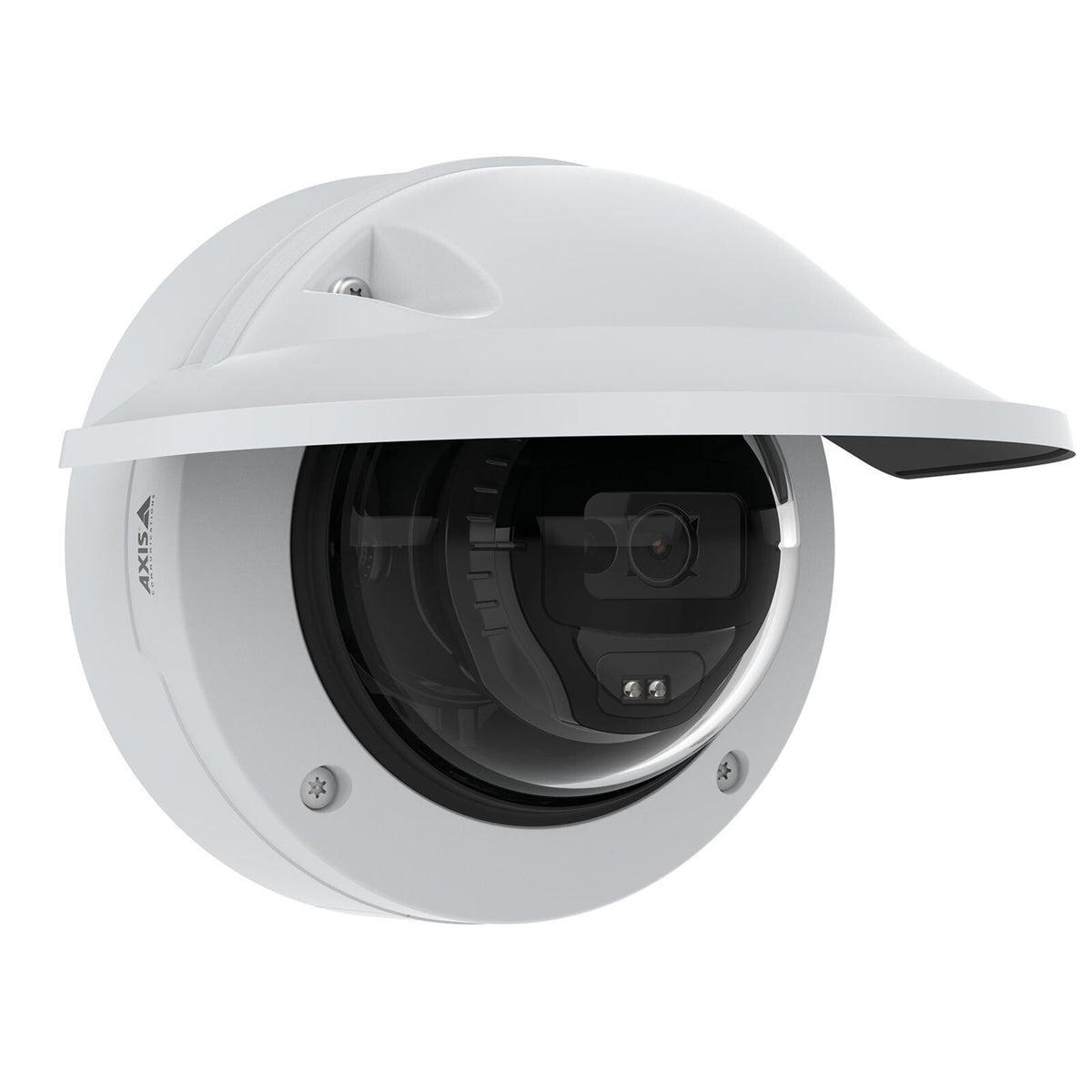

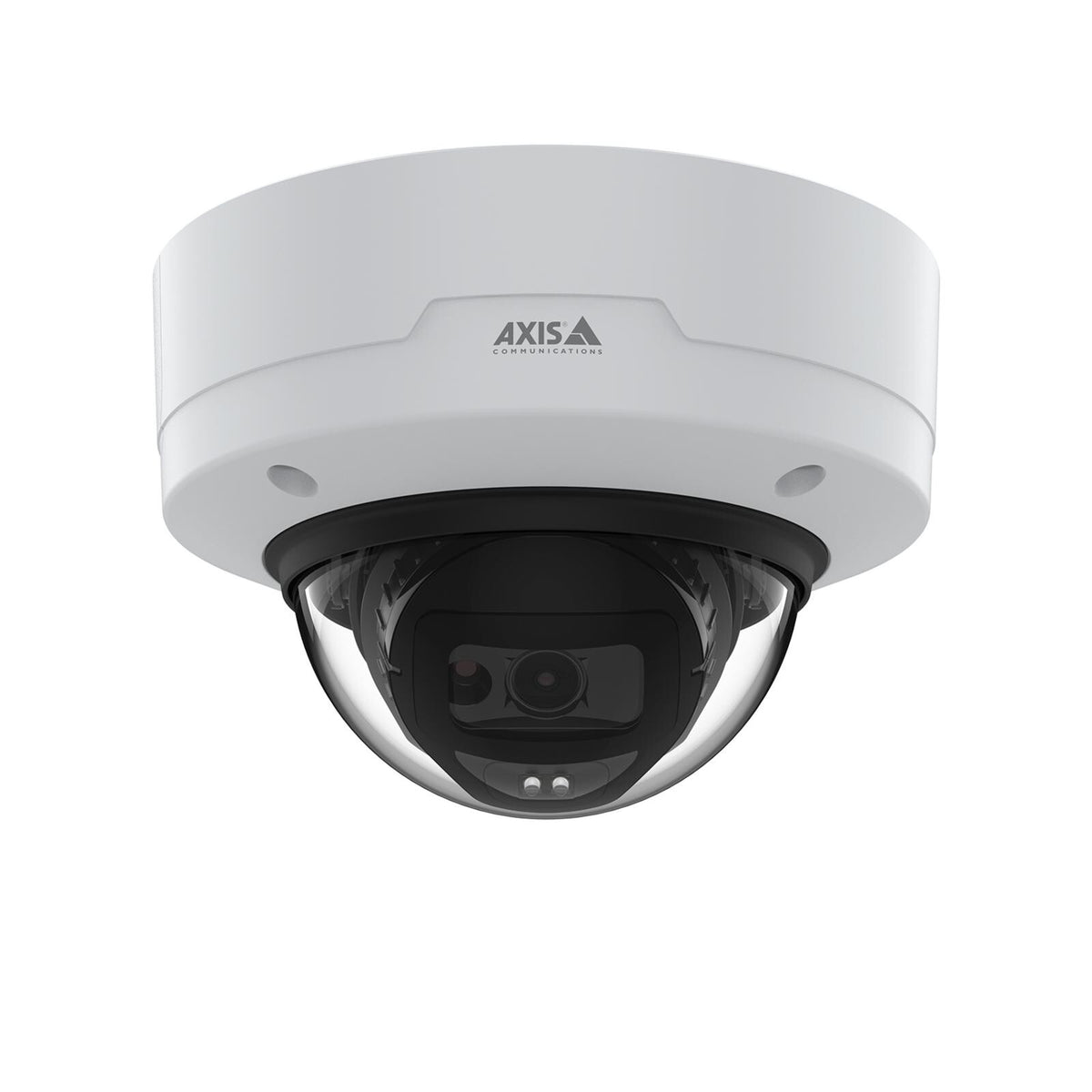

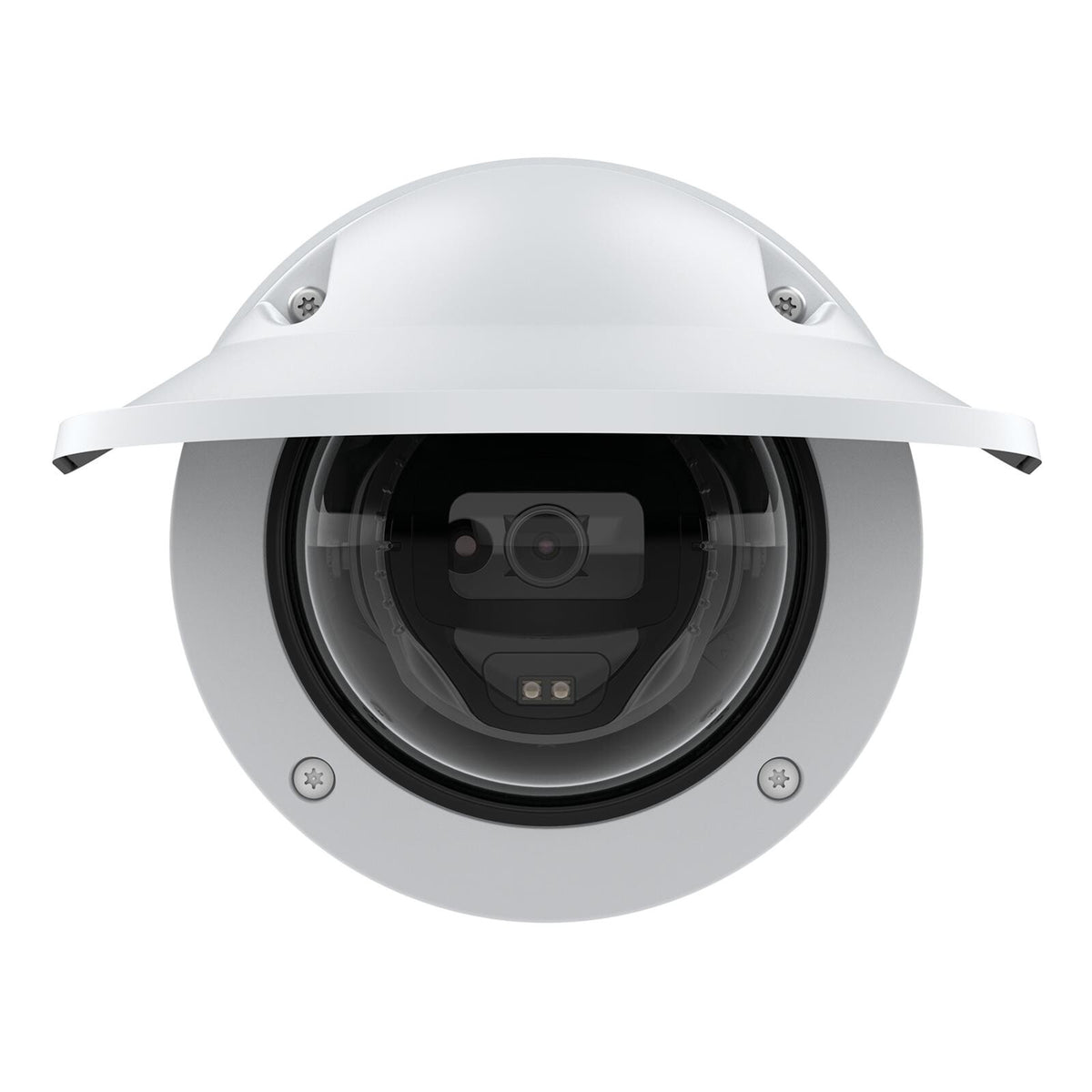

Axis M3216-LVE Dome IP security camera Indoor & outdoor 2688 x 1512 pixels Ceiling/wall
Axis M3216-LVE Dome IP security camera Indoor & outdoor 2688 x 1512 pixels Ceiling/wall
Couldn't load pickup availability
SKU:02372-001
57 in stock
- Analytics with deep learning; Audio and I/O connectivity; Built-in cybersecurity features; Excellent image quality in 4 MP; Lightfinder, Forensic WDR, OptimizedIR
This cost-effective fixed focal dome offers Lightfinder, Forensic WDR, and OptimizedIR, and ensures excellent image quality under any light conditions. Built on ARTPEC-8, it includes a deep learning processing unit enabling powerful analytics based on deep learning on the edge. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities. And AXIS Object Analytics offers detection and classification of humans, vehicles, and types of vehicles—all tailored to your specific needs. Featuring audio and I/O connectivity, you can integrate for instance a microphone to extend the value of your system. Furthermore, built-in cybersecurity features safeguard your system.
| Performance | |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| PTZ modes | Digital PTZ |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Design | |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Housing material | Plastic, Polycarbonate (PC) |
| International Protection (IP) code | IP66 |
| IK code | IK10 |
| Fog proof | Yes |
| Camera | |
|---|---|
| Minimum illumination | 0.16 lx |
| Angle of rotation | 190° |
| Lens viewing angle, horizontal | 102° |
| Lens viewing angle, vertical | 73° |
| Tilt angle range | -10 - 80° |
| Pan range | 0 - 190° |
| Camera shutter speed | 1/50000 - 1/5 s |
| Image sensor | |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Progressive scan | Yes |
| Lens system | |
|---|---|
| Zoom capability | Yes |
| Minimum aperture number | 2 |
| Closest focusing distance | 1 m |
| Fixed focal length | 2.9 mm |
| Night vision | |
|---|---|
| Night vision | Yes |
| LED type | IR |
| Video | |
|---|---|
| Maximum resolution | 2688 x 1512 pixels |
| Video compression formats | H.264, H.265 |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Privacy masking | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.1x |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa, HTTP/2, TLSa, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SOCKS, SSH, SIP, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf) |
| Storage | |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 8192 MB |
| Internal memory | 1024 MB |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Yes |
| Security | |
|---|---|
| HTTPS encryption | Yes |
| Security algorithms | EAP-TLS, HTTPS |
| Power | |
|---|---|
| Power source type | PoE |
| Power consumption (Power over Ethernet (PoE)) | 4.8 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -40 - 50 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
|---|---|
| Height | 102 mm |
| Diameter | 14.9 cm |
| Weight | 791 g |
| Packaging content | |
|---|---|
| Number of cameras | 1 |
