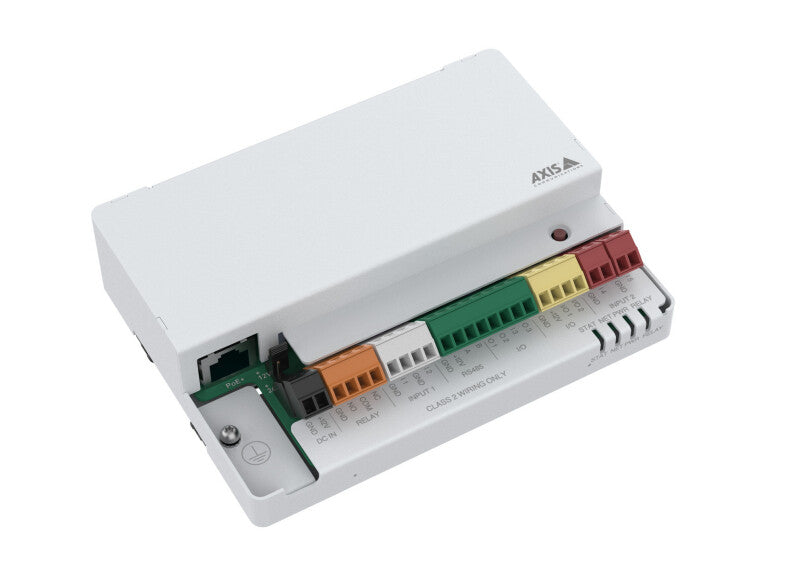

Axis 02861-001 digital/analogue I/O module Relay channel

Axis 02861-001 digital/analogue I/O module Relay channel

02861-001

£384.12 GBP£320.10 GBP
£0.00 GBP £384.12 GBP£320.10 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Low stock: 7 left

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • Module type: Digital
  • Signal direction: Input/output
  • 8 channels
  • Channel type: Relay channel
  • White
I/O module for extended functionality

AXIS A9210 offers 10 I/O ports including 2 configurable I/Os, 5 inputs, 3 outputs, and 1 form C relay output, allowing you to extend the functionality of any Axis product or third-party system. You can monitor inputs from cameras, analytics alarm buttons, environmental sensors, and more, so you can detect and respond to system events. This scalable device offers flexible installation and can be installed anywhere. It’s easy to integrate with third-party advanced security systems such as VMSs, and alarm and intrusion systems. Furthermore, with multi-drop technology, you can add up to16 expansion modules for even more I/O functionality

Features
Module type Digital
Signal direction Input/output
Channels quantity 8 channels
Channel type Relay channel
Supported network protocols IPv4, IPv6, HTTP, HTTPSb , TLSb , QoS Layer 3 DiffServ, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, SOCKS, SSH, MQTT v3.1.1, Syslog
Product colour White
Power
DC input voltage 12 V
Operational conditions
Relative humidity 5 - 95%
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) -40 - 55 °C
Weight & dimensions
Width 147 mm
Depth 102.8 mm
Height 31.3 mm
Weight 466 g
