Axis

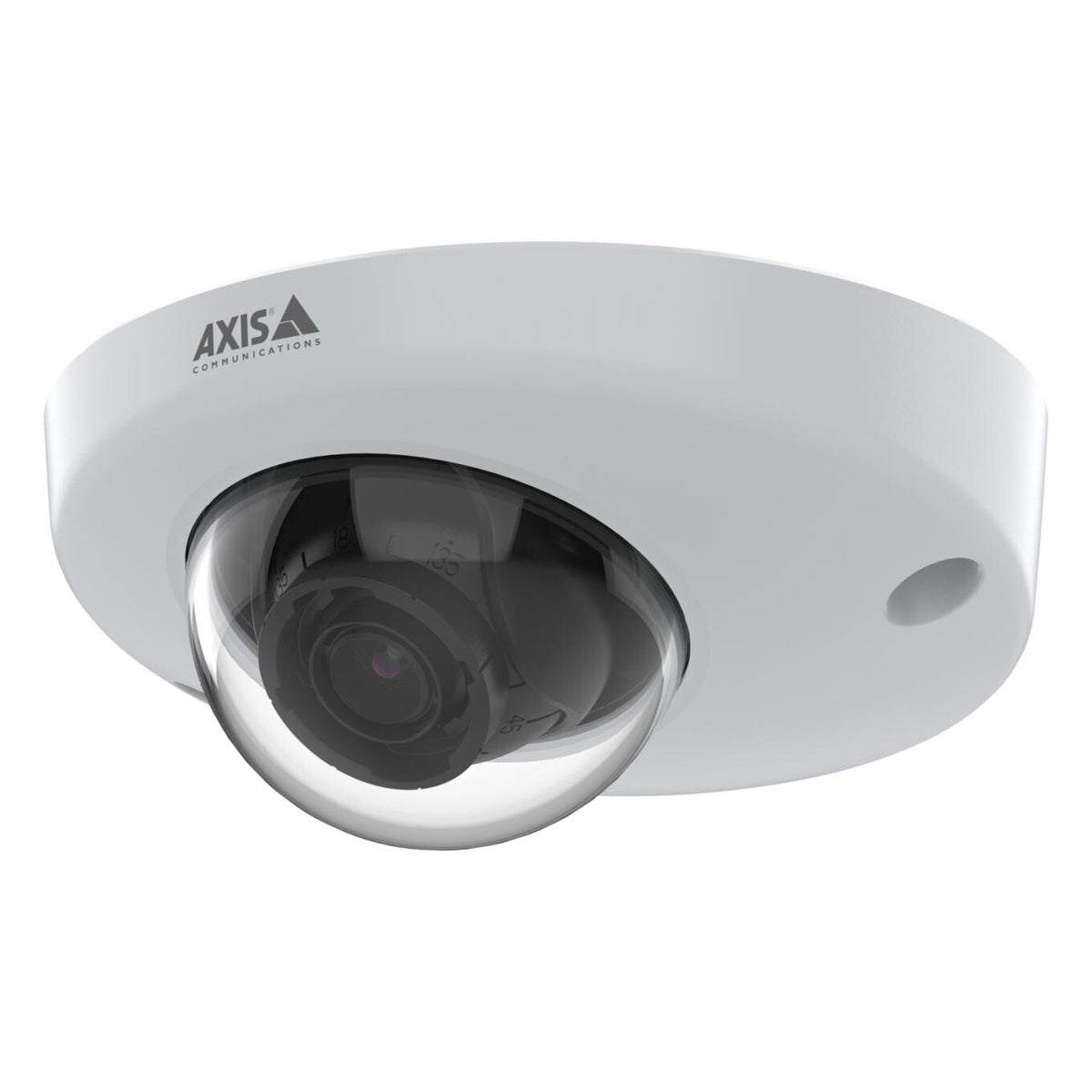

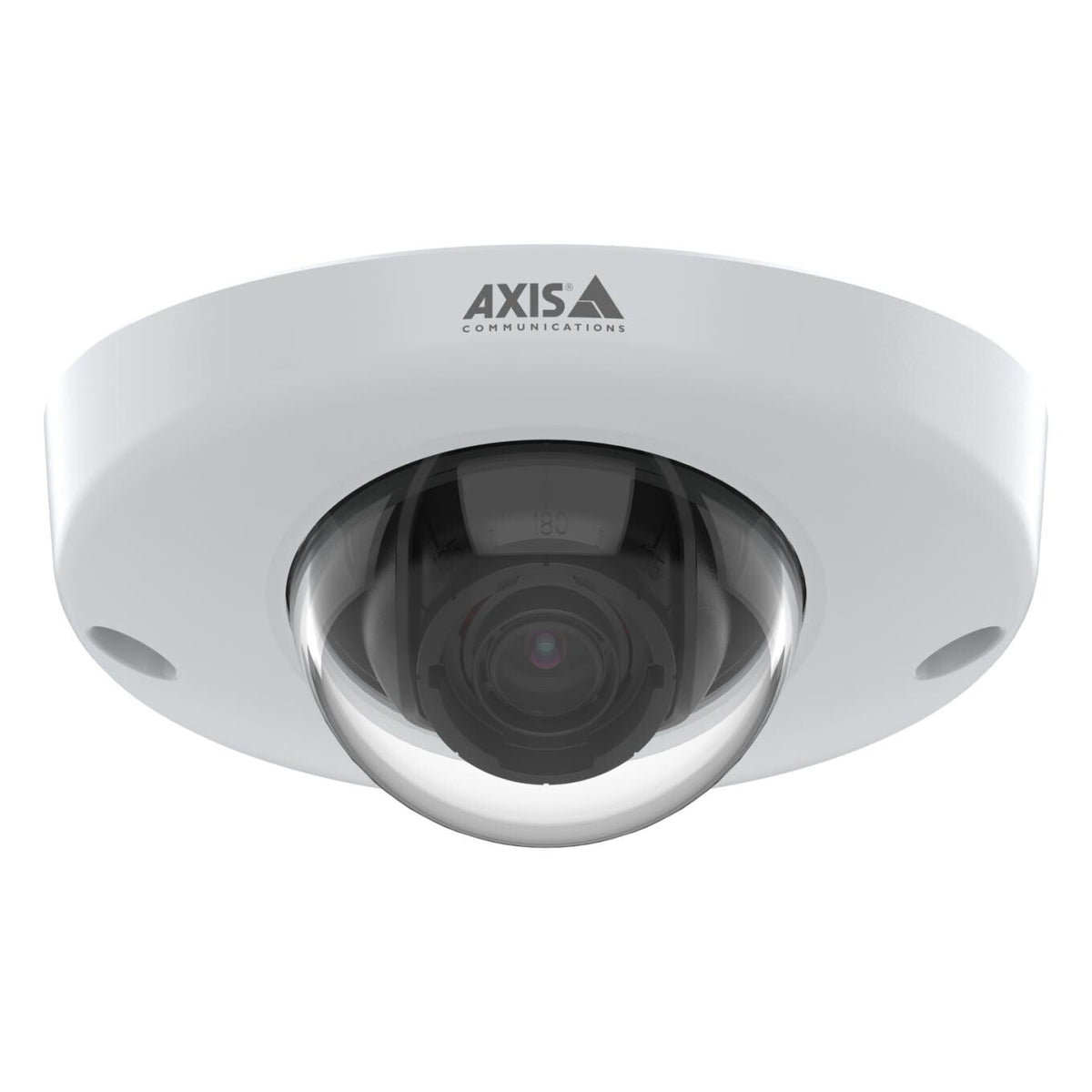

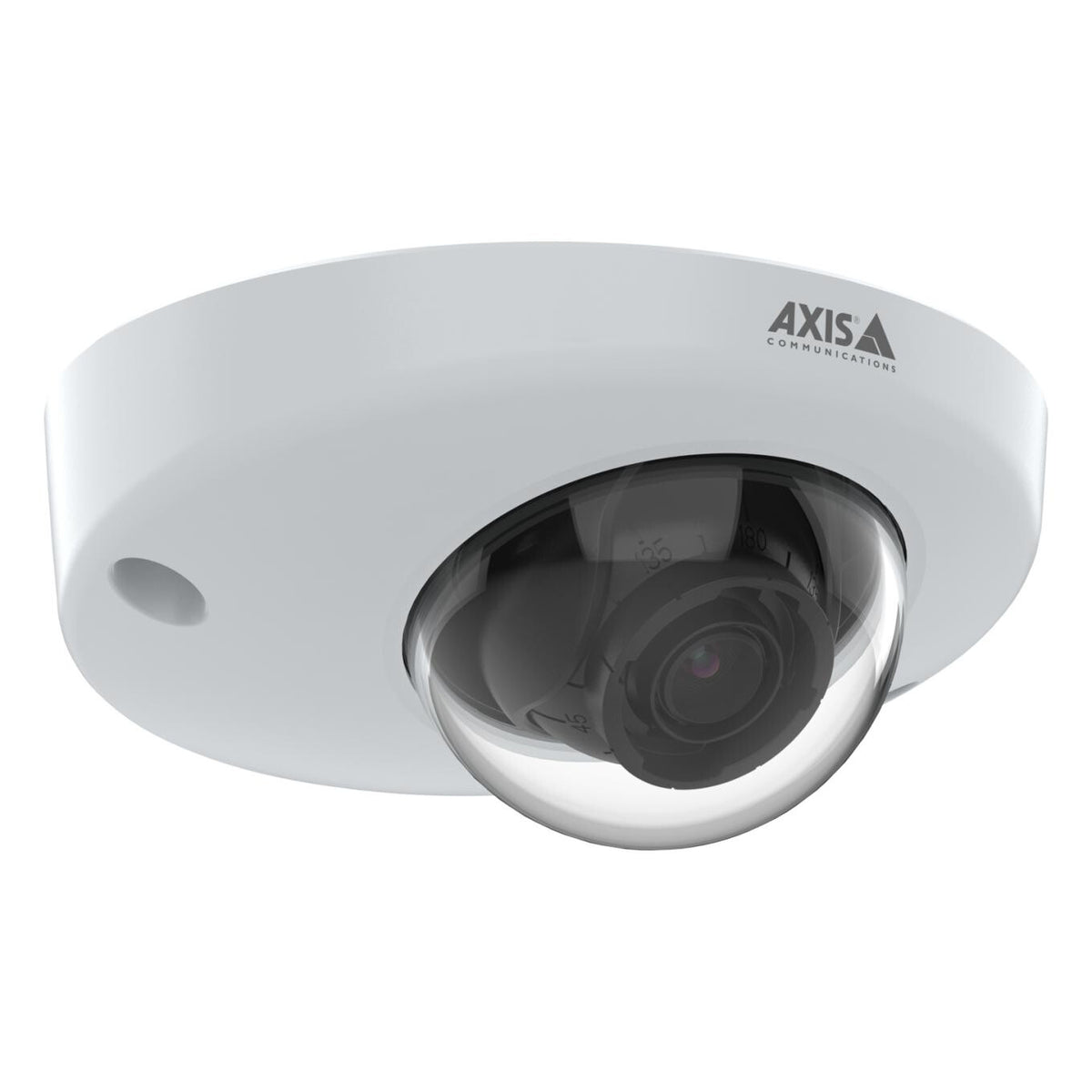

Axis 02671-001 security camera Dome IP security camera Indoor 1920 x 1080 pixels Wall
Axis 02671-001 security camera Dome IP security camera Indoor 1920 x 1080 pixels Wall
SKU:02671-001
Low stock: 3 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Compact, rugged design; Complies with EN50155; Lightfinder and Forensic WDR; Traffic Light mode; Zipstream
This compact and discreet 2 MP onboard camera complies with rolling stock standards such as EN50155 and EN45545. It can withstand vibrations and a wide range of temperatures. Additionally, with AXIS TP3826-E housing this dome camera can be mounted on the outside of a vehicle. Thanks to Lightfinder and Forensic WDR, it provides details even in challenging light conditions. And with traffic light mode it can distinguish the color of traffic lights in dark scenes. Optional M12 lenses are available to adjust field of view for customized monitoring purposes.
| Performance | |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| PTZ modes | Digital PTZ |
| Wide Dynamic Range (WDR) | Yes |
| Built-in processor | Yes |
| Languages support | Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese |
| Number of languages | 19 |
| Certification | CE, ECE, KC, RCM, UL/cUL, UKCA, VCCI, WEEE |
| Design | |
|---|---|
| Form factor | Dome |
| Mounting type | Wall |
| Product colour | White |
| Housing material | Aluminium, Polycarbonate (PC) |
| International Protection (IP) code | IP66, IP67 |
| IK code | IK10 |
| Camera | |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0.04 lx |
| Angle of rotation | 175° |
| Lens viewing angle, horizontal | 88° |
| Lens viewing angle, vertical | 47° |
| Tilt angle range | 15 - 90° |
| Pan range | -30 - 30° |
| Camera pixel size | 2.8 µm |
| Image sensor | |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.9 mm (1 / 2.9") |
| Lens system | |
|---|---|
| Zoom capability | Yes |
| Lens diameter | 3.6 mm |
| Maximum aperture number | 2 |
| Night vision | |
|---|---|
| Night vision | No |
| Video | |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Video compression formats | H.264, H.265, M-JPEG |
| Video recording | Yes |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Privacy masking | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Quality of Service (QoS) support | Yes |
| Storage | |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 512 MB |
| Internal memory | 1024 MB |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
|---|---|
| Password protection | Yes |
| Pixel counter | Yes |
| Network access storage (NAS) | Yes |
| Digest authentication | Yes |
| HTTPS encryption | Yes |
| IP address filtering | Yes |
| Active tampering alarm | Yes |
| Video motion detection | Yes |
| Power | |
|---|---|
| Power source type | PoE |
| Power consumption (max) | 3.8 W |
| Power consumption (Power over Ethernet (PoE)) | 2.2 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -30 - 55 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Weight & dimensions | |
|---|---|
| Height | 50 mm |
| Diameter | 11 cm |
| Weight | 241 g |
| Packaging content | |
|---|---|
| Number of cameras | 1 |
| Manual | Yes |
| Packaging content | Windows decoder 1-user license, lens tool |
