Axis
Axis 02621-001 network switch Managed 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) Black
Axis 02621-001 network switch Managed 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) Black
Regular price
£1,259.30 GBP
Regular price
Sale price
£1,259.30 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:02621-001
Low stock: 1 left
- 480 W power budget; Compliant with IEEE 802.3bt up to 90 W; Familiar and intuitive Axis interface; High availability with Rapid Ring; NEMA TS-2 Compliant
Managed, 8-port, PoE++, 892 g, 62 Gbps, black

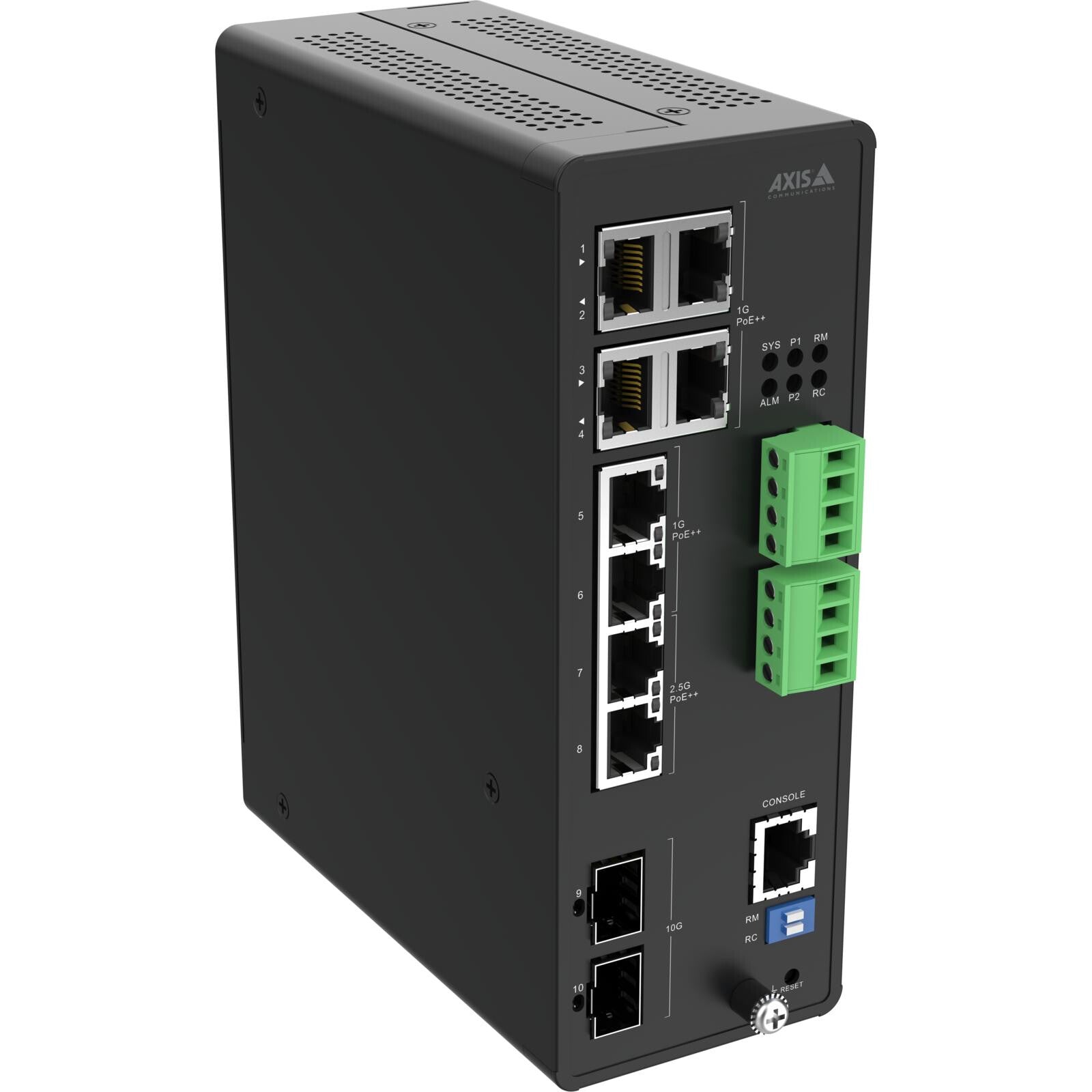

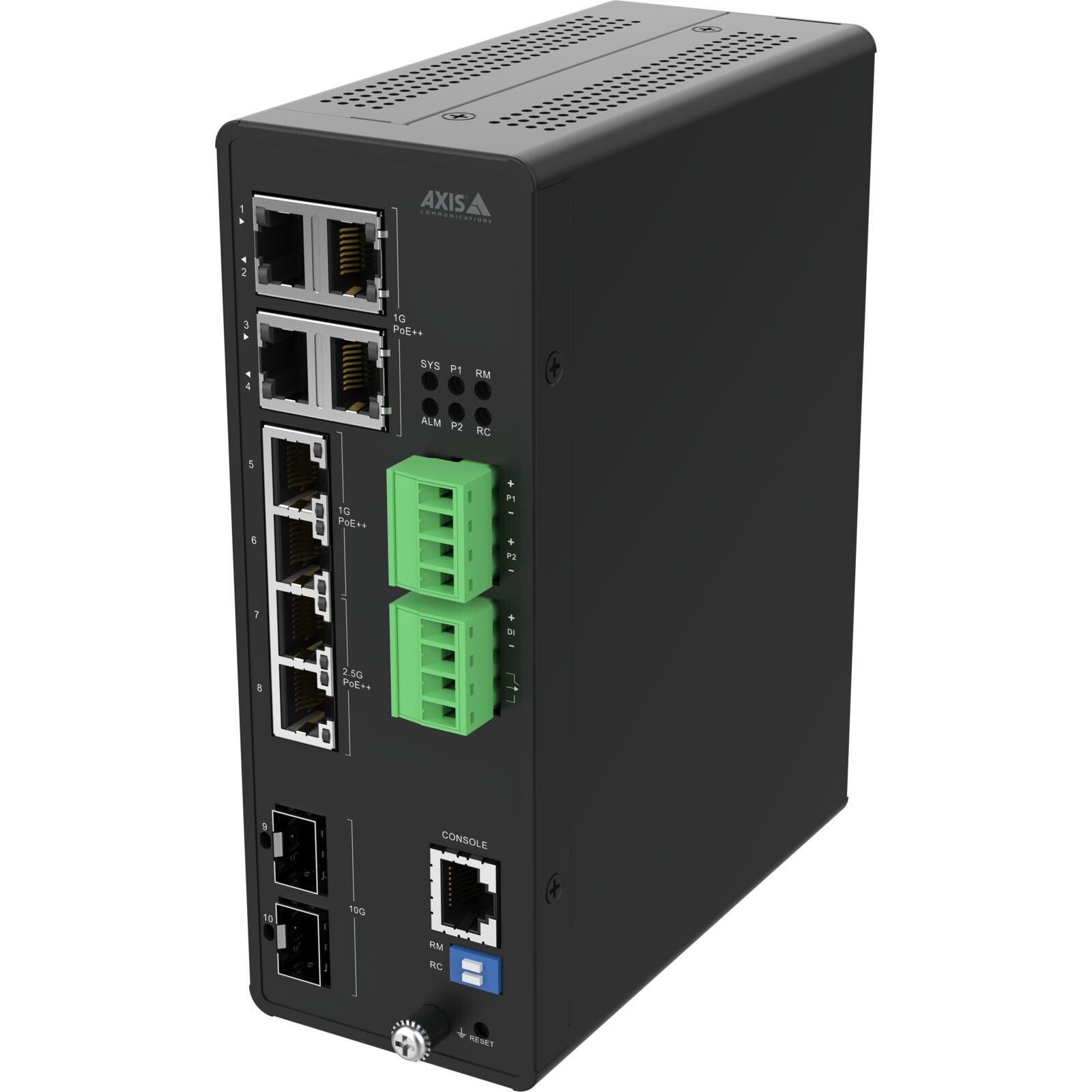

This rugged 8-port switch is ideal for demanding installations. Designed to withstand shock and vibrations, it can handle temperatures ranging from -40 °C to 60 °C (-40 °F to 140 °F). Each port can deliver up to 90 W PoE++ (IEEE 802.3bt) with a total power budget of 480 W. Plus, it also supports fiber ensuring flexible long-distance installations. Furthermore, featuring a familiar Axis interface with a graphic topology for easy overview of devices, AXIS D8208-R ensures easy configuration with Axis products.
| Management features | |
|---|---|
| Switch type | Managed |
| ARP inspection | Yes |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Gigabit Ethernet (copper) ports quantity | 6 |
| 2.5G Ethernet (copper) ports quantity | 2 |
| Installed SFP+ modules quantity | 2 |
| Console port | RJ-45 |
| Network | |
|---|---|
| Networking standards | IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| 10G support | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN |
| Data transmission | |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 62 Gbit/s |
| Throughput | 46.12 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 10240 |
| Security | |
|---|---|
| DHCP features | DHCP snooping |
| Access Control List (ACL) | Yes |
| Password protection | Yes |
| Security algorithms | HTTPS |
| Protocols | |
|---|---|
| Supported network protocols | IPv4, IPv6, HTTP, HTTPS, SMTP, Bonjour, UPnP®, SNMP v1/v2c/v3, DNS, NTP, RTSP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH, RADIUS, TACACS+, Syslog, IEEE 802.1X, 802.1Q (VLAN), LLDP, LLDP-Med, STP, MSTP, RSTP, LACP, RRPP |
| Design | |
|---|---|
| Product colour | Black |
| Housing material | Aluminium |
| Certification | EMCEN 55035, EN 55032 Class A, EN 50121-4, EN 61000-6-1,EN 61000-6-2, EN 61000-6-3, IEC 62236-4,FCC part 15 Subpart B Class A, ICES-3(A)/NMB-3(A),IEC 62236-4, VCCI Class A, RCM AS/NZS CISPR 32 Class ASafetyIEC/EN/UL 62368-1 ed. 3EnvironmentIEC 60068-2-6, IEC 60068-2-27, NEMA TS 2 (2.2.7-2.2.9),60068-2-31 (Free fall - Procedure 1), IEC/EN 60529 IP30 |
| Power | |
|---|---|
| Power source | DC/PoE |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 90 W |
| Total Power over Ethernet (PoE) budget | 480 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 62 mm |
| Depth | 130 mm |
| Height | 168 mm |
| Weight | 892 g |
