Axis 02484-001 security camera Box Indoor & outdoor 2592 x 1944 pixels Wall
Axis 02484-001 security camera Box Indoor & outdoor 2592 x 1944 pixels Wall
SKU:02484-001
Low stock: 7 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- AXIS Object Analytics; Built-in microphone for audio recording; Compact and flexible design; Lightfinder and Forensic WDR; Remote zoom and focus with i-CS

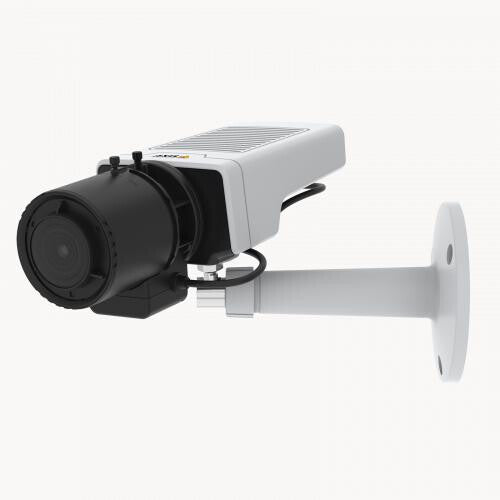

AXIS M1137 Mk II is an affordable, compact box camera that’s easy to install and operate. It supports PoE and redundant DC power to ensure your data is safeguarded in the event of a power outage. Featuring Axis Lightfinder and Axis Forensic WDR, it delivers true colors and great details in challenging light or near darkness. The camera's CS-mount enables flexibility for exchangeable lenses. And a built-in microphone allows you to record video with sound. With AXIS Object Analytics preinstalled, it’s possible to detect and classify humans and vehicles. Furthermore, Axis Zipstream with H.264/H.265 significantly lowers bandwidth and storage requirements.
| Performance | |
|---|---|
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Design | |
|---|---|
| Form factor | Box |
| Mounting type | Wall |
| Product colour | Black, White |
| Camera | |
|---|---|
| Minimum illumination | 0.17 lx |
| Lens viewing angle, horizontal | 112° |
| Lens viewing angle, vertical | 82° |
| Camera shutter speed | 1/33500 - 1/5 s |
| Image sensor | |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Lens system | |
|---|---|
| Focal length range | 2.8 - 13 mm |
| Night vision | |
|---|---|
| Night vision | Yes |
| Video | |
|---|---|
| Maximum resolution | 2592 x 1944 pixels |
| Total megapixels | 5 MP |
| Video formats supported | H.264, H.265 |
| Video compression formats | MPEG4 |
| Supported graphics resolutions | 160 x 120 |
| Frame rate | 30 fps |
| Network | |
|---|---|
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Storage | |
|---|---|
| Flash memory | 512 MB |
| Power | |
|---|---|
| Power source type | DC, PoE |
| Power consumption (typical) | 4.4 W |
| Power consumption (max) | 6.6 W |
| Power consumption (Power over Ethernet (PoE)) | 4.5 W |
| DC output voltage | 10, 12, 15, 16, 24, 28 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 70 mm |
| Depth | 179 mm |
| Height | 59 mm |
| Width (with stand) | 70 mm |
| Depth (with stand) | 179 mm |
| Height (with stand) | 179 mm |
| Packaging content | |
|---|---|
| Number of cameras | 1 |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85258900 |
