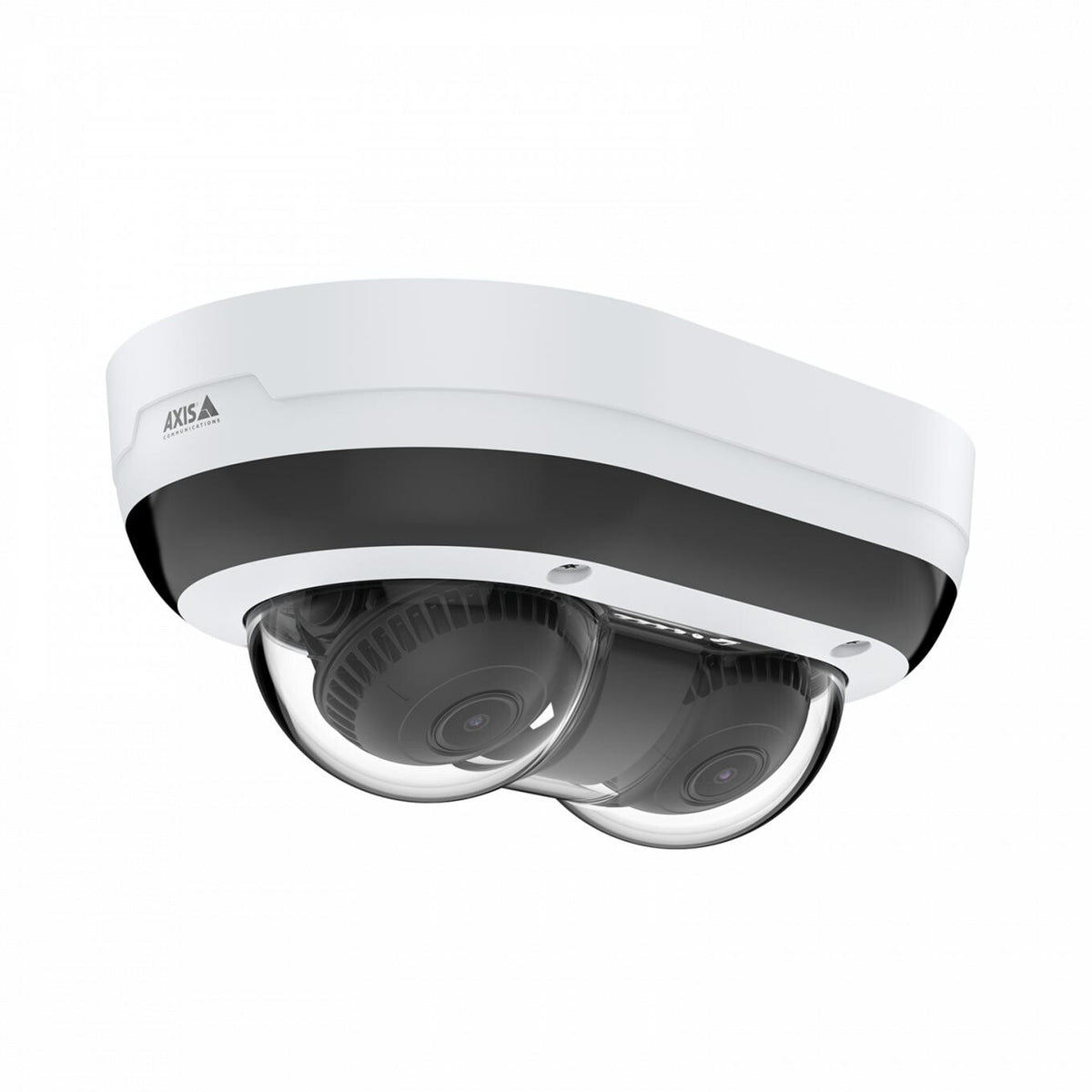

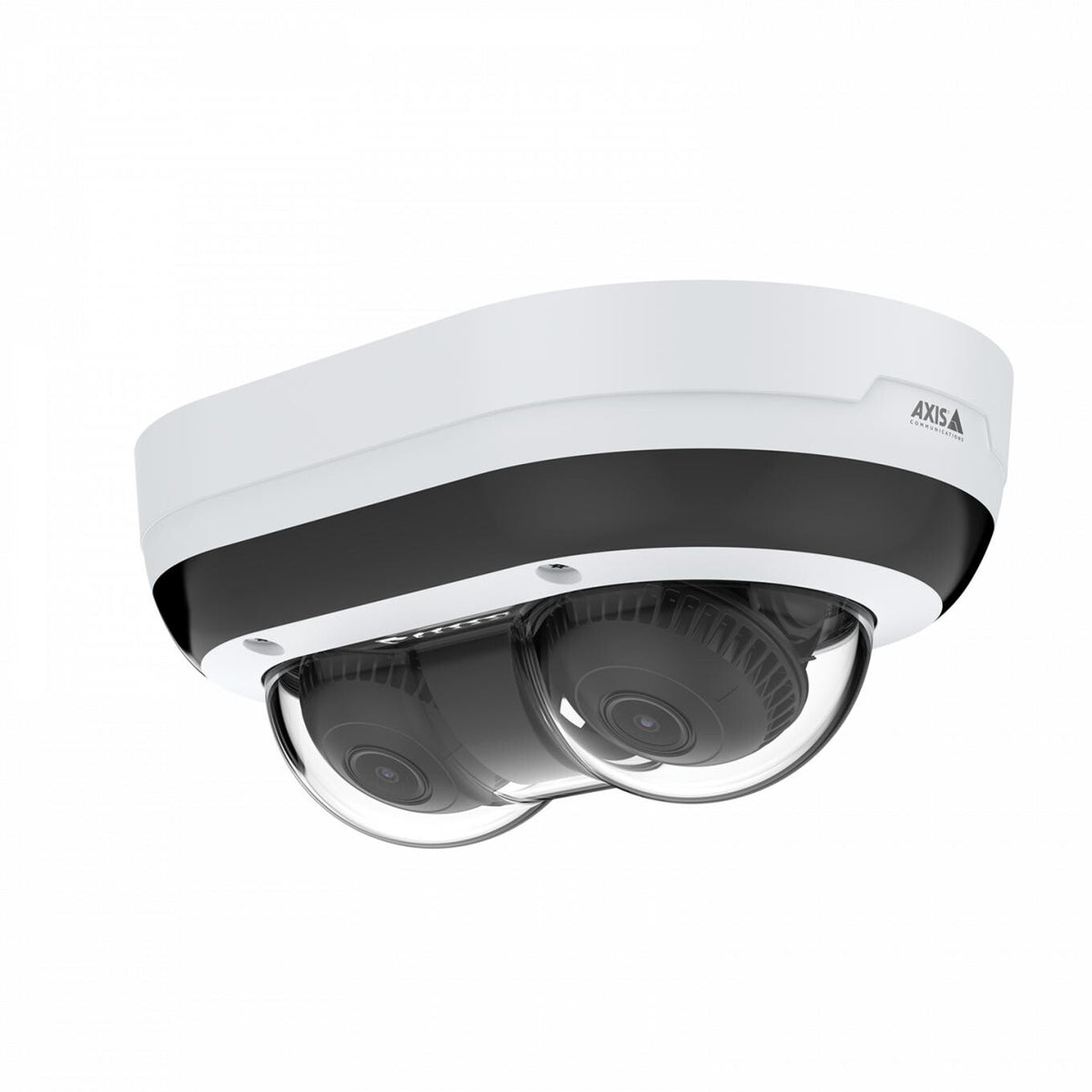

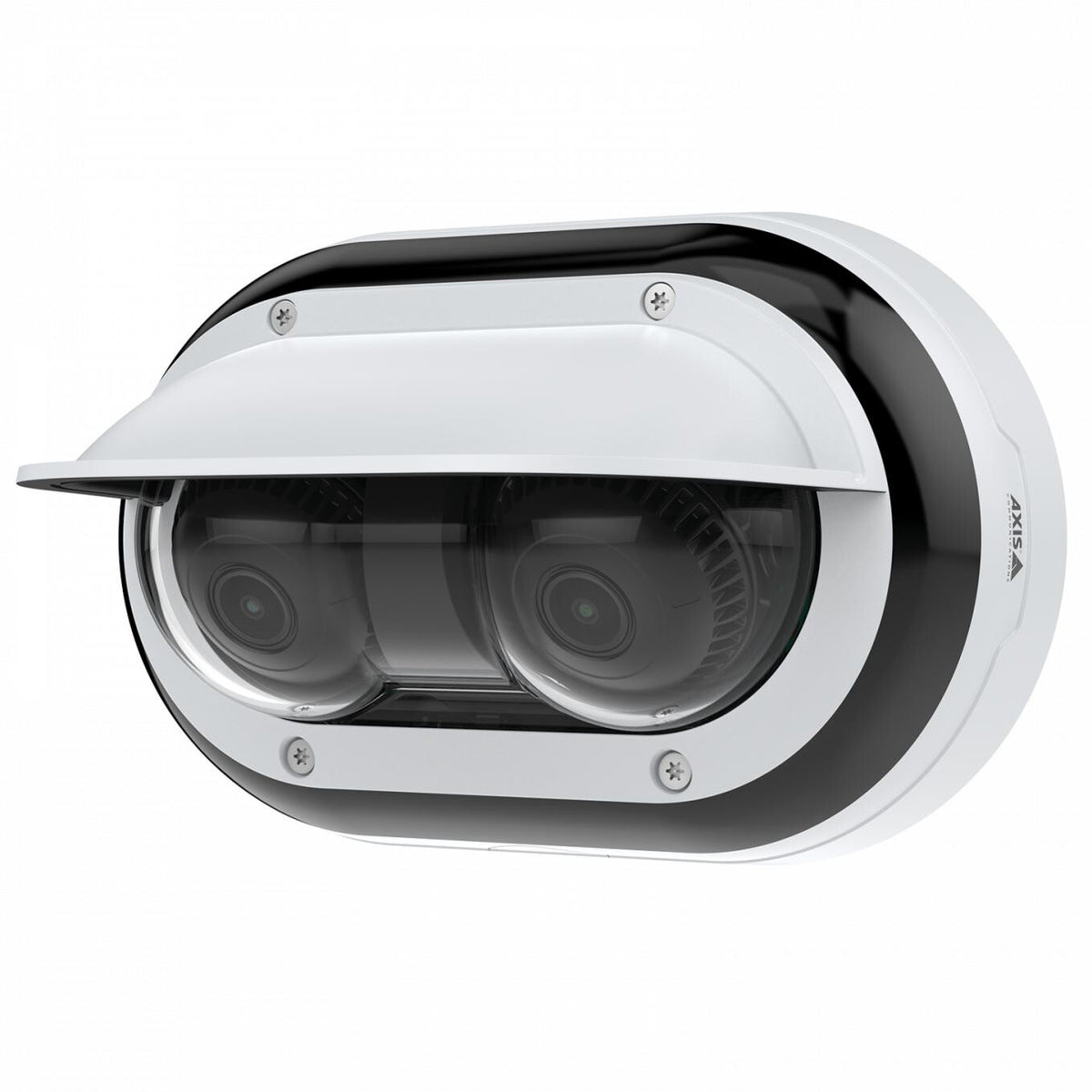

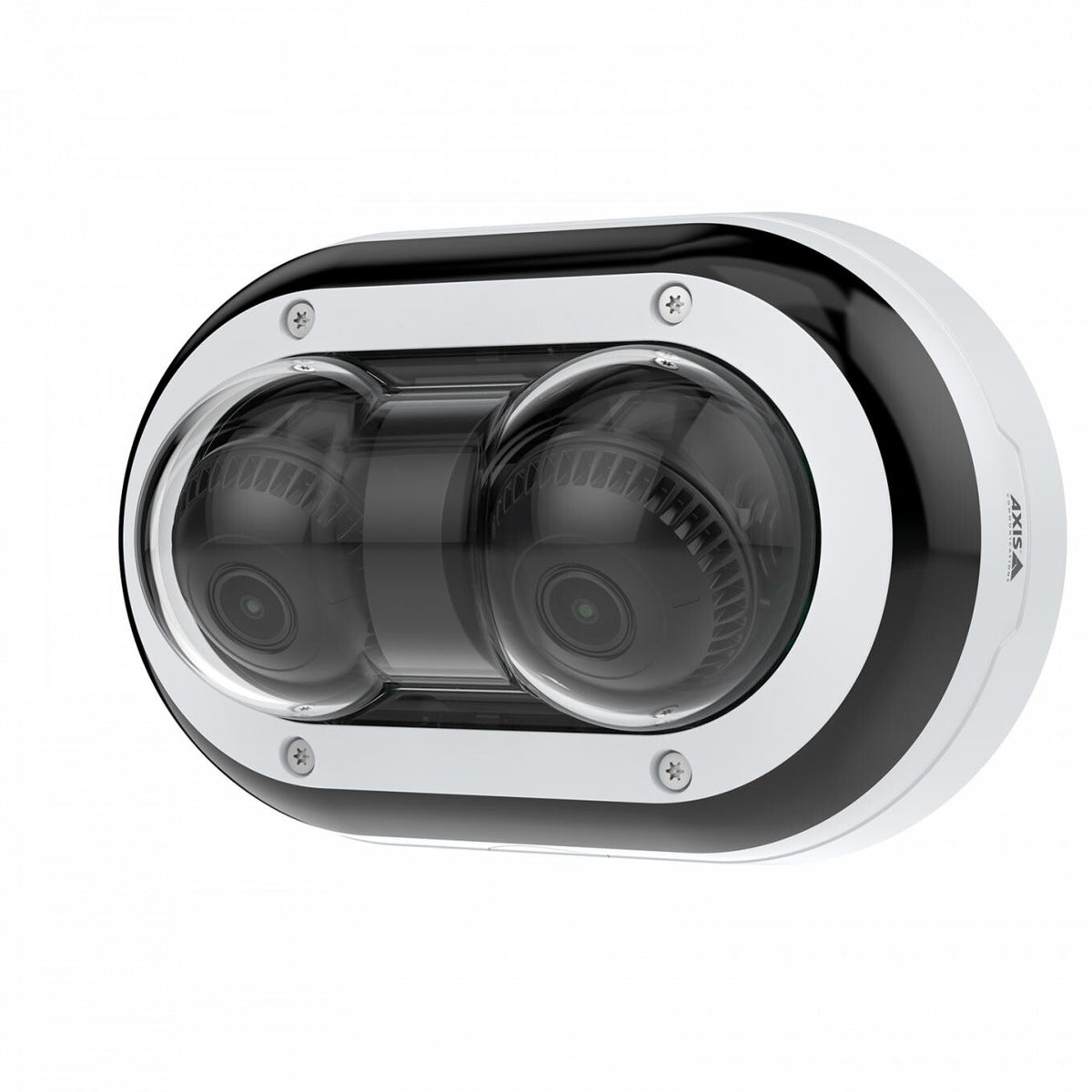

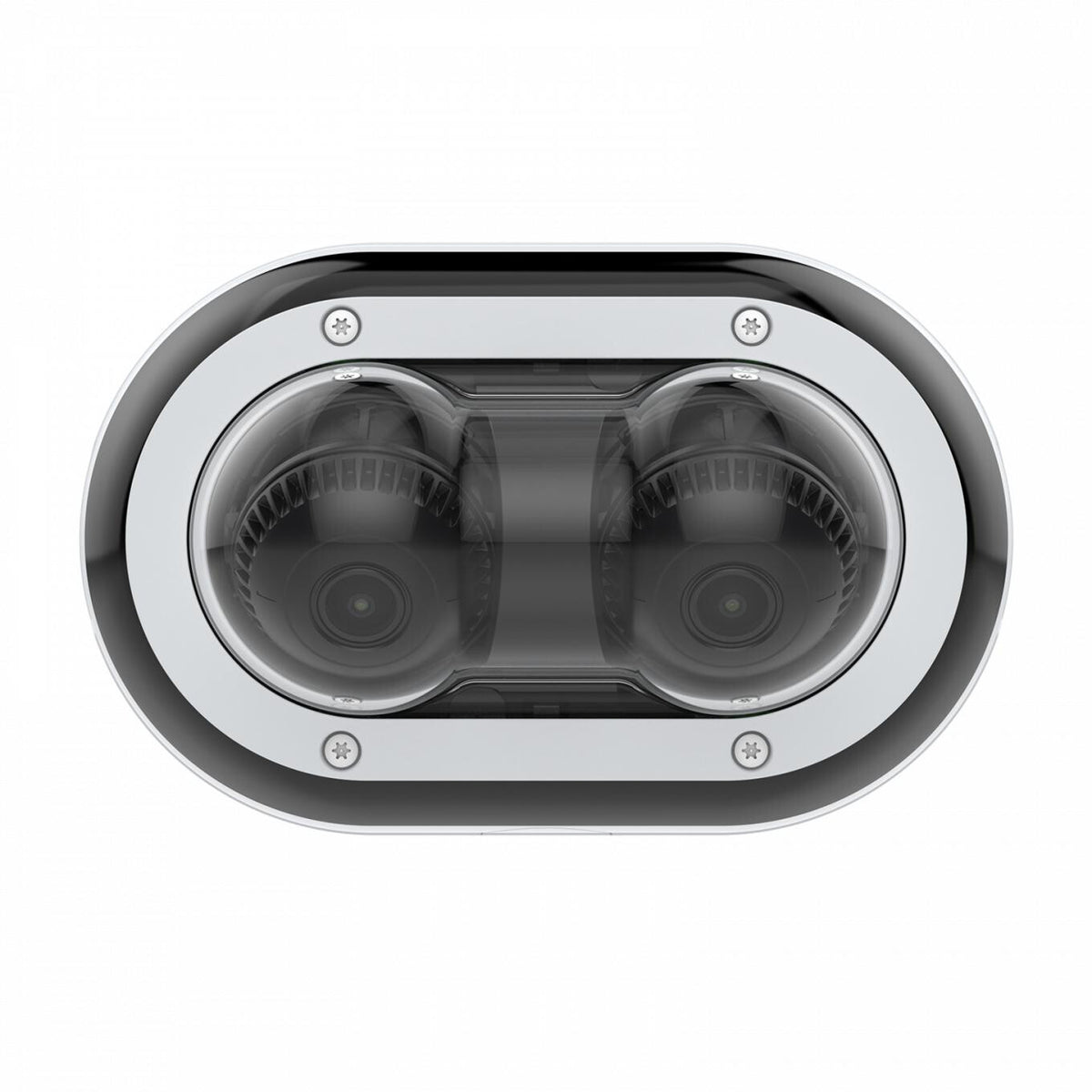

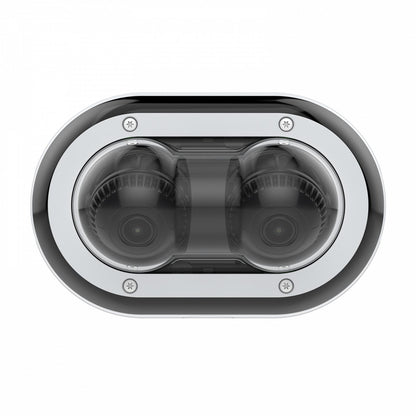

Axis 02416-001 security camera Bulb IP security camera Indoor & outdoor 2592 x 1944 pixels Ceiling/wall
Axis 02416-001 security camera Bulb IP security camera Indoor & outdoor 2592 x 1944 pixels Ceiling/wall
Regular price
£1,525.67 GBP
Regular price
Sale price
£1,525.67 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:02416-001
Low stock: 1 left
- 2*5 MP, multidirectional camera, with one IP address; 2.5x zoom; 360° IR illumination; Axis Lightfinder and Forensic WDR; Support for analytics with deep learning on both sensors
CMOS, 1/2.7, 2592x1944, Color 0.19 lux, B/W 0 lux, IP66, IP67
This dual-sensor, multidirectional camera offers 2*5 MP at 30 fps. It features Lightfinder and Forensic WDR for sharp, clear images in challenging or poor light conditions. Built on ARTPEC-8, this high-performance camera includes a deep learning processing unit enabling improved processing and storage capabilities. It also allows you to collect and analyze even more data than before – on the edge. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. And, with flexible positioning of both varifocal camera heads plus, remote zoom and focus capabilities, it ensures fast and cost-effective installation.
| Performance | |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Design | |
|---|---|
| Form factor | Bulb |
| Mounting type | Ceiling/wall |
| Product colour | Black, White |
| International Protection (IP) code | IP66, IP67 |
| IK code | IK10 |
| Camera | |
|---|---|
| Angle of rotation | 170° |
| Lens viewing angle, horizontal | 98 - 36° |
| Lens viewing angle, vertical | 69 - 27° |
| Lens viewing angle, diagonal | 133 - 46° |
| Tilt angle range | -75 - 75° |
| Pan range | -100 - 110° |
| Camera shutter speed | 1/33500 - 1/5 s |
| Panoramic camera | |
|---|---|
| Sensor type (panoramic camera) | CMOS |
| Optical sensor size (panoramic camera) | 25.4 / 2.7 mm (1 / 2.7") |
| Camera shutter speed (panoramic camera) | 1/33500 - 1/5 s |
| Minimum illumination (panoramic camera) | 0.19 lx |
| Focal length range (panoramic camera) | 3.26 - 8.12 mm |
| Image sensor | |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Lens system | |
|---|---|
| Number of lenses | 1 |
| Zoom capability | Yes |
| Focal length range | 3.26 - 8.12 mm |
| Auto focus | Yes |
| Night vision | |
|---|---|
| Night vision | Yes |
| LED type | IR |
| Video | |
|---|---|
| Maximum resolution | 2592 x 1944 pixels |
| Total megapixels | 2.5 MP |
| Video compression formats | H.264, H.265, M-JPEG |
| Supported graphics resolutions | 2560 x 1440, 2592 x 1944 |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Privacy masking | Yes |
| Image quality adjustment | Brightness, Contrast, Sharpness |
| Audio | |
|---|---|
| Built-in speaker(s) | Yes |
| Audio system | 2-way |
| Audio codecs | 24bit LPCM, AAC-LC 8/16/32/44.1/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.1x, IEEE 802.3at |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf) |
| Live view | Yes |
| Quality of Service (QoS) support | Yes |
| Storage | |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Yes |
| Security | |
|---|---|
| Password protection | Yes |
| IP address filtering | Yes |
| Security algorithms | HTTPS |
| Power | |
|---|---|
| Power source type | PoE |
| Power consumption (Power over Ethernet (PoE)) | 7.9 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -30 - 50 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 133 mm |
| Depth | 208 mm |
| Height | 88 mm |
| Weight | 975 g |
| Packaging content | |
|---|---|
| Number of cameras | 2 |
| Technical details | |
|---|---|
| Doesn't contain | BFR, PVC |
