Based on open standards; Combines analog and network audio; Easy integration with other systems; I/Os for buttons and relays; PoE for easy installation

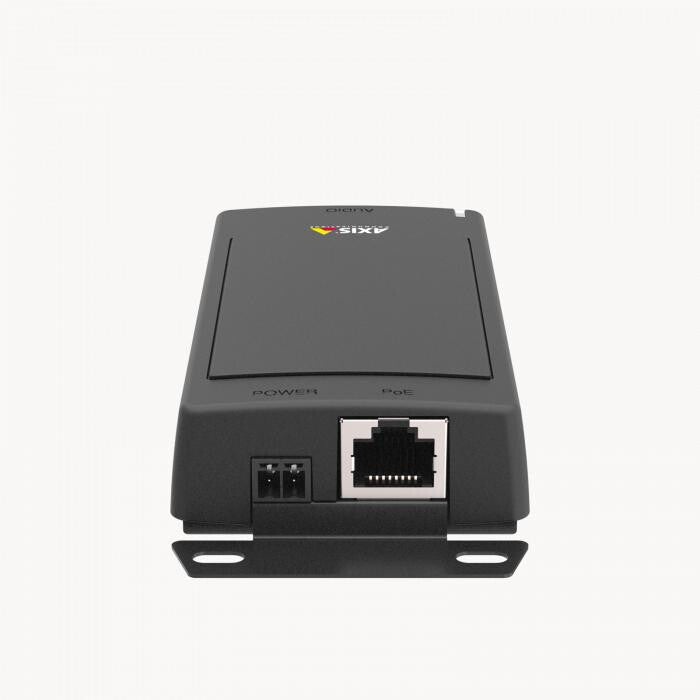

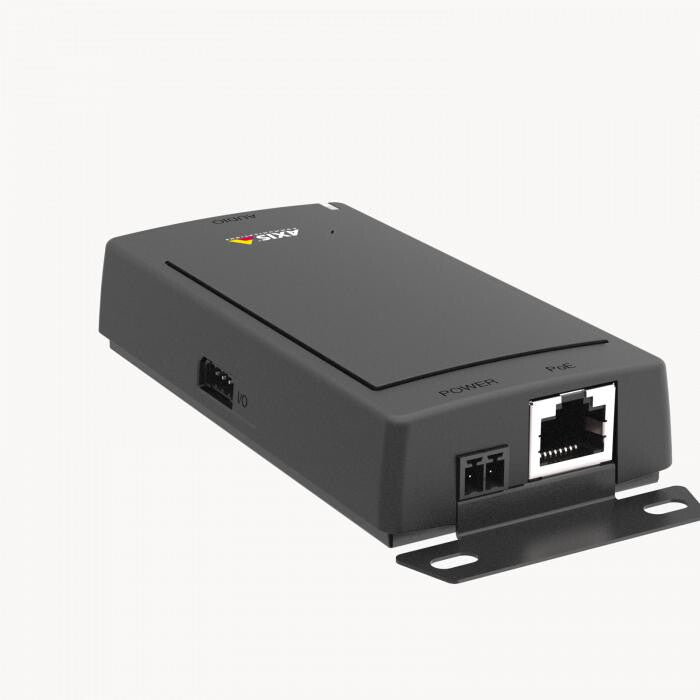

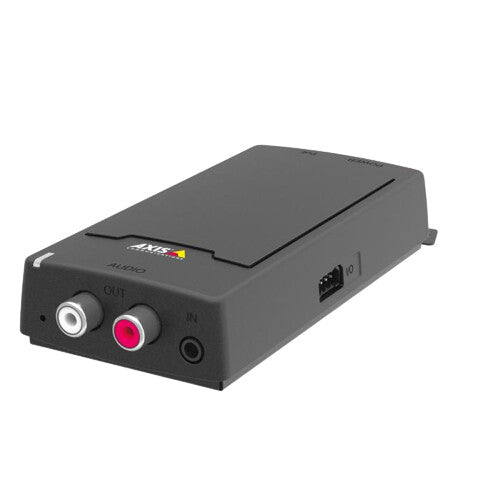

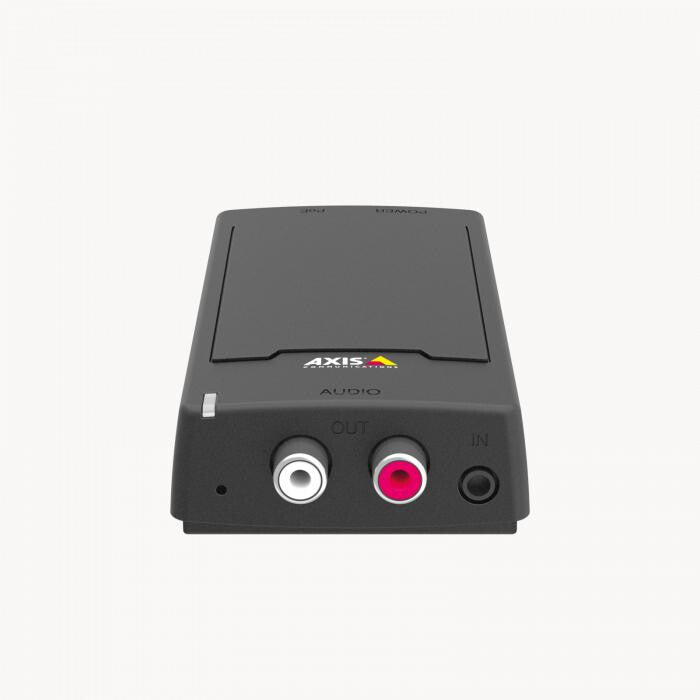

AXIS C8110 Network Audio Bridge is a smart solution based on open standards for connecting and combining analog and digital audio systems. Thanks to the built-in AXIS Audio Manager Edge application you can get functionalities like zone management and content scheduling in existing analog systems. With SIP support it is possible to connect an IP telephony system for callouts in analog speakers. With analog audio input you can easily integrate your intercom system or music streaming box with network speakers from Axis.
Wireless LAN features
Wi-Fi
No
Network
Ethernet LAN
Yes
Ethernet LAN data rates
10,100 Mbit/s
Networking standards
IEEE 802.1x, IEEE 802.3at
Cabling technology
10/100Base-T(X)
Ports & interfaces
Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
DC-in jack
Yes
Features
Product type
Network bridge
Mounting type
Shelf/wall-mounted
Product colour
Black
LED indicators
Yes
Power
Power source type
DC, PoE
DC input voltage
8 - 28 V
Power consumption (typical)
1.85 W
Power consumption (max)
4 W
Operational conditions
Operating temperature (T-T)
-20 - 50 °C
Operating relative humidity (H-H)
10 - 85%
Storage temperature (T-T)
-40 - 65 °C
Storage relative humidity (H-H)
5 - 95%
Certificates
Certification
CISPR 35, CISPR 32 Class B, EAC, EN 55035,EN 55032 Class B, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class B, ICES-3(B)/NMB-3(B), KC KN35, KN32 Class B, RCM AS/NZS CISPR 32 Class B, VCCI Class B
