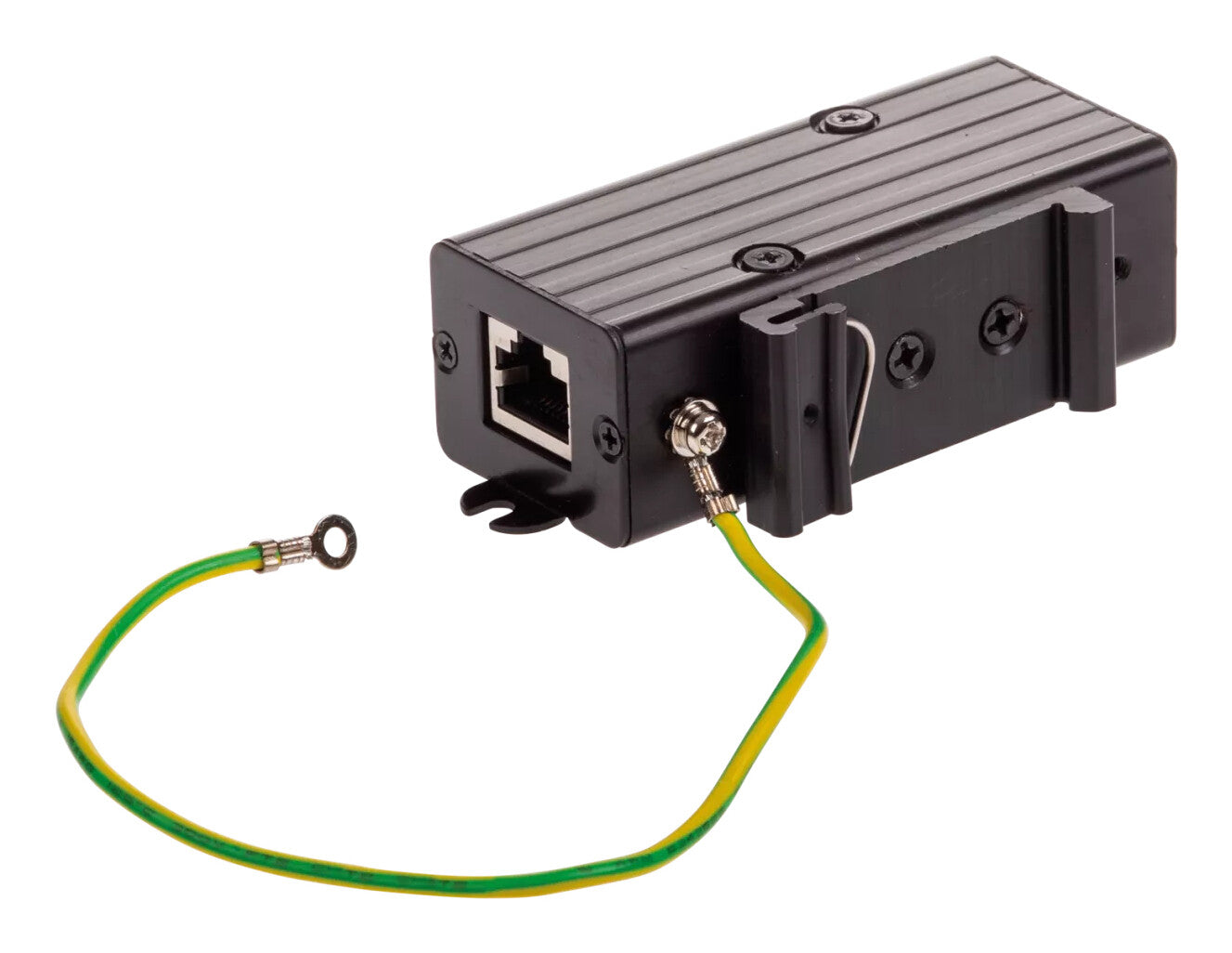

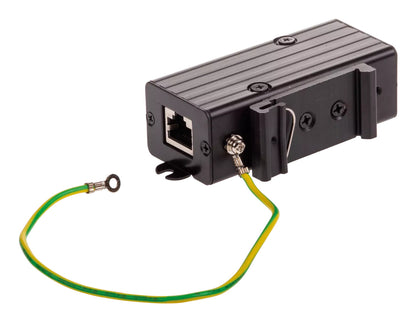

Axis 02315-001 PoE adapter Gigabit Ethernet 1000 V

Axis 02315-001 PoE adapter Gigabit Ethernet 1000 V

02315-001

£81.42 GBP£67.85 GBP
£0.00 GBP £81.42 GBP£67.85 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

48 in stock

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • Can be wall or DIN-rail mounted; Protects up to 10 kV surge; Supports IEEE 802.3bt up to 95 W; Supports data rates of up to 1 Gbps; Tested with Axis devices
RJ45, PoE, 80 g, 94 x 35 x 27 mm, Black

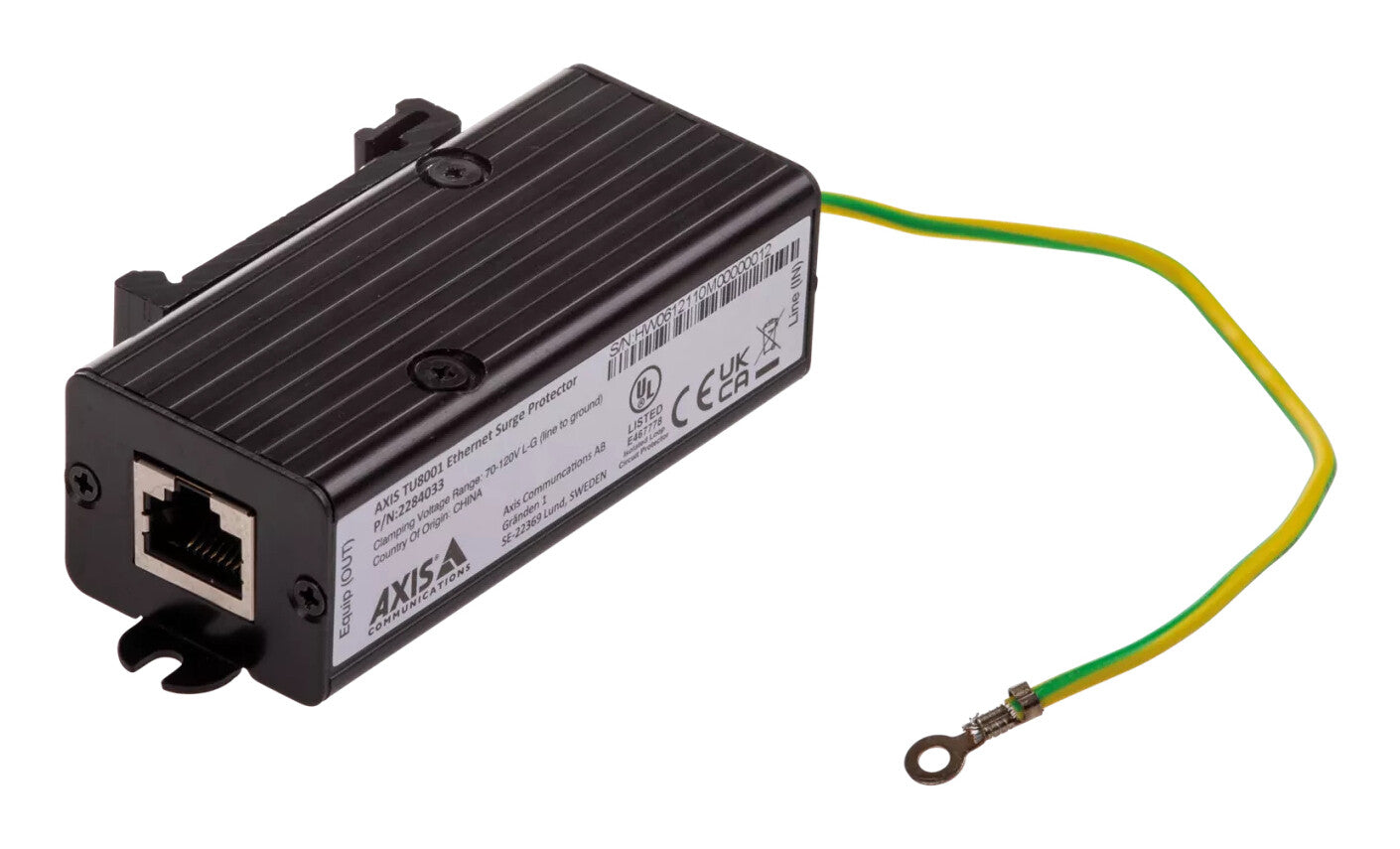

AXIS TU8001 Ethernet Surge Protector helps reduce system downtime, service and maintenance by shielding PoE devices against transient voltage spikes in the Ethernet cable. It is a compact, high-quality product validated to work seamlessly with Axis devices. AXIS TU8001 can be installed close to a PoE switch located indoors or in an outdoor electrical enclosure cabinet adjacent to a network camera or another device. Placing it in an enclosure, you get less exposed wiring, simpler troubleshooting of the whole system and less hardware visible on the pole. The product can be easily mounted on a wall or on a DIN rail.

Network
Networking standards IEEE 802.3bt
Power over Ethernet (PoE) Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Ethernet interface type Gigabit Ethernet
Features
Surge protection Yes
Wall mountable Yes
Product colour Black
Ports & interfaces
RJ-45 input ports 1
Ethernet LAN (RJ-45) ports 1
Power
Power consumption (max) 95 W
Input current 2 A
Power over Ethernet (PoE) voltage 1000 V
Operational conditions
Storage relative humidity (H-H) 0 - 95%
Storage temperature (T-T) -40 - 85 °C
Operating relative humidity (H-H) 0 - 95%
Operating temperature (T-T) -40 - 85 °C
Weight & dimensions
Weight 80 g
Height 35 mm
Depth 94 mm
Width 27 mm
Logistics data
Harmonized System (HS) code 85044095
