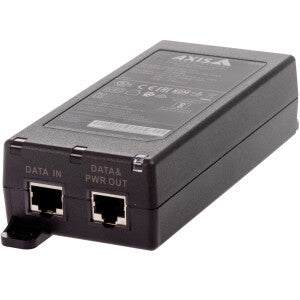

Axis 02208-001 PoE adapter Fast Ethernet, Gigabit Ethernet 56 V

Axis 02208-001 PoE adapter Fast Ethernet, Gigabit Ethernet 56 V

02208-001

£128.34 GBP£106.95 GBP
£0.00 GBP £128.34 GBP£106.95 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

43 in stock

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • 24 V AC and 10-28 V DC input; Compatible with Axis PoE devices; Flexible installation; IEEE 802.3af and 802.3at output; Plug-and-play
Gigabit Ethernet, 56V, 30W, Black

AXIS 30 W Midspan AC/DC is for installations where mains power is not an option. With a power input of either 10-28 V DC or 24 V AC, it can deliver up to IEEE 802.3at (30 W) to your network device. 24 V AC can be needed in harsh environments where new cabling or installations are not possible and you need to retrofit box, dome or PTZ cameras. 10-28 V DC can be used where battery back-up is needed or for solar-powered installations. Or when the network device is built in another equipment and is powered directly from it.

Network
Ethernet interface type Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates 10,100,1000 Mbit/s
Networking standards IEEE 802.3af, IEEE 802.3at
Features
Product colour Black
Wall mountable Yes
LED indicators Yes
Certification IS 13252, IEC/EN/UL 62368-1, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, IEC 60068-2-6, IEC 60068-2-27, 55024, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A, EAC
Ports & interfaces
Ethernet LAN (RJ-45) ports 2
RJ-45 input ports 1
RJ-45 output ports 1
Power
Power over Ethernet (PoE) voltage 56 V
Output power 30 W
Input voltage 10-18 V
Operational conditions
Operating temperature (T-T) -20 - 70 °C
Operating relative humidity (H-H) 0 - 95%
Storage temperature (T-T) -40 - 75 °C
Weight & dimensions
Width 65 mm
Depth 164 mm
Height 37 mm
Weight 233 g
Technical details
Doesn't contain PVC
Logistics data
Harmonized System (HS) code 85044095
