Axis

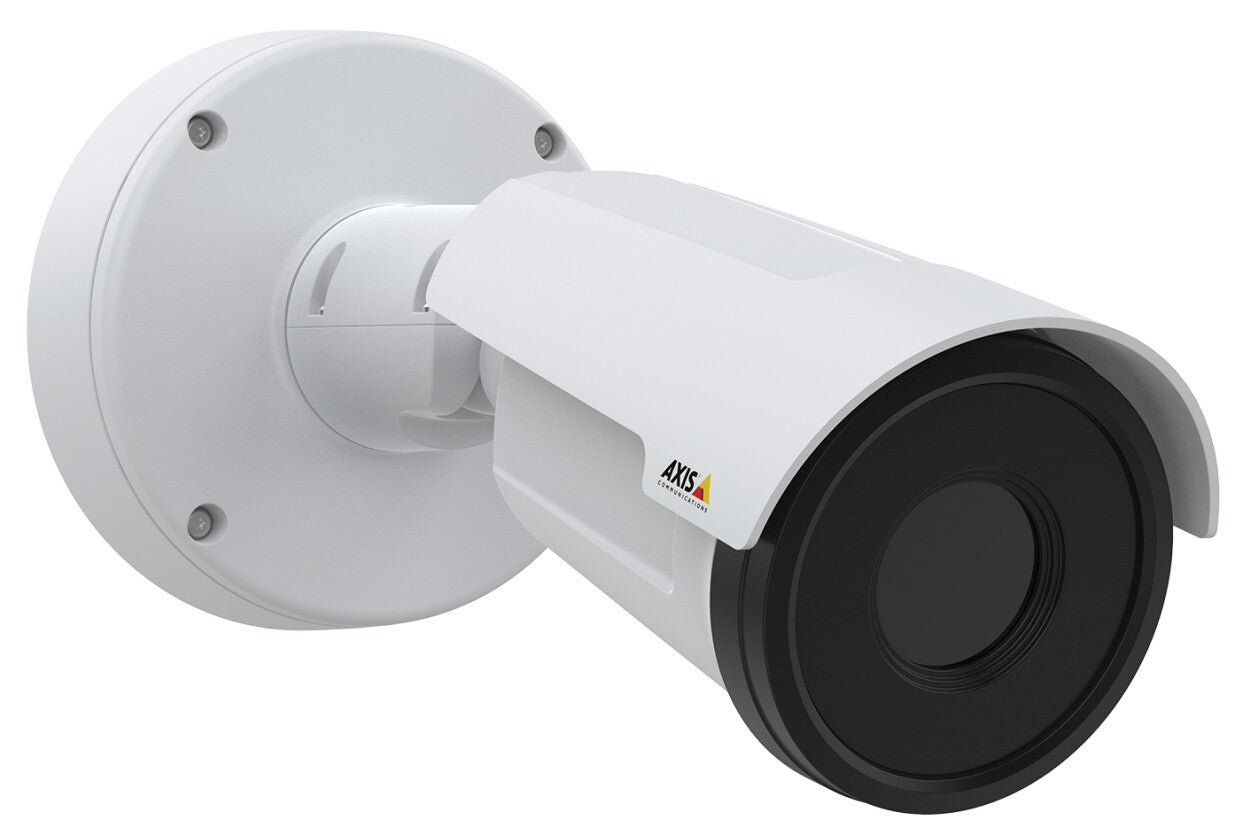

Axis 02158-001 security camera Bullet IP security camera Outdoor 800 x 600 pixels Wall/Pole

Axis 02158-001 security camera Bullet IP security camera Outdoor 800 x 600 pixels Wall/Pole

£7,327.49 GBP
£7,327.49 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

02158-001

Low stock: 3 left

  • Built-in cybersecurity features; Compact, robust, halogen-free design; Reliable detection 24/7; Support for AI-based analytics; VGA with 640x480 thermal resolution
Microbolometer, 800x600px, DC/PoE, 12-28V, 12.95W

AXIS Q1952-E delivers a high-resolution thermal video stream for reliable detection 24/7. Ideal for perimeter security, it includes AXIS Motion Guard, AXIS Fence Guard, and AXIS Loitering Guard for proactive surveillance. With a powerful analytics platform, it’s easy to add third-party analytics. Built-in cybersecurity features prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis products on your network. AXIS Q1952-E also includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified. Furthermore, this halogen-free, compact camera is robust and suitable even for harsh conditions.

Performance
Certification CISPR 24, CISPR 35, EN 50121-4, EN 55024, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KC KN32 Class A, KC KN35, RCM AS/NZS CISPR32 Class A, VCCI Class A, IEC/EN/UL 60950-22, IEC/EN/UL 62368–1, IEC 60068-2-1, IEC/EN 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC/EN 60068-2-78, IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10b , ISO 21207 Method B, MIL-STD-810H (Method 501.7, 502.7, 505.7, 506.6, 507.6, 509.7, 510.7, 514.8, 516.8, 521.4), NEMA 250 Type 4X, NEMA TS 2 (2.2.7–2.2.9), NIST SP500-267
Number of languages 13
Languages support English, Polish, Spanish, Italian, Portuguese, Japanese, Russian, Simplified Chinese, French, Korean, Traditional Chinese, German
Thermal module Yes
Connectivity technology Wired
Placement supported Outdoor
Type IP security camera
Design
IK code IK10
International Protection (IP) code IP65, IP67
Housing material Aluminium, Polycarbonate (PC)
Product colour Black, White
Mounting type Wall/Pole
Form factor Bullet
Camera
Lens viewing angle, horizontal 63°
Image sensor
Effective sensor resolution (thermal module) 640 x 480 pixels
Number of sensors 1
Sensor type Microbolometer
Lens system
Closest focusing distance 2.8 m
Maximum aperture number 1.17
Lens diameter 1 cm
Number of lenses 1
Video
Image stabilizer Yes
Bit rate control Variable Bit Rate (VBR)
Image quality adjustment Brightness, Contrast, Sharpness
Text caption overlay Yes
Gain control type Auto
Video streaming Yes
Frame rate 30 fps
Video formats supported H.264, H.265, AVC, MPEG4, HEVC, M-JPEG
Maximum resolution 800 x 600 pixels
Audio
Audio formats supported G.711, G.726, AAC-LC, LPCM, ADPCM, PCM
Audio system 2-way
Network
Quality of Service (QoS) support Yes
Supported network protocols IPv4, IPv6 USGv6, HTTP, HTTPS, HTTP/2, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SOCKS, SSH, LLDP, MQTT v3.1.1, Syslog
Networking standards IEEE 802.3af, IEEE 802.3at
Ethernet interface type Fast Ethernet, Gigabit Ethernet
Ethernet LAN Yes
Storage
Internal memory 1024 MB
Flash memory 512 MB
Compatible memory cards MicroSD (TransFlash), MicroSDHC, MicroSDXC
Card reader integrated Yes
Ports & interfaces
Terminal block port Yes
Microphone in Yes
Ethernet LAN (RJ-45) ports 1
Security
IP address filtering Yes
HTTPS encryption Yes
Digest authentication Yes
Security algorithms EAP-TLS
Alert notification type E-mail
Password protection Yes
Power
DC output voltage 12, 28
Power consumption (max) 12.95 W
Power consumption (typical) 5.4 W
Power source type DC, PoE
Operational conditions
Operating relative humidity (H-H) 10 - 100%
Storage temperature (T-T) -40 - 65 °C
Operating temperature (T-T) -40 - 60 °C
Weight & dimensions
Weight 1.4 kg
Height 132 mm
Depth 272 mm
Width 132 mm
Packaging content
Manual Yes
Sun shield included Yes
Mounting kit Yes
Number of cameras 1
Technical details
Doesn't contain PVC/BFR
Logistics data
Harmonized System (HS) code 85258900
