Axis 02125-001 security camera Bullet IP security camera Outdoor 2304 x 1728 pixels Ceiling/wall
Axis 02125-001 security camera Bullet IP security camera Outdoor 2304 x 1728 pixels Ceiling/wall
SKU:02125-001
57 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Analytics with deep learning; Compact, lightweight design; Outdoor-ready with IR illumination; Quad HD 1440p/4 MP; Zipstream supporting H.264/H.265

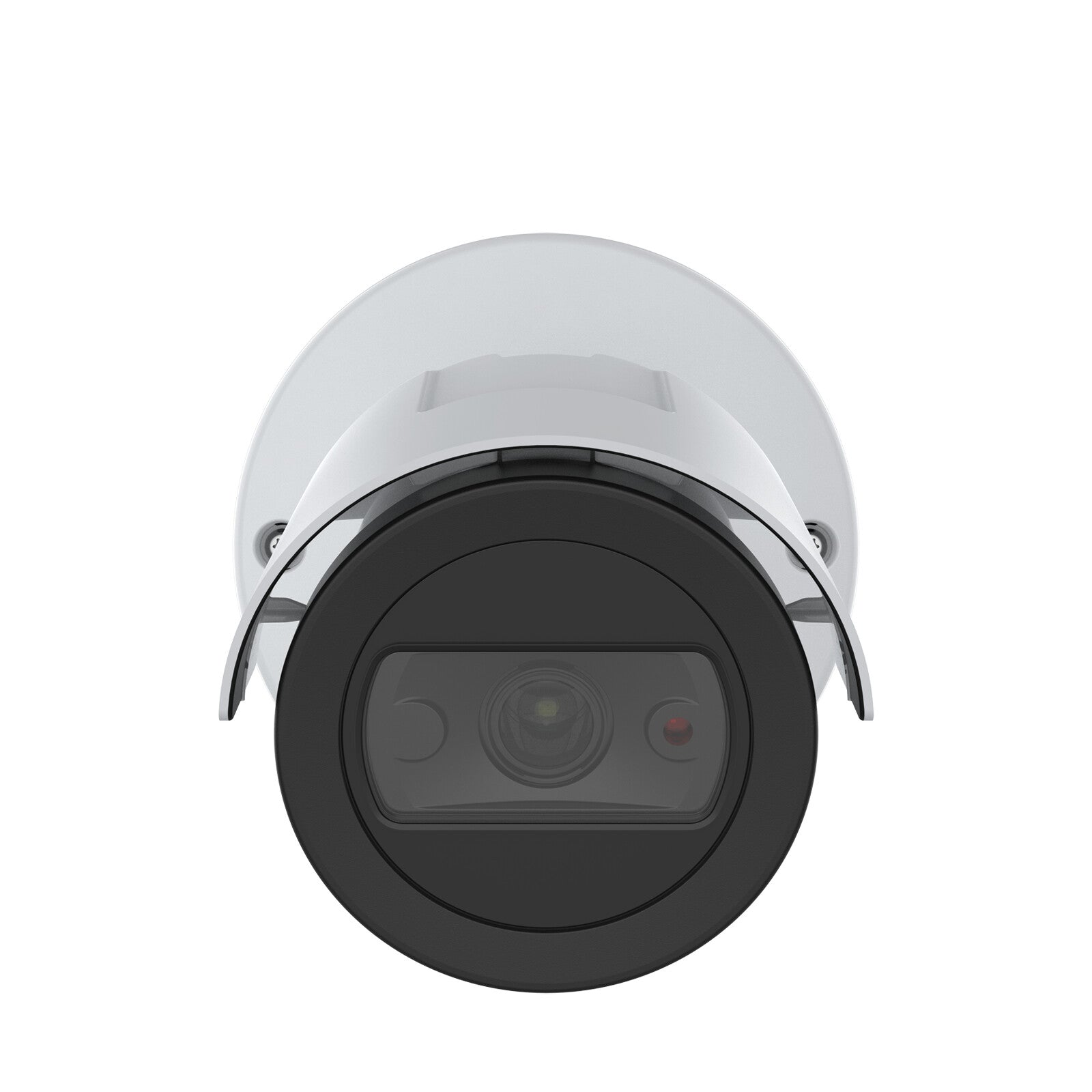

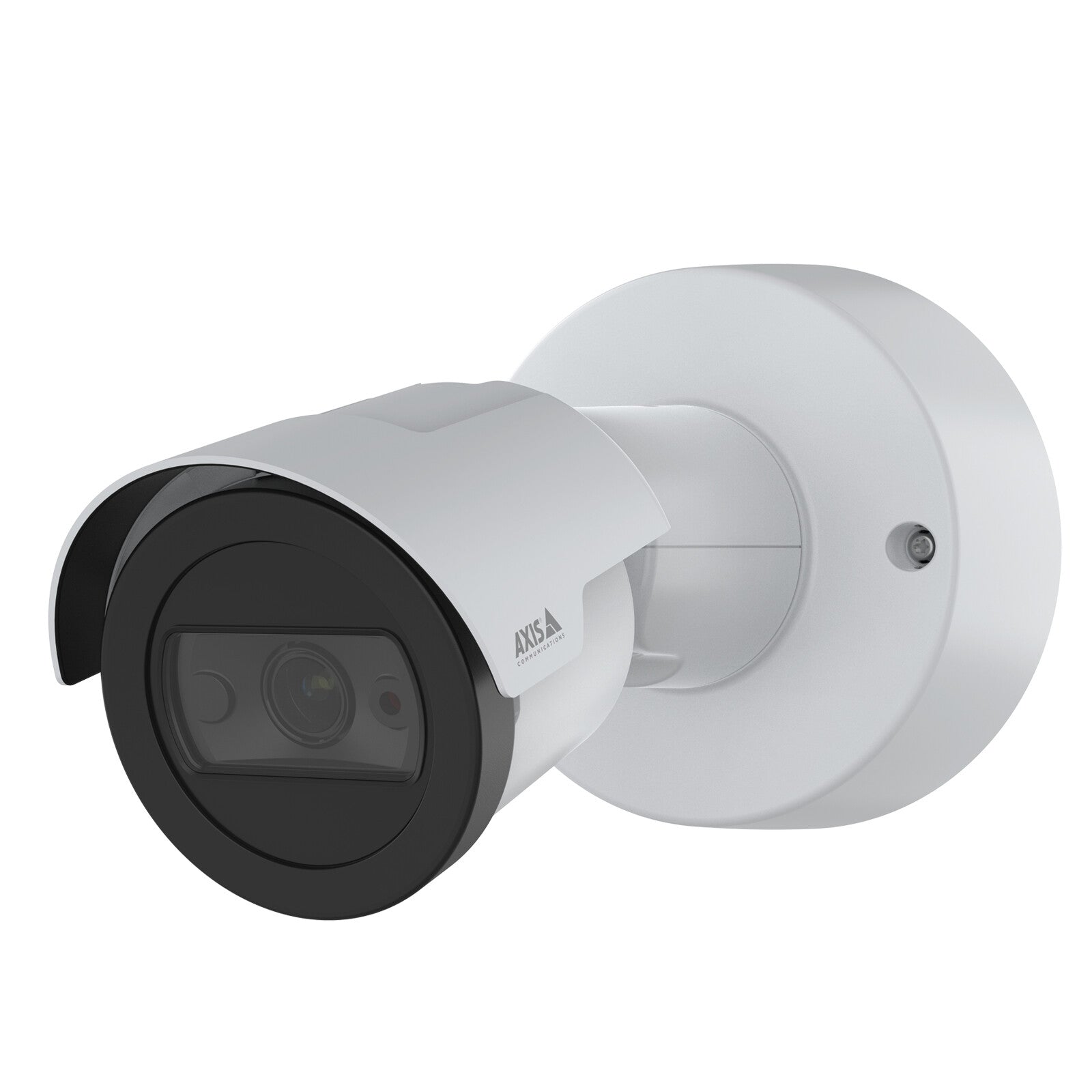

Ideal for tough environments and rough weather, AXIS M2036-LE delivers Quad HD 1440p/4 MP. With a deep learning processing unit, it enables unique opportunities for analytics based on deep learning on the edge. AXIS Object Analytics offers detection and classification of humans, vehicles, and types of vehicles. And Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. This IK08-rated camera offers flexible and cost-efficient installation including support for PoE. Edge-to-edge technology allows for smart pairing with Axis Speakers. Plus, a spacious, sealed back box ensures secure cable management.
| Performance | |
|---|---|
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| PTZ modes | Digital PTZ |
| Wide Dynamic Range (WDR) | Yes |
| Infrared (IR) cut-off filter | Yes |
| Day/night mode | Yes |
| Languages support | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian |
| Number of languages | 12 |
| Certification | CISPR 24, CISPR 35, EN 55032 Class A, EN 55035,EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A,ICES-3(A)/NMB-3(A), KC KN32 Class A, KC KN35,RCM AS/NZS CISPR 32 Class A, VCCI Class AIEC/EN 62368-1, IEC 62471, IS 13252IEC 60068-2-X, IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK08NIST SP500-267 |
| Design | |
|---|---|
| Form factor | Bullet |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Housing material | Aluminium, Plastic |
| Protection features | Dust resistant, Vandal proof, Water resistant |
| International Protection (IP) code | IP66, IP67 |
| IK code | IK08 |
| Camera | |
|---|---|
| Lens viewing angle, horizontal | 130° |
| Lens viewing angle, vertical | 81° |
| White balance | Auto |
| Camera shutter speed | 1/38500 - 1/5 s |
| Image sensor | |
|---|---|
| Sensor type | CMOS |
| Lens system | |
|---|---|
| Number of lenses | 1 |
| Maximum aperture number | 2.1 |
| Closest focusing distance | 0.5 m |
| Fixed focal length | 2.4 mm |
| Night vision | |
|---|---|
| Night vision | Yes |
| Night vision distance | 20 m |
| LED type | IR |
| Infra-red wavelength | 855 nm |
| Video | |
|---|---|
| Maximum resolution | 2304 x 1728 pixels |
| Total megapixels | 4 MP |
| Video compression formats | H.264, H.265, M-JPEG |
| Supported graphics resolutions | 2668 x 1512, 2304 x 1728 |
| Supported video modes | 1440p |
| Video recording | Yes |
| Video intelligence analytic | Yes |
| Video streaming | Yes |
| Image stabilizer | Yes |
| Text caption overlay | Yes |
| Privacy masking | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
| Supported network protocols | IPv4, IPv6 USGv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SOCKS, SSH, LLDP, MQTT v3.1.1 |
| Quality of Service (QoS) support | Yes |
| Storage | |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC |
| Flash memory | 512 MB |
| Internal memory | 1024 MB |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
|---|---|
| Password protection | Yes |
| HTTPS encryption | Yes |
| IP address filtering | Yes |
| Alert notification type | |
| Active tampering alarm | Yes |
| Security algorithms | 802.1x RADIUS, EAP-TLS, HTTPS, SSH |
| Video motion detection | Yes |
| Power | |
|---|---|
| Power source type | PoE |
| Power consumption (typical) | 5 W |
| Power consumption (max) | 12.95 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -30 - 50 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Weight & dimensions | |
|---|---|
| Diameter | 10.1 cm |
| Length | 170 mm |
| Weight | 491 g |
| Packaging content | |
|---|---|
| Number of cameras | 1 |
| Technical details | |
|---|---|
| Doesn't contain | BFR, PVC |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85258900 |
