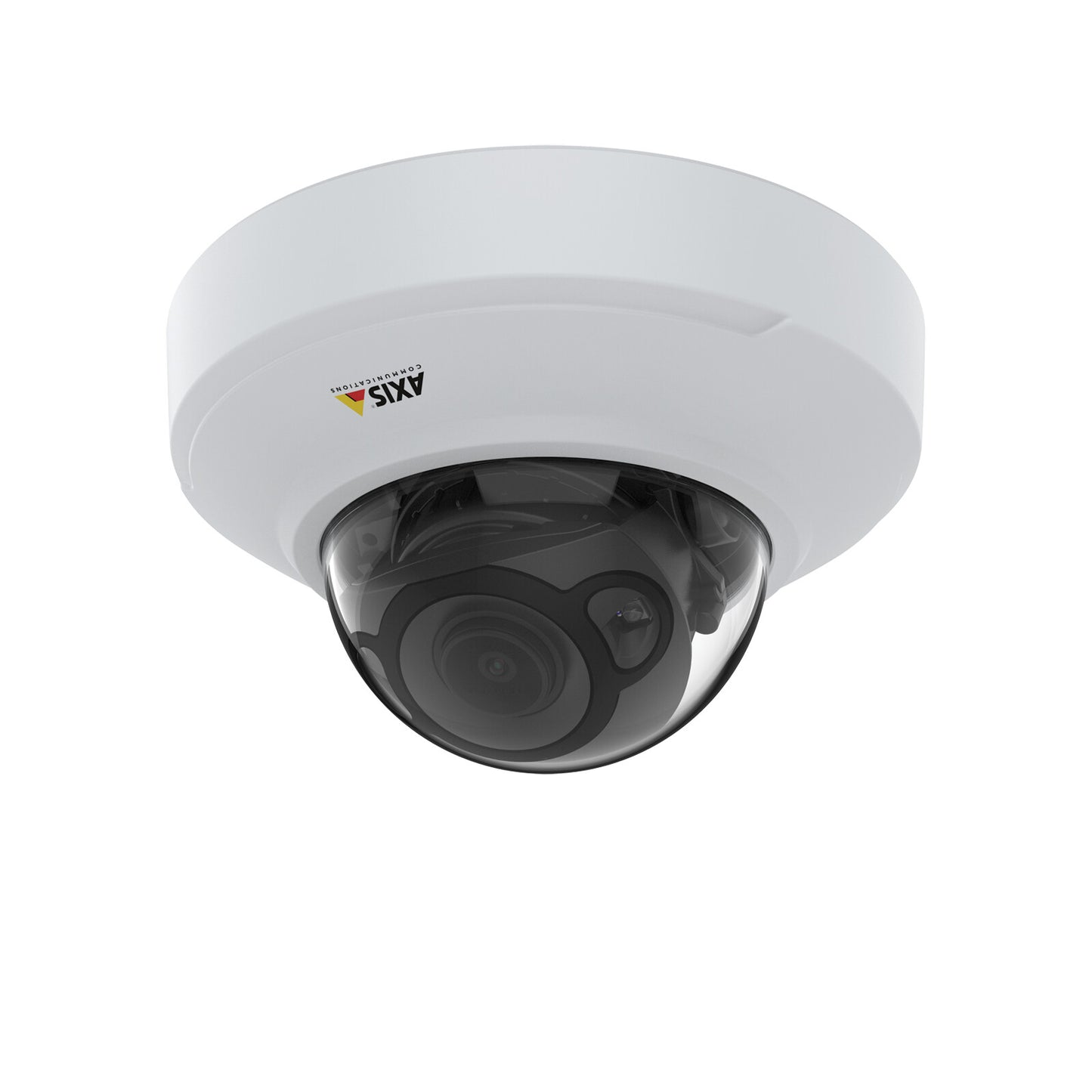

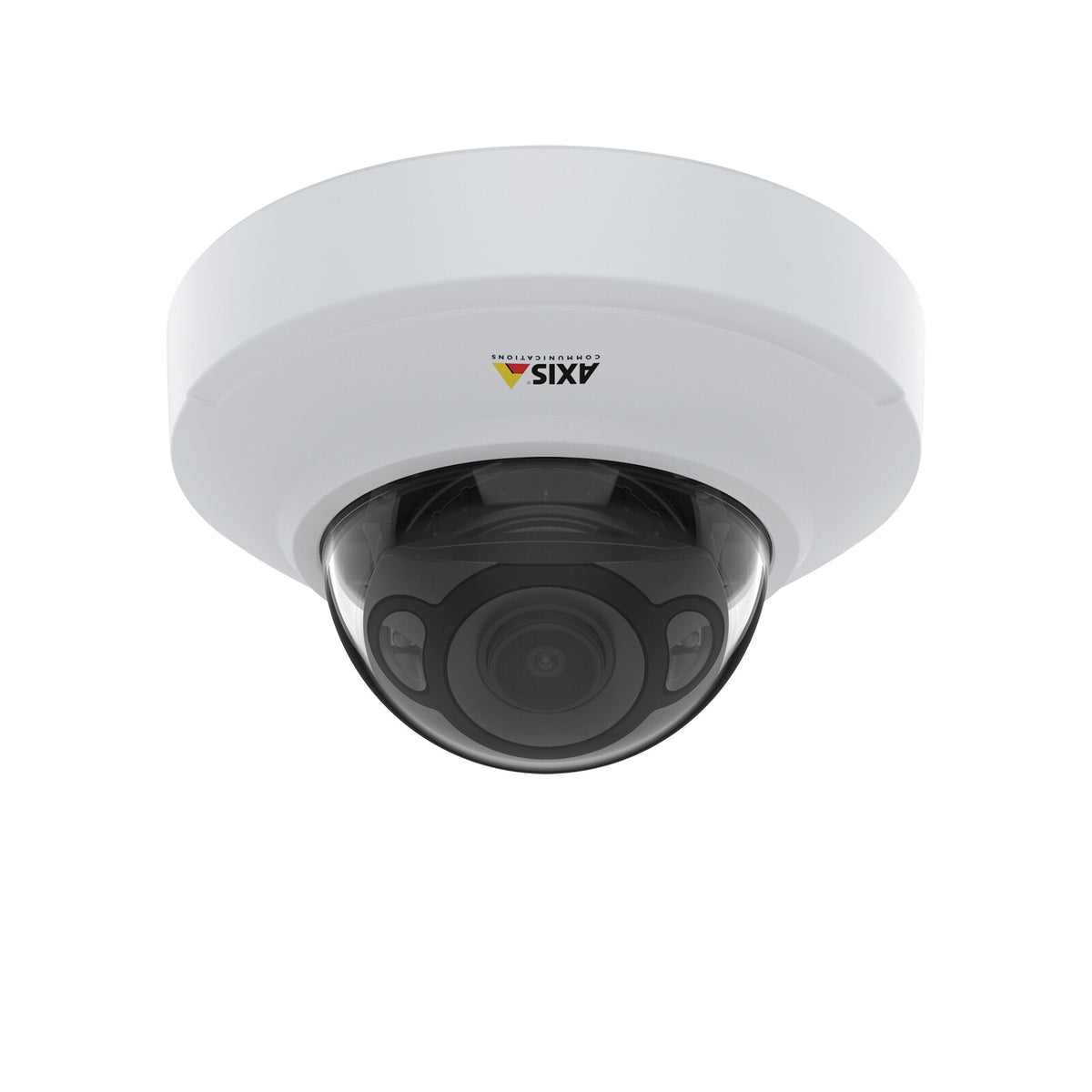

Axis 02113-001 security camera Dome IP security camera Indoor 2304 x 1728 pixels Ceiling/wall

Axis 02113-001 security camera Dome IP security camera Indoor 2304 x 1728 pixels Ceiling/wall

£729.58 GBP
£729.58 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

02113-001

Low stock: 5 left

  • Great image quality in 4 MP; HDMI output for public viewing monitors; Support for analytics with deep learning; Varifocal lens with remote zoom and focus; WDR, Lightfinder and OptimizedIR
2304 x 1728, 25/30 fps, 1/2.7, CMOS, PoE, IP42, IK08, 375 g

The compact and discreet AXIS M4216-LV delivers great images, day and night. With a deep learning processing unit (DLPU), it’s possible to take advantage of intelligent applications based on deep learning on the edge. Furthermore, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. Designed to blend seamlessly into any environment, the camera can be repainted and offers a wide range of accessories for discreet monitoring. It features an HDMI port and offers the flexibility to add audio and I/O connectivity using accessories.

Performance
Number of languages 11
Languages support Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian
Day/night mode Yes
Infrared (IR) cut-off filter Yes
Wide Dynamic Range (WDR) Yes
PTZ modes Digital PTZ
Connectivity technology Wired
Placement supported Indoor
Type IP security camera
Design
IK code IK08
International Protection (IP) code IP42
Housing material Aluminium, Polycarbonate (PC)
Product colour White
Mounting type Ceiling/wall
Form factor Dome
Camera
Camera shutter speed 1/37500 - 1/5 s
Pan range -180 - 180°
Tilt angle range -40 - 65°
Minimum illumination 0.18 lx
Camera tilt control Yes
Camera pan control Yes
Image sensor
Progressive scan Yes
Optical sensor size 25.4 / 2.7 mm (1 / 2.7")
Number of sensors 1
Sensor type CMOS
Lens system
Focal length range 3 - 6 mm
Zoom capability Yes
Number of lenses 1
Night vision
Infra-red wavelength 855 nm
LED type IR
Night vision distance 20 m
Night vision Yes
Video
Flip & mirror Yes
Privacy masking Yes
Text caption overlay Yes
Video streaming Yes
Frame rate 30 fps
Supported video modes 720p, 1080p
Video compression formats H.264, H.265
Total megapixels 4 MP
Maximum resolution 2304 x 1728 pixels
Network
Quality of Service (QoS) support Yes
Supported network protocols IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSb , TLSb , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, HDMI, LLDP, CDP, MQTT v3.1.1
Networking standards IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Bluetooth No
Wi-Fi No
Ethernet LAN Yes
Storage
Internal memory 1024 MB
Flash memory 512 MB
Compatible memory cards MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD
Built-in SSD No
Built-in HDD No
Ports & interfaces
HDMI ports quantity 1
Ethernet LAN (RJ-45) ports 1
Security
Video motion detection Yes
IP address filtering Yes
HTTPS encryption Yes
Security algorithms EAP-TLS
Active tampering alarm Yes
Alert notification type E-mail, Text alert message
Password protection Yes
Power
Power consumption (max) 9.7 W
Power consumption (typical) 5 W
Power source type PoE
Operational conditions
Storage relative humidity (H-H) 5 - 95%
Operating relative humidity (H-H) 10 - 85%
Storage temperature (T-T) -40 - 65 °C
Operating temperature (T-T) 0 - 45 °C
System requirements
Windows operating systems supported Yes
Weight & dimensions
Weight 375 g
Diameter 12.1 cm
Height 71 mm
Packaging content
Number of cameras 1
Technical details
Doesn't contain BFR, PVC
