• Axis 02101-002 network switch, Unmanaged, 4-port, Power over Ethernet (PoE), white
1 5

Axis

Axis 02101-002 network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) White

Axis 02101-002 network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) White

02101-002

£132.00 GBP£110.00 GBP
£0.00 GBP £132.00 GBP£110.00 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

15 in stock

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • 4-port 10/100 Mbps 802.3af/at PoE+; 60 W PoE power budget; Level VI energy efficiency compliance; Palm-sized, metal casing; Plug and play installation
D8004 UNMANAGED POE SWITCH EUR

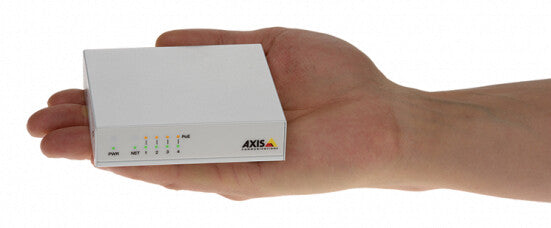

The palm-sized AXIS D8004 Unmanaged PoE Switch delivers network and power for up to 4 network devices with plug and play installation. Using AXIS D8004 Unmanaged PoE Switch as a central power source simplifies both installation and maintenance. The switch, together with AXIS surveillance cards, is perfect for small systems with few devices and basic video storage requirements. AXIS D8004 Unmanaged PoE Switch is also ideal when it’s not possible to pull multiple cables. If there’s local power available, simply pull one cable with data connection from the core switch or router, and AXIS D8004 Unmanaged PoE Switch can provide Power over Ethernet (PoE) for all 4 products.

Management features
Switch type Unmanaged
Ports & interfaces

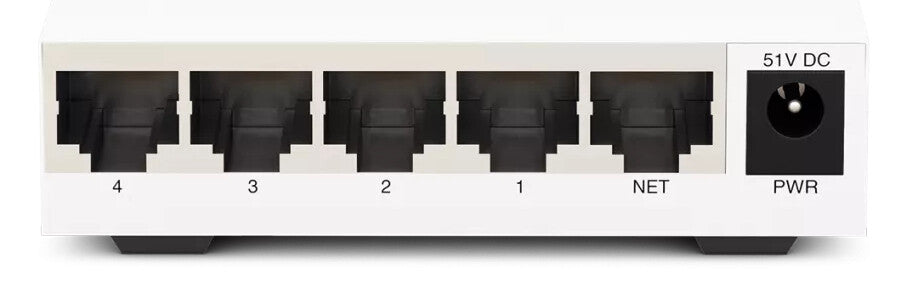

Power connector DC-in jack
Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity 4
Network
Ethernet LAN data rates 10,100 Mbit/s
10G support No
Networking standards IEEE 802.3af, IEEE 802.3at
Design
Certification EN 55022:2010/55032:2012 + AC : 2013 Class B,EN 55024, EN 61000-3-2, EN 61000-3-3, EN 50581,FCC Part 15 Subpart B Class B, ICES-003 Class B,IEC/EN/UL 60950-1, CE, WEEE, C-Tick/RCM

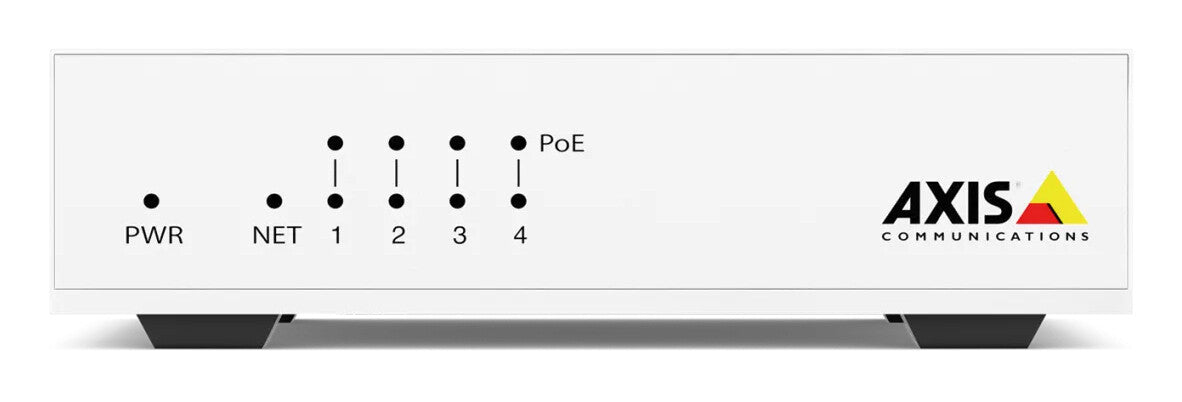

LED indicators Activity, Network, PoE, Power
Housing material Metal
Product colour White
Power
Power consumption (max) 62 W
AC input frequency 50 - 60 Hz
AC input voltage 100 - 240 V
Power supply included Yes
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget 60 W
Power over Ethernet (PoE) power per port 30 W
Power over Ethernet plus (PoE+) ports quantity 4
Power over Ethernet (PoE) Yes
Operational conditions
Storage relative humidity (H-H) 5 - 95%
Operating relative humidity (H-H) 5 - 95%
Storage temperature (T-T) -10 - 50 °C
Operating temperature (T-T) 0 - 50 °C
Weight & dimensions
Weight 172 g
Height 21 mm
Depth 80 mm
Width 90 mm
Packaging data
User guide Yes
Cables included AC
Logistics data
Harmonized System (HS) code 85176990
