Axis

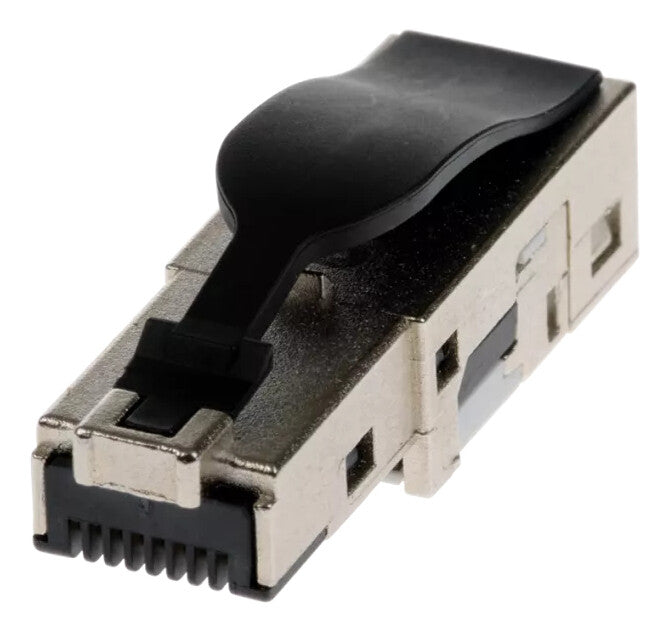

Axis 01996-001 wire connector RJ-45 Black, Metallic

Axis 01996-001 wire connector RJ-45 Black, Metallic

£138.65 GBP
£138.65 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

01996-001

16 in stock

  • Easy to assemble; For CAT6a (AWG 26-22); MPTL compliant; Small form factor; Suitable for PoE
RJ-45, Cat6a, 22/26 AWG, 10 pcs, 12.9x51.3x14.7mm, Metallic/Black

RJ45 Field Connector is easy to assemble and thanks to its compact size, it’s ideal for terminating CAT6a cables directly in a wide range of Axis network devices. The connector is compliant with the latest standard ANSI/TIA-568.2-D, which allows MPTL-installations (modular plug terminated link). It’s suitable for IEEE 802.3af, 802.3at and 802.3bt. The connector is sold in packages of 10.

Features
Connector(s) RJ-45
Connector gender Male
Connector form factor Straight
Product colour Black, Metallic
Material Metal, Plastic
Cable standard Cat5e/Cat6
AWG wire size 22/26
Certification ANSI/TIA-568.2-D, EN 60603-7-51, ISO/IEC 11801 Ed.2.2: 2011-06/ EN 50173-2: 2011-09, ISO/IEC 24702/ EN 50173-3: 2011-09, ISO/IEC 15018/ EN 50173-4: 2011-09
Weight & dimensions
Height 14.7 mm
Depth 51.3 mm
Width 12.9 mm
Operational conditions
Operating temperature (T-T) -40 - 70 °C
Storage temperature (T-T) -40 - 70 °C
Packaging content
Quantity per pack 10 pc(s)
