Axis

Axis 01964-002 gateway/controller 10, 100, 1000 Mbit/s

Axis 01964-002 gateway/controller 10, 100, 1000 Mbit/s

£1,996.69 GBP
£1,996.69 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

01964-002

Low stock: 4 left

  • Centralized system management; Flexible and scalable; High speed supervised offloading; Single system integration point
1G LAN, USB 2.0, 480 GB SSD, IP3X, 12V DC, 53x180x180 mm

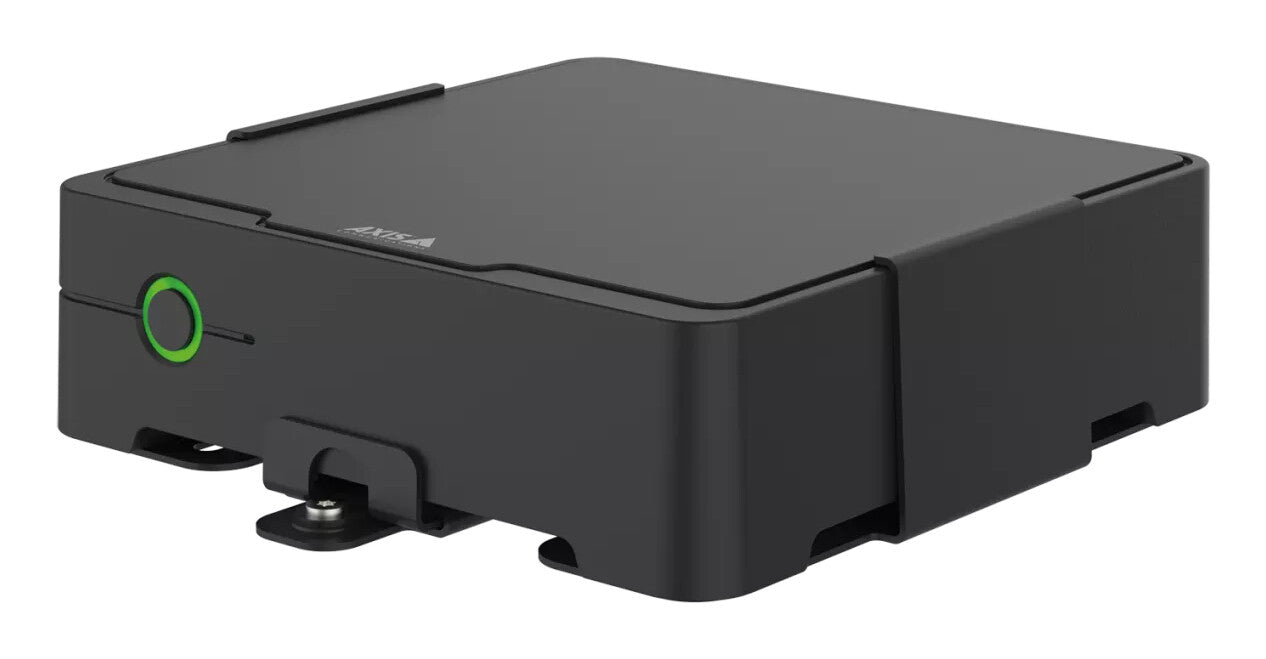

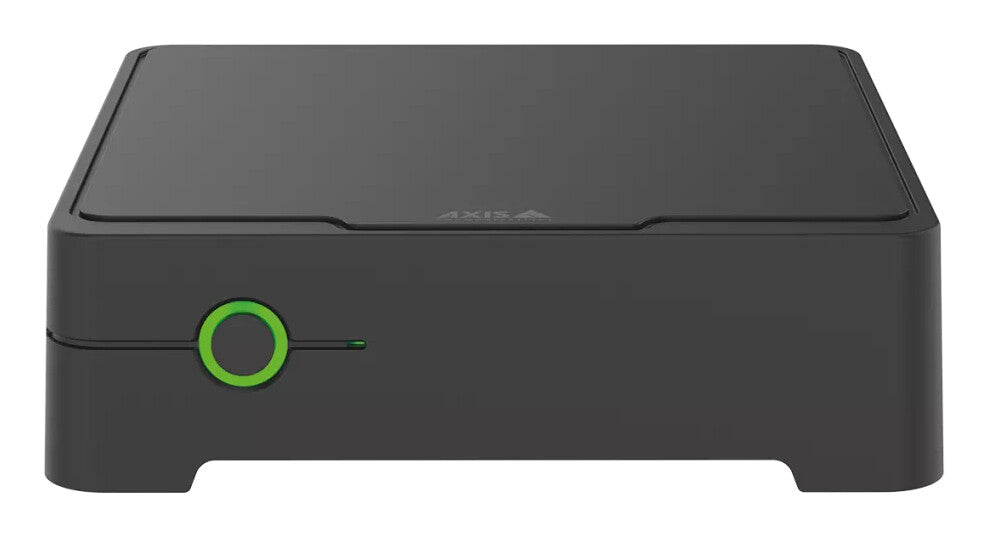

AXIS W800 System Controller is the central integration and management point of the body worn solution. The modular design of the system controller ensures a flexible and highly scalable system. A single AXIS W800 supports up to five docking stations and 40 cameras but can easily be extended with additional system controllers for larger body worn systems.

Design
Product colour Black
International Protection (IP) code IP3X
Certification EN 55032 A, EN 61000-3-2, EN 61000-3-3, EN 55024,EN 61000-6-1, EN 61000-6-2, FCC 15 B A,ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 AIEC/EN/UL 62368-1IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27,IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP3XNIST SP500-267
Performance
Control display unit No
SSD capacity 480 GB
Protocols
Supported network protocols IPv4, IPv6 USGv6, HTTPS , Bonjour, DNS, NTP, TCP, UDP, ICMP, DHCP, ARP
Network
Ethernet LAN data rates 10,100,1000 Mbit/s
Security
Security algorithms 256-bit AES, FIPS 140-2, HTTPS
Ports & interfaces
USB 2.0 ports quantity 1

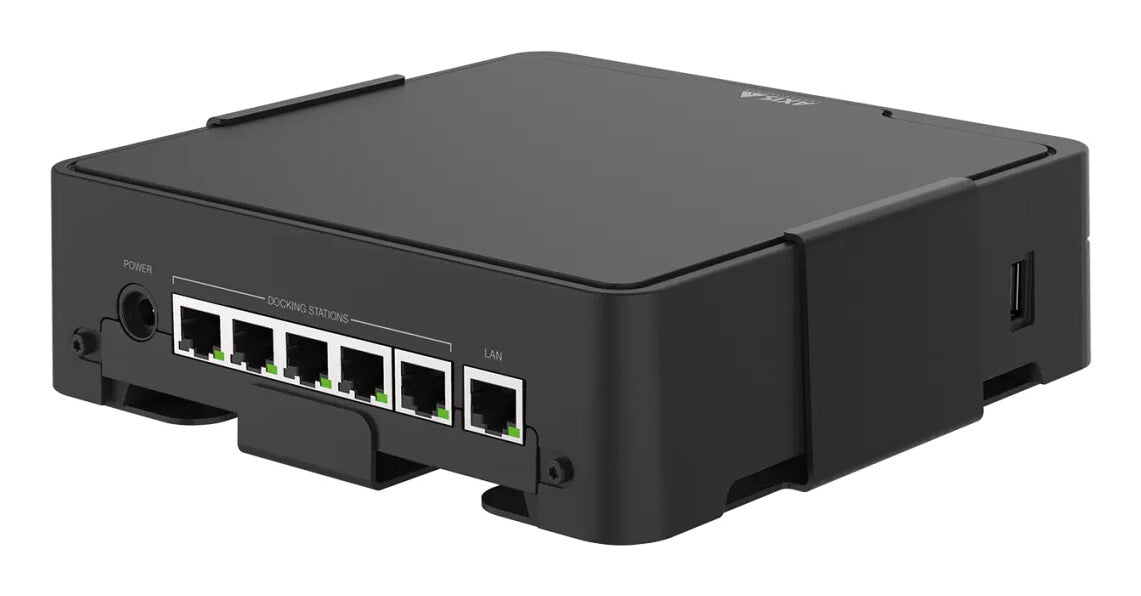

Ethernet LAN (RJ-45) ports 6
Power
Power consumption (typical) 12.25 W
DC input voltage 12 V
Weight & dimensions
Height 53 mm
Depth 180 mm
Width 180 mm
Weight 765 g
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 65 °C
Operating relative humidity (H-H) 10 - 85%
Storage relative humidity (H-H) 5 - 95%
Logistics data
Harmonized System (HS) code 85176990
