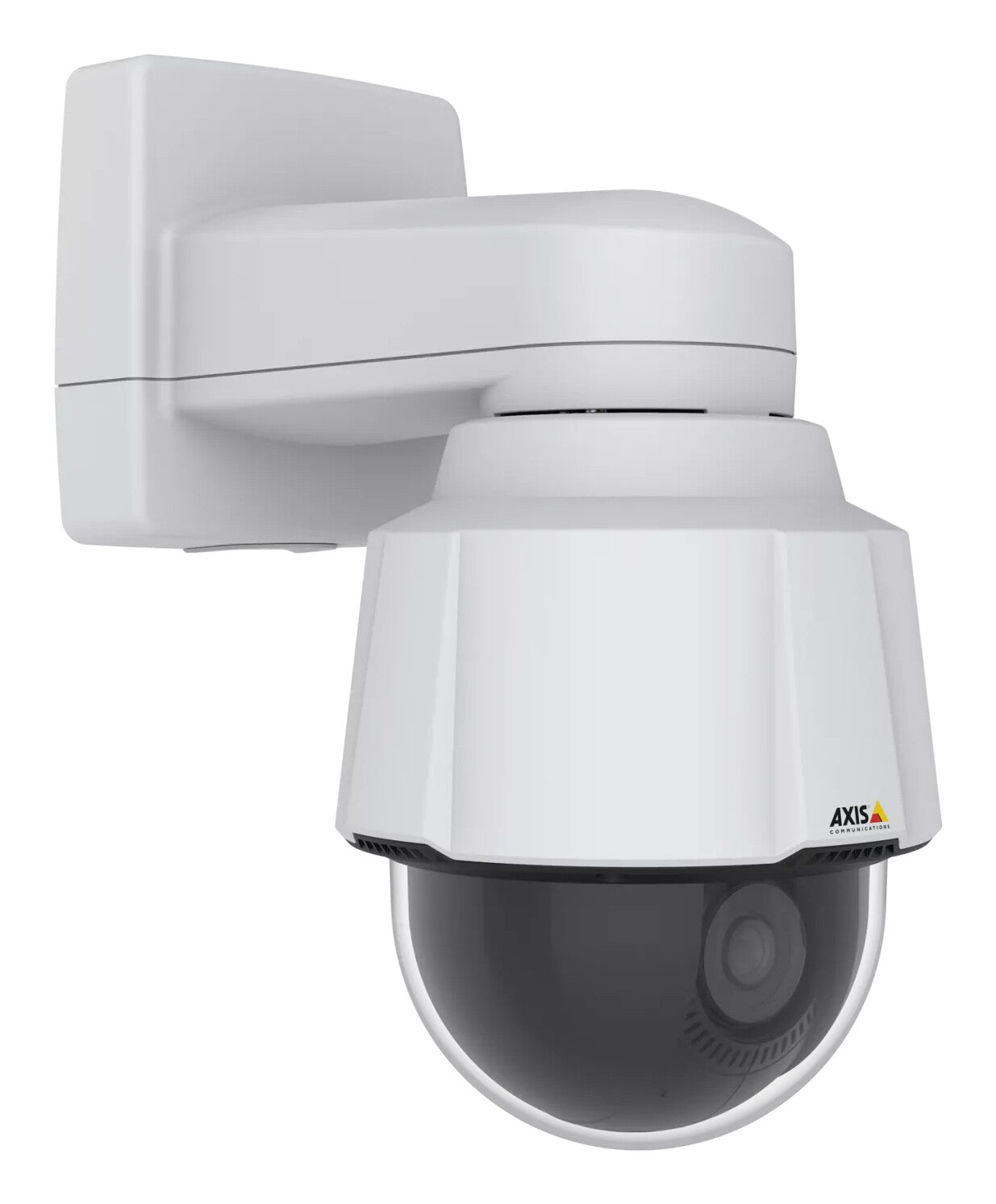

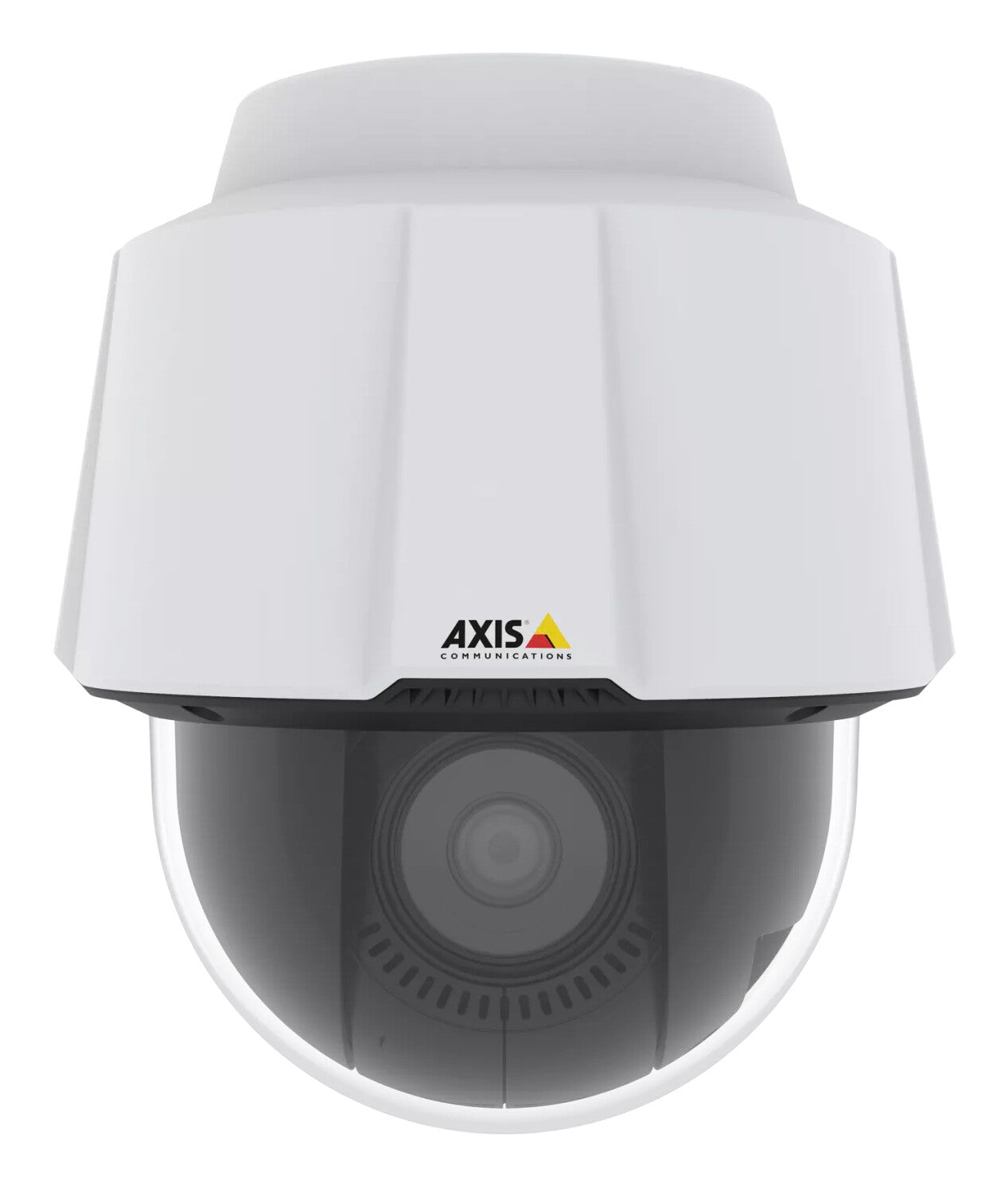

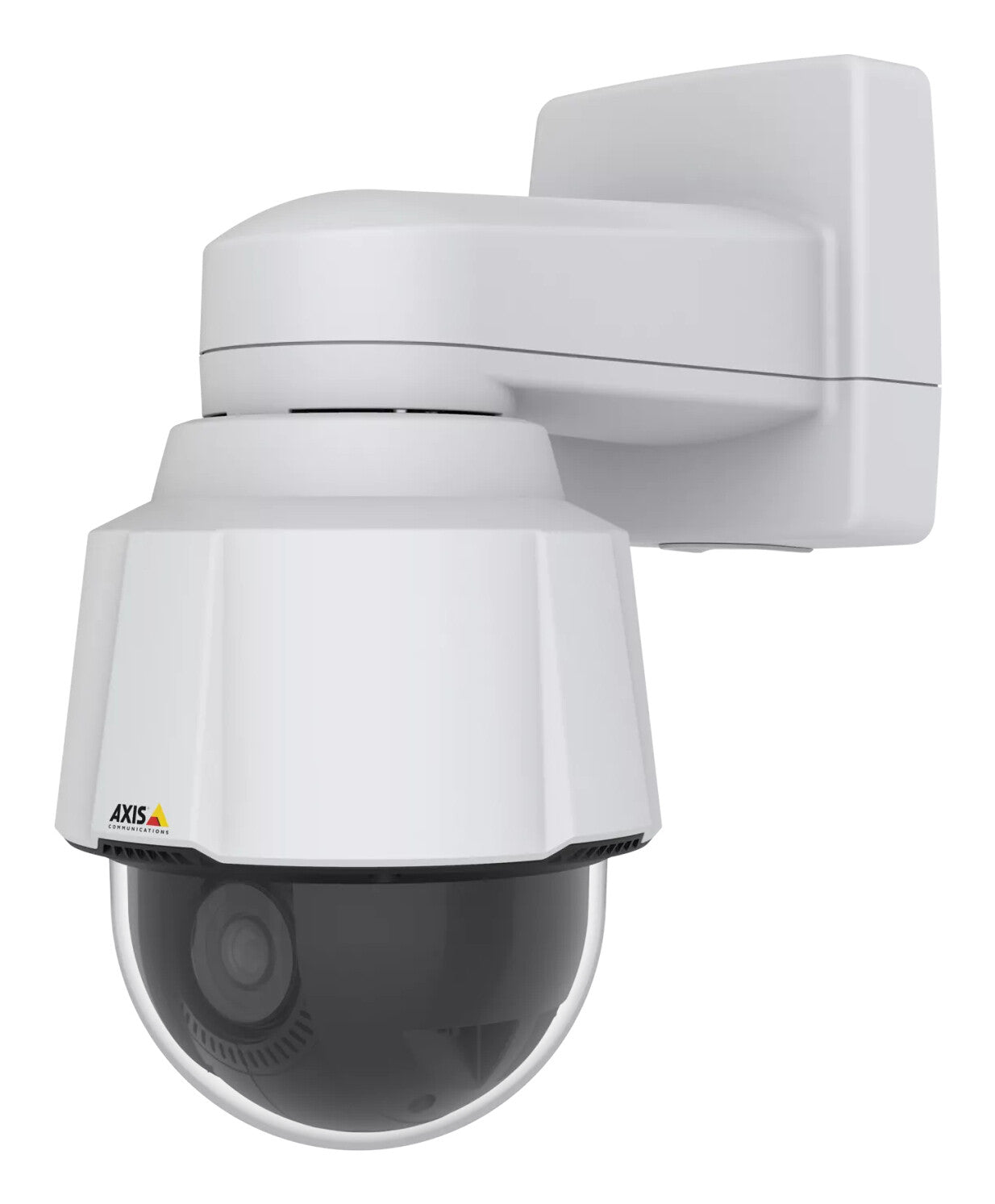

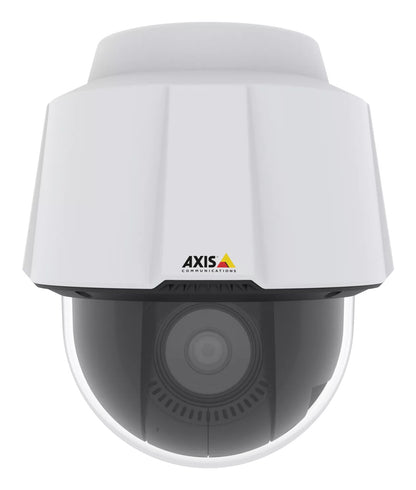

Axis 01681-001 security camera Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall
Axis 01681-001 security camera Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall
SKU:01681-001
15 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Focus recall and EIS; Forensic WDR and Lightfinder 2.0; HDTV 1080p with 32x optical zoom; Signed firmware and secure boot; Zipstream with support for H.264 and H.265
AXIS P5655-E PTZ Network Camera is a cost-effective, high performance PTZ with HDTV 1080p and 32x optical zoom. It features Forensic WDR for clarity even when there’s both dark and light areas in the scene. And, Lightfinder 2.0 to capture low-light images with more saturated colors and sharper images of moving objects. It offers electronic image stabilization and enhanced security features including signed firmware and secure boot. With IP66, NEMA 4X and IK10 ratings it’s resistant to both harsh weather conditions and impacts. Plus, you get two-way audio, I/O ports and extended capabilities for advanced analytics.
| Performance | |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Preset points | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Infrared (IR) cut-off filter | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Certification | NEMA 4X, EN 55032 Class A, EN 50121-4, IEC 62236-4, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KC KN35, IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, IS 13252, EN 55032 Class A, EN 50121-4, IEC 62236-4, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 ClassIEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-30, EC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 62262 IK10, NEMA 250 Type 4X A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KC KN35, NIST SP500-267 |
| Design | |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling/wall |
| Product colour | Black, White |
| Housing material | Aluminium |
| Protection features | Shock resistant |
| International Protection (IP) code | IP66 |
| IK code | IK10 |
| Weatherproof | Yes |
| Fog proof | Yes |
| Camera | |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0.02 lx |
| Lens viewing angle, horizontal | 58.7° |
| Lens viewing angle, vertical | 35.7° |
| Tilt angle range | 0 - 180° |
| Tilt speed | 350 °/sec |
| Pan range | 0 - 360° |
| Pan speed | 350 °/sec |
| Camera shutter speed | 1/66500 - 2 s |
| Image sensor | |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Progressive scan | Yes |
| Lens system | |
|---|---|
| Number of lenses | 1 |
| Zoom capability | Yes |
| Optical zoom | 32x |
| Digital zoom | 12x |
| Focal length range | 4.3 - 137.6 mm |
| Auto focus | Yes |
| Minimum aperture number | 1.4 |
| Maximum aperture number | 4 |
| Video | |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Video formats supported | AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
| Supported graphics resolutions | 320 x 180, 1920 x 1080 (HD 1080) |
| Supported video modes | 1080p |
| Frame rate | 60 fps |
| Video streaming | Yes |
| Image stabilizer | Yes |
| Bit rate control | Variable Bit Rate (VBR) |
| Text caption overlay | Yes |
| Privacy masking | Yes |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Audio | |
|---|---|
| Audio system | 2-way |
| Audio formats supported | ADPCM, LC-AAC, LPCM, PCM |
| Sample rate | 48 kHz |
| Audio detection | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.1x, IEEE 802.3at |
| Supported network protocols | IPv4, IPv6 USGv6, HTTP, HTTPS , SSL/TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, NTCIP, LLDP, CDP |
| Streaming method | Multicast |
| Storage | |
|---|---|
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC, SDXC |
| Flash memory | 512 MB |
| Internal memory | 1024 MB |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Yes |
| DC-in jack | Yes |
| Security | |
|---|---|
| Password protection | Yes |
| HTTPS encryption | Yes |
| IP address filtering | Yes |
| Video motion detection | Yes |
| Power | |
|---|---|
| Power source type | DC, PoE |
| Power consumption (typical) | 10.5 W |
| Power consumption (max) | 19 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -30 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Weight & dimensions | |
|---|---|
| Width | 188 mm |
| Depth | 188 mm |
| Height | 217 mm |
| Weight | 2.5 kg |
| Packaging content | |
|---|---|
| Number of cameras | 1 |
| Mounting kit | Yes |
| Manual | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85258900 |
