Axis 01680-001 video servers/encoder 1920 x 1080 pixels 30 fps

Axis 01680-001 video servers/encoder 1920 x 1080 pixels 30 fps

£609.95 GBP
£609.95 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

01680-001

Low stock: 3 left

  • 2-way audio and configurable I/O; PTZ control; Signed firmware and secure boot; Support for HD analog cameras up to 4K; Zipstream with support for H.264/H.265
1920x1080px, 30fps, 512 MB Flash, 650g

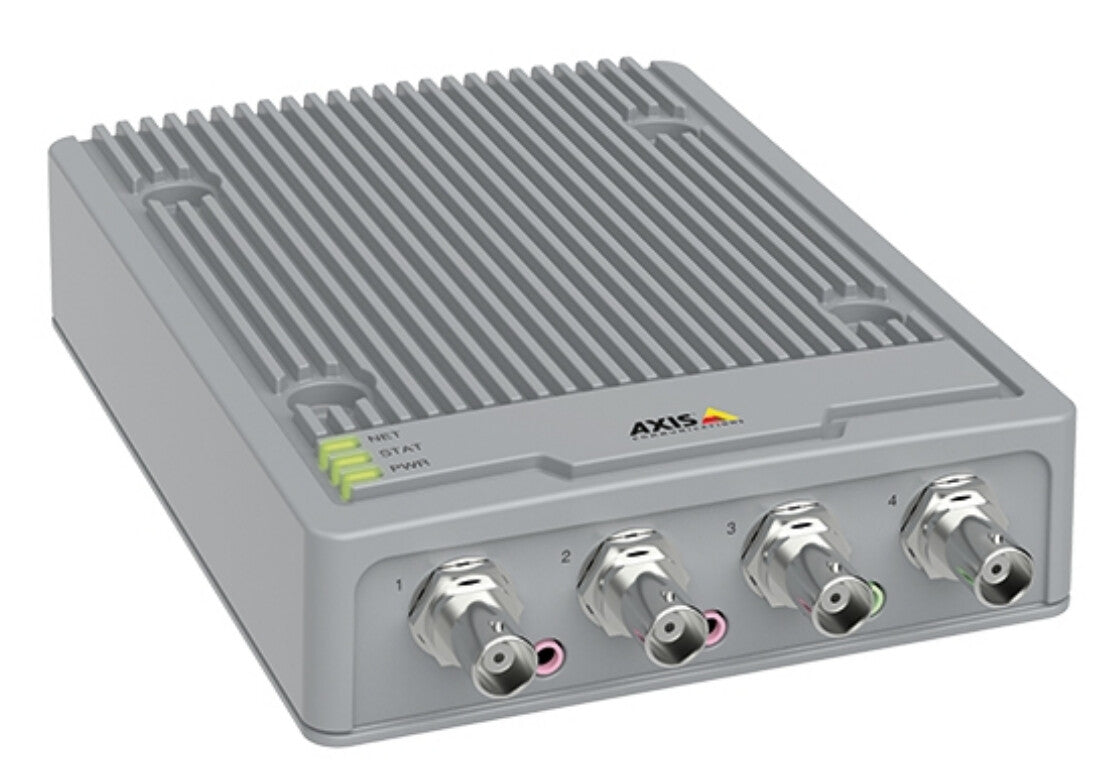

AXIS P7304 is a full-featured, 4-channel video encoder that adds the benefits of IP surveillance to any analog camera system. It supports standard and HD analog cameras up to 4K resolution, and analog PTZ cameras. Enhanced security features such as signed firmware and secure boot ensure the integrity and authenticity of the encoder’s firmware. Plus, Zipstream with support for H.264/H.265 video compression significantly reduces bandwidth and storage requirements. The encoder features two-way audio, I/O ports, and a memory card slot for edge storage. It also comes with intelligent analytics such as motion detection, audio detection and tampering alarm.

Video
Maximum video resolution 1920 x 1080 pixels
Maximum frame rate 30 fps
PAL resolutions 720x576 pixels
NTSC resolutions 720x480 pixels
Video compression formats AVC, H.264, H.265, HEVC, MPEG4
Channels quantity 4 channels
Performance
Internal memory 1024 MB
Flash memory 512 MB
Card reader integrated Yes
Compatible memory cards MicroSD (TransFlash), MicroSDHC, MicroSDXC
PTZ control Yes
Image settings Brightness, Color, Compression, Contrast, Mirroring, Privacy mask, Rotation, Sharpness
Design
Product colour Grey
LED indicators Status
Wall mountable Yes
Certification EMC EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KC KN35, IEC/EN 62368-1, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, NIST SP500-267
Network
Quality of Service (QoS) support Yes
Networking standards IEEE 802.3af, IEEE 802.3at
Power over Ethernet (PoE) Yes
Supported network protocols IPv4, IPv6 USGv6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH
Copper ethernet cabling technology 10BASE-T, 100BASE-T, 1000BASE-T
Security
Audio detection Yes
Active tampering alarm Yes
IP address filtering Yes
Video motion detection Yes
Security algorithms HTTPS

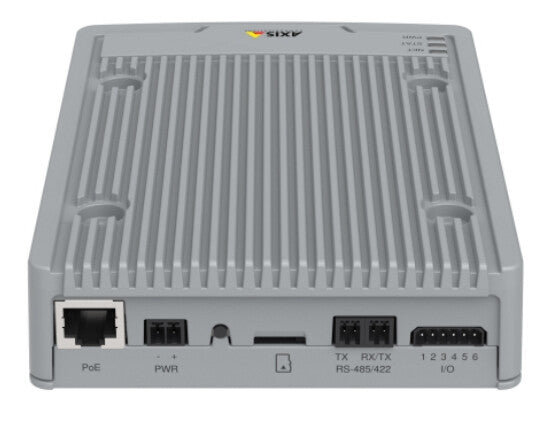

Ports & interfaces
Line-out Yes
Line-in Yes
Microphone in Yes
I/O terminal ports 1
RS-485 ports 2
BNC input ports 4
Ethernet LAN (RJ-45) ports 1
Power
Power consumption (typical) 8.2 W
Weight & dimensions
Width 187 mm
Height 37 mm
Weight 650 g
Packaging content
Manual Yes
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -40 - 65 °C
Operating relative humidity (H-H) 10 - 85%
