Axis
Axis 01679-001 video servers/encoder 720 x 576 pixels 30 fps
Axis 01679-001 video servers/encoder 720 x 576 pixels 30 fps
Regular price
£455.12 GBP
Regular price
Sale price
£455.12 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:01679-001
Low stock: 7 left
- Extended capacity for analytics; Full frame rate in all resolutions; PoE and PTZ support; Signed firmware and secure boot; Zipstream with support for H.264/H.265
720x576px, 30fps, 512 MB Flash, 650g

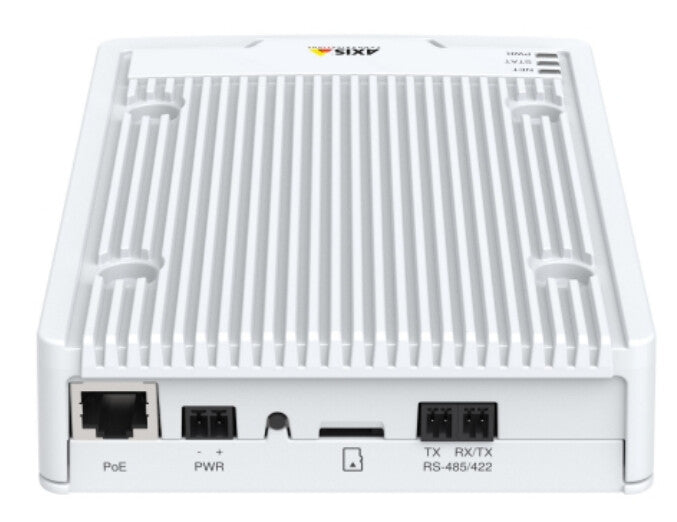

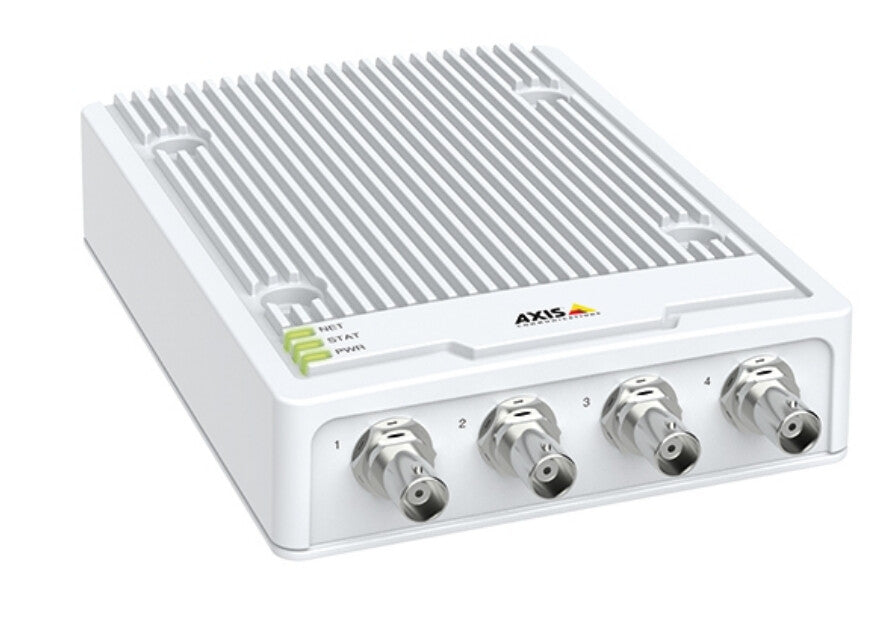

AXIS M7104 is a cost-effective, 4-channel video encoder that adds the benefits of IP surveillance to an analog camera system. It supports standard-resolution analog cameras as well as PTZ control over RS-485/422. The encoder features a memory card slot for edge storage and support for intelligent analytics such as motion detection and active tampering alarm. Enhanced security features such as signed firmware and secure boot ensure the integrity and authenticity of the encoder’s firmware. Plus, Zipstream with support for H.264/H.265 video compression significantly reduces bandwidth and storage requirements.
| Video | |
|---|---|
| Maximum video resolution | 720 x 576 pixels |
| Maximum frame rate | 30 fps |
| PAL resolutions | 720x576 pixels |
| NTSC resolutions | 720x480 pixels |
| Video compression formats | AVC, H.264, H.265, HEVC, MPEG4 |
| Channels quantity | 4 channels |
| Performance | |
|---|---|
| Internal memory | 1024 MB |
| Flash memory | 512 MB |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| PTZ control | Yes |
| Image settings | Brightness, Color, Compression, Contrast, Mirroring, Privacy mask, Rotation, Sharpness |
| Design | |
|---|---|
| Product colour | White |
| LED indicators | Status |
| Wall mountable | Yes |
| Certification | 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KC KN35, IEC/EN 62368-1, 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KC KN35, NIST SP500-267 |
| Network | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Power over Ethernet (PoE) | Yes |
| Supported network protocols | IPv4, IPv6 USGv6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Security | |
|---|---|
| Active tampering alarm | Yes |
| IP address filtering | Yes |
| Video motion detection | Yes |
| Security algorithms | HTTPS |
| Ports & interfaces | |
|---|---|
| RS-485 ports | 2 |
| BNC input ports | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
|---|---|
| Power consumption (typical) | 4.7 W |
| Weight & dimensions | |
|---|---|
| Width | 187 mm |
| Height | 37 mm |
| Weight | 650 g |
| Packaging content | |
|---|---|
| Manual | Yes |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 85% |
