Axis 01192-002 network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Axis 01192-002 network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
SKU:01192-002
Low stock: 6 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- 2 SFP/RJ45 Combination Ports; 30 W PoE per port, total 370 W; Gigabit switch; Intuitive graphic topology for system overview

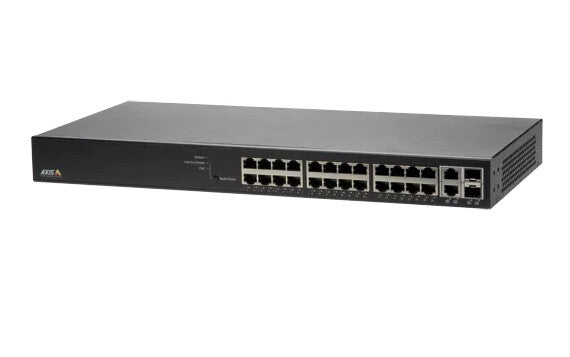

AXIS T8524 PoE+ Network Switch is an easy to install 24-port managed Gigabit switch - a perfect complement to Axis’ recorders to further simplify setup and installation of surveillance systems. AXIS T8524 comes with an integrated DHCP server for automatic assignment of IP addresses and discovery of connected Axis devices. The intuitive administrator interface offers a graphic topology for easy overview of all devices in the system with information about connected devices and status. The high PoE power output allows for connection of up to 24 PoE cameras.
| Management features | |
|---|---|
| ARP inspection | Yes |
| Quality of Service (QoS) support | Yes |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Combo SFP ports quantity | 2 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Network | |
|---|---|
| Virtual LAN features | Private VLAN |
| VLAN support | Yes |
| Networking standards | IEEE 802.1x, IEEE 802.3at |
| Data transmission | |
|---|---|
| Jumbo frames | 9216 |
| Jumbo frames support | Yes |
| Throughput | 38.7 Mpps |
| Switching capacity | 52 Gbit/s |
| MAC address table | 8000 entries |
| Security | |
|---|---|
| ICMP attack prevention | Yes |
| Password protection | Yes |
| BPDU filtering/protection | Yes |
| SSH/SSL support | Yes |
| Security algorithms | HTTPS, SNMP, SNMPv3 |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server, DHCP snooping |
| Design | |
|---|---|
| Housing material | Metal |
| Product colour | Black |
| Rack mounting | Yes |
| Power | |
|---|---|
| Surge protection voltage | 6 kV |
| Surge protection | Yes |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power over Ethernet (PoE) | |
|---|---|
| Total Power over Ethernet (PoE) budget | 370 W |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
|---|---|
| Weight | 3.2 kg |
| Height | 44 mm |
| Depth | 211 mm |
| Width | 442 mm |
| Packaging data | |
|---|---|
| Rack mount kit | Yes |
| Rubber feet | Yes |
| User guide | Yes |
| Cables included | AC |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
