Axis
Axis 01191-002 network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Axis 01191-002 network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
SKU:01191-002
Low stock: 9 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- 2 SFP/RJ45 Combination Ports; 30 W PoE per port, total 130 W; Gigabit switch; Intuitive graphic topology for system overview

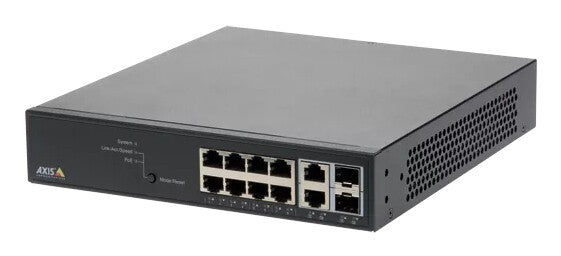

AXIS T8508 PoE+ Network Switch is an 8-port managed Gigabit switch with a compact, fan-less design for installation in noise sensitive environments or to be used as an edge switch. AXIS T8508 is a perfect complement to Axis’ recorders to further simplify setup and installation of surveillance systems. The intuitive administrator interface offers a graphic topology for easy overview of all devices in the system with information about connected devices and status. The high PoE power output allows for connection of up to 8 PoE cameras.
| Management features | |
|---|---|
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Combo SFP ports quantity | 2 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Network | |
|---|---|
| 10G support | No |
| Networking standards | IEEE 802.1x, IEEE 802.3at |
| Data transmission | |
|---|---|
| Jumbo frames | 9216 |
| Jumbo frames support | Yes |
| Throughput | 14.9 Mpps |
| Switching capacity | 20 Gbit/s |
| MAC address table | 8000 entries |
| Security | |
|---|---|
| DHCP features | DHCP server |
| Design | |
|---|---|
| Product colour | Black |
| Stackable | No |
| Rack mounting | No |
| Power | |
|---|---|
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power over Ethernet (PoE) | |
|---|---|
| Total Power over Ethernet (PoE) budget | 130 W |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
|---|---|
| Weight | 2.1 kg |
| Height | 44 mm |
| Depth | 242 mm |
| Width | 220 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
