Axis 01154-001 PoE adapter Gigabit Ethernet

Axis 01154-001 PoE adapter Gigabit Ethernet

£318.00 GBP
£318.00 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

01154-001

33 in stock

  • 60 W Power over Ethernet; Dual DC input: 20-60 V DC; Plug-and-play; Wide compatibility with Axis PoE devices; Wide operating temperature range: -40 °C to 75 °C (-40 °F to 167 °F)
60W, 20 - 60V, DC, black

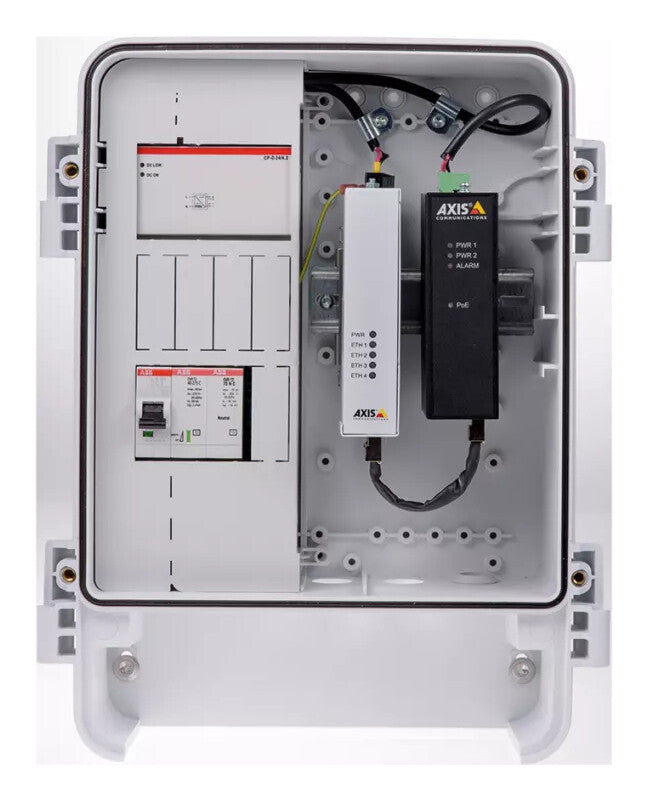

AXIS T814460 W Industrial Midspan is an industrial grade, 1-port midspan offering an easy, fast, and cost-effective solution for powering network products. Ideal for mounting inside cabinets or on DIN rails. Having a wide operating temperature range, AXIS T8144 provides a robust solution for harsh environments. With dual DC inputs for power redundancy, AXIS T8144 is a reliable component in your system.

Network
Power over Ethernet (PoE) Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Ethernet interface type Gigabit Ethernet
Features
Safety EC/EN/UL 62368 - 1, UL 508 EMC EN 550 24, EN 55032 Class A, FCC P art 15 Subpart B Class A, VCCI Class A, RCM AS/NZS CISPR32 Class A, ICES - 003 Class A, EAC Environment IEC 60068 - 2 - 6, IEC 60068 - 2 - 27, IEC 60068 - 2 - 32
LED indicators Alarm, PoE, Power
Rack mounting Yes
Wall mountable Yes
Product colour Black
Ports & interfaces
DC-in jack Yes
Ethernet LAN (RJ-45) ports 1
Power
Power consumption (max) 72 W
AC adapter output voltage 55 V
Input voltage 20 - 60 V
Output power 60 W
Operational conditions
Operating altitude -40 - 185 m
Storage temperature (T-T) -40 - 85 °C
Operating relative humidity (H-H) 0 - 95%
Operating temperature (T-T) -40 - 167 °F
Weight & dimensions
Dimensions (WxDxH) 78 x 36 x 111 mm
Weight 315 g
Packaging content
Quick installation guide Yes
Number of products included 1 pc(s)
Logistics data
Harmonized System (HS) code 85044095
