InGlass technology supporting palm rejection and 4 passive styluses
Zero parallax optically bonded glass surface for pixel-perfect inking
Presence Detection Sensor
Single Type-C connectivity delivering audio, video, touch, Ethernet and power
Intel OPS PC slot for expanded functionality
Avocor UiQ - smart touch enabled dynamic user interface
FUSE - Remote management software platform for AV/IT Managers

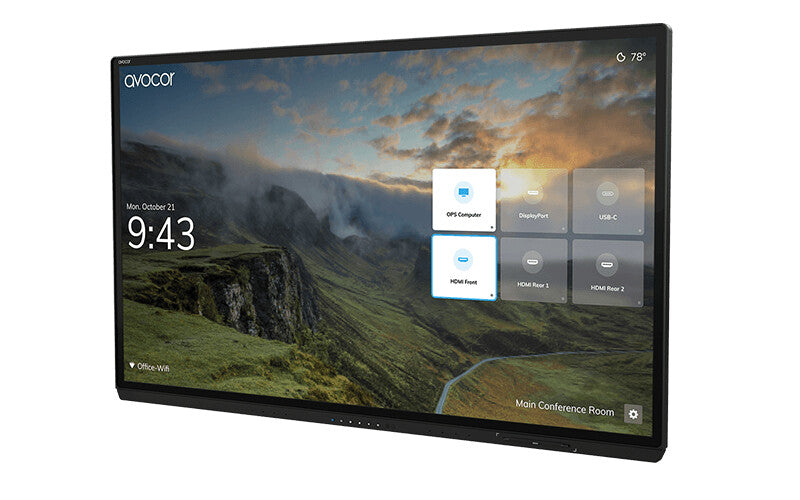

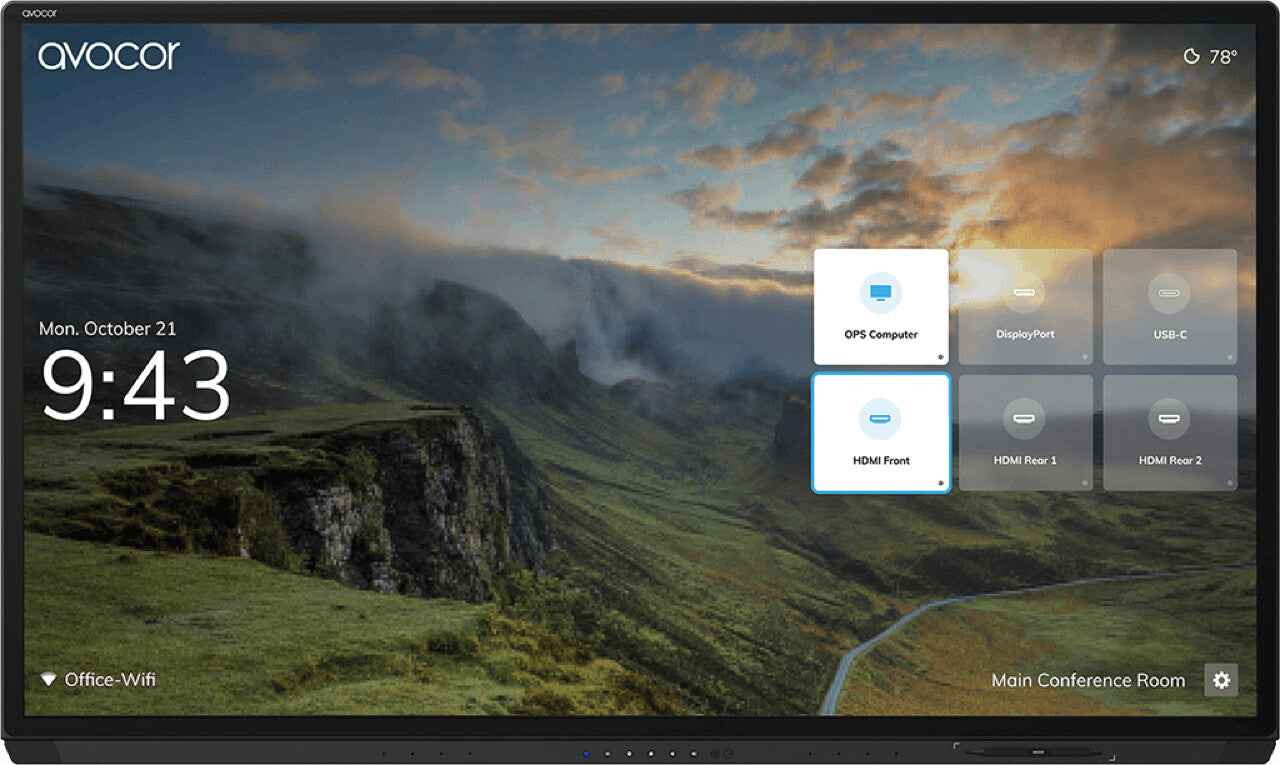

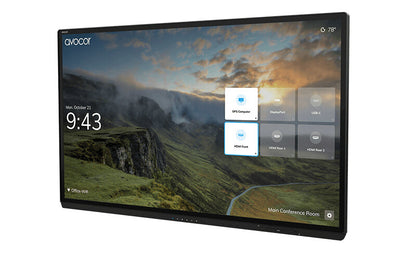

Avocor AVG-7560 G-60 Series - 75" 4K InGlass LED Interactive Display
The Avocor G series is a range of sleek, bezel-less, edge-to-edge interactive displays designed to streamline workplace collaboration. These crystalclear 4K collaboration displays use the latest InGlassTM technology combined with bonded glass to deliver ultra-fast touch performance, supporting up to 20 individual touch points and 4 passive styluses. The G series also provides a 40W crystal-clear audio experience with built-in active microphones. The result is a pixel-perfect user experience and high performance.
Available in stunning 65”, 75”, and 85” sizes, the G series collaboration displays give users an intuitive and interactive experience for participants in the room and meeting equity for those who are remote.
Display
Display diagonal
190.5 cm (75")
Display brightness
500 cd/m²
Display resolution
3840 x 2160 pixels
Anti-glare screen
Yes
HD type
4K Ultra HD
LED backlight
Yes
Panel type
LCD
LED backlighting type
Direct-lit LED
Native aspect ratio
16:9
Contrast ratio (typical)
5000:1
Response time
9.5 ms
Maximum refresh rate
60 Hz
Touchscreen
Yes
Touch technology
Multi-touch
Number of simultaneous touchpoints
20
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
Screen glass thickness
3 mm
Palm rejection
Yes
Palm erase
Yes
Pen & touch differentiation
Yes
Audio
Built-in speaker(s)
Yes
Number of built-in speakers
4
Speaker power
10 W
Number of microphone arrays
4
Built-in microphone
Yes
Network
Ethernet LAN
Yes
Wake-on-LAN ready
Yes
Ports & interfaces
HDCP
Yes
HDCP version
2.2
USB 2.0 Type-B Touch ports quantity
3
USB 2.0 Type-A hub ports quantity
5
USB connector type
USB Type-A, USB Type-B, USB Type-C
USB Type-C ports quantity
1
HDMI ports quantity
2
HDMI output ports quantity
1
HDMI version
2.0
DisplayPort version
1.2
DisplayPorts quantity
1
Ethernet LAN (RJ-45) ports
2
Line-out
Yes
OPS slot
1
S/PDIF out port
Yes
RS-232 ports
1
Ergonomics
VESA mounting
Yes
Panel mounting interface
600 x 400 mm
Wall mountable
Yes
Performance
Ambient light sensor
Yes
Proximity sensor
Yes
Power
Power consumption (max)
395 W
Power consumption (standby)
0.5 W
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
System requirements
Windows operating systems supported
Windows 10, Windows 11, Windows 8
Mac operating systems supported
Yes
Linux operating systems supported
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
20 - 85%
Storage temperature (T-T)
-20 - 60 °C
Weight & dimensions
Width
1703.5 mm
Depth
116.8 mm
Height
1009.2 mm
Weight
71.6 kg
Packaging data
Package width
2012 mm
Package depth
284 mm
Package height
1294 mm
Package weight
100 kg
Quantity per pack
1 pc(s)
Packaging content
USB cable length
3 m
Cables included
HDMI, Power, USB Type-A to Micro USB-B, USB Type-C to USB Type-C
