1/2.8” 4K Exmor CMOS, 8 megapixels, 0.46 lux, 1/1s to 1/32,000 sec, Zoom 30X, AC100 - 240V to DC 12V/2A, 180.0 x 192.0 x 145.0 mm, 2 kg

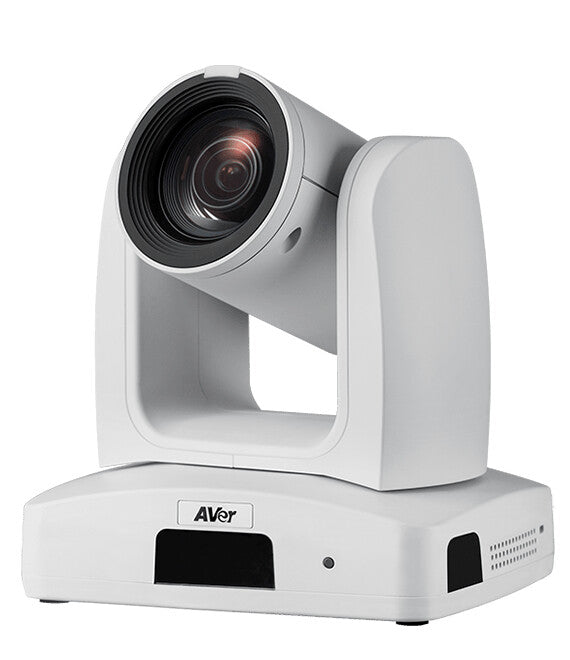

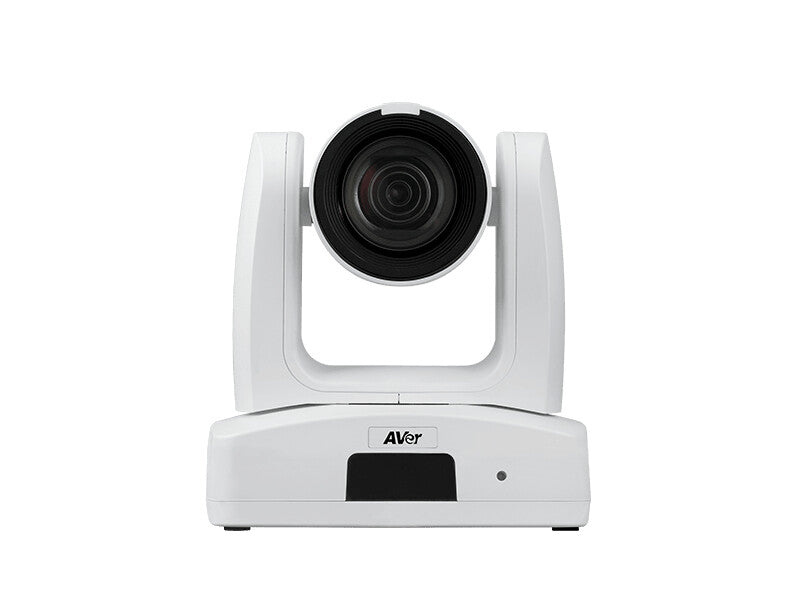

Capture Your Events With the Best Quality Video and the World's First UHD NDI HX3 Camera with AI! The AVer PTZ330UNV2 30X 4K AI NDI PTZ Camera is our latest generation of PTZs to offer the best image quality, video streaming support and AI functionality. The camera offers 4K resolution, 8MP picture with 60fps and simultaneous output of HDMI/IP/NDI HX3/3G-SDI. The PTZ330UNV2 is the world's first UHD NDI HX3 camera for better video with reduced latency – using a fraction of the bandwidth of NDI® high bandwidth. The PTZ330UNV2 features Zoom and Microsoft Teams video mode for easy conference setups and the SRT protocol to optimize video streaming performance across unpredictable networks. Built-in AI functions provide preset content areas or adjust FOV to capture everyone on screen.
Harness the Magic of NDI/HX3 Includes the most recent edition of the NDI protocol is NDI® version 3 (NDI® |HX3). Features 4Kp60 NDI output with latency less than 100ms.
Seamless tracking between your preset zones AVer SmartShoot uses AI functionality to optimize your camera controls for automatic and seamless content capturing between your preset areas. With SmartShoot’s Advanced Preset Zone Tracking, you can create an uncompromising multi-camera feel with just one PTZ330UNV2 across all your preset zones. Save effort and time, while providing your video with a huge variety of shooting ranges.
Highly versatile camera motion control The PTZ330UNV2 advanced Motion Control Settings allow you to preform precise and steady camera movement during recording. Customizable speed controls provide you the ability to change movement speeds to best optimize your recording experience and with a wide shooting range, you will always produce superior video content. Furthermore, the PTZ330UNV2 is capable of pan/tilt rotation maneuvers as small as 0.1° per step equipping you with perfectly fluid control when record.
Prepare for any angle with outstanding preset location functionality Preset the PTZ330UNV2 with up to 256 different locations through VISCA via RS232 and RS422 functionality. Always be prepared to change your recording view with its simplified IR remote and the ability to set 10 preprogrammed preset locations for easy manual control of the recording view.
Tally light Simplify multi-camera live video productions with an illuminated red light on the active camera.
Free Software for Users and AV Managers Whether you need a simple tool to control your PTZ or TR camera, or manage over a hundred on your network, AVer has great options. CaptureShare and PTZ Management for desktop and AVer PTZ Control Panel for iPad have you covered. For new voice tracking features, look to PTZ Link. Visit our support page for easy download of our desktop software.
Enjoy the unprecedented quality and support AVerCare delivers industry-leading 3 year advance replacement warranty with free RMA shipping and 24 hour turnaround time. We strive to provide industry leading product quality, service and support so you’re always up and running!
Camera
Megapixel (approx.)
8 MP
Camera type
Single camera
Sensor type
CMOS
Optical sensor size
25.4 / 2.8 mm (1 / 2.8")
Zoom capability
Yes
Optical zoom
30x
Digital zoom
1x
Combined zoom
30x
Field of view (tele)
2.8°
Field of view (wide)
69.2°
Focal length range
4.5 - 135 mm
Horizontal field of view (tele)
2.5°
Horizontal field of view (wide)
62.3°
Vertical field of view (tele)
1.4°
Vertical field of view (wide)
37.3°
Minimum illumination
0.46 lx
Progressive scan
Yes
Flip & mirror
Yes
White balance
ATW, Auto, Manual, One push
Focus adjustment
Auto/Manual
Wide Dynamic Range (WDR)
Yes
Back Light Compensation (BLC)
Yes
Number of camera presets
10
Gain control type
Auto/Manual
PTZ protocols
CGI, Pelco-P/D, VISCA
PTZ control
Yes
Snapshot
Yes
3D NR (Noise Reduction)
Yes
Face tracking
Yes
Photo feature
Yes
Video
Maximum video resolution
3840 x 2160 pixels
Maximum frame rate
60 fps
HD type
4K Ultra HD
Supported video modes
720p, 1080p, 2160p
Video formats supported
H.264, H.265, M-JPEG, YUY2
Number of TV lines
1400
Design
Product colour
White
Mounting type
Stand/Wall mounting
Image stabilizer
Yes
Tilt angle range
-30 - 90°
Pan range
-170 - 170°
Tally light
Yes
Web-based management
Yes
Tilt preset speed
200 °/sec
Tilt speed (max)
100 °/sec
Tilt speed (min)
0.1 °/sec
Pan preset speed
200 °/sec
Pan speed (max)
100 °/sec
Pan speed (min)
0.1 °/sec
Cable management
Yes
Ports & interfaces
HDMI ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
1
RS-232 ports
1
RS-422 ports
1
Ethernet LAN (RJ-45) ports
1
DC-in jack
Yes
3G-SDI output
Yes
Line-in
Yes
Power
Power source type
DC
AC input frequency
50/60 Hz
AC input voltage
100-240 V
DC input voltage
12 V
Input current
2 A
Power consumption (typical)
19 W
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 80%
Storage relative humidity (H-H)
20 - 95%
Technical details
Warranty period
2 year(s)
Network
Ethernet LAN data rates
10,100,1000 Mbit/s
Streaming capability
Yes
Network streaming
Yes
Bit rate range
512 - 12000 Kbit/s
Bit rate control
Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Multi-stream capability
5: HDMI / RTSP / NDI HX2 / USB(4Kp60) & 3G-SDI(1080P60) or 4: HDMI / RTSP / NDI HX3(4Kp60) & 3G-SDI(1080P60)
