AVerMedia
AVerMedia PTC500S 2 MP Black 1920 x 1080 pixels 60 fps CMOS 25.4 / 2.8 mm (1 / 2.8")
AVerMedia PTC500S 2 MP Black 1920 x 1080 pixels 60 fps CMOS 25.4 / 2.8 mm (1 / 2.8")
SKU:61U9P10000AH
Low stock: 1 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- 2 MP CMOS 25.4 / 2.8 mm (1 / 2.8")
- Full HD 1920 x 1080 pixels 60 fps
- Digital zoom: 12 Optical zoom: 30
- Signal-to-Noise Ratio (SNR): 50 dB
- Black

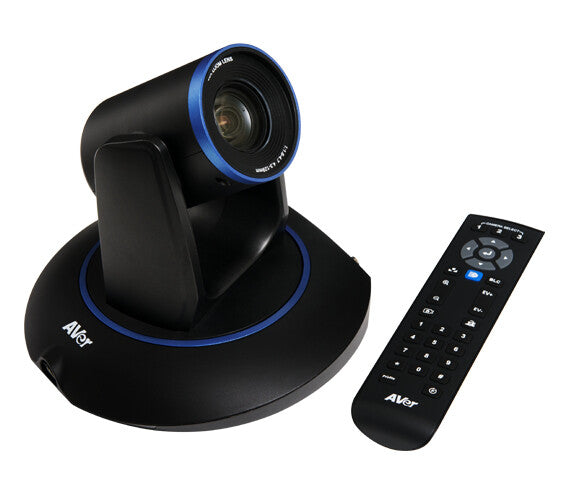

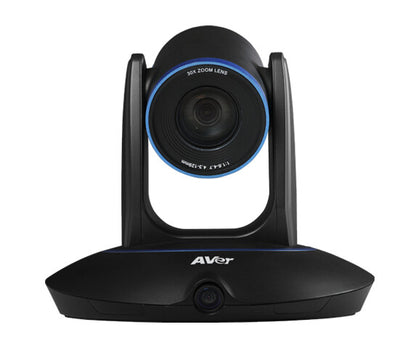

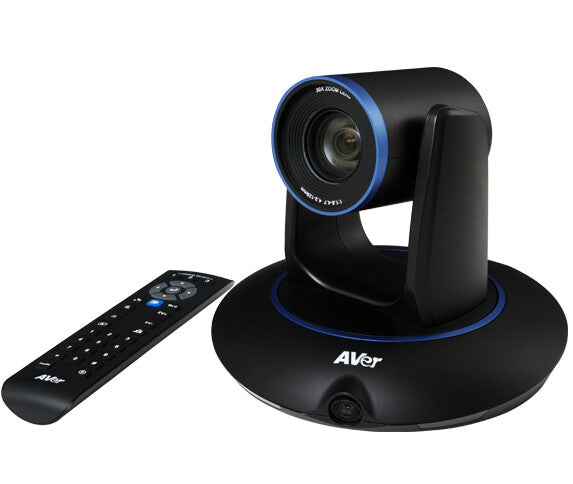

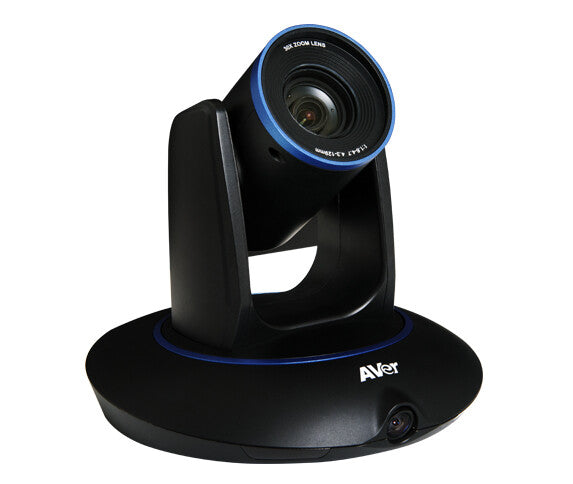

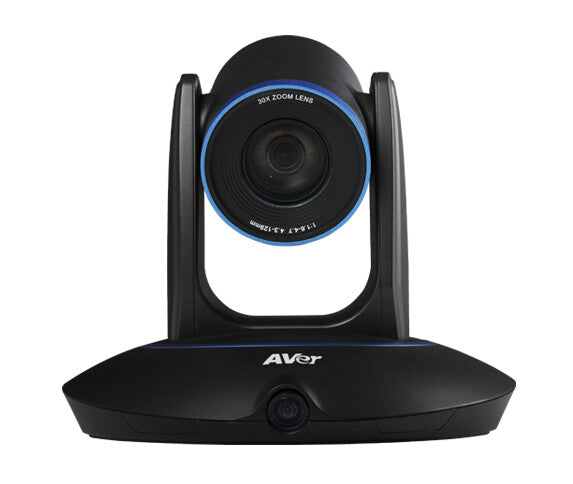

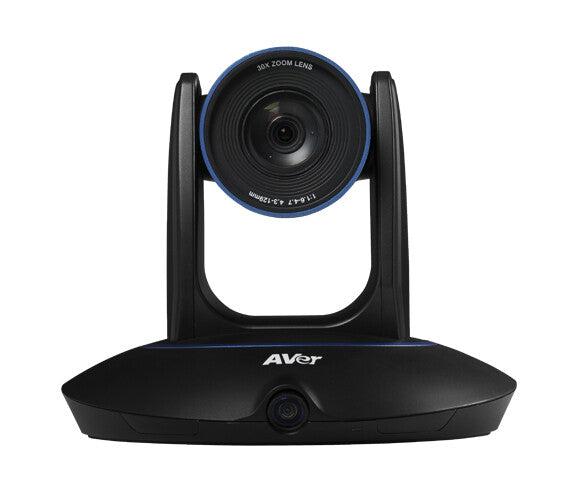

Professional Auto Tracking Camera
Create engaging video for streaming, sharing and recording during lectures, demonstrations, video conferences, speeches, and more with the AVer PTC500S Professional Auto Tracking Camera.
The PTC500S boasts a powerful PTZ camera with 30X optical zoom and a secondary 120° FOV panoramic camera providing users crystal-clear full HD 1080p video resolution without the need of an experienced camera operator.
Wide Area Tracking
Capture Every Interaction
Track your target everywhere with Wide Area Tracking. Wide Area Tracking provides presenters the flexibility to leave the stage and interact with a crowd or students, all while being continuously tracked even if they become obscured by other people or objects.
Stage Tracking
Track Your Target in Any Environment
Get high quality, hands-free video streaming and recording with Stage Tracking. Fluidly track your target with Effective Zone settings allowing for up to 8 blocking zones to capture strategic professional looking video.
Segment Tracking
Never Miss a Step
Enhance the capturing of content on multiple displays with Segment Tracking. Create 4 Content Zones that allow for immediate recognition and tracking of your target as they move between Content Zones, perfectly capturing the content on display rather than your presenter.
| Camera | |
|---|---|
| Megapixel (approx.) | 2 MP |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Optical zoom | 30x |
| Digital zoom | 12x |
| Focal length range | 4.3 - 129 mm |
| Field of view (FOV) angle | 120° |
| Minimum illumination | 0.23 lx |
| Signal-to-Noise Ratio (SNR) | 50 dB |
| PTZ control | Yes |
| Fastest camera shutter speed | 1/32000 s |
| Slowest camera shutter speed | 0.2 s |
| Video | |
|---|---|
| Maximum video resolution | 1920 x 1080 pixels |
| Maximum frame rate | 60 fps |
| HD type | Full HD |
| Resolution at capture speed | 1920x1080@60fps |
| Supported video modes | 1080p |
| Design | |
|---|---|
| Product colour | Black |
| Tilt angle range | -30 - 90° |
| Pan range | -175 - 175° |
| LED indicators | Power |
| Tilt speed (max) | 50 °/sec |
| Tilt speed (min) | 2 °/sec |
| Pan speed (max) | 50 °/sec |
| Pan speed (min) | 2 °/sec |

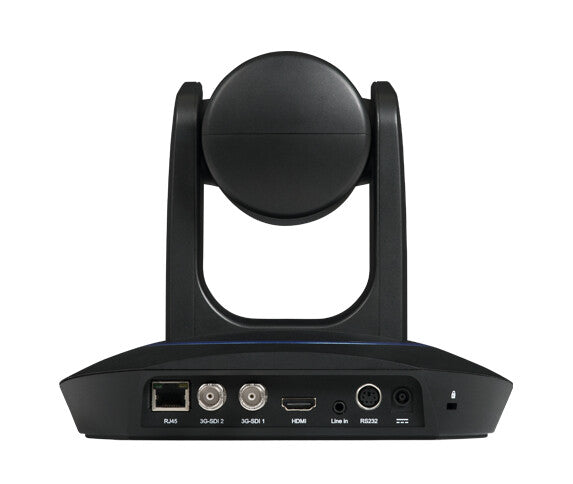

| Ports & interfaces | |
|---|---|
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| 3G-SDI output | Yes |
| Power | |
|---|---|
| Power source type | DC |
| DC input voltage | 12 V |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 95% |
| Network | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Supported network protocols | RTSP, RTMP, ONVIF |
| Audio | |
|---|---|
| Noise reduction | Yes |
| Weight & dimensions | |
|---|---|
| Width | 210 mm |
| Depth | 201.1 mm |
| Height | 176 mm |
| Weight | 1.75 kg |
