Aten
Regular price
£950.84 GBP
Regular price
Sale price
£950.84 GBP
Unit price
/
per
Sale
Sold out
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Refresh
SKU: VP2021
Low stock: 2 left

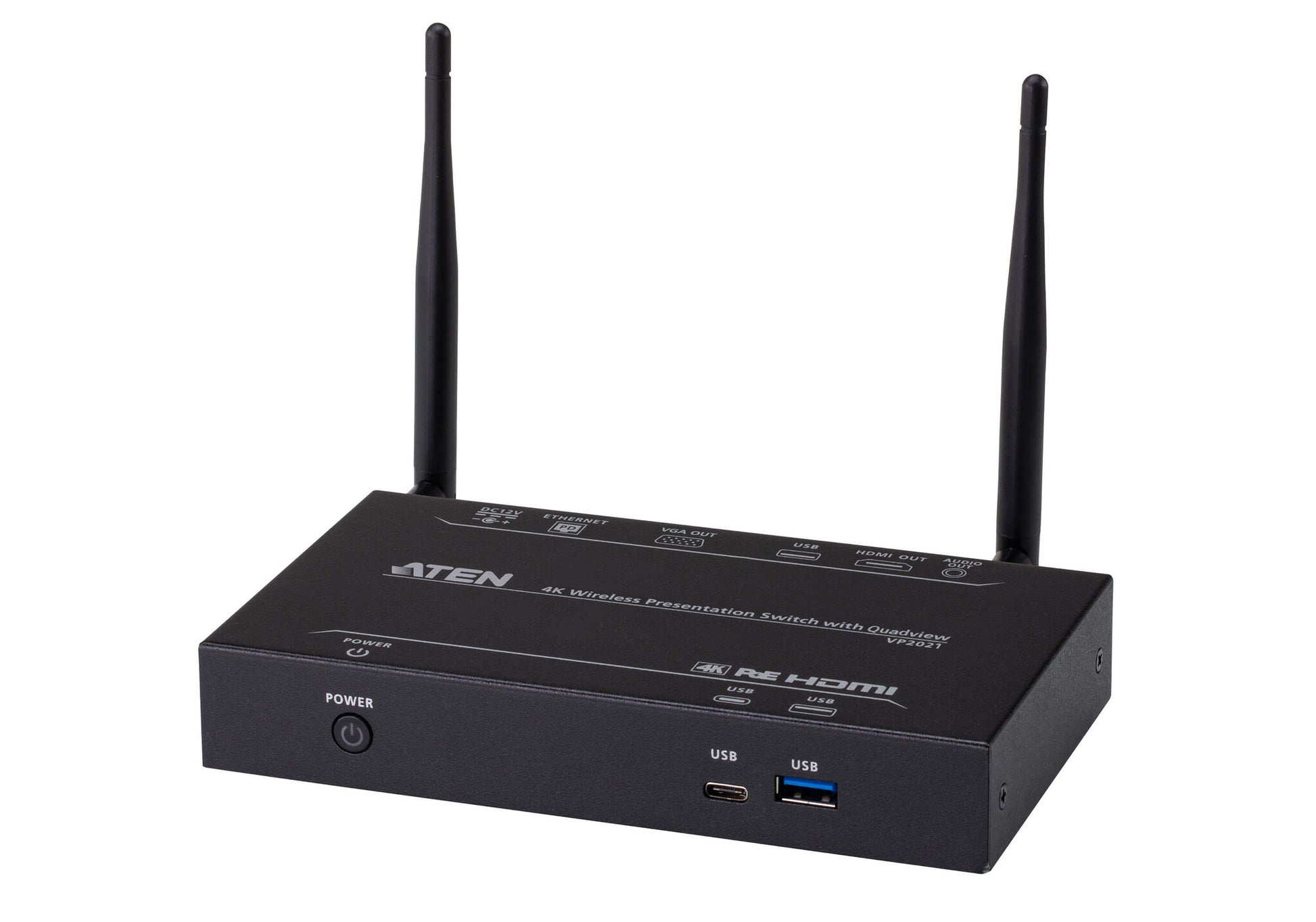

4K Wireless Switch with Quad View
Design
LED indicators
Power
Housing material
Metal
Product colour
Black
Form factor
Desktop
Features
Number of simultaneously connected devices (max)
4
Google Cast
Yes
AirPlay mirroring
Yes
Supported graphics resolutions
1280 x 720 (HD 720), 1280 x 800 (WXGA), 1280 x 1024 (SXGA), 3840 x 2160, 800 x 600 (SVGA), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1024 x 768 (XGA), 1680 x 1050 (WSXGA+), 640 x 480 (VGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Maximum resolution (HDMI)
4096 x 2160 pixels
Maximum resolution (VGA)
1920 x 1080 pixels
Management features
On/off switch
Yes
Web-based management
Yes
Antenna
Antennas quantity
2
Antenna type
External
Network
Maximum operating distance
30 m
Security algorithms
WPA2-PSK, WEP, WPA, WPA2
Frequency band
2.4/5 GHz
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
Wi-Fi standards
Wi-Fi 5 (802.11ac)

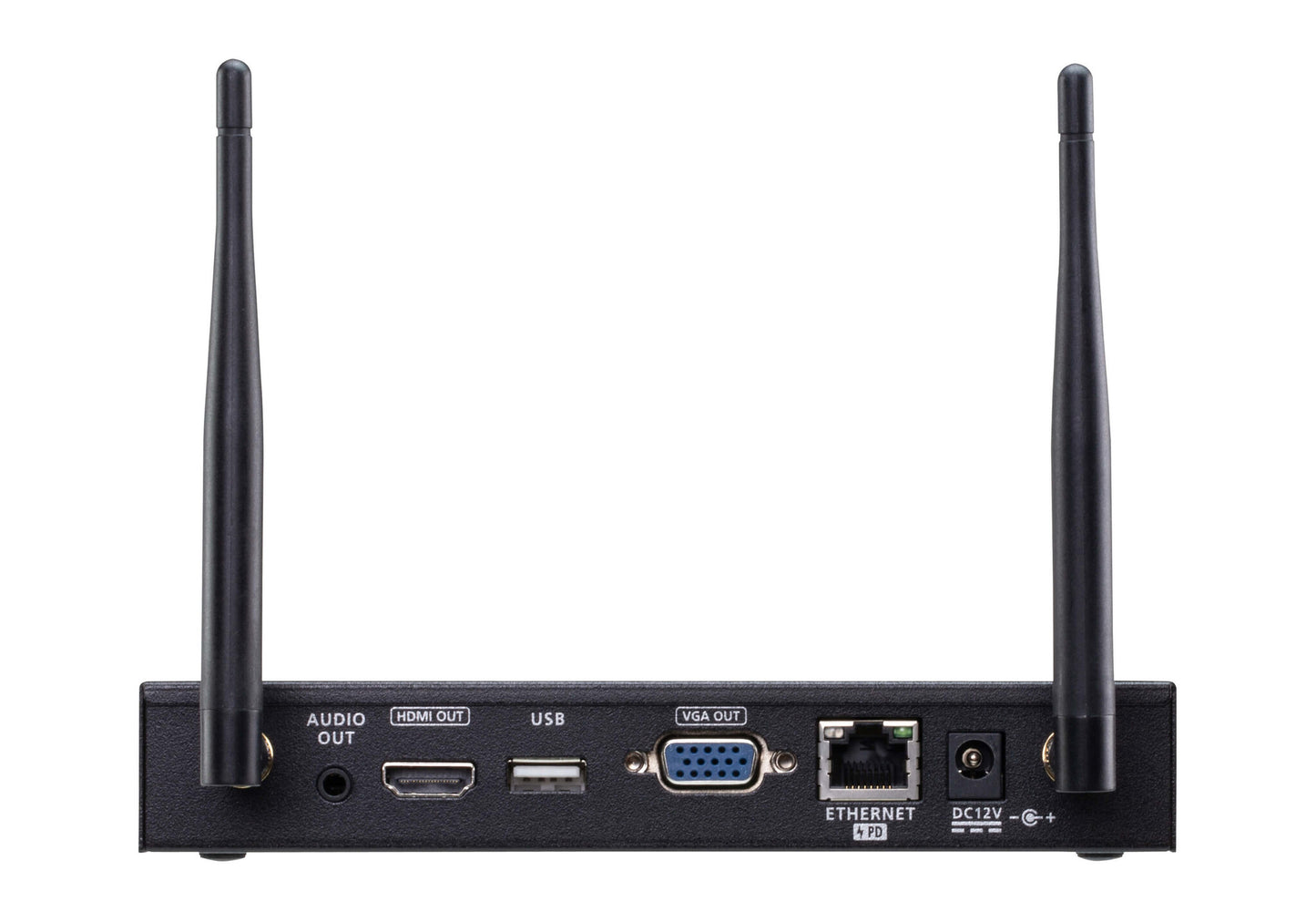

Ports & interfaces
DC-in jack
Yes
Headphone outputs
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
USB 2.0 ports quantity
1
Ethernet LAN (RJ-45) ports
1
VGA (D-Sub) output ports
1
Number of HDMI outputs
1
Interface
HDMI + VGA (D-Sub)
Power
Power over Ethernet (PoE)
Yes
Power consumption (typical)
12 W
Input voltage
12 V
Power source type
DC
Operational conditions
Storage temperature (T-T)
0 - 80 °C
Operating relative humidity (H-H)
-20 - 60%
Operating temperature (T-T)
0 - 40 °C
Weight & dimensions
Package weight
1.15 kg
Weight
472 g
Height
28.3 mm
Depth
170 mm
Width
104 mm
Packaging content
Quick start guide
Yes
AC adapter included
Yes
Logistics data
Products per master (outer) case
5 pc(s)
Master (outer) case gross weight
6.37 kg
Master (outer) case length
500 mm
Master (outer) case width
232 mm
Master (outer) case height
283 mm
Country of origin
Taiwan
View full details
