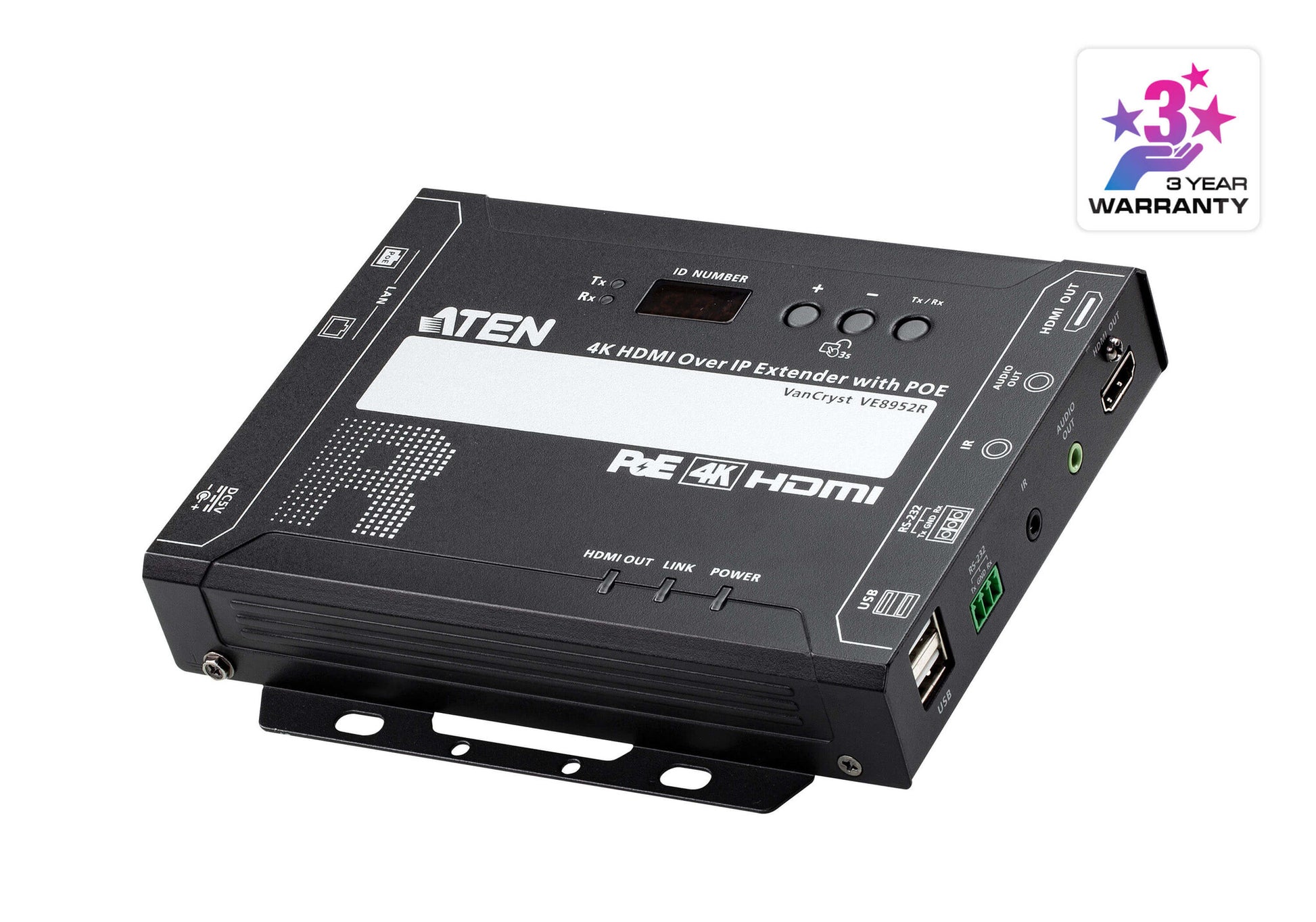

ATEN VE8952R AV extender AV receiver Black
ATEN VE8952R AV extender AV receiver Black
SKU:VE8952R
Low stock: 3 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

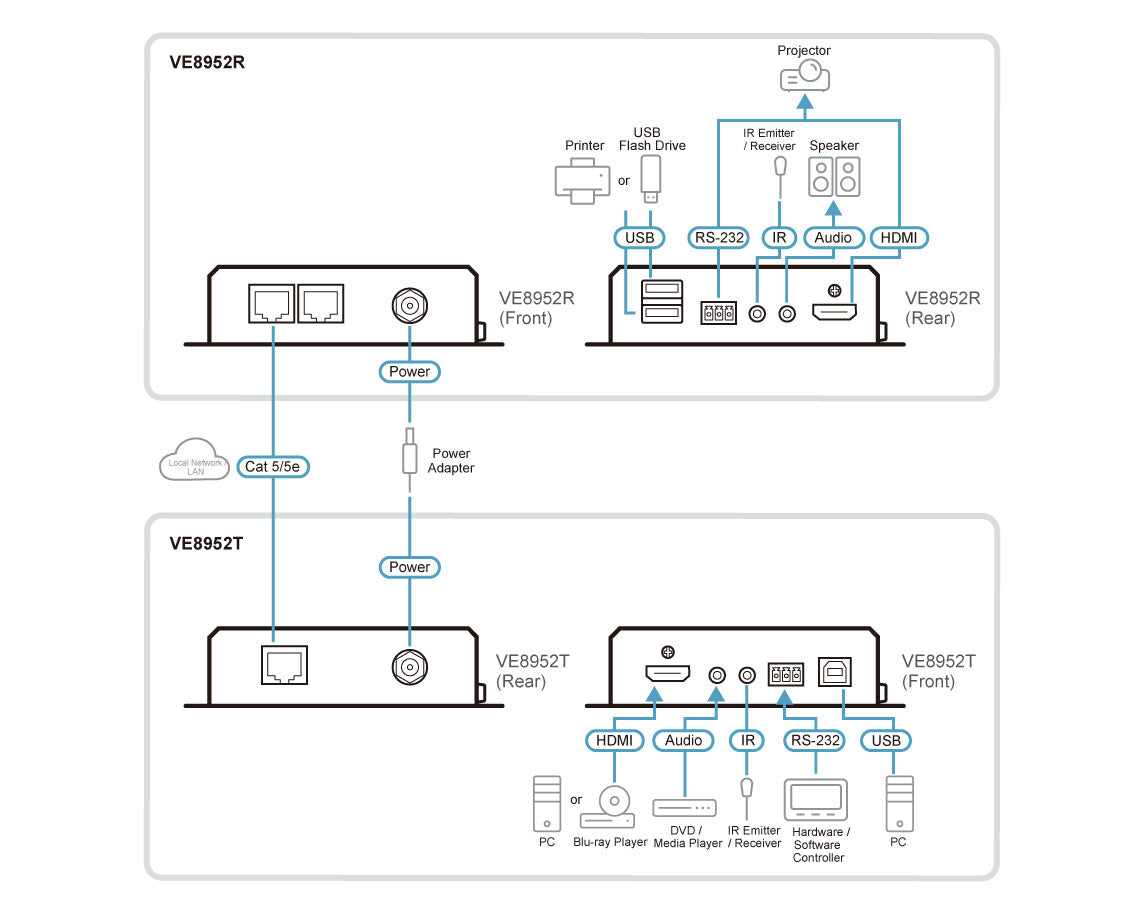

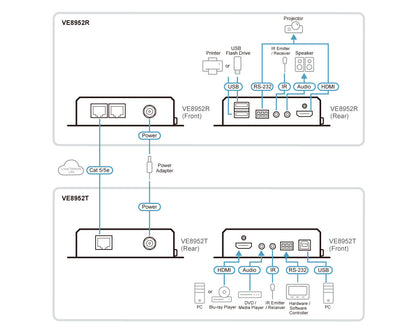

- Extends AV connections from a simple point-to-point to a multi-point to multi-point setup via LAN
- Delivers visually lossless high-quality video up to 4K @ 30 Hz 4:4:4
- Daisy Chaining - Connects multiple displays through a single port
- Video Wall Support
>
*If you experience issues related to your network architecture, please contact ATEN representatives for support. If you experience issues related to your network architecture, please refer VE89 Implementation guide or contact ATEN representatives for support.
| Features | |
|---|---|
| Product colour | Black |
| Impedance | 100 Ω |
| Daisy chain | Yes |
| Rack mounting | No |
| HDCP | Yes |
| Material | Metal |
| LED indicators | Yes |
| Extended display identification data (EDID) | Yes |
| Maximum refresh rate | 60 Hz |
| Maximum transfer distance | 100 m |
| Maximum resolution | 4096 x 2160 pixels |
| Type | AV receiver |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Remote (IR) output | 1 |
| Audio output | 1 |
| RS-232 output ports | 1 |
| USB connector type | USB Type-A |
| USB ports quantity | 2 |
| Number of HDMI outputs | 1 |
| RJ-45 input ports | 2 |
| Connectivity technology | Wired |
| Power | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| External power adapter | Yes |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
|---|---|
| Weight | 680 g |
| Height | 29 mm |
| Depth | 124.9 mm |
| Width | 166 mm |
