Aten

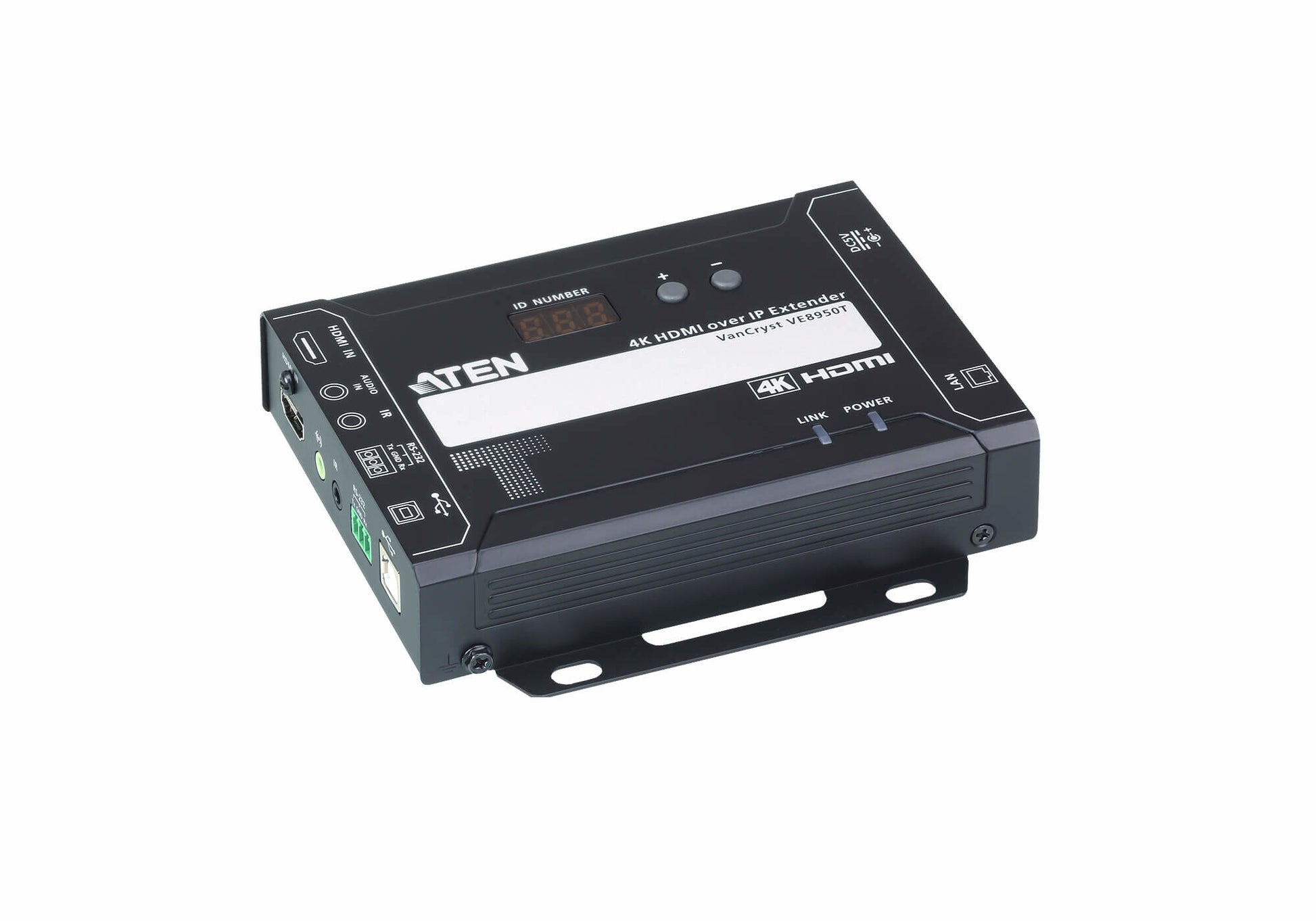

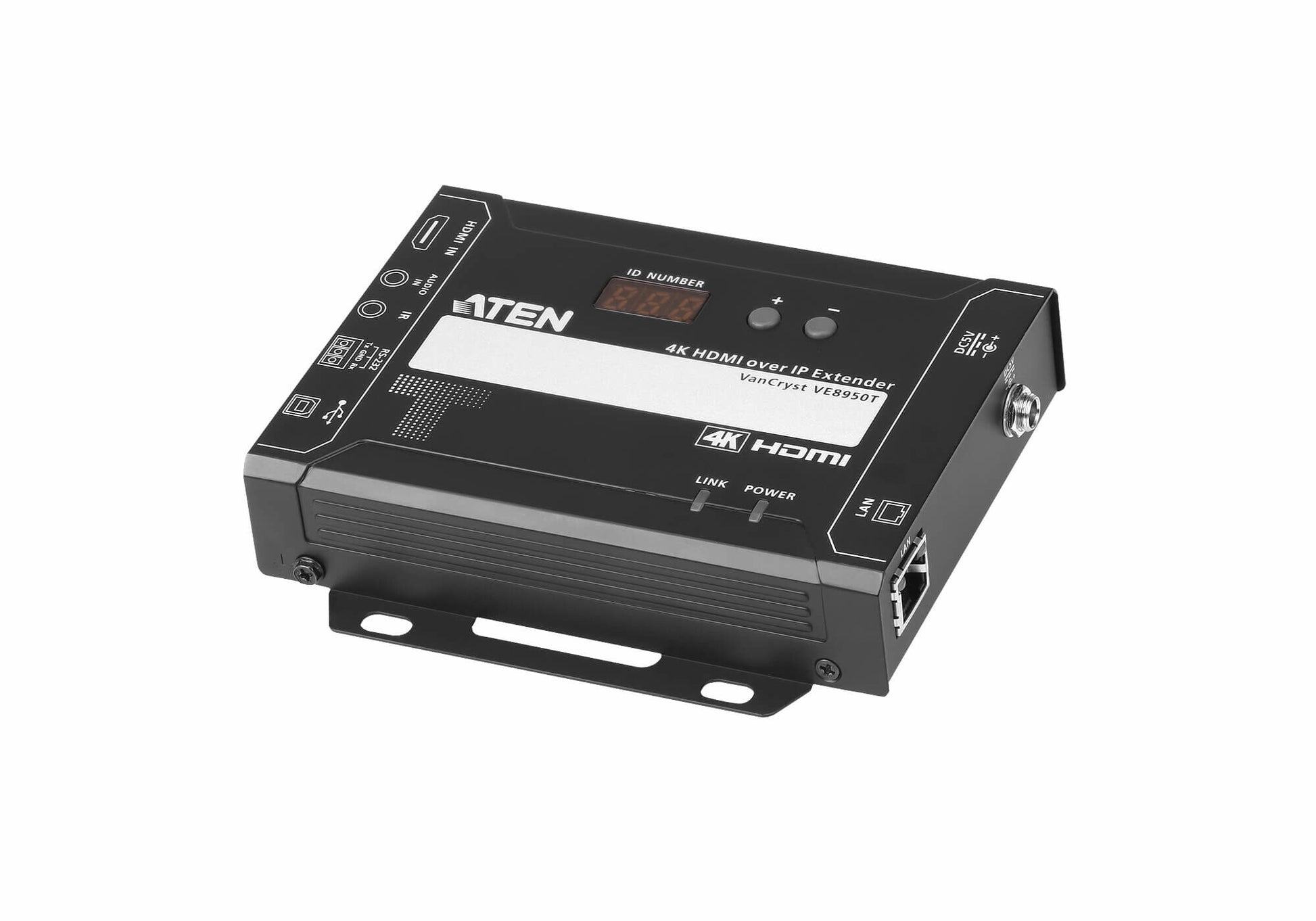

ATEN VE8950T AV transmitter Black

ATEN VE8950T AV transmitter Black

Regular price £951.60 GBP
Regular price Sale price £951.60 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:VE8950T-AT-E

Low stock: 2 left

  • Limitless scalability and flexibility
  • No complicated IP setup
  • No additional server PCs or software required
  • Go further for less with daisy chaining
4K HDMI over IP Transmitter

The ATEN VE8950T Video over IP Transmitter delivers visually lossless 4K AV signals with low latency over long distance via a local network of standard Gigabit network switch*.

The VE8950T provides an effective, easy-to-use, and economical digital signage solution with the following features and advantages that directly address the challenges system integrators encounter when implementing AV over IP systems:

Engineered to meet today’s demands of large scale, multi-display, 4K signal transmission, and designed to be easy to set up and operate, the VE8950T Video over IP Transmitter is an ideal product for a wide range of environments, such as trade shows, airports, university campuses, conference centers, and shopping centers.

Package Contents

- 1x VE8950T 4K HDMI over IP Transmitter
- 1x RS-232 Terminal block
- 1x 5V Power adapter
- 1x User instructions

Features
Type AV transmitter
Maximum resolution 4096 x 2160 pixels
Cable types supported Cat5e, Cat6
Maximum transfer distance 100 m
Audio system stereo
Daisy chain Yes
Baud rate 19.2 Kbit/s
Firmware upgradeable Yes
Control type Buttons
Impedance 100 Ω
Supported graphics resolutions 3840 x 2160, 4096 x 2160
Supported video modes 1080p
LED indicators Yes
Material Metal
HDCP Yes
Product colour Black

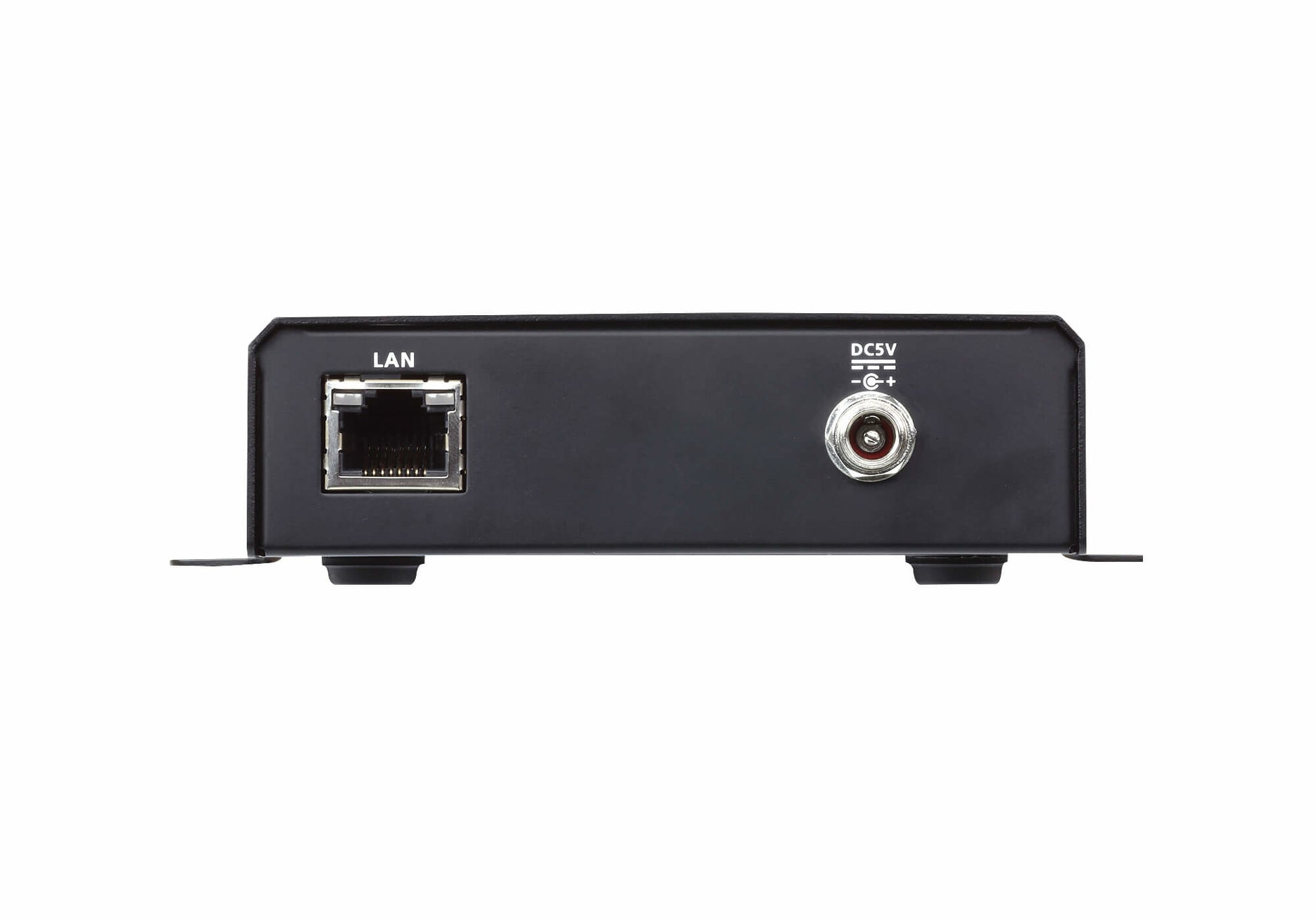

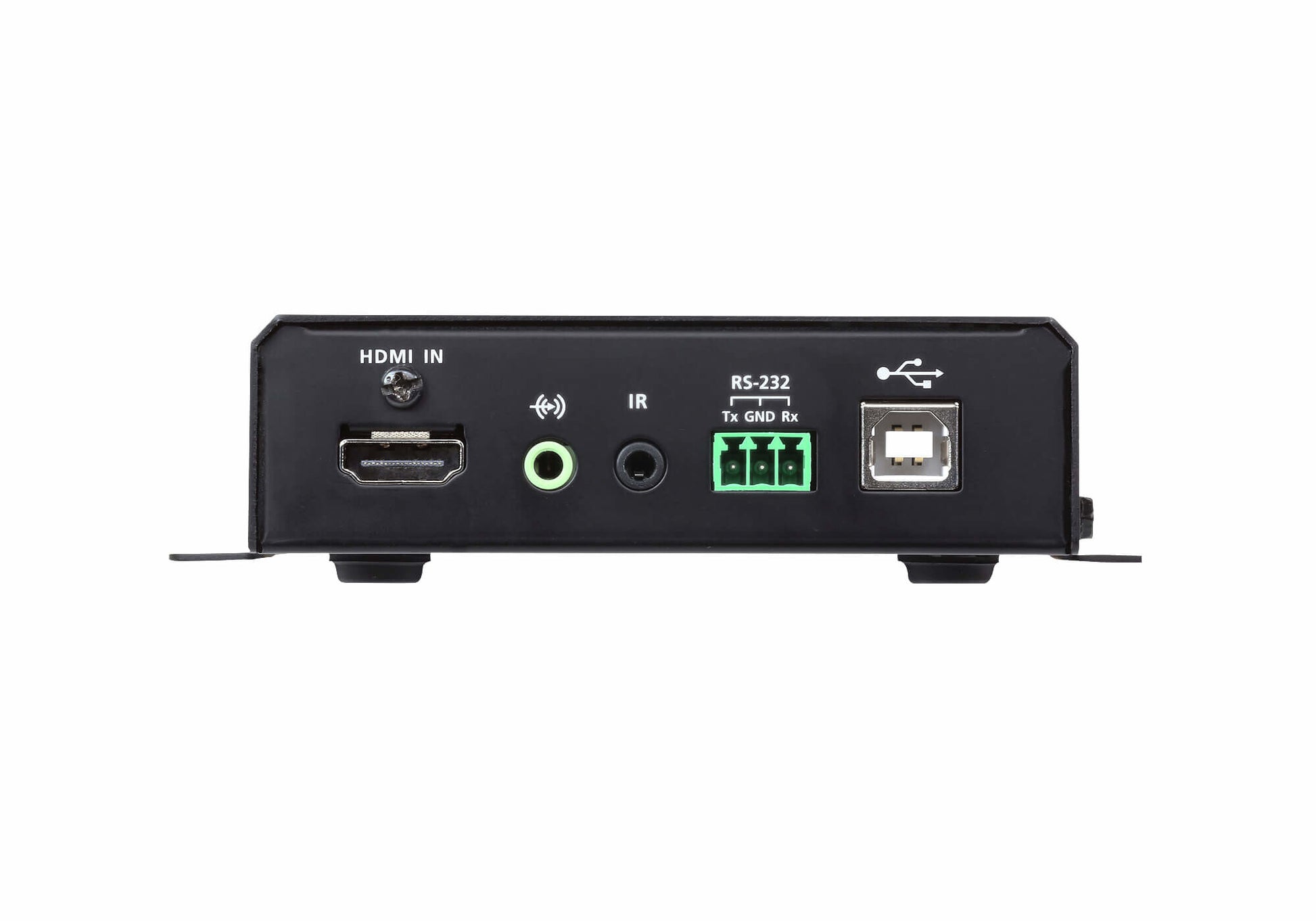

Ports & interfaces
Connectivity technology Wired
RJ-45 output ports 1
HDMI in 1
USB ports quantity 1
USB version 2.0
USB connector type USB Type-B
Video in 1
Serial ports quantity 1
Audio input 1
Remote (IR) input 1
Serial interface type RS-232
DC-in jack Yes
Power
Operating voltage 5 V
Power consumption (typical) 3.08 W
External power adapter Yes
Operational conditions
Operating relative humidity (H-H) 0 - 95%
Storage temperature (T-T) -20 - 60 °C
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Width 136 mm
Depth 101 mm
Height 29.6 mm
Weight 500 g
Packaging content
AC adapter included Yes
Manual Yes
Technical details
Compliance certificates RoHS
