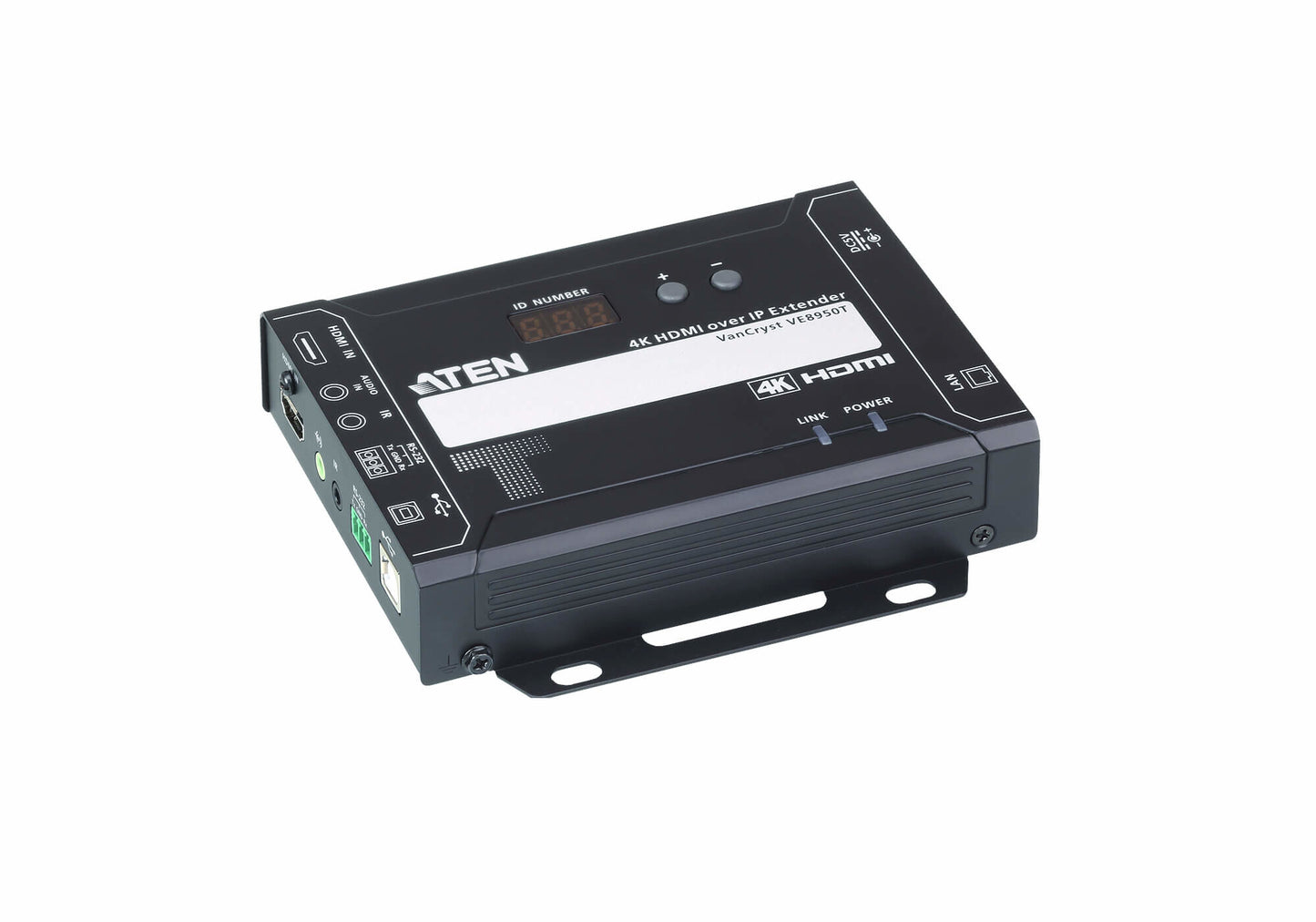

ATEN VE8950T AV extender AV transmitter Black
ATEN VE8950T AV extender AV transmitter Black
SKU:VE8950T
Low stock: 8 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Lightweight Compression with Ultra-low Latency Delivers visually lossless high-quality video up to 4K @ 30 Hz 4:4:4Ensures stunning quality video using ATEN advanced video lossless compression technologyEDID Expert™ selects the optimum EDID settings for smooth power-up, high-quality display and the best video resolution across different screensOffers different levels of video compression rate including Smooth, Balance, and High Quality for users to choose depending on practical usage
- Ensures stunning quality video using ATEN advanced video lossless compression technology
- EDID Expert™ selects the optimum EDID settings for smooth power-up, high-quality display and the best video resolution across different screens
- Offers different levels of video compression rate including Smooth, Balance, and High Quality for users to choose depending on practical usage
The ATEN VE8950T Video over IP Transmitter delivers visually lossless 4K AV signals with low latency over long distance via a local network of standard Gigabit network switch*.
The VE8950T provides an effective, easy-to-use, and economical digital signage solution with the following features and advantages that directly address the challenges system integrators encounter when implementing AV over IP systems:
Engineered to meet today’s demands of large scale, multi-display, 4K signal transmission, and designed to be easy to set up and operate, the VE8950T Video over IP Transmitter is an ideal product for a wide range of environments, such as trade shows, airports, university campuses, conference centers, and shopping centers.
*Note: Regarding the detail information requirement of network switch, please refer to Implementation guide : assets.aten.com/product/manual/Implementation_Guide.pdf
| Features | |
|---|---|
| Product colour | Black |
| Impedance | 100 Ω |
| Control type | Buttons |
| Firmware upgradeable | Yes |
| Baud rate | 19.2 Kbit/s |
| Daisy chain | Yes |
| HDCP | Yes |
| Material | Metal |
| LED indicators | Yes |
| Supported video modes | 1080p |
| Supported graphics resolutions | 3840 x 2160, 4096 x 2160 |
| Audio system | stereo |
| Maximum transfer distance | 100 m |
| Cable types supported | Cat5e, Cat6 |
| Maximum resolution | 4096 x 2160 pixels |
| Type | AV transmitter |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Serial ports quantity | 1 |
| Serial interface type | RS-232 |
| Remote (IR) input | 1 |
| Audio input | 1 |
| Video in | 1 |
| USB connector type | USB Type-B |
| USB version | 2.0 |
| USB ports quantity | 1 |
| HDMI in | 1 |
| RJ-45 output ports | 1 |
| Connectivity technology | Wired |
| Power | |
|---|---|
| External power adapter | Yes |
| Power consumption (typical) | 3.08 W |
| Operating voltage | 5 V |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
|---|---|
| Weight | 500 g |
| Height | 29.6 mm |
| Depth | 101 mm |
| Width | 136 mm |
| Packaging content | |
|---|---|
| Manual | Yes |
| AC adapter included | Yes |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
