Aten

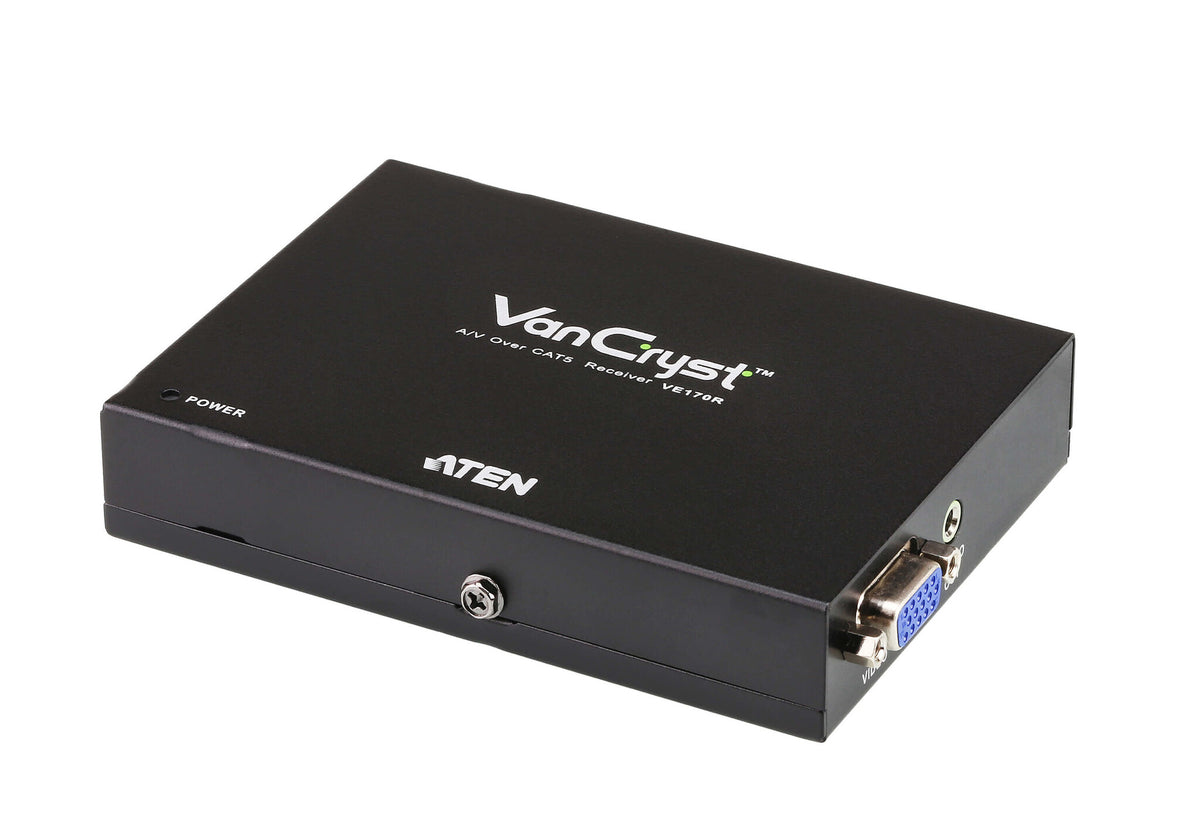

ATEN VE170R AV extender AV receiver Black

ATEN VE170R AV extender AV receiver Black

VE170R

£130.08 GBP£108.40 GBP
£0.00 GBP £130.08 GBP£108.40 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Low stock: 4 left

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • Long distance transmission up to 300 m
  • Superior video quality -
  • 1920x1200 @ 60Hz (30 m);1600x1200 @ 60Hz (150 m);1024x768@ 60Hz (300 m)
  • Audio enabled (mono)
  • Adjustable gain/compensation control
  • Built-in 8KV/15KV ESD protection
  • Rack-mountable
  • Complies with VESA FDMI mount standard
VGA/Audio Cat 5 Receiver (1024 x 768@300m)

The VE170R A/V Over Cat 5 Receiver connects to a transmitter* to extend signals up to 300m from the source using a Cat 5e cable. It is a cost-effective and efficient solution for sending and receiving high quality audio and video content.

Features
Product colour Black
LED indicators Yes
Supported graphics resolutions 1024 x 768 (XGA), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA)
Audio system Mono
Maximum transfer distance 300 m
Cable types supported Cat5
Maximum resolution 1920 x 1200 pixels
Type AV receiver

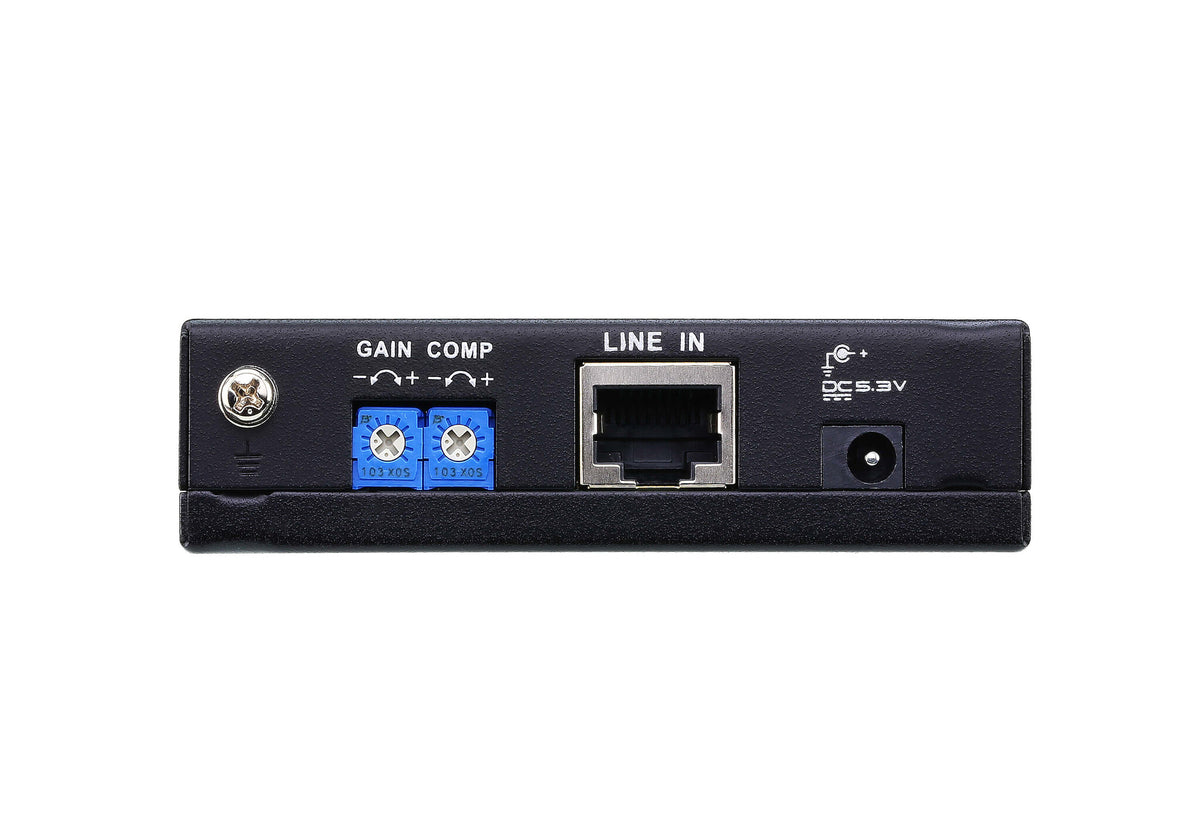

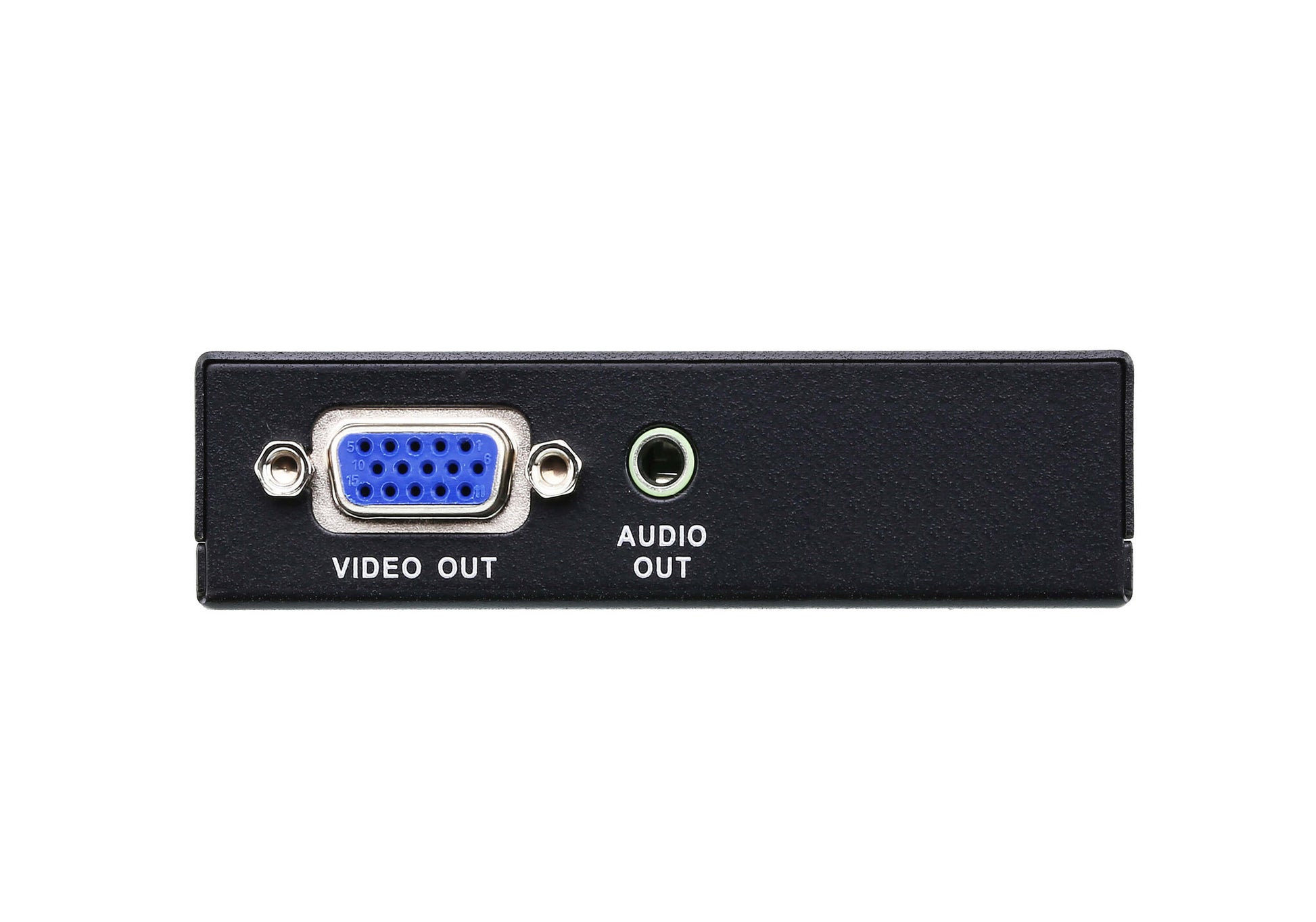

Ports & interfaces
DC-in jack Yes
Audio output 1
VGA (D-Sub) ports quantity 1
VGA (D-Sub) output ports 1
RJ-45 input ports 1
Power
External power adapter Yes
Operating voltage 5.3 V
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 0 - 80%
Weight & dimensions
Weight 250 g
Dimensions (WxDxH) 85.6 x 119.5 x 22.6 mm
