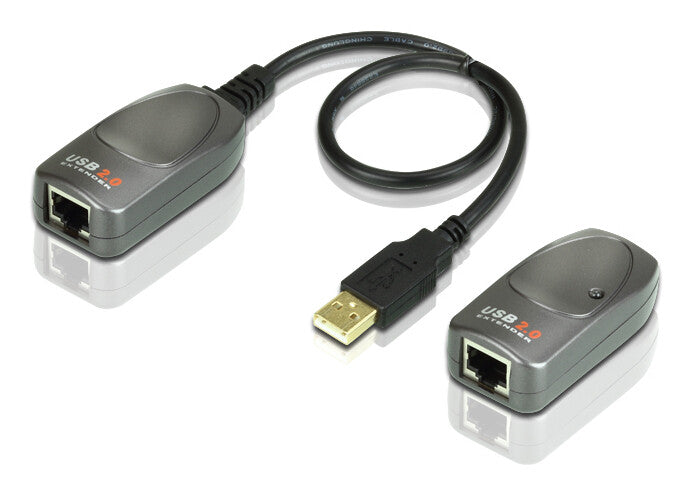

ATEN USB 2.0 Over Cat5e/6 Extender (60m)

ATEN USB 2.0 Over Cat5e/6 Extender (60m)

UCE260

£119.23 GBP£99.36 GBP
£0.00 GBP £119.23 GBP£99.36 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

12 in stock

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • Supports any High-Speed (480Mb/s), full-speed (12 Mb/s) or low-speed (1.5 Mb/s) USB devices
  • Extends signal transmission distance of a USB devices up to 60m via a Cat 5/5e/6 cable
  • Includes an AC adapter to stabilize power supply
  • Hot-Pluggable
  • The most cost-effective USB extender solution
  • No additional software driver required
USB 2.0 Over Cat5e/6 Extender (60m)

UCE260 can easily send the USB signals via Cat.5/5e/6 cable up to 60 meters (196 ft) at data rate of High Speed (480Mb/s) , Full Speed (12Mb/s) and Low Speed (1.5Mb/s). Without any configuration or software driver, this USB extender allows you to extend your USB device or hub up to 60m from your computer, which overcomes the typical USB cable limitation.
1x UCE260 USB 2.0 Extender (1x Local Unit with USB Cable, 1x Remote Unit)
1x 0AD8-1705-26M1 Power Adapter
1x User Instructions

Technical details
Certification CE, FCC
Plug and Play Yes
Cable types supported Cat5, Cat5e, Cat6
Housing material Plastic
Product colour Grey
Maximum transfer distance 60 m
Data transfer rate 480 Mbit/s
Type Console transmitter & receiver
Ports & interfaces
DC-in jack Yes
RJ-45 ports quantity 2
USB 2.0 Type-A ports quantity 2
Weight & dimensions
Package weight 335 g
Package height 237 mm
Package depth 162 mm
Package width 61 mm
Receiver weight 20 g
Transmitter weight 40 g
Weight 170 g
Height 21.9 mm
Depth 63 mm
Width 31 mm
Operational conditions
Operating relative humidity (H-H) 0 - 80%
Storage temperature (T-T) -20 - 60 °C
Operating temperature (T-T) 0 - 40 °C
Packaging content
AC adapter included Yes
Manual Yes
Power
Power source type DC, USB
Logistics data
Products per master (outer) case 20 pc(s)
Master (outer) case net weight 3.4 kg
Harmonized System (HS) code 84733020
